Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Hole:
Smooth through hole obtained by moulding the plastic.
Special Requests:
None.

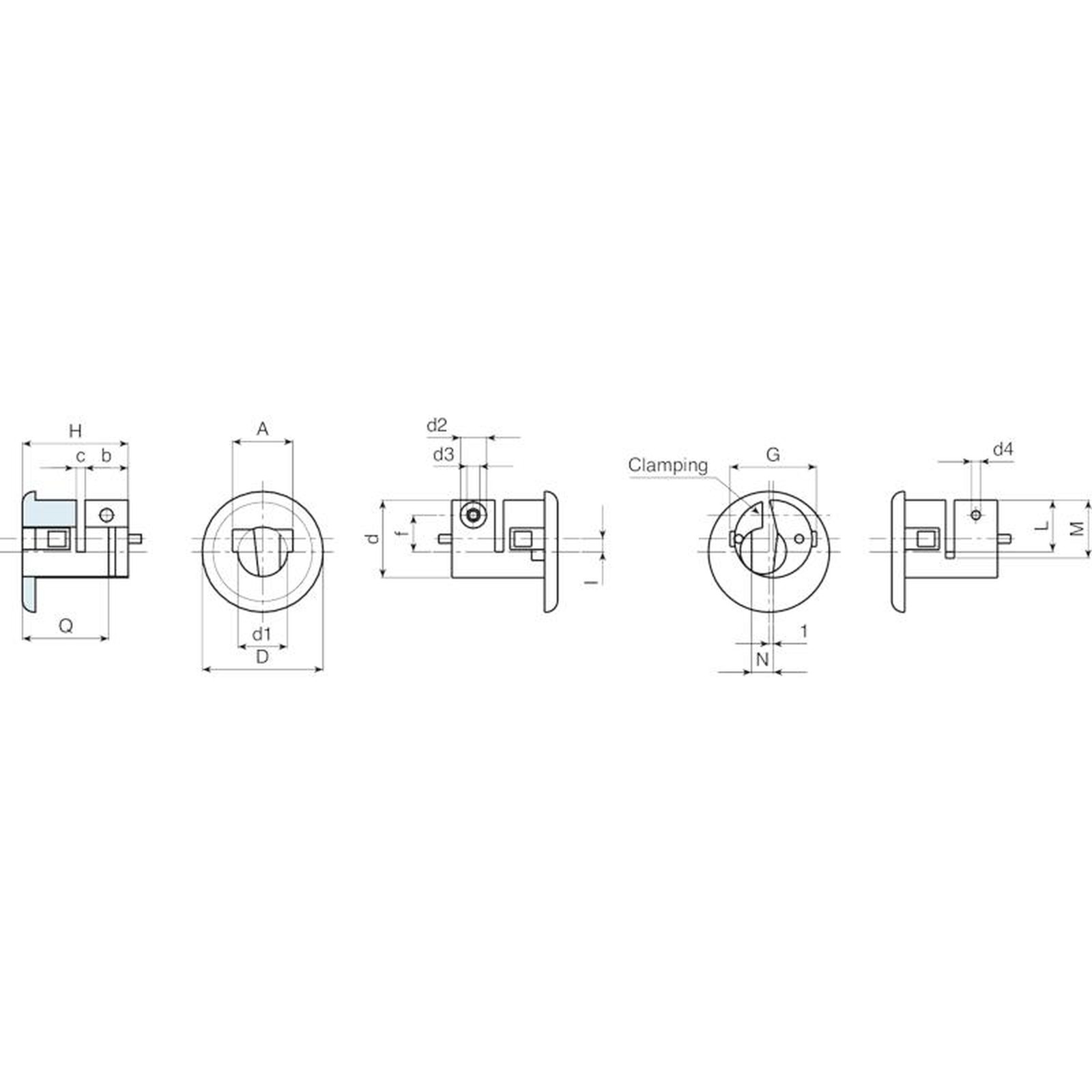

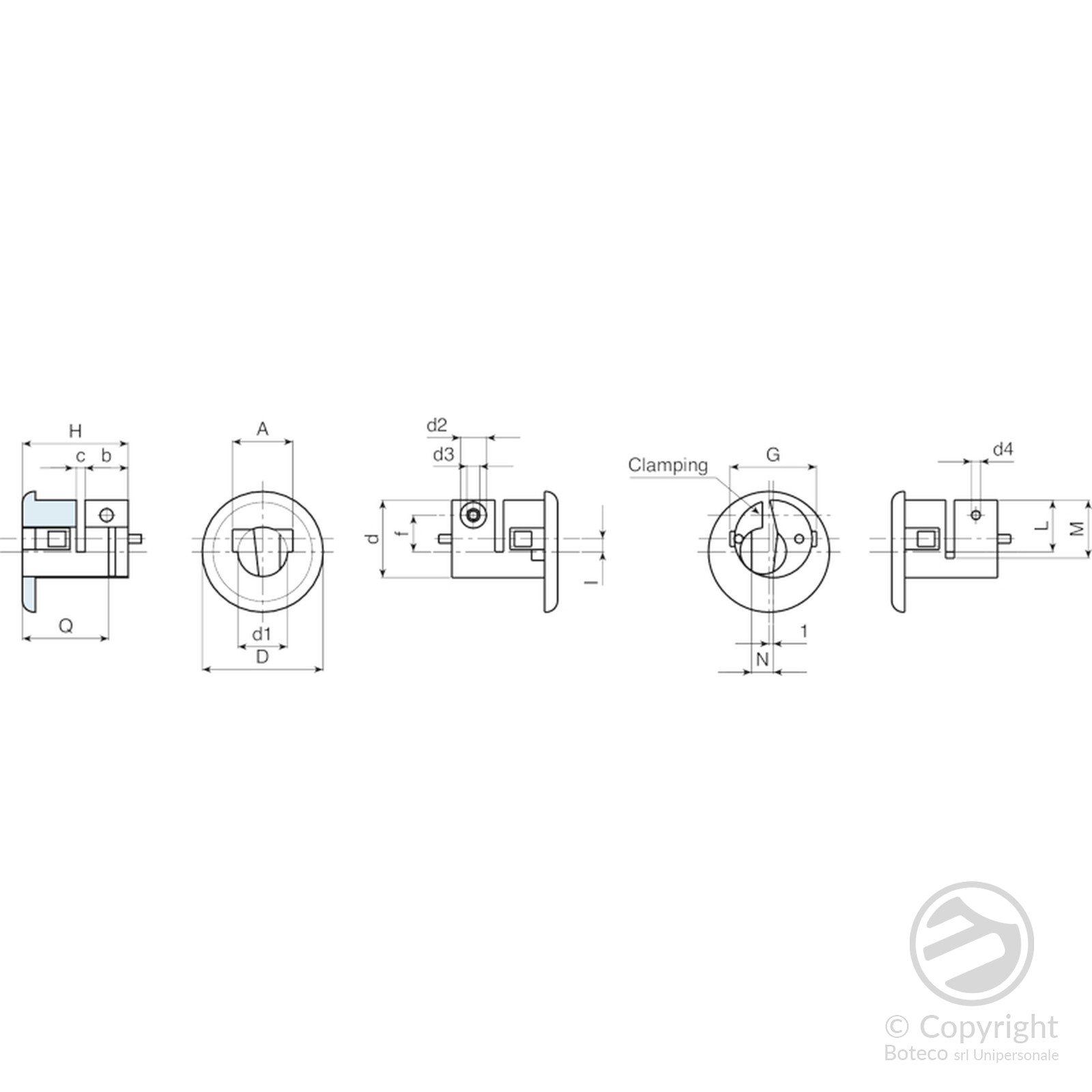

| Code | art. | D | H | d | d1 | d2 | d3 | d4 | A | b | c | f | G | I | L | M | N | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S59928.0001 | S59928.T01 | 28 | 25 | 18 | 11.5 | 6 | 3 | 2 | 14 | 10 | 2 | 8.5 | 20 | 3 | 12 | 15 | 5 | 13 | 65 |
