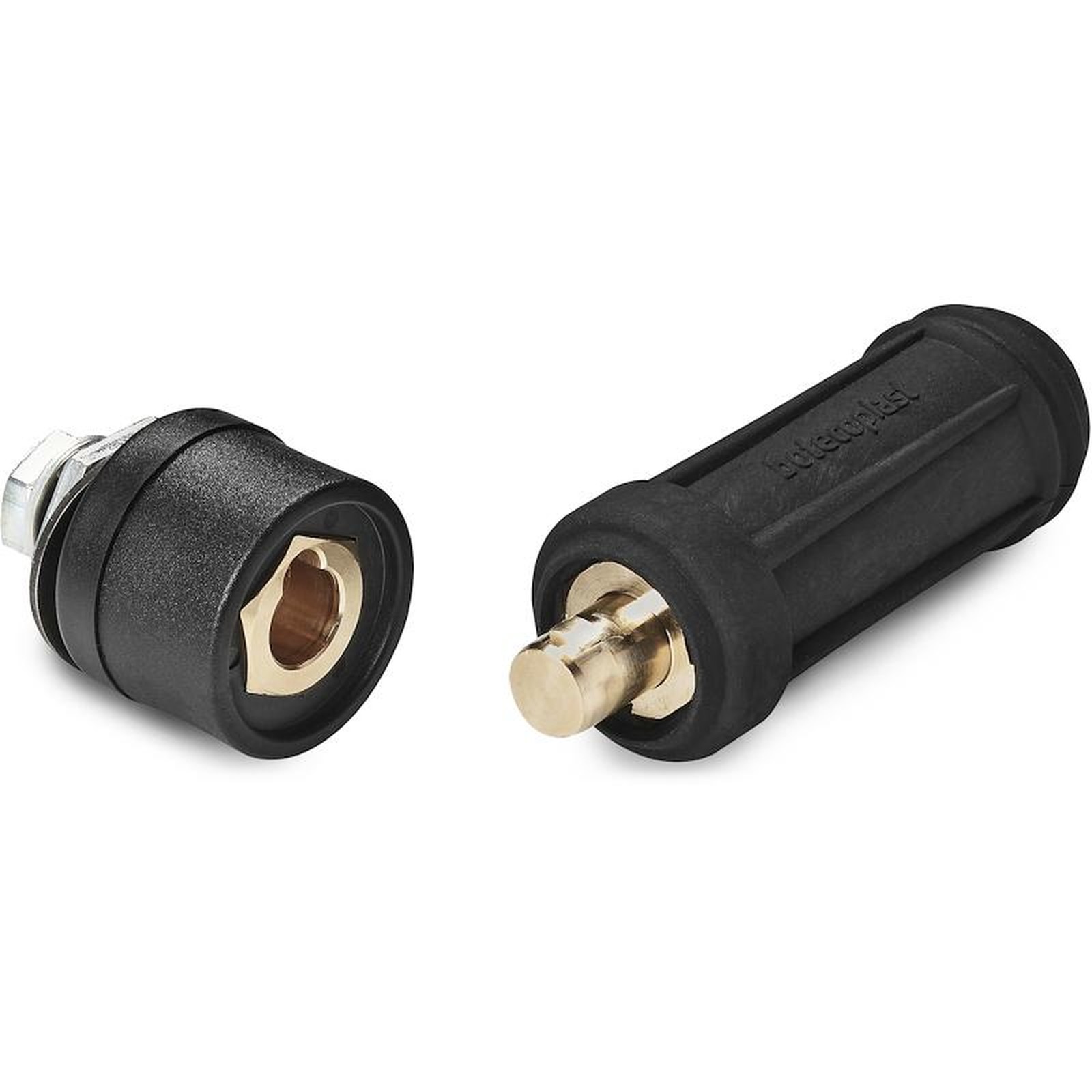

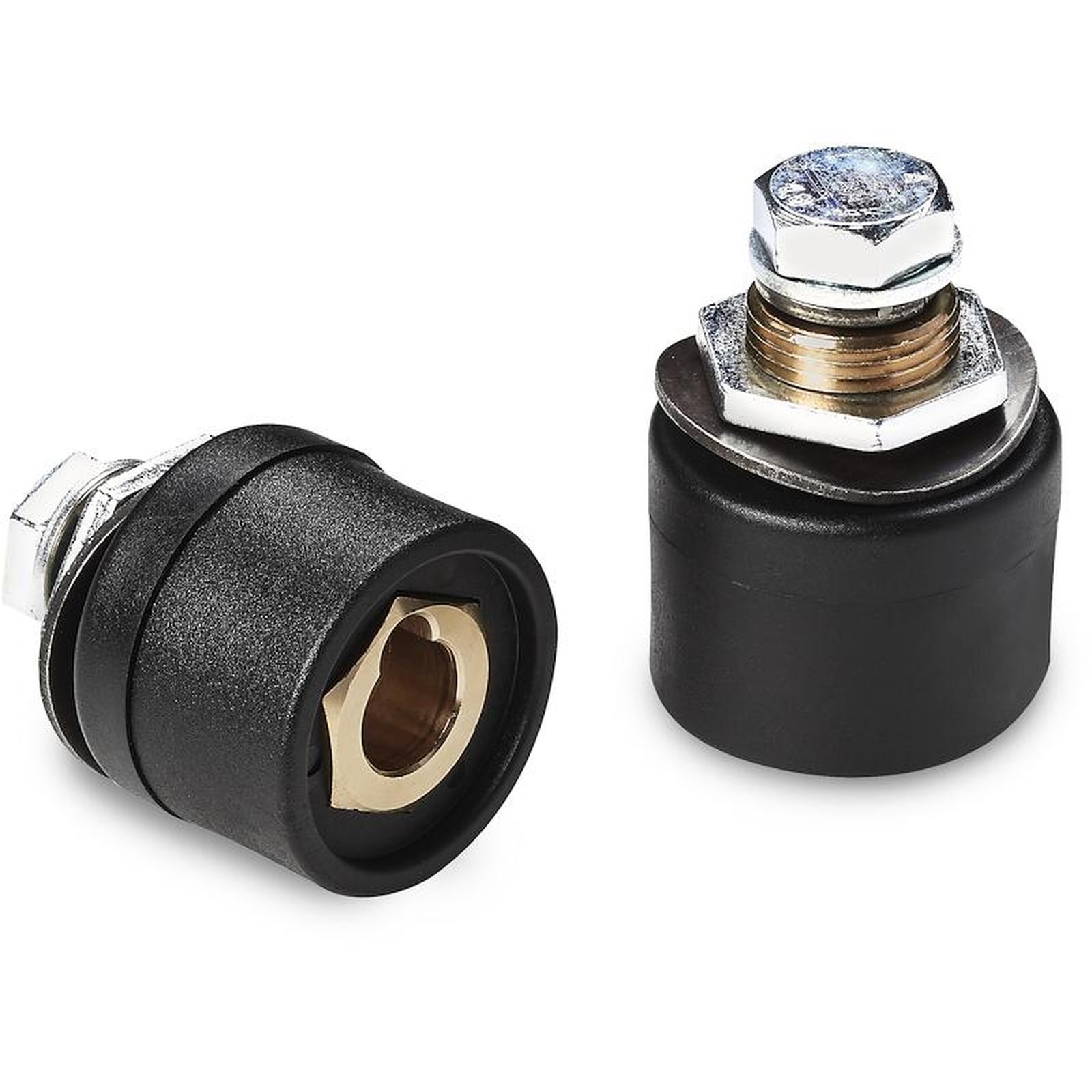

FEMALE CONNECTOR FOR PANEL TP (SUITABLE FOR INVERTER ONLY)
19
S117
Attacchi rapidi DINS
Materials:
(2-3) Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).

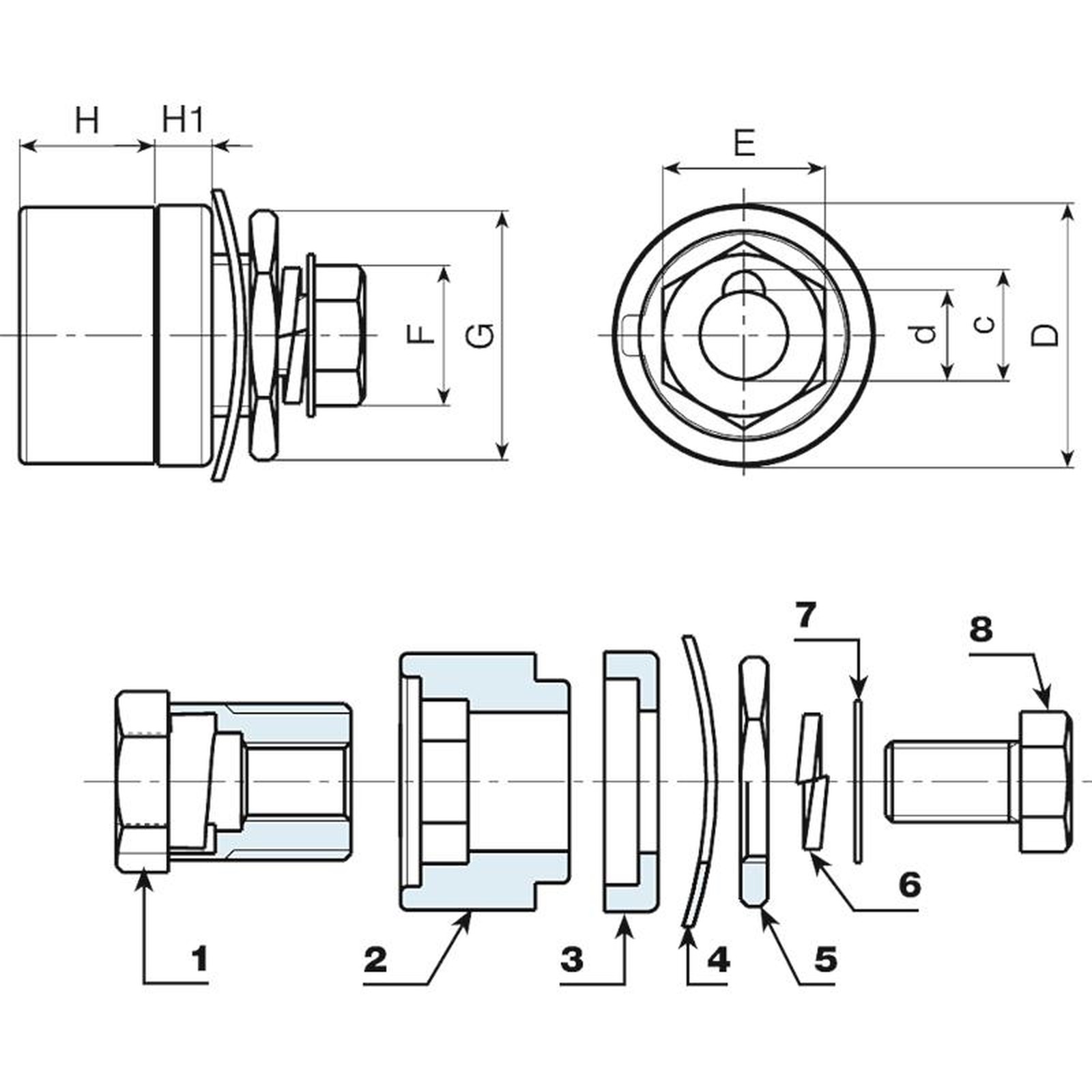

Inserts:
(1) Brass insert with female connector UNI.
(4) Black-oxyde treated steel corrugated washer DIN 137.
(5) Yellow passivated steel threaded hexagon ring nut.
(6) Black-oxide treated steel split washer UNI 1751.
(7) Yellow passivated steel washer.
(8) Yellow passivated hex head screw DIN933/UNI 5739.
Special Requests:
None.
| Code | art. | D | H | H1 | d | c | E | F | G | Weight (g) | Amp. Max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S117.0001 | S117.F3550 | 38 | 20 | 8 | 13 | 16 | 21 | 17 | 27 | 121 | 200 |
