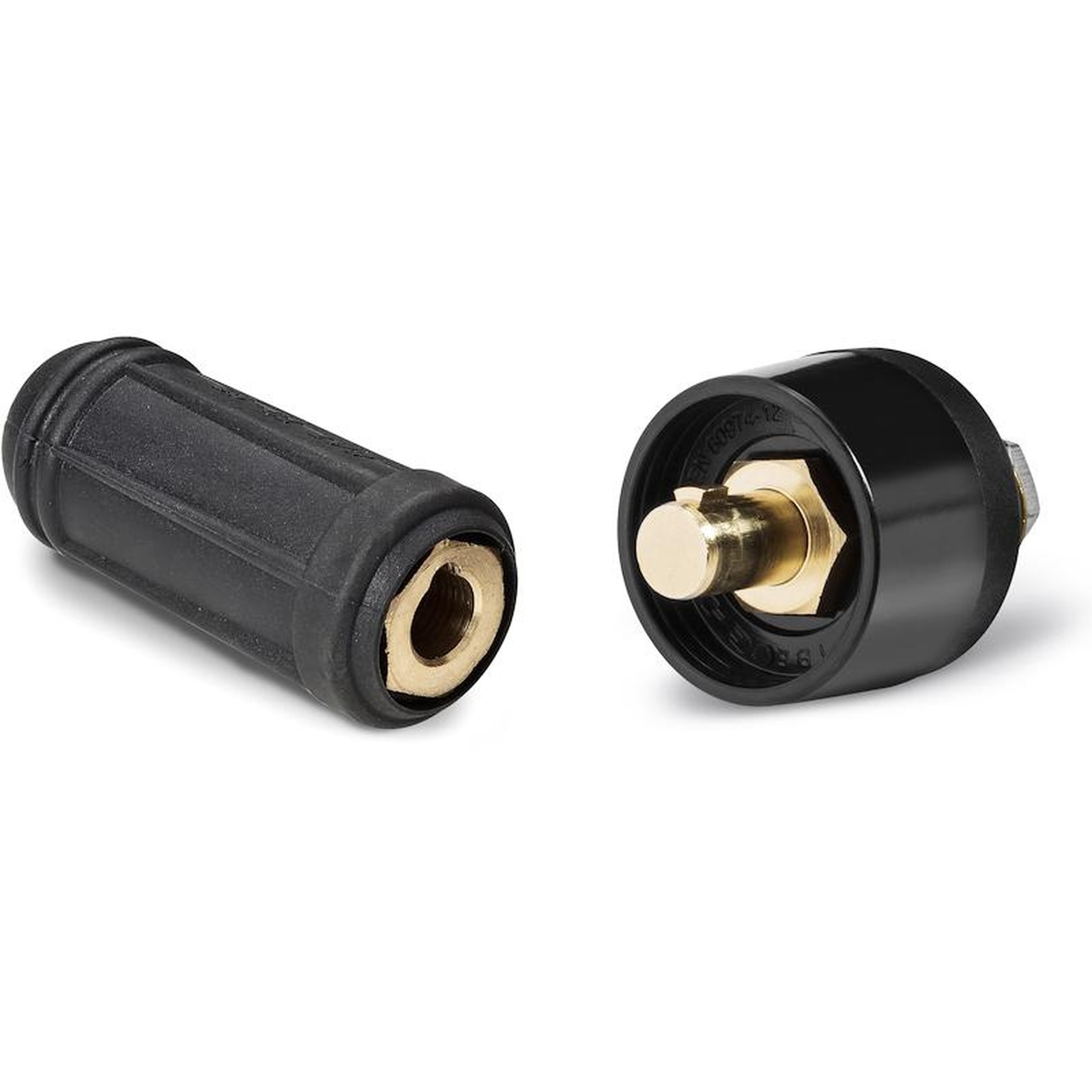

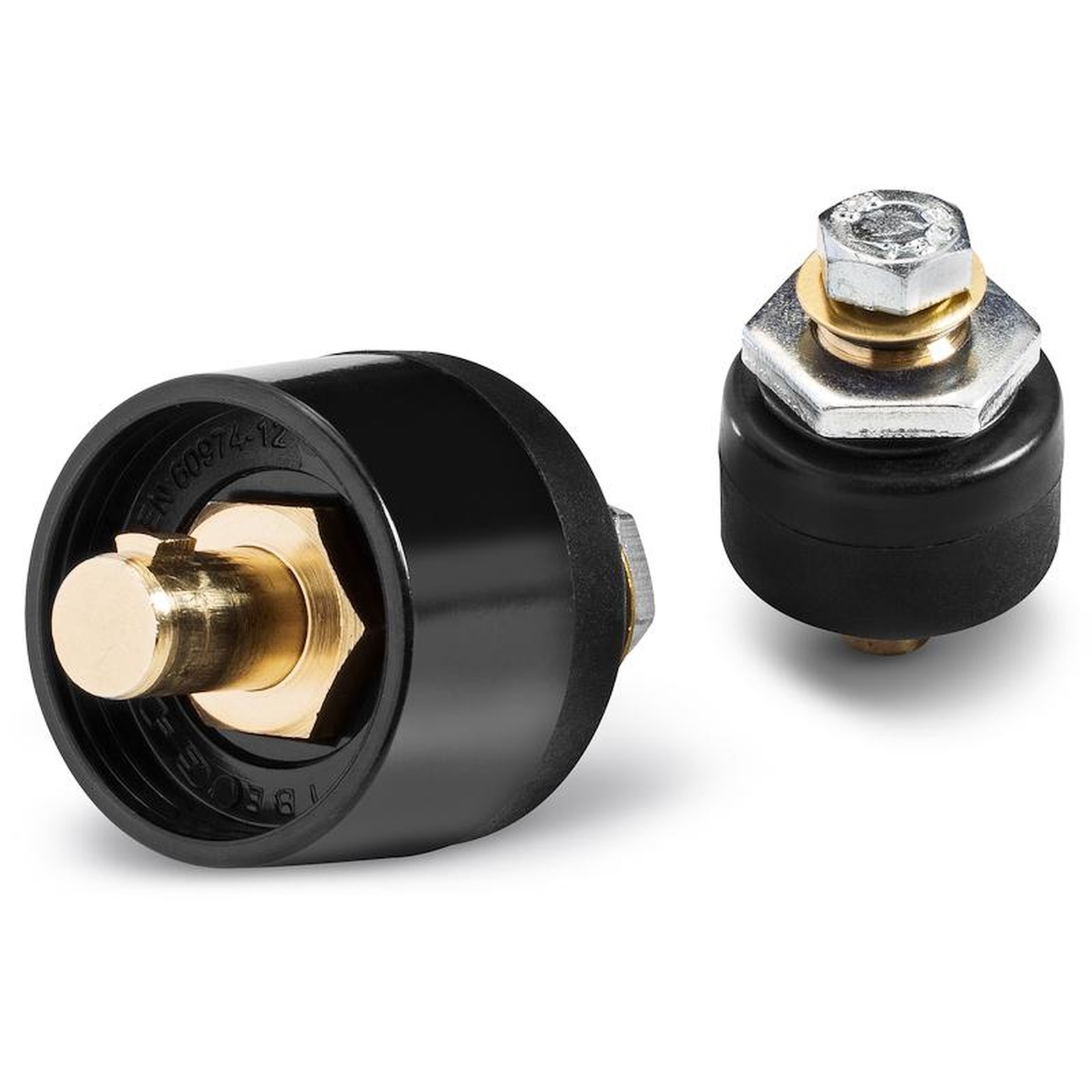

MALE CONNECTOR FOR PANEL
19
S114
Attacchi rapidi DINS
Materials:
Phenolic resin.
Resistant to oils and greases.
Resistant to high temperatures.
Surface finish:
Glossy.
Colour:
Black (RAL 9011).

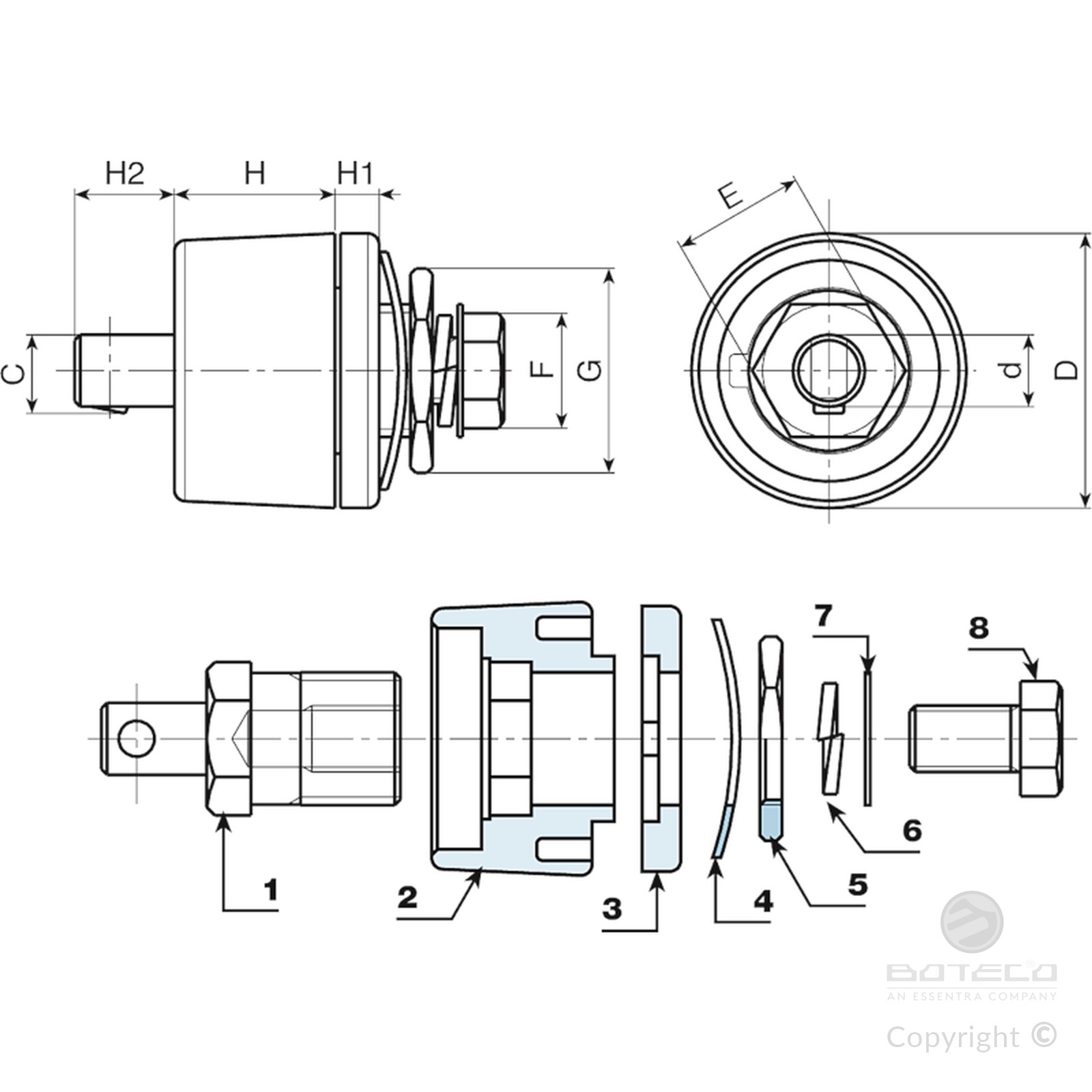

Inserts:
(1) Brass insert with male connector UNI.
(4) F25-00:
Black-oxyde treated steel toothed washer DIN 6798.
(4) F35-00:
Black-oxyde treated steel corrugated washer DIN 137.
(4) F70-95:
Black-oxyde treated steel corrugated washer DIN 137.
(5) Yellow passivated steel threaded hexagon ring nut.
(6) Black-oxide treated steel split washer UNI 1751.
(7) Yellow passivated steel washer.
(8) Yellow passivated hex head screw DIN933/UNI 5739.
Special Requests:
None.
| Code | art. | D | H | H1 | H2 | d | c | E | F | G | Weight (g) | Amp. Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S114.0001 | S114.M2500 | 33 | 14 | 4 | 7 | 9 | 9.5 | 14 | 13 | 22 | 60 | 200 |
| S114.0002 | S114.M3550 | 50.5 | 29 | 7 | 9 | 13 | 14 | 21 | 17 | 27 | 194 | 400 |
| S114.0003 | S114.M7000 | 50.5 | 29 | 7 | 9 | 13 | 14 | 24 | 19 | 32 | 242 | 500 |
