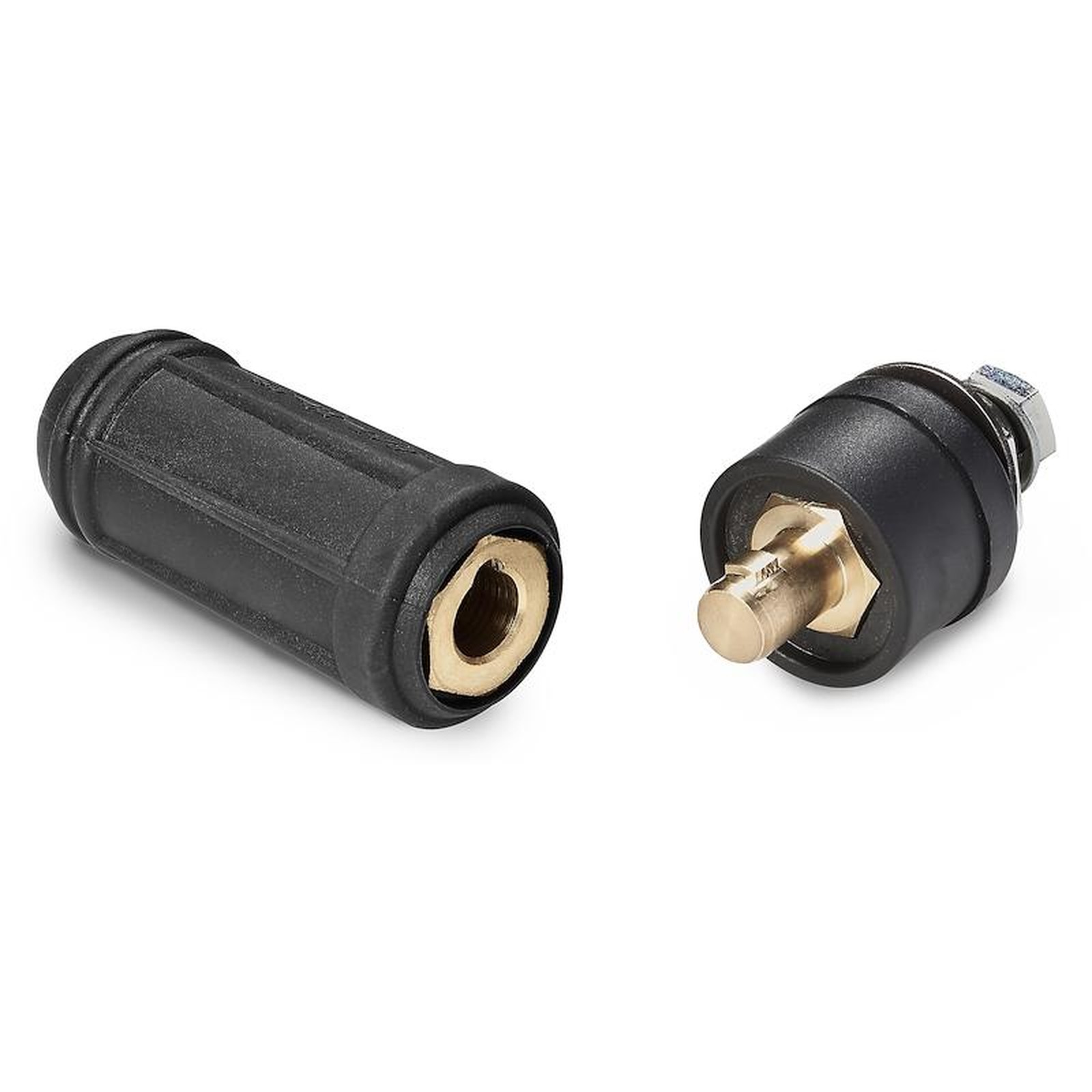

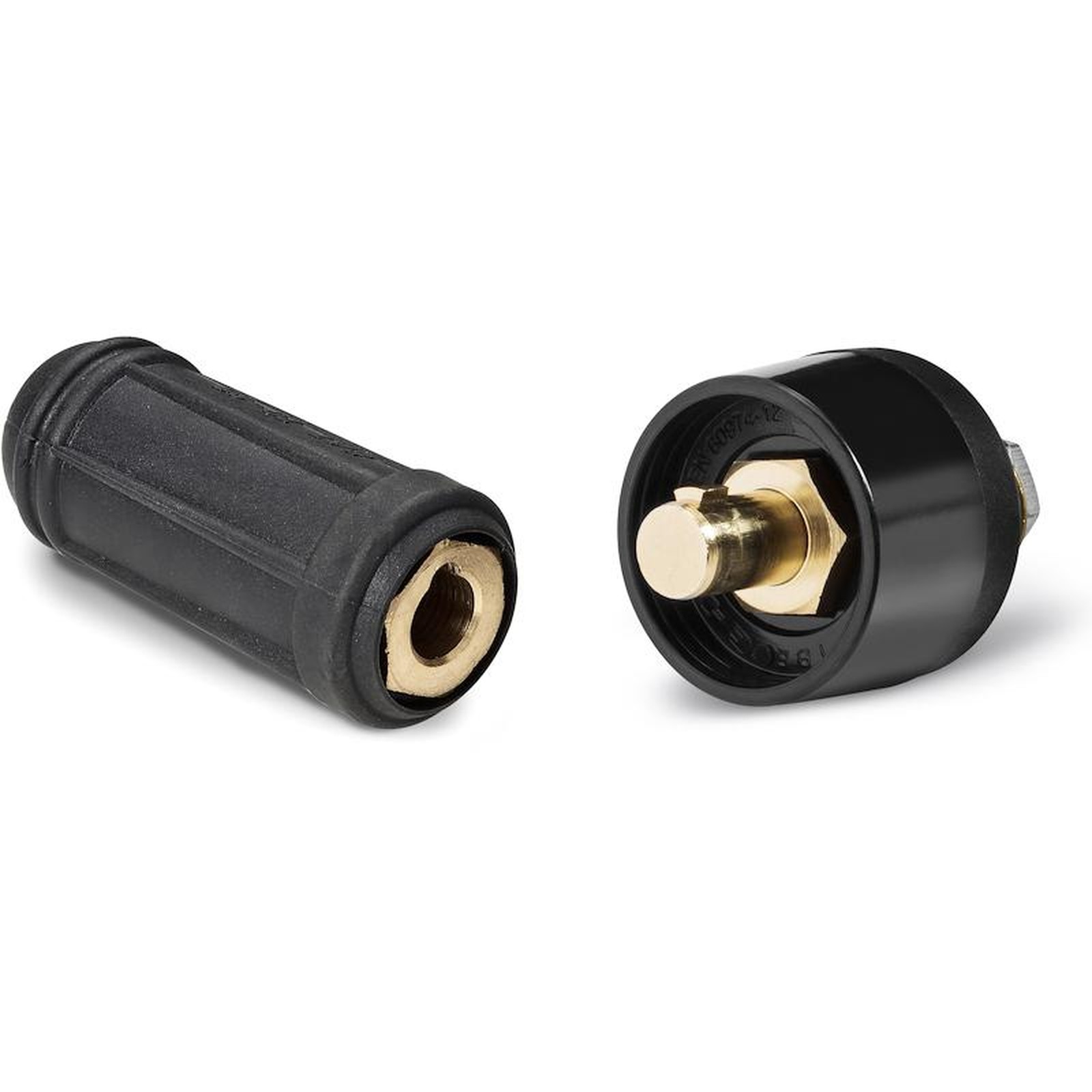

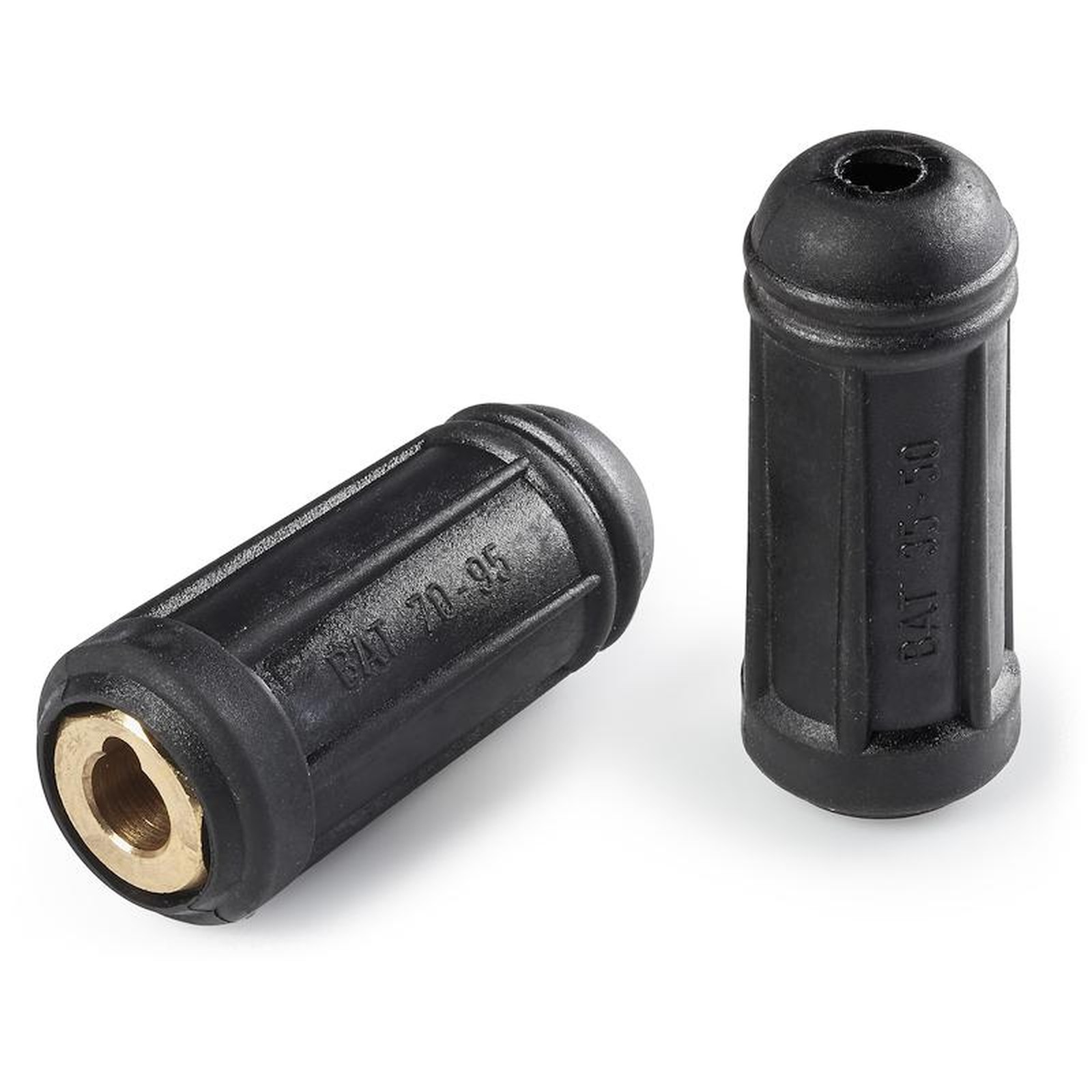

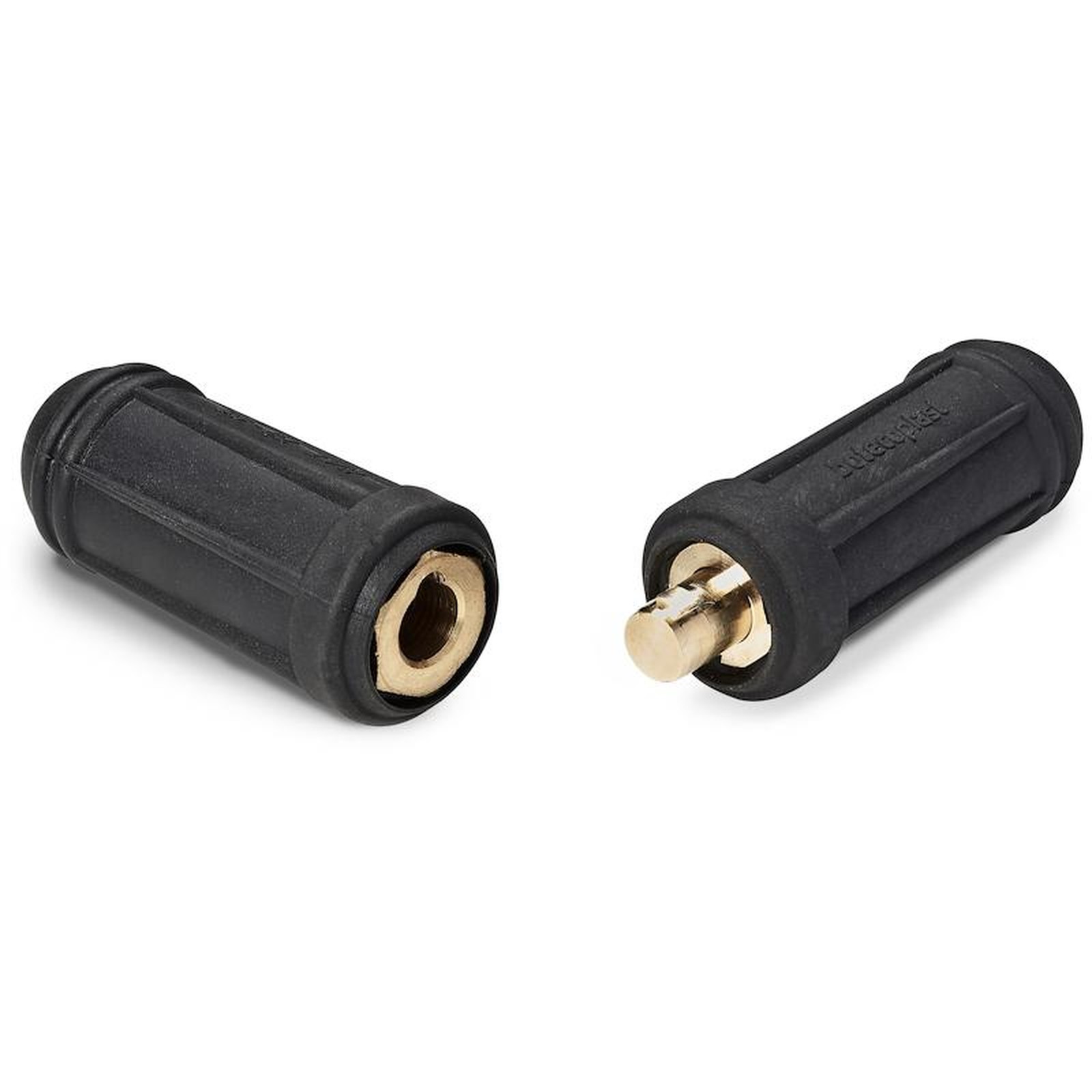

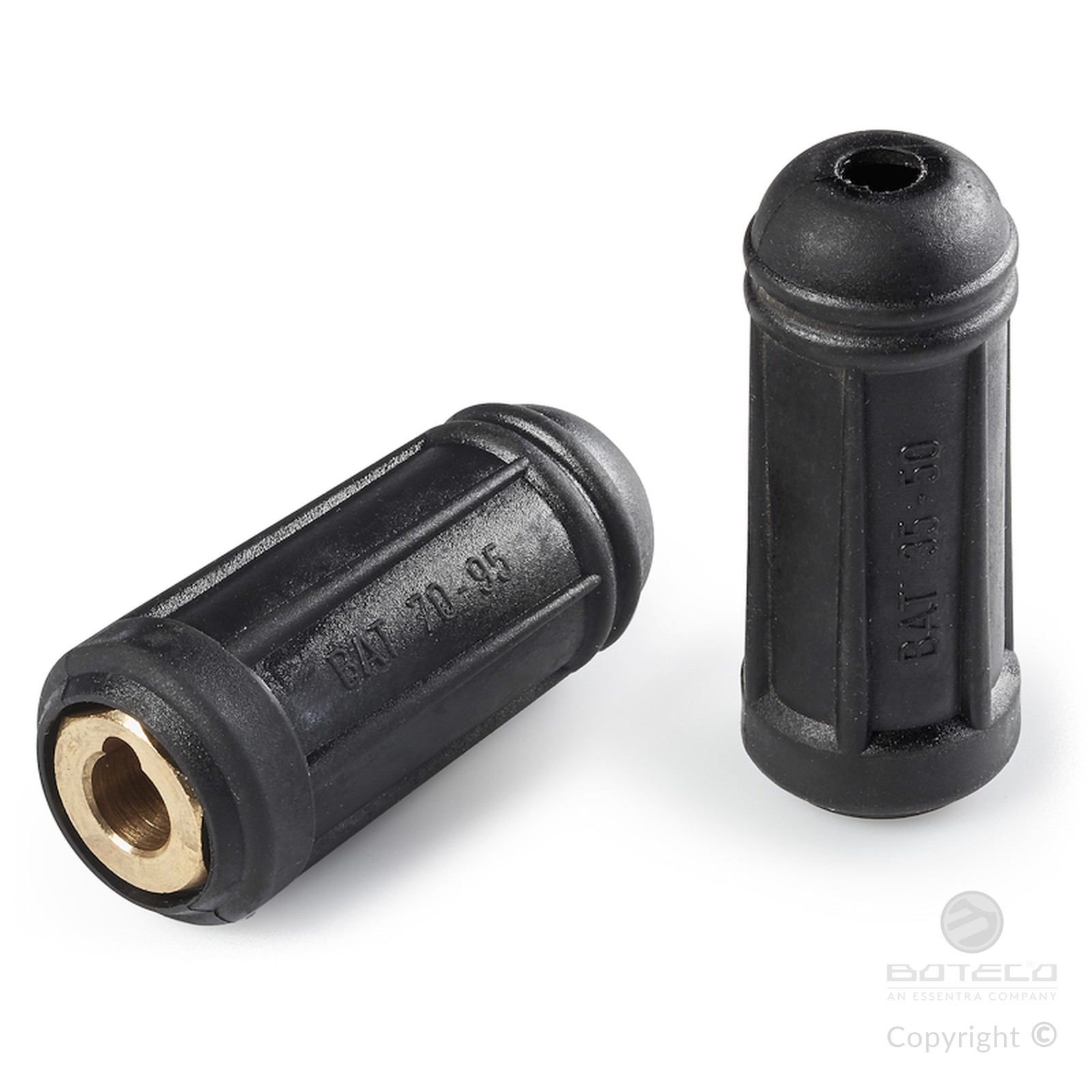

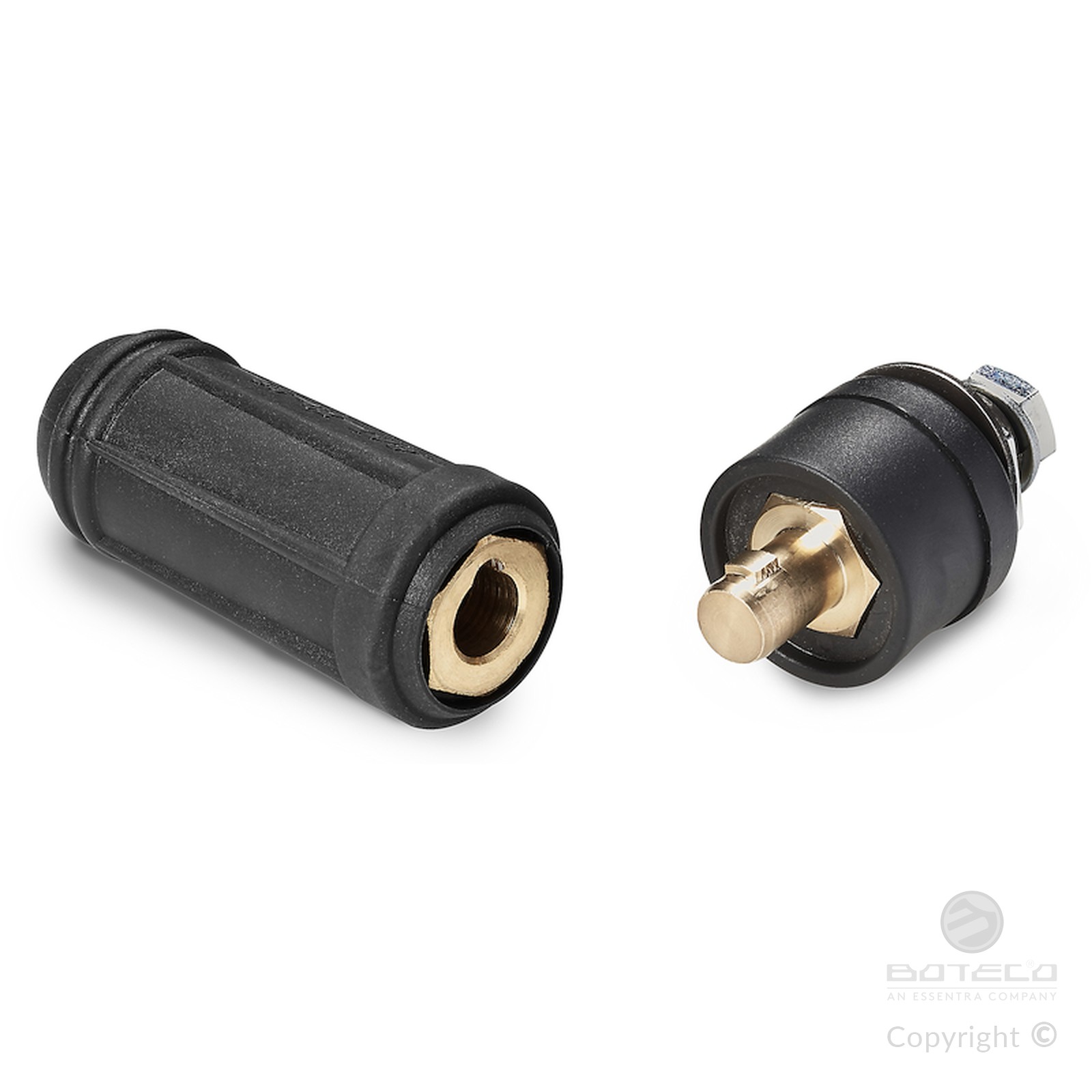

FEMALE CABLE CONNECTOR
19
S113
Attacchi rapidi DINS

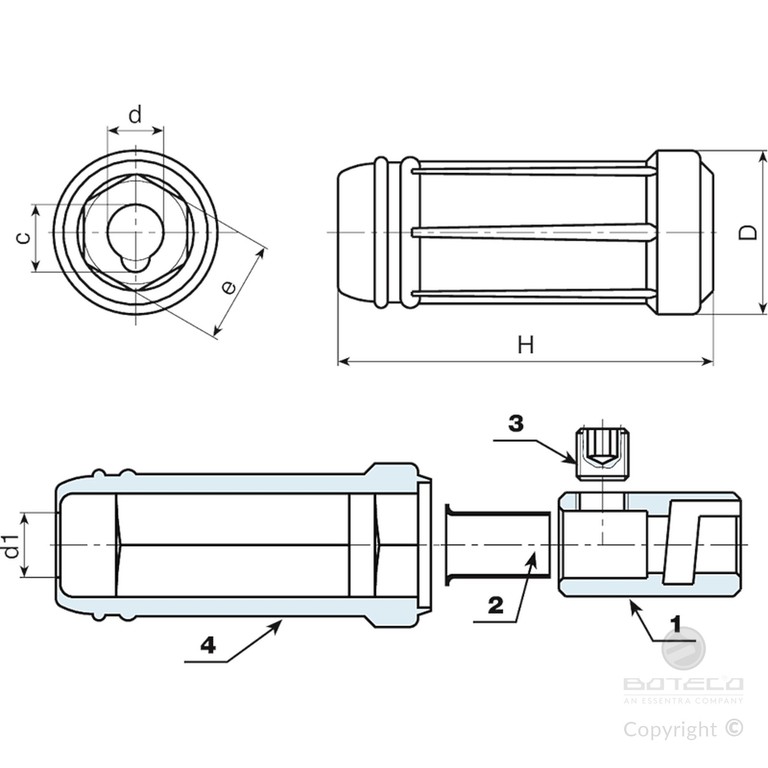

Materials:
(4) Polypropylene and SBS rubber alloy, 75 Shore.
Resistant to oils and greases.
Surface finish:
Smooth.
Colour:
Black (RAL 9011).

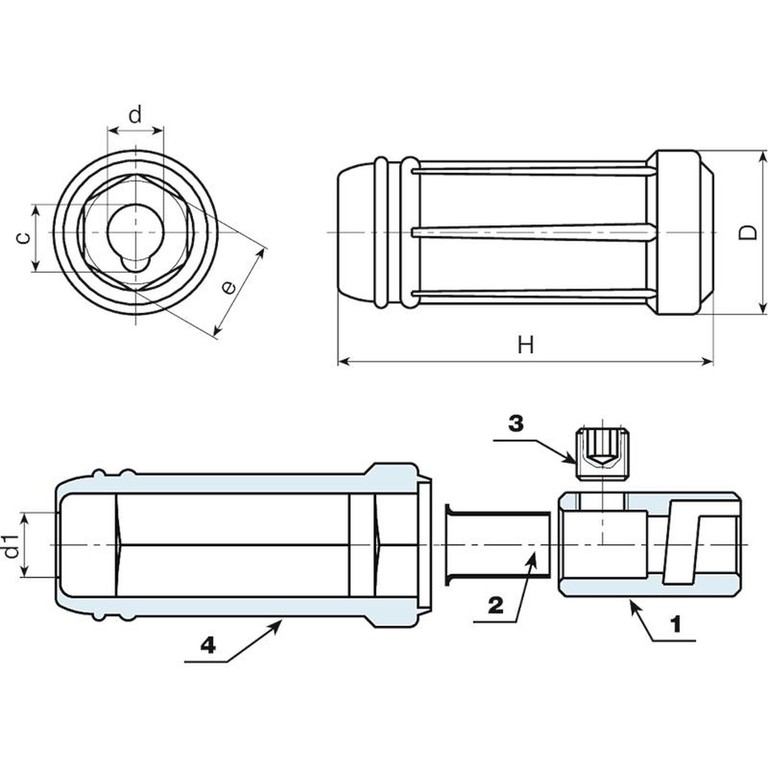

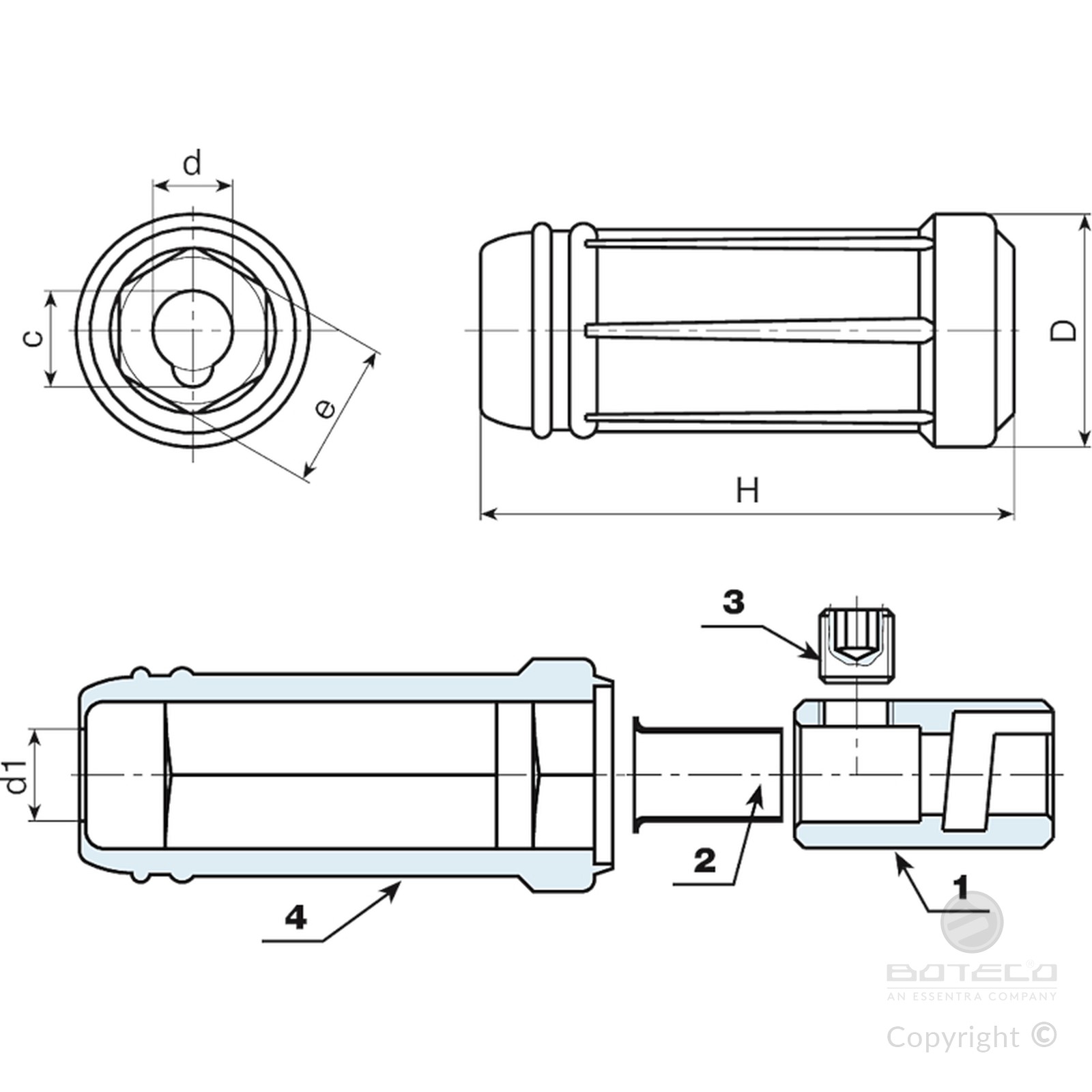

Inserts:
(1) Brass insert with female connector EN 60794:12.
(2) Soft copper cable collector tube.
(3) Hexagon socket grub screw DIN 913-45H (for version F95-00 no. 2 grub screws).
Special Requests:
None.
| Code | art. | D | H | d | c | e | d1 | Weight (g) | Amp. Max |
|---|---|---|---|---|---|---|---|---|---|
| S113.0001 | S113.F2500 | 24.5 | 59 | 9 | 10.5 | 14 | 8.5 | 38 | 200 |
| S113.0002 | S113.F3550 | 35 | 87 | 13 | 16 | 21 | 11 | 104 | 250 |
| S113.0003 | S113.F7000 | 38 | 87 | 13 | 16.5 | 24 | 15.5 | 151 | 400 |
| S113.0004 | S113.F9500 | 38 | 87 | 13 | 16 | 24 | 15.5 | 188 | 500 |
