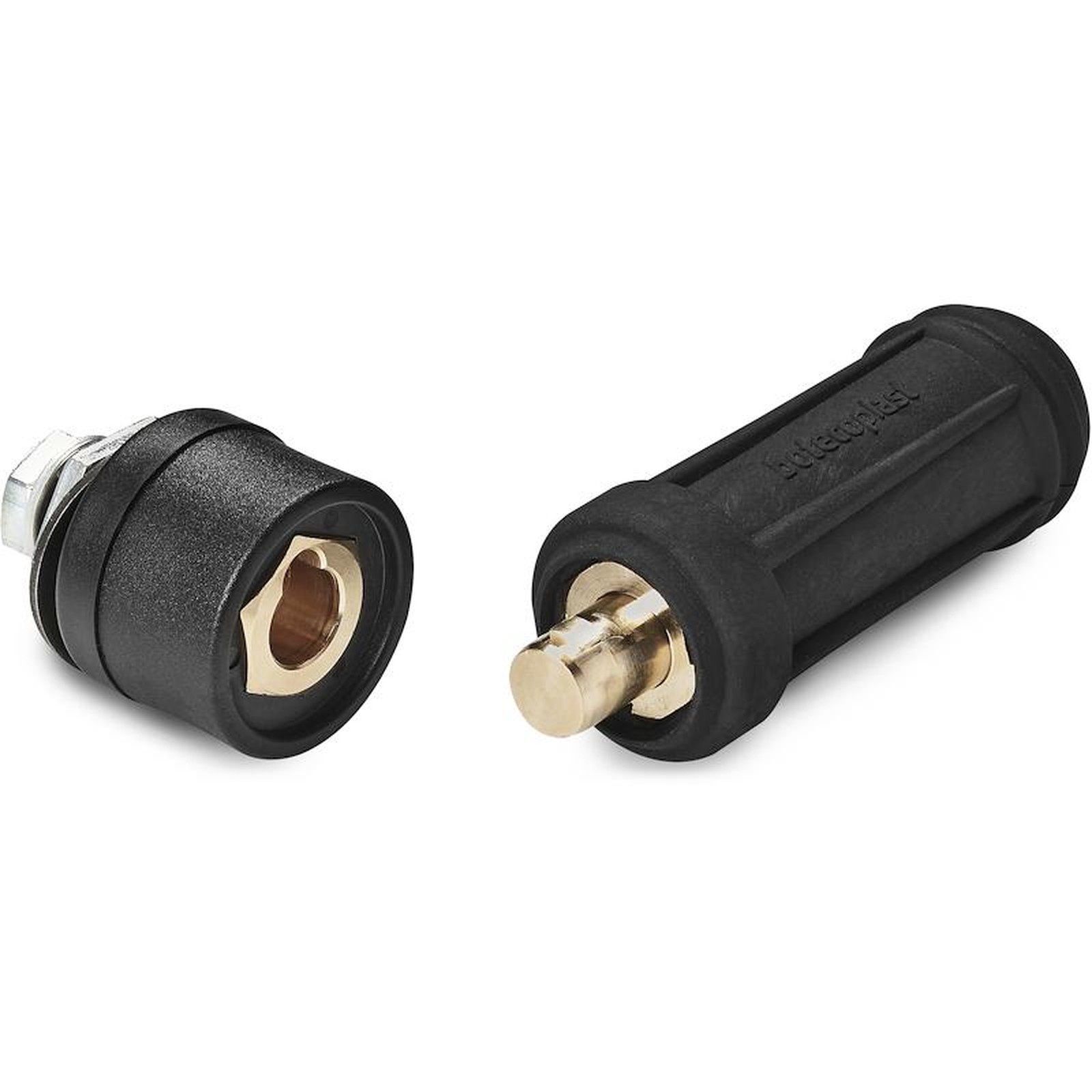

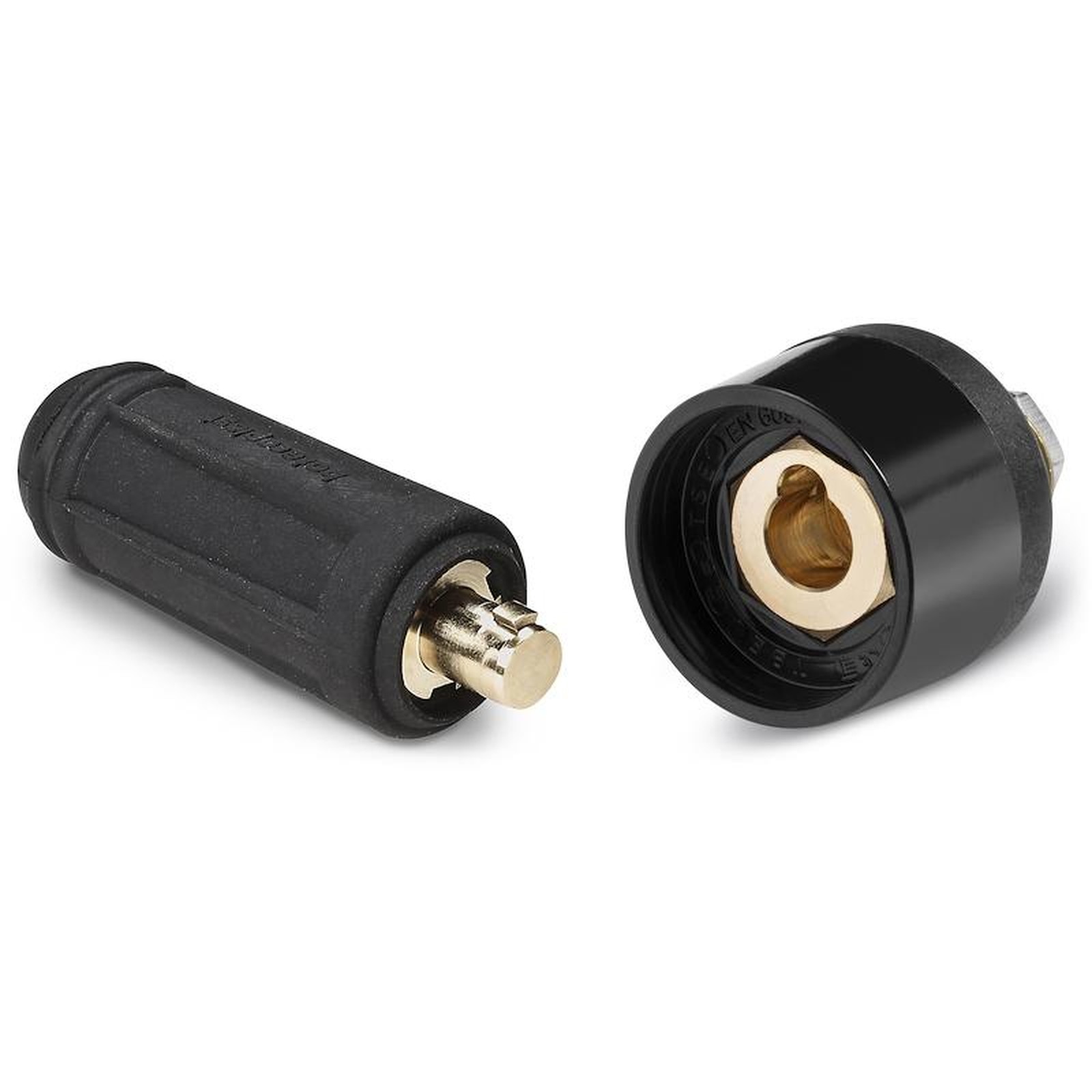

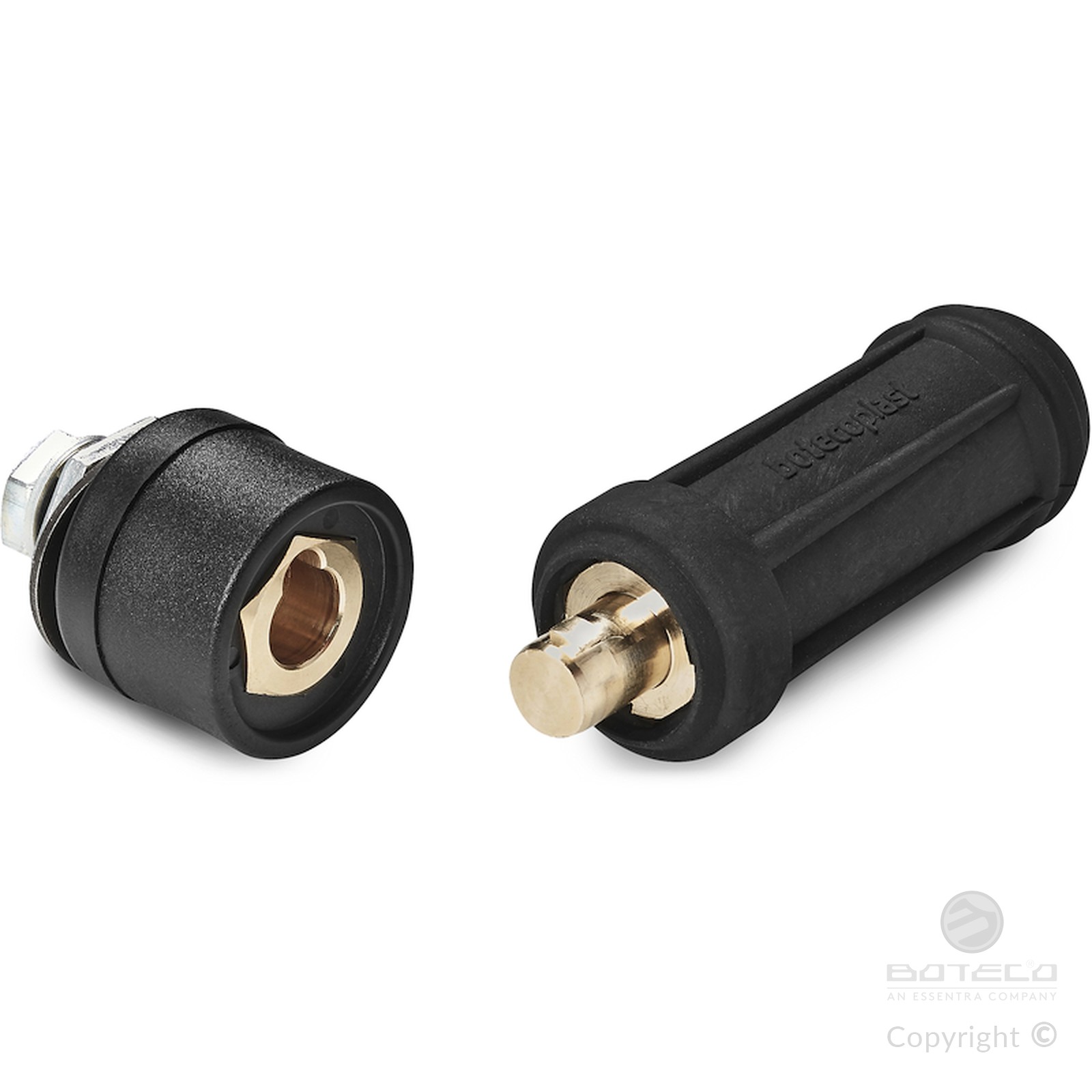

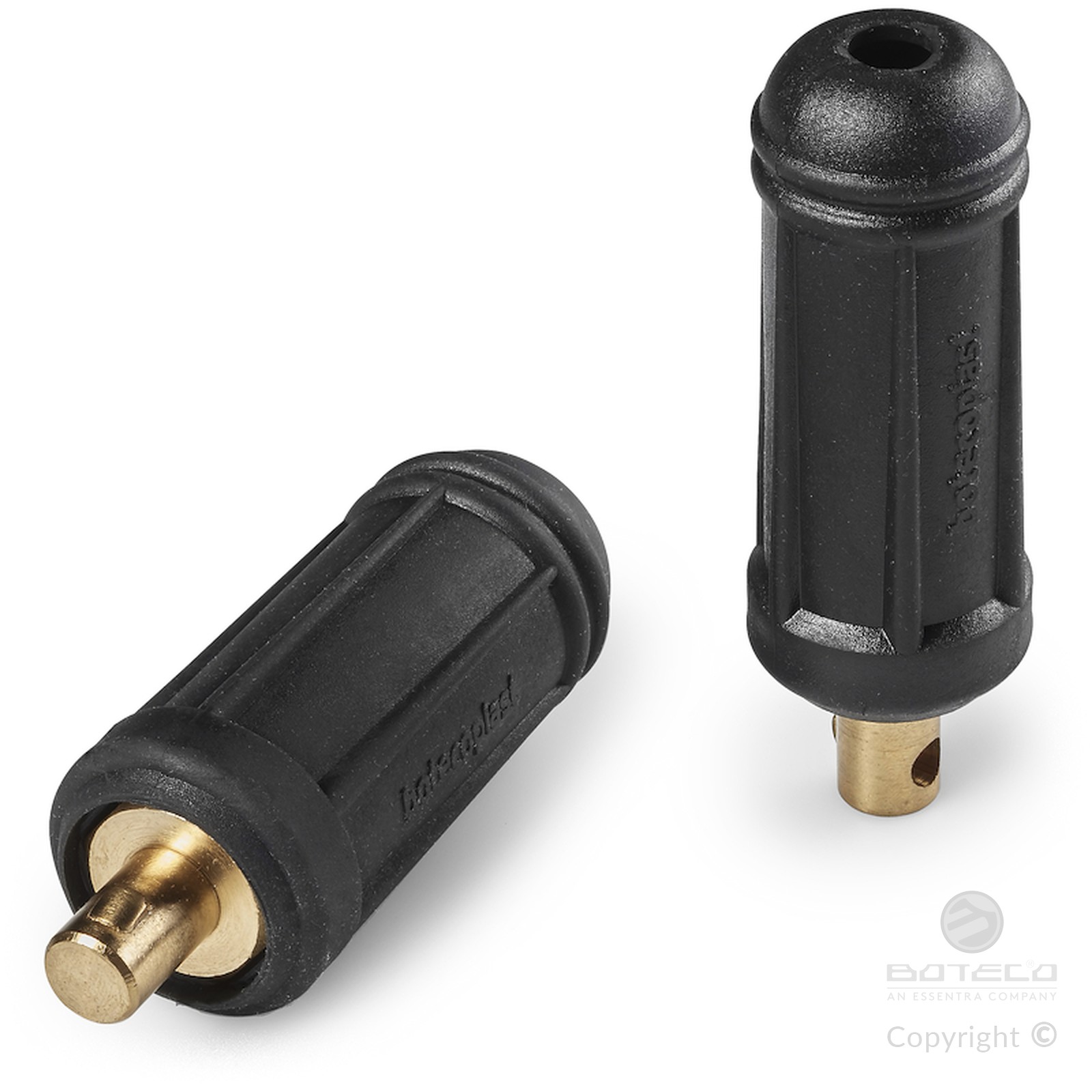

MALE CABLE CONNECTOR
19
S112
Attacchi rapidi DINS
Materials:
(4) Polypropylene and SBS rubber alloy, 75 Shore.
Resistant to oils and greases.
Surface finish:
Smooth.
Colour:
Black (RAL 9011).
Inserts:
(1) Brass insert with male connector EN 60794:12.
(2) Soft copper cable collector tube.
(3) Hexagon socket grub screw DIN 913-45H (for version M95-00 no. 2 grub screws).
Special Requests:
None.

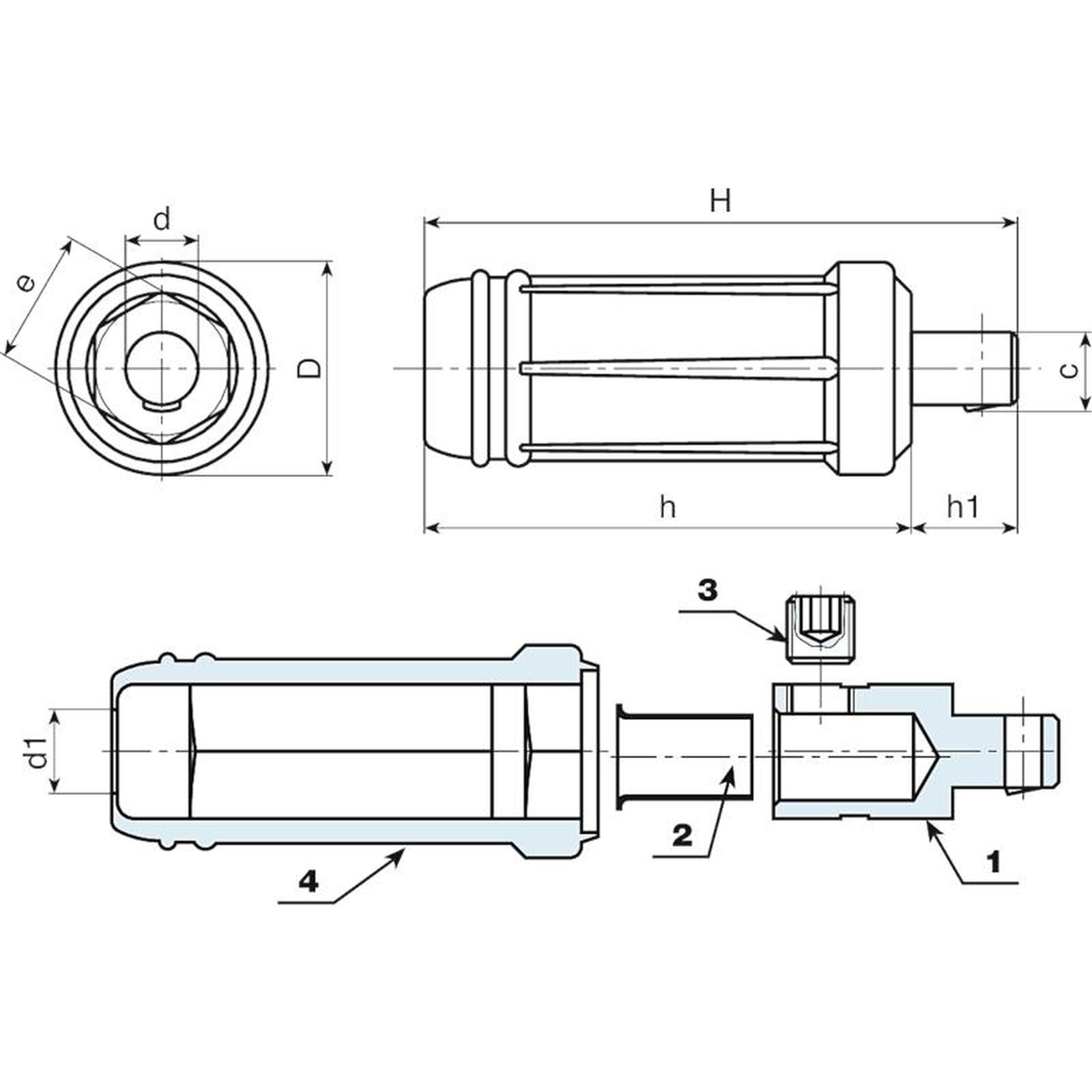

| Code | art. | D | H | h | h1 | d | c | e | d1 | Weight (g) | Amp. Max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S112.0001 | S112.M2500 | 24.5 | 70 | 59 | 11 | 9 | 10 | 14 | 8.5 | 37 | 200 |
| S112.0003 | S112.M3550 | 35 | 106 | 87 | 19 | 13 | 14.5 | 21 | 11 | 130 | 250 |
| S112.0004 | S112.M7000 | 38 | 106 | 87 | 19 | 13 | 14.5 | 24 | 15.5 | 148 | 400 |
| S112.0006 | S112.M9500 | 38 | 106 | 87 | 19 | 13 | 14.5 | 24 | 15.5 | 200 | 500 |
