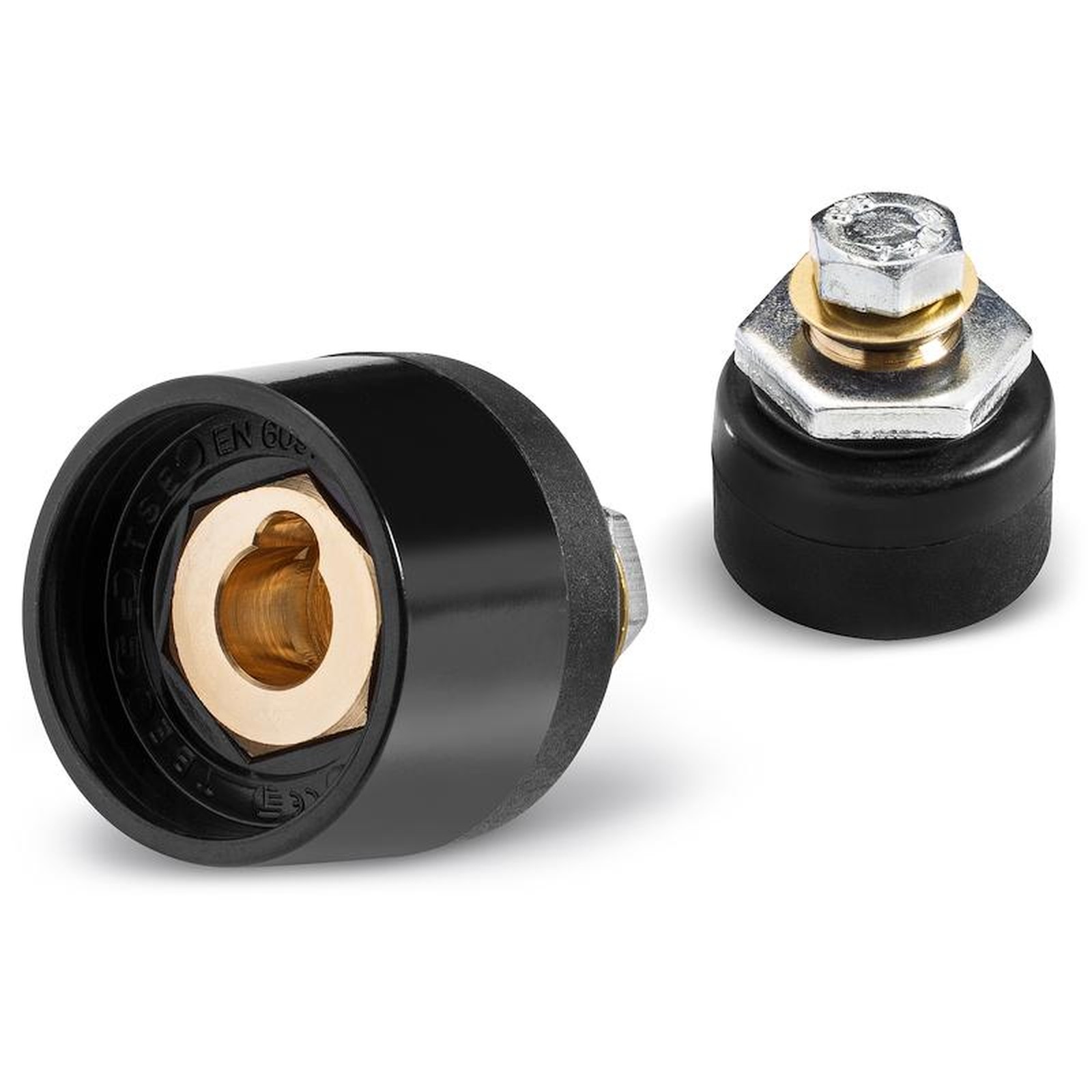

FEMALE CONNECTOR FOR WELDING MACHINE PANEL
19
S111
Attacchi rapidi DINS
Materials:
Phenolic resin.
Resistant to oils and greases.
Resistant to high temperatures.
Surface finish:
Glossy.
Colour:
Black (RAL 9011).

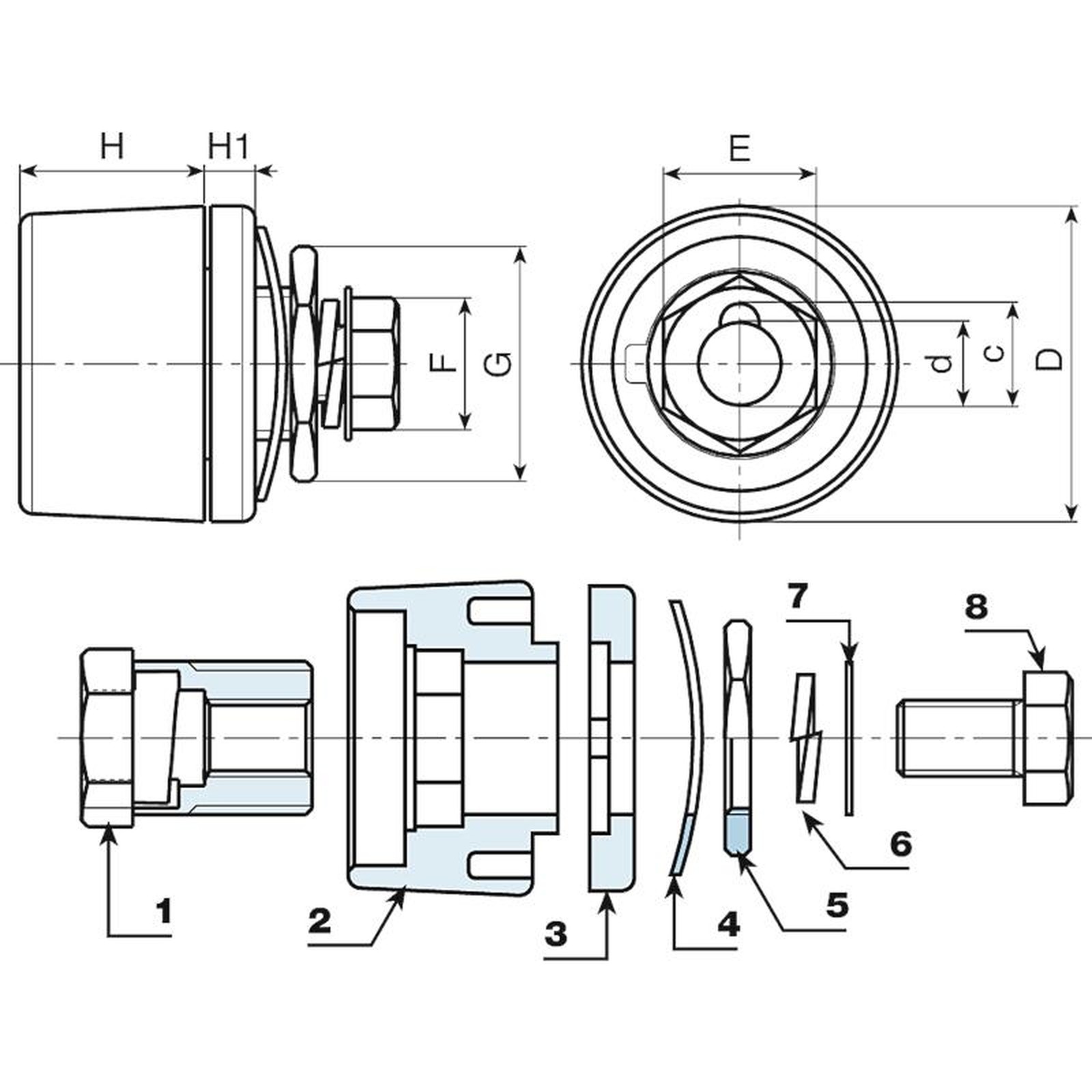

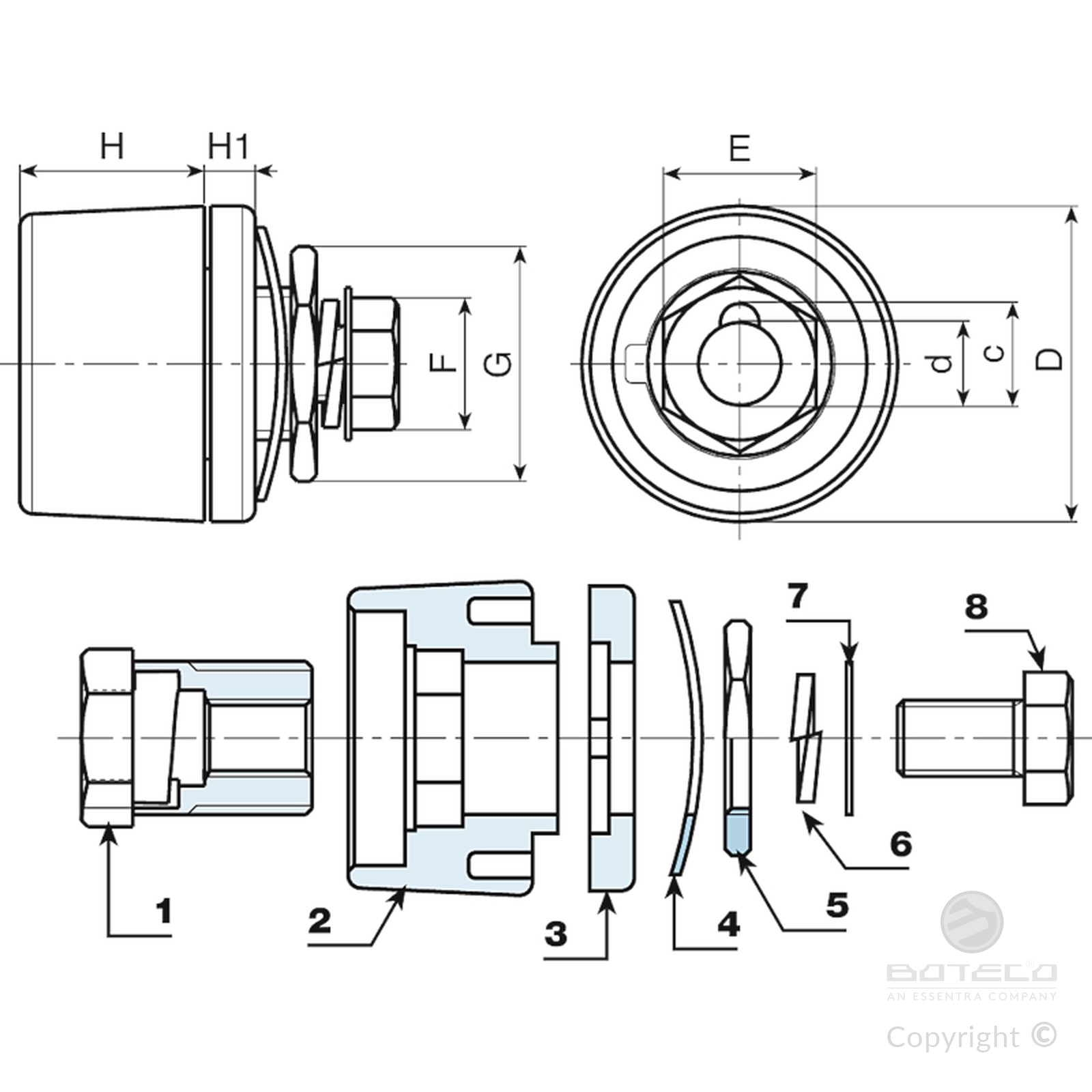

Inserts:
(1) Brass insert with female connector EN 60794:12.
(4) F25-00:
Black-oxyde treated steel toothed washer DIN 6798.
(4) F35-00:
Black-oxyde treated steel corrugated washer DIN 137.
(4) F70-95:
Black-oxyde treated steel corrugated washer DIN 137.
(5) Yellow passivated steel threaded hexagon ring nut.
(6) Black-oxide treated steel split washer UNI 1751.
(7) Yellow passivated steel washer.
(8) Yellow passivated hex head screw DIN933/UNI 5739.
Special Requests:
None.
| Code | art. | D | H | H1 | d | c | E | F | G | Weight (g) | Amp. Max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S111.0001 | S111.F2500 | 33 | 14 | 4 | 9 | 11 | 14 | 13 | 22 | 50 | 200 |
| S111.0008 | S111.F3550 | 50.5 | 29 | 7 | 13 | 16 | 21 | 17 | 27 | 153 | 400 |
| S111.0010 | S111.F7095 | 50.5 | 29 | 7 | 13 | 16 | 24 | 19 | 32 | 202 | 500 |
