RECTANGULAR HANDLE WITH PUSH-FIT HOLE
13
M720
Manici con foro a pressione
Materials:
Blend of polypropylene and thermoplastic rubber TPV.
Surface finish:
Smooth.
Colour:
Black (RAL 9011).
Hole:
Rectangular blind smooth bore obtained by moulding the plastic.
Fixing method:
Push-fit.
Special Requests:
None.

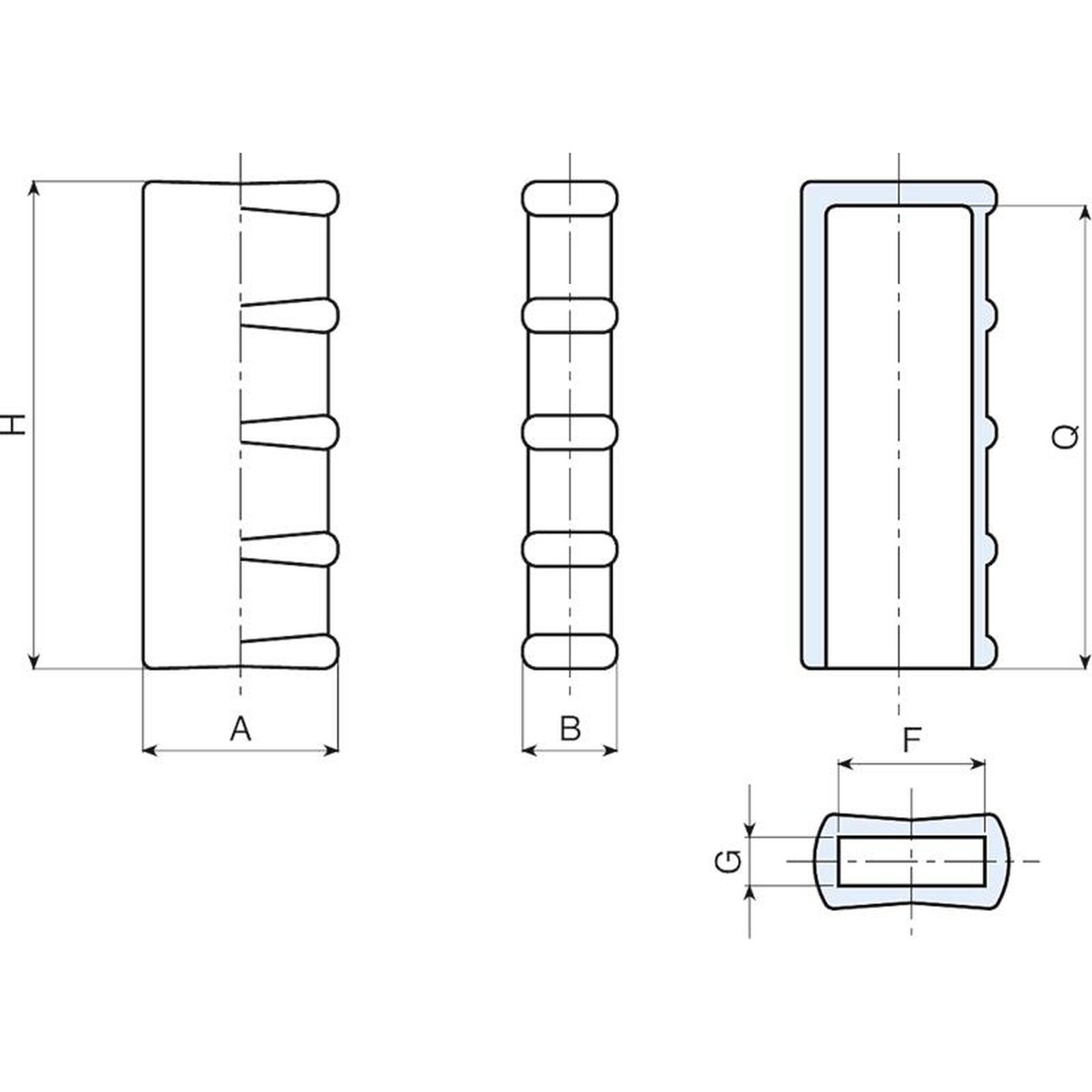

| Code | art. | H | A | B | G ± 0.2 | F ± 0.2 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| M720079.0001 | M720079.EG05X2001 | 79,5 | 32,5 | 17,5 | 5 | 20 | 75 | 30 |
| M720079.0003 | M720079.EG06X2001 | 79,5 | 32,5 | 17,5 | 6 | 20 | 75 | 30 |
| M720079.0006 | M720079.EG08X2001 | 79,5 | 32,5 | 17,5 | 8 | 20 | 75 | 25 |
| M720079.0008 | M720079.EG08X2501 | 79,5 | 32,5 | 17,5 | 8 | 25 | 75 | 23 |
| M720079.0009 | M720079.EG10X2001 | 79,5 | 32,5 | 17,5 | 10 | 20 | 75 | 22 |
| M720100.0001 | M720100.EG05X2001 | 101 | 40,5 | 20,5 | 5 | 20 | 95 | 59 |
| M720100.0002 | M720100.EG06X3001 | 101 | 40,5 | 20,5 | 6 | 30 | 95 | 52 |
| M720100.0003 | M720100.EG08X2501 | 101 | 40,5 | 20,5 | 8 | 25 | 95 | 49 |
| M720100.0004 | M720100.EG10X2801 | 101 | 40,5 | 20,5 | 10 | 28 | 95 | 45 |
| M720100.0007 | M720100.EG10X3001 | 101 | 40,5 | 20,5 | 10 | 30 | 95 | 45 |
