Materials:
Blend of polypropylene and thermoplastic rubber TPV.
Surface finish:
Smooth.
Colour:
Black(RAL 9011).
Hole:
Blind smooth bore with small through hole obtained by moulding the plastic.
Fixing method:
Push-fit.
Special Requests:
None.

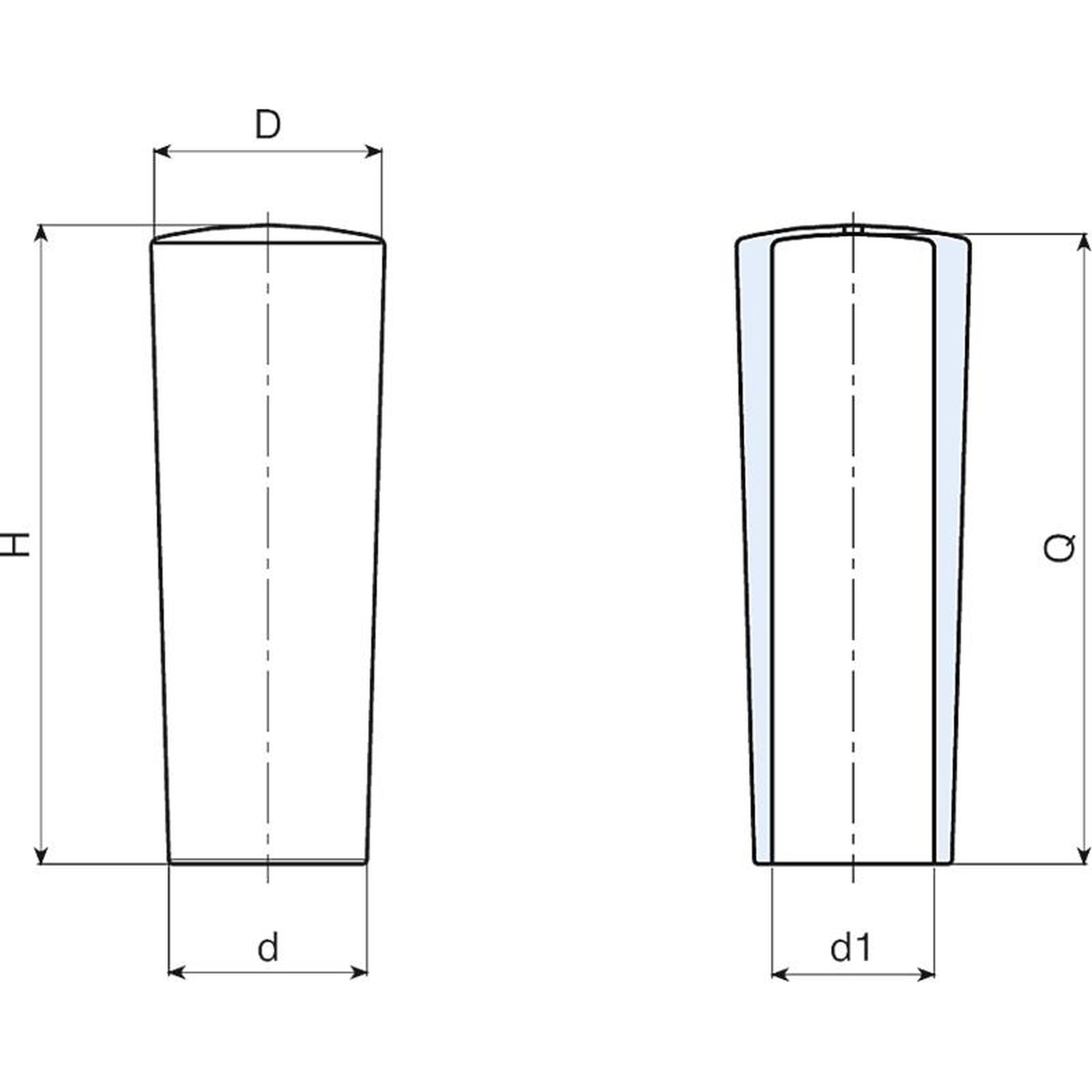

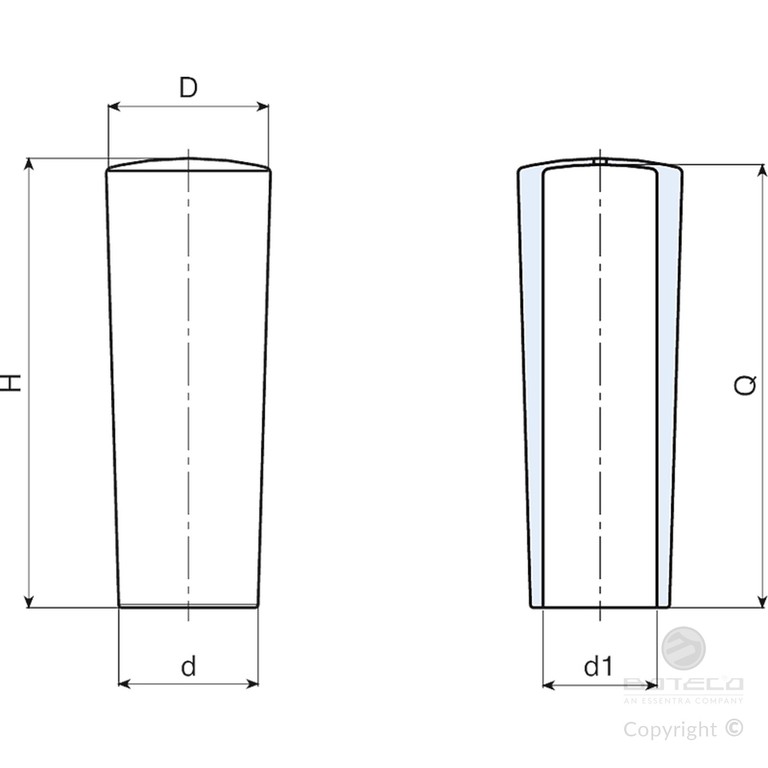

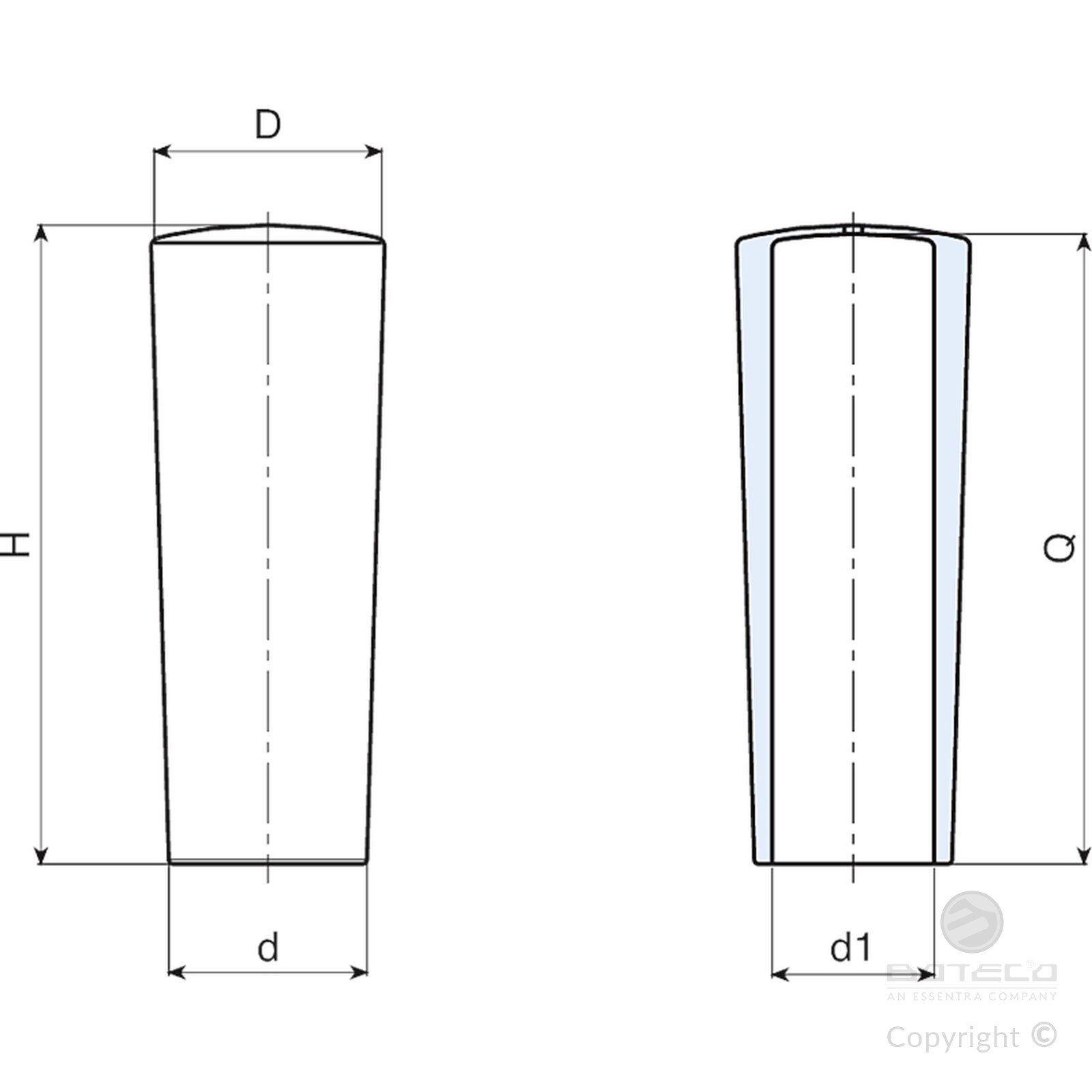

| Code | art. | H | D | d | d1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|
| M51034.0001 | M51034.TG0801 | 35 | 16 | 14,5 | 8 | 32 | 4 |
| M51034.0002 | M51034.TG0901 | 35 | 16 | 14,5 | 9 | 32 | 3 |
| M51038.0001 | M51038.TG1001 | 38,5 | 18 | 16 | 10 | 35 | 6 |
| M51038.0002 | M51038.TG1101 | 38,5 | 18 | 16 | 11 | 35 | 5 |
| M51043.0001 | M51043.TG1201 | 43,5 | 20 | 16,5 | 12 | 40 | 7 |
| M51048.0001 | M51048.TG1401 | 48,5 | 23 | 18,5 | 14 | 44 | 10 |
| M51062.0001 | M51062.TG1601 | 62 | 25 | 20 | 16 | 59 | 12 |
| M51072.0001 | M51072.TG1801 | 72,5 | 27 | 22 | 18 | 69 | 16 |
| M51079.0001 | M51079.TG2001 | 79 | 30 | 24 | 20 | 76 | 20 |
