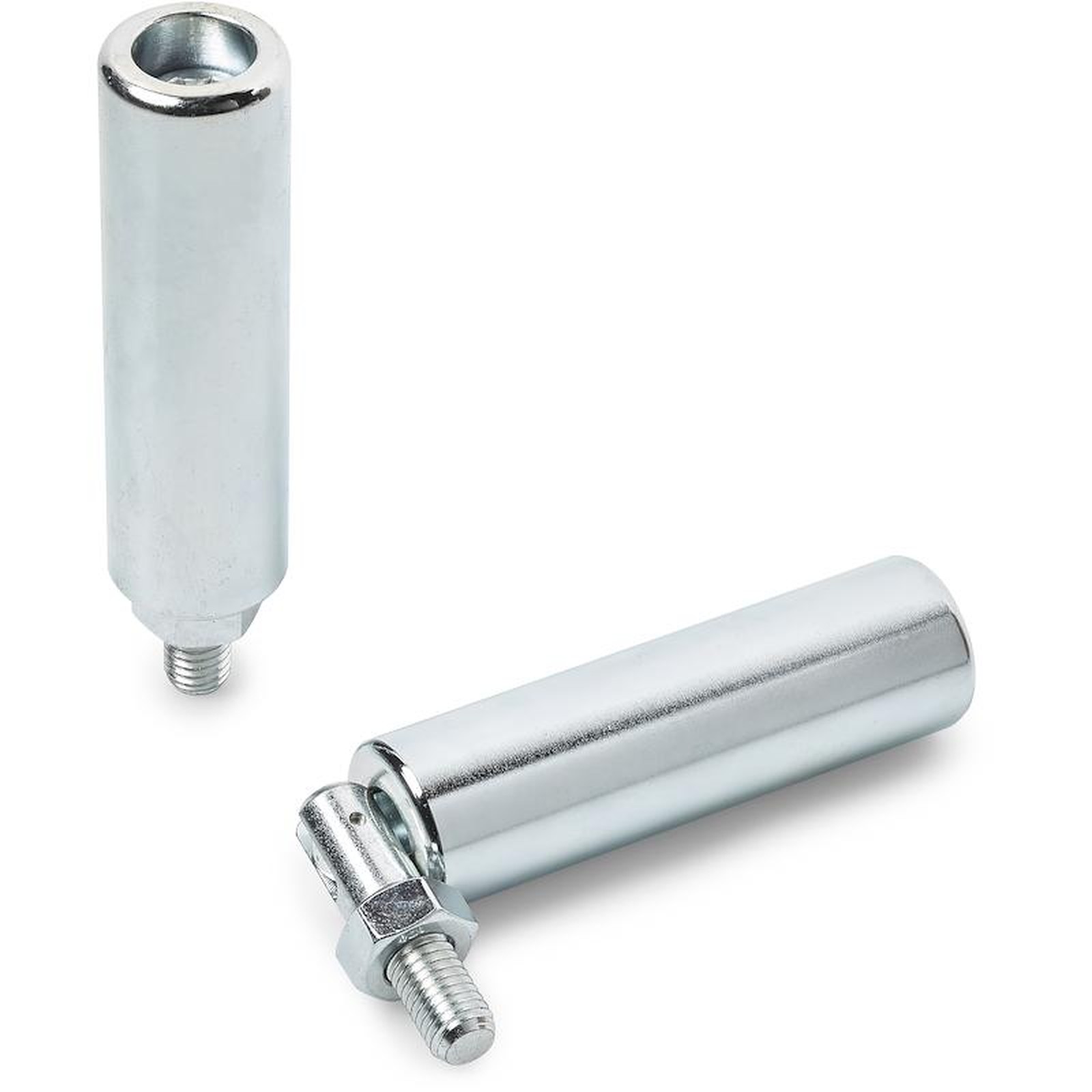

FULL STEEL REVOLVING, FOLDING HANDLE
13
M336
Manici pieghevoli
Materials:
M336:
Free-cutting steel.
M336CIN:
Stainless steel (Aisi 303).
Surface finish:
M336:
Fine turned, standard blue galvanising.
M336CIN:
Fine turned, natural, untreated.
Inserts:
M336:
1) Galvanised steel revolving, folding threaded cross-head stud.
(2) Galvanised steel threaded nut DIN 934.
(3) Galvanised steel spring.

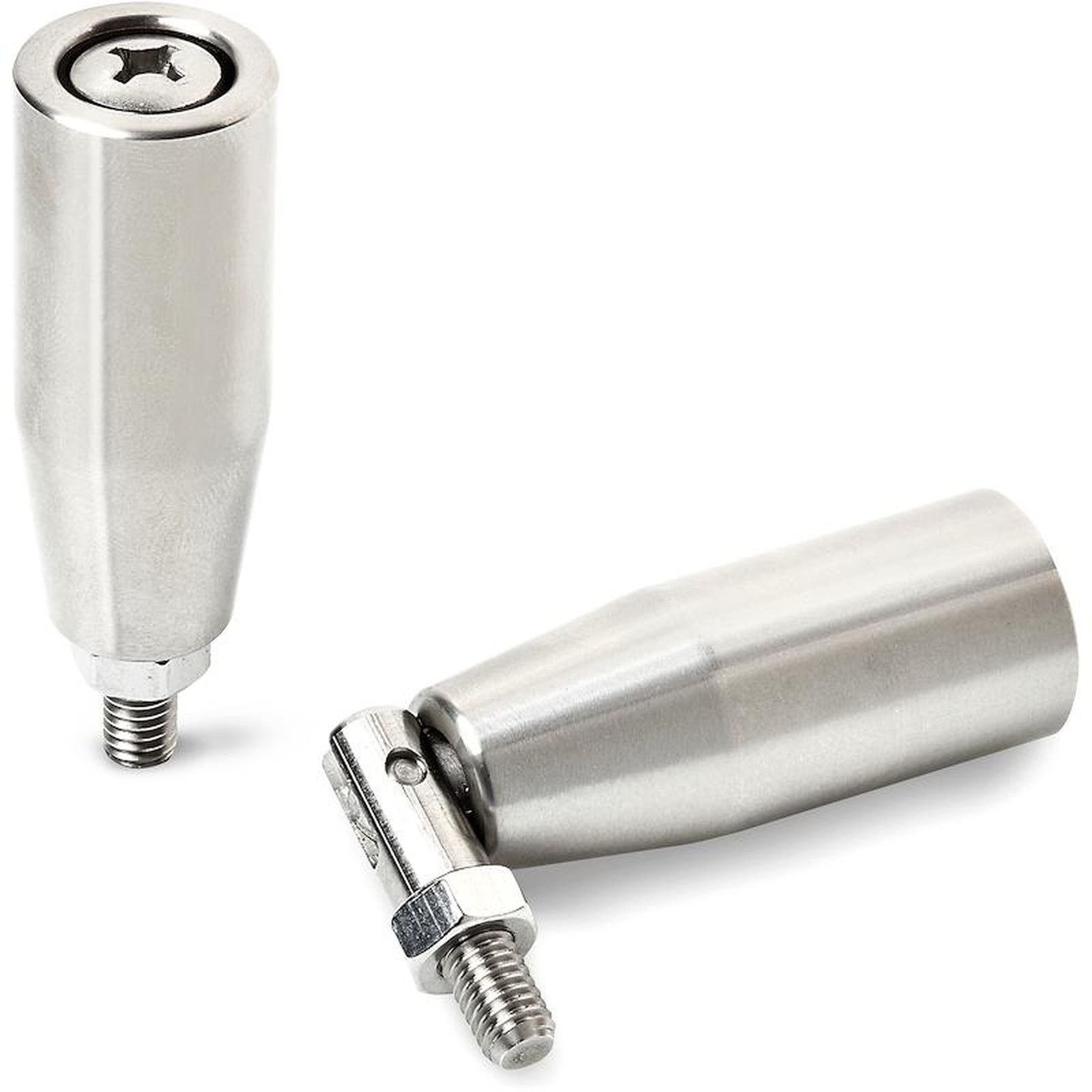

M336CIN:
(1) Stainless steel (Aisi 303) revolving, folding threaded cross-head stud.
(2) Stainless steel (Aisi 304) threaded nut DIN 934.
(3) Stainless steel spring (Aisi 302).
Special requests:
None.
Version M336: galvanised steel version.

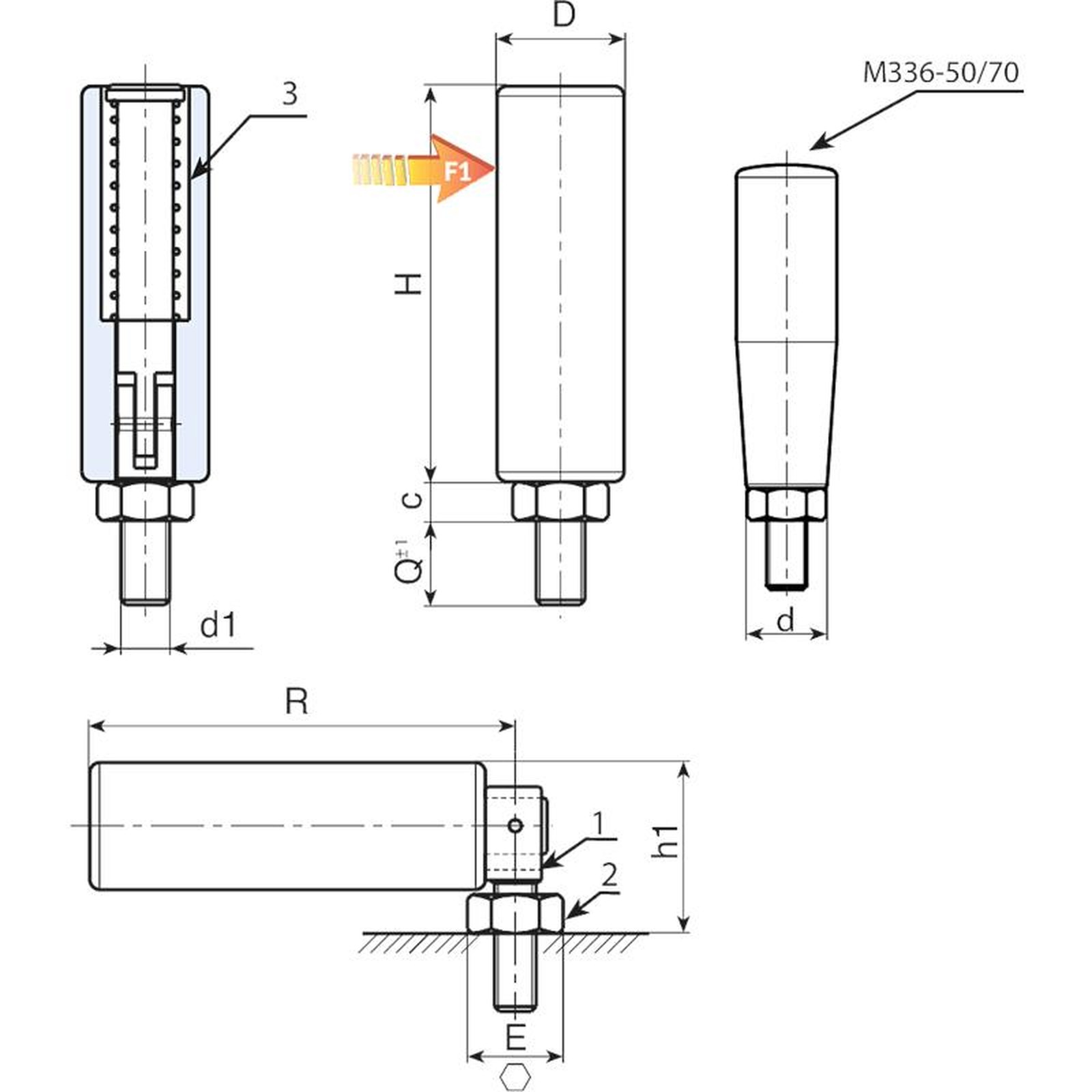

| Code | art. | H | D | d | E | R | c | h1 | d1 6g | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M33650.0002 | M33650.VZM06X09 | 49 | 20 | 15 | 10 | 53 | 5 | 24,5 | M6 | 9 | 91 | 270 |
| M33670.0002 | M33670.VZM08X10 | 69 | 23 | 20 | 13 | 73 | 6,5 | 28 | M8 | 10 | 177 | 840 |
| M33682.0002 | M33682.VZM10X15 | 81 | 26 | - | 17 | 87 | 8 | 35 | M10 | 15 | 312 | 1700 |
| M33690.0002 | M33690.VZM10X15 | 89 | 26 | - | 17 | 95 | 8 | 35 | M10 | 15 | 333 | 2700 |
Version M336CIN: stainless steel version.
| Code | art. | H | D | d | E | R | c | h1 | d1 6g | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M33650.0001 | M33650.INM06X09CIN | 49 | 20 | 15 | 10 | 53 | 5 | 24,5 | M6 | 9 | 91 | 270 |
| M33670.0001 | M33670.INM08X10CIN | 69 | 23 | 20 | 13 | 73 | 6,5 | 28 | M8 | 10 | 177 | 840 |
| M33682.0001 | M33682.INM10X15CIN | 81 | 26 | - | 17 | 87 | 8 | 35 | M10 | 15 | 312 | 1700 |
| M33690.0001 | M33690.INM10X15CIN | 89 | 26 | - | 17 | 95 | 8 | 35 | M10 | 15 | 333 | 2700 |
