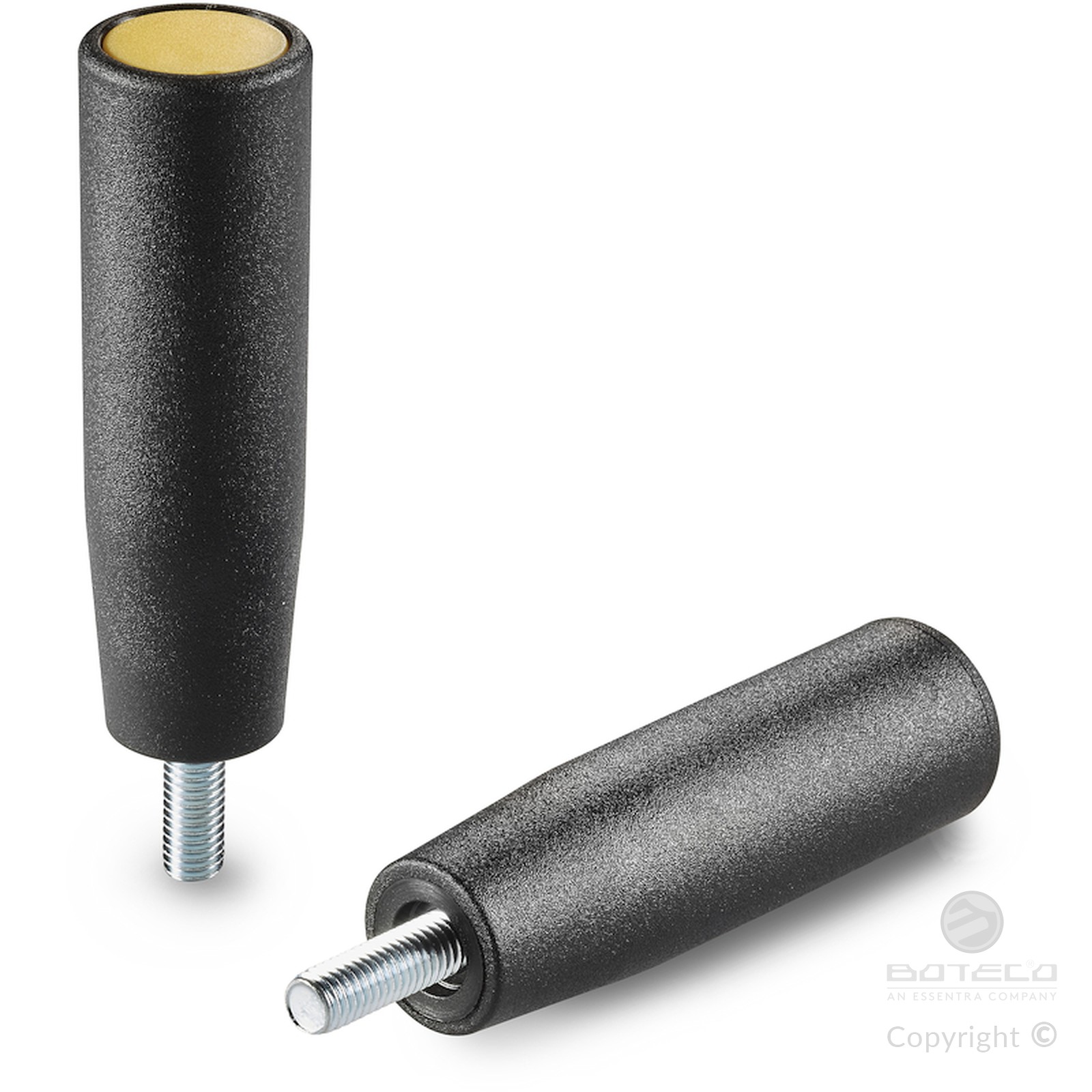

Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Central Cap:
Grey polyamide (RAL 7035). 13).
Alternative Cap colours:
Orange(RAL 2004 code 02).
Blue(RAL 5015 code 07).
Yellow(RAL 1021 code 10).
Red(RAL 3000 code 16).
Green(RAL 6024 code 17).
Black(RAL 9011 code 01).
Inserts:
Galvanised steel threaded stud (thread tolerance 6g).
Special Requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).
Studs lengths already setup on the mould:
For all threads:
10-15-20-25-30-35-40-45-50-55-60-65-70-75-80

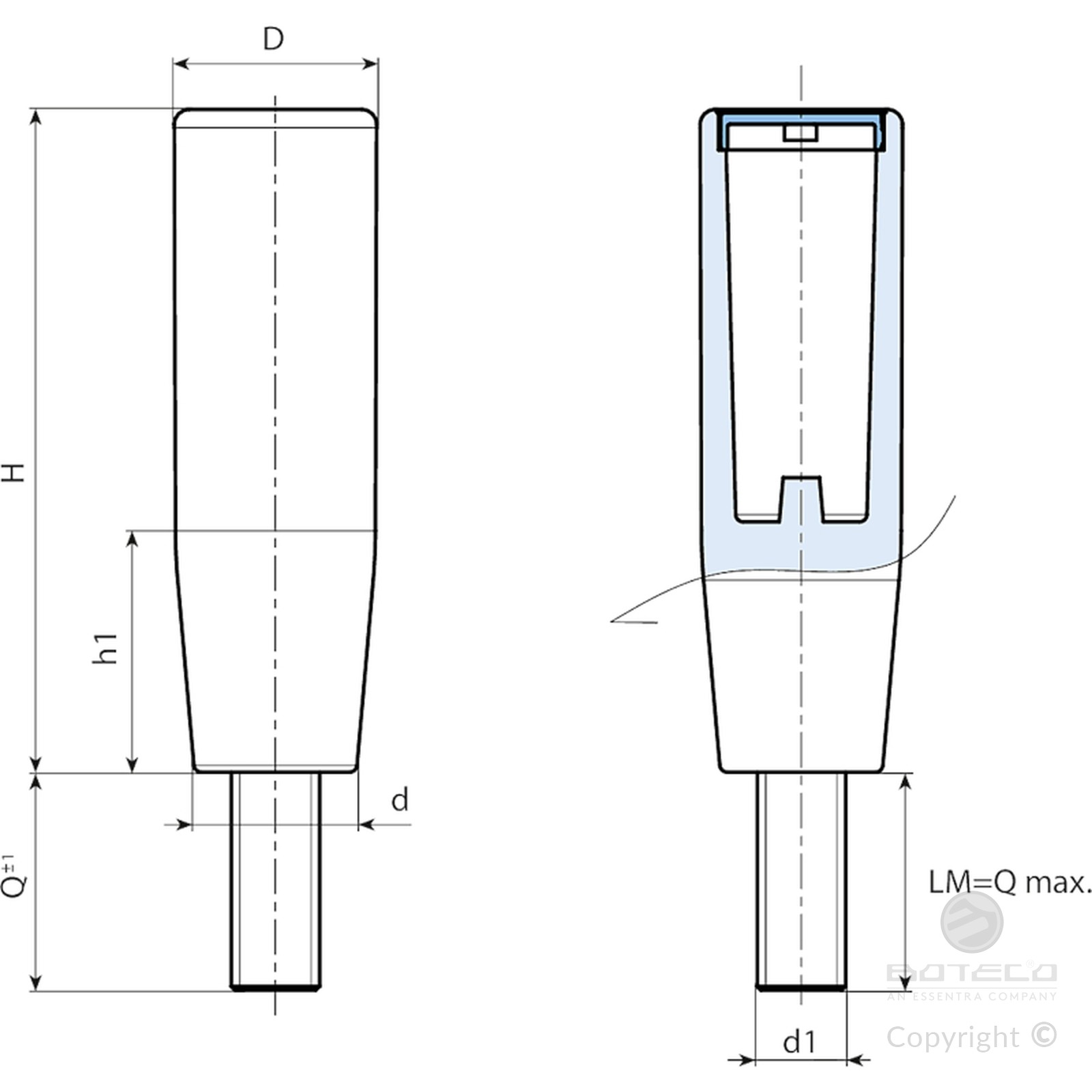

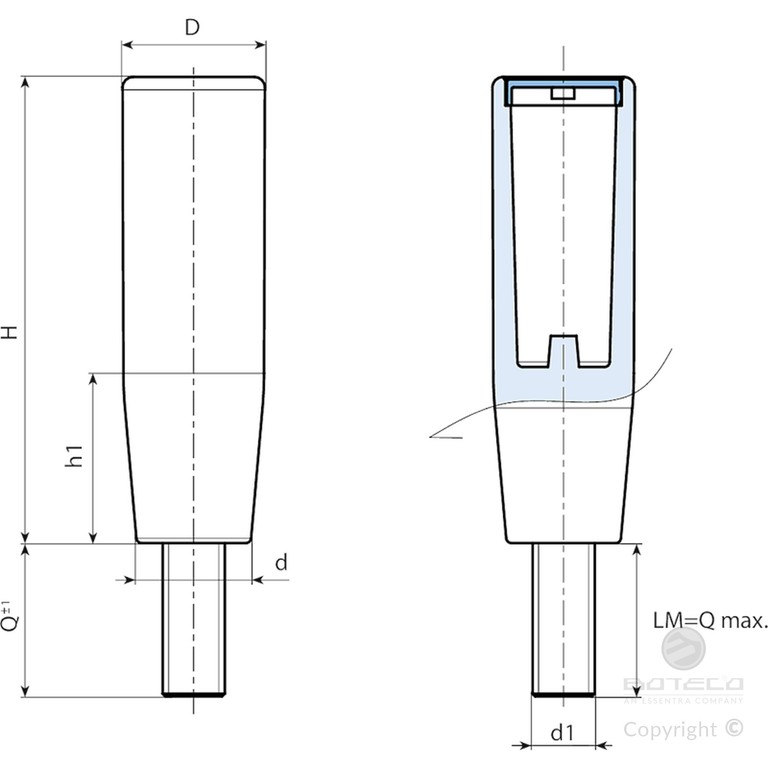

| Code | art. | H | D | d | h1 | LM | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| M24090.0003 | M24090.TM08X100113 | 90 | 27,5 | 22,5 | 35 | 80 | M8 | 10 | 65 |
| M24090.0007 | M24090.TM08X150113 | 90 | 27,5 | 22,5 | 35 | 80 | M8 | 15 | 66,5 |
| M24090.0011 | M24090.TM10X100113 | 90 | 27,5 | 22,5 | 35 | 80 | M10 | 10 | 70 |
| M24090.0015 | M24090.TM10X200113 | 90 | 27,5 | 22,5 | 35 | 80 | M10 | 20 | 75 |
| M24090.0019 | M24090.TM12X200113 | 90 | 27,5 | 22,5 | 35 | 80 | M12 | 20 | 83 |
Customised stud length available for a minimum of 100 pieces.
LM = Maximum mouldable length.
| art. | H | D | d | h1 | LM | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| M24090.TM08X..0113 | 90 | 27,5 | 22,5 | 35 | 80 | M8 | 10-15 | 65-66,5 |
| M24090.TM10X..0113 | 90 | 27,5 | 22,5 | 35 | 80 | M10 | 10-20 | 70-75 |
| M24090.TM12X200113 | 90 | 27,5 | 22,5 | 35 | 80 | M12 | 20 | 83 |
Enter the selected stud length in place of the two dots . . in the item code. Customised stud length available for a minimum of 100 pieces.
LM = Maximum mouldable length.
