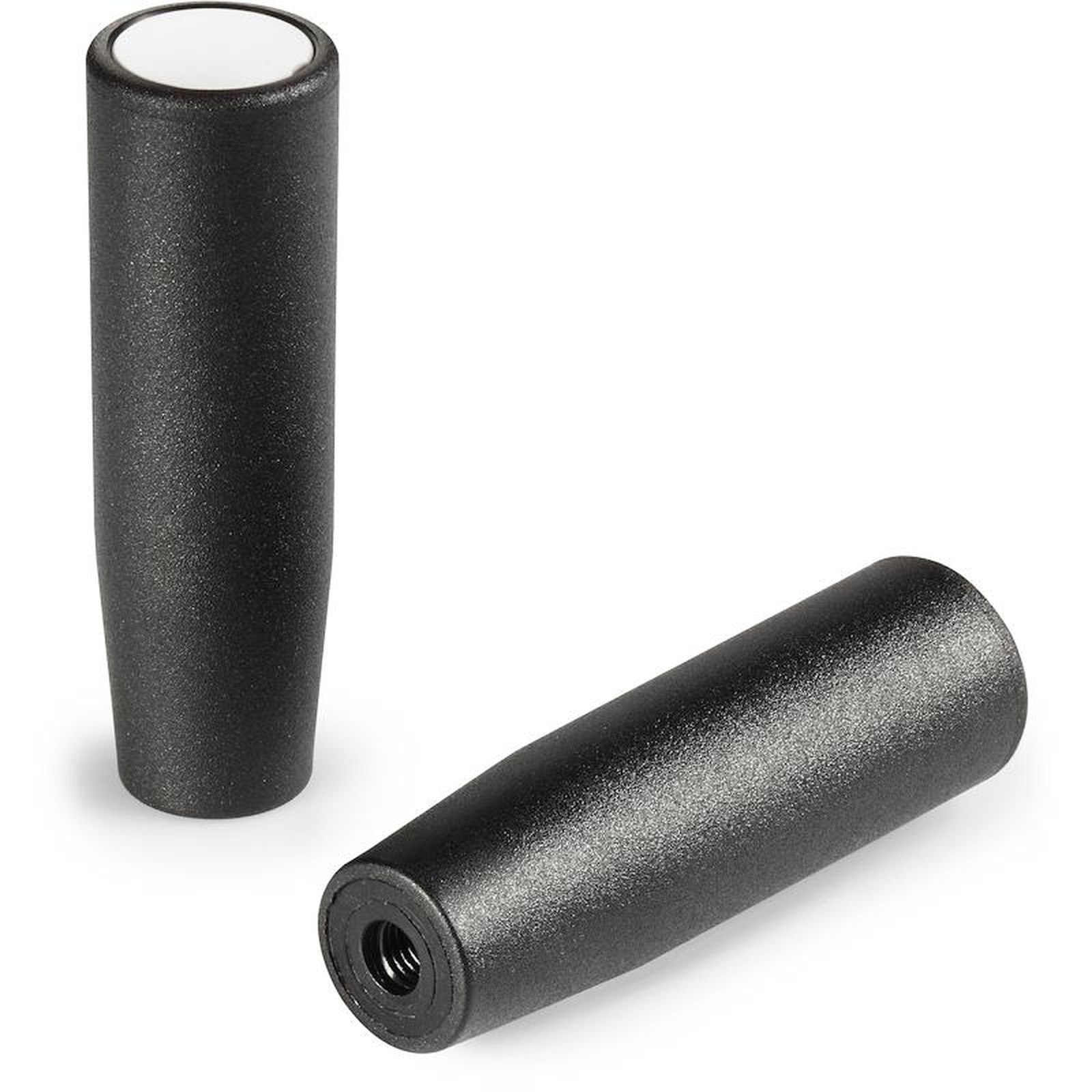

“EUROMODEL” HANDLE WITH THREADED HOLE
13
M238
Manici con foro/perno filettato
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Central Cap:
Grey polyamide (RAL 7035). 13).
Alternative Cap colours:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Red (RAL 3000 code 16).
Green (RAL 6024 code 17).
Black (RAL 9011 code 01).
Hole:
Female threaded hole obtained by moulding the plastic (thread tolerance not applicable).
Special Requests:
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

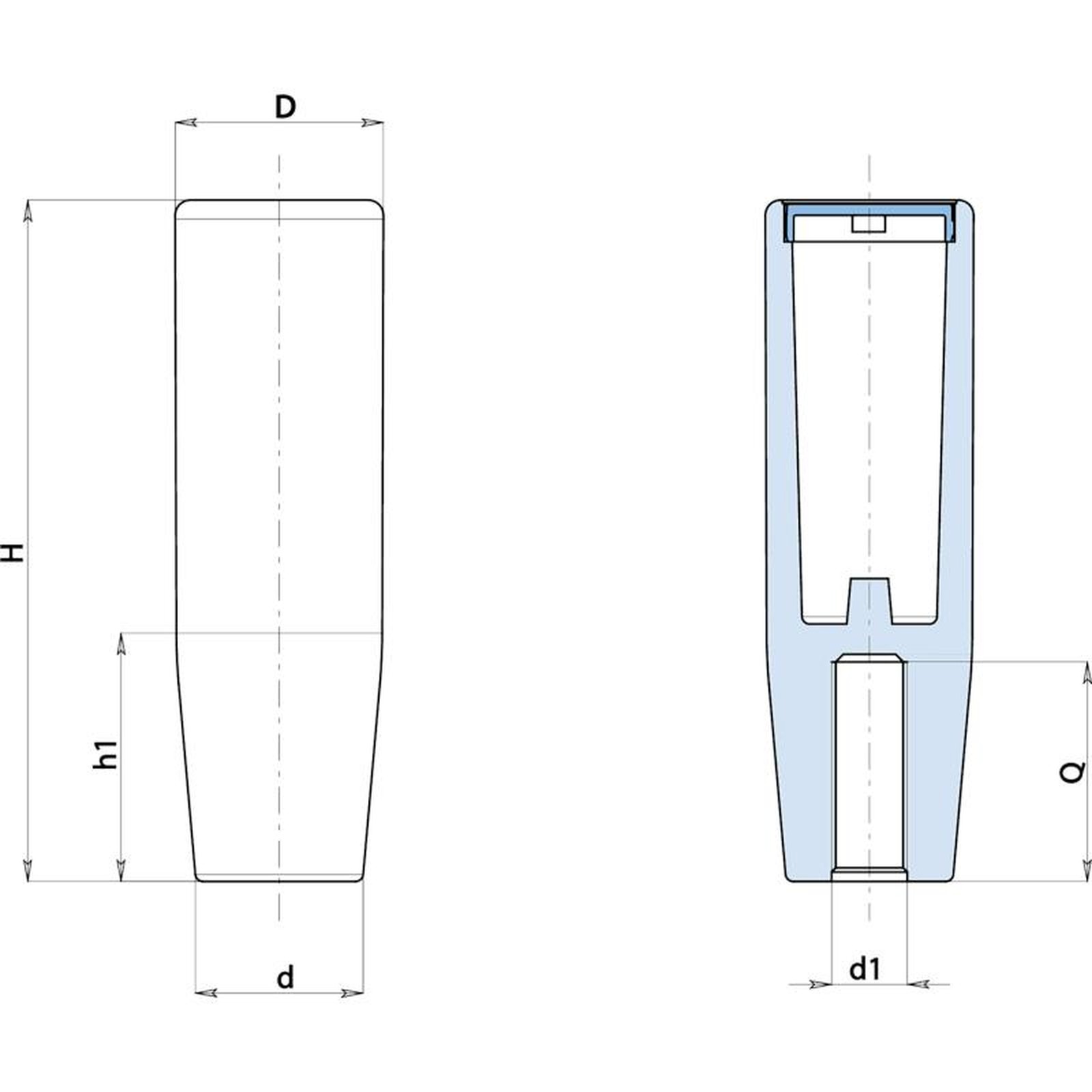

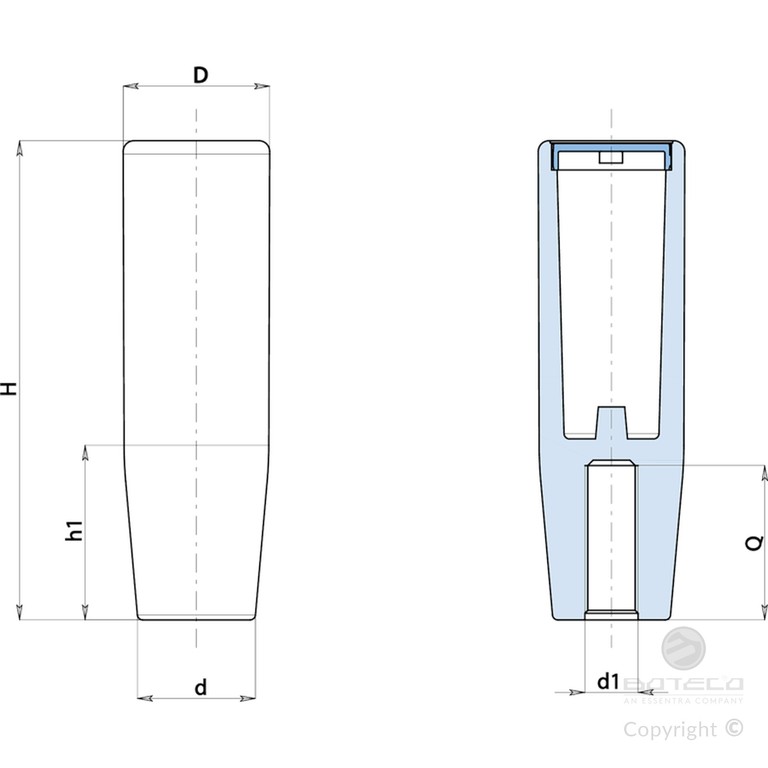

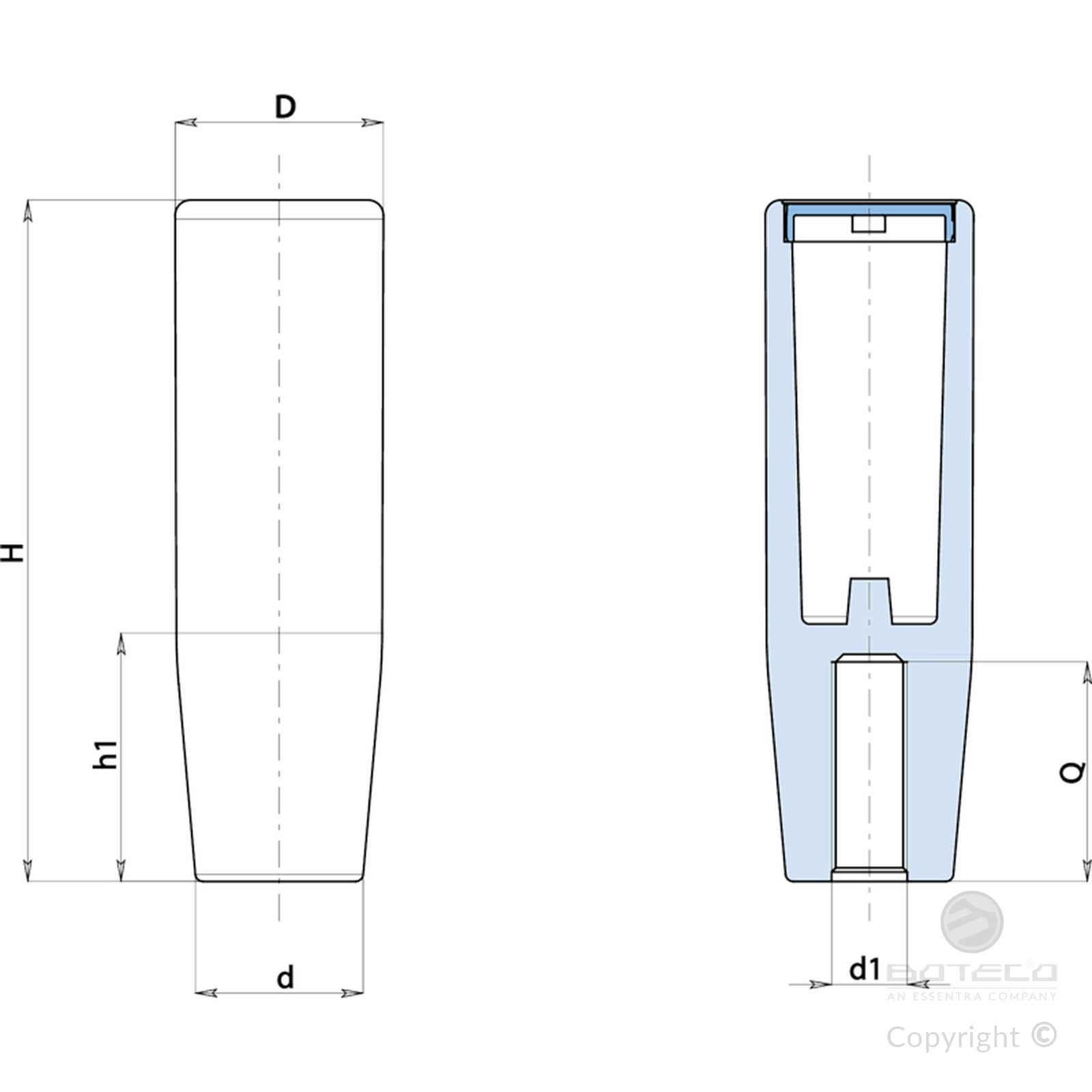

| Code | art. | H | D | d | h1 | d1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| M23890.0003 | M23890.TM080113 | 90 | 27,5 | 22,5 | 35 | M8 | 29 | 41 |
| M23890.0008 | M23890.TM100113 | 90 | 27,5 | 22,5 | 35 | M10 | 29 | 39 |
| M23890.0010 | M23890.TM120113 | 90 | 27,5 | 22,5 | 35 | M12 | 29 | 37 |
