“EUROMODEL” REVOLVING HANDLE WITH HEXAGONAL SOCKET STUD
13
M229
Manici girevoli
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Central Cap:
Grey polyamide (RAL 7035). 13).
Alternative Cap colours:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Red (RAL 3000 code 16).
Green (RAL 6024 code 17).
Black (RAL 9011 code 01).
Revolving insert:

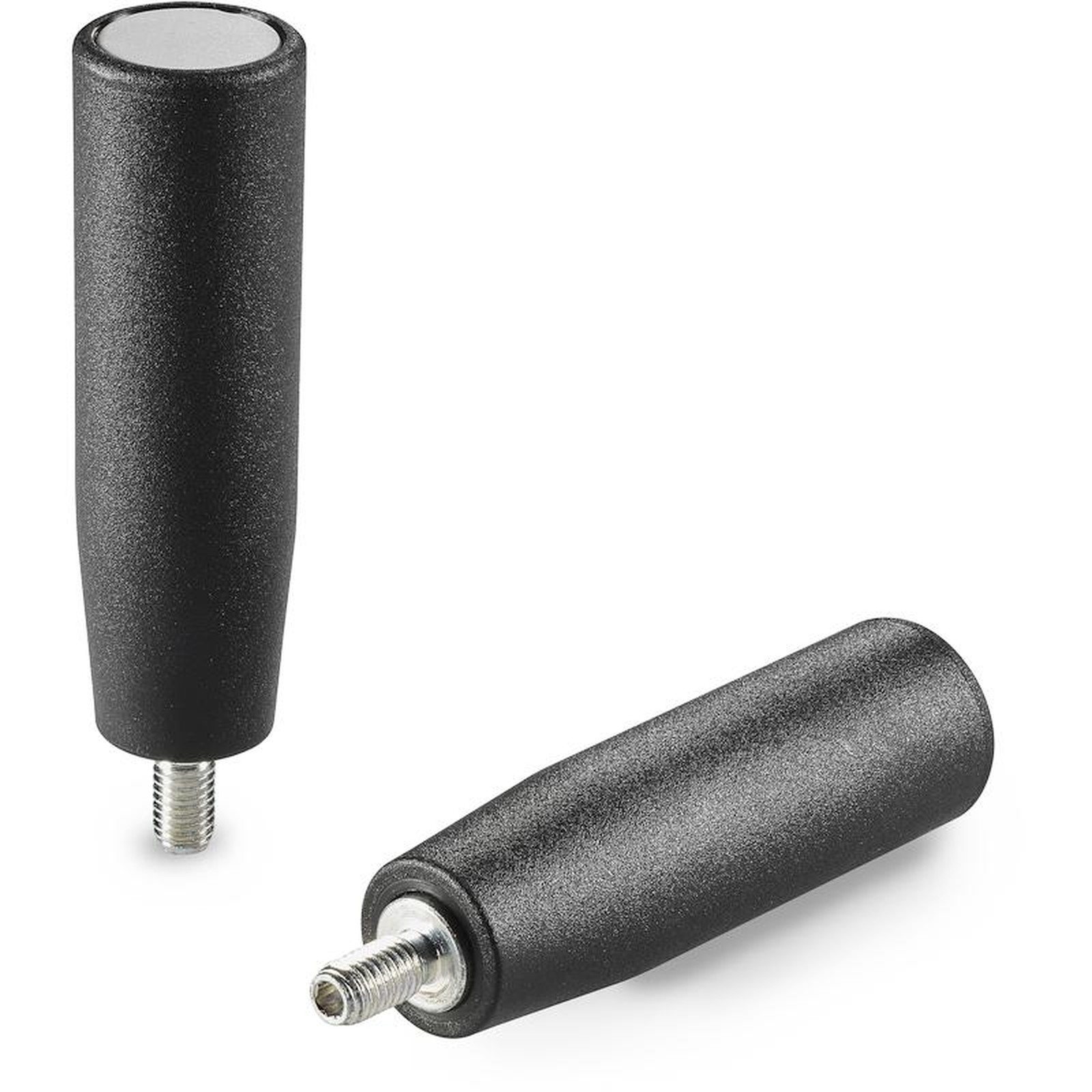

M229:
Revolving galvanised steel threaded stud, with hexagon socket head and brass washer (thread tolerance 6g).

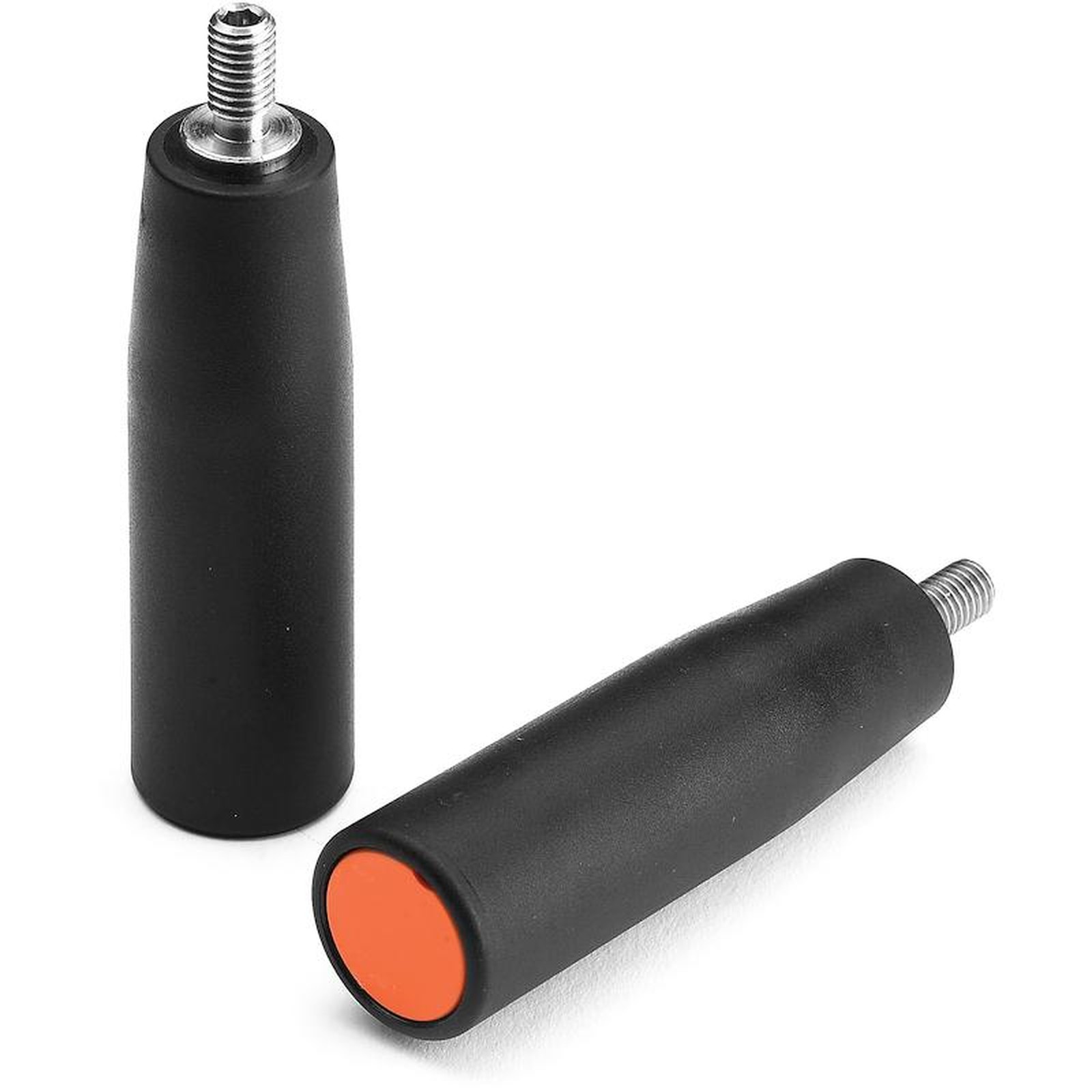

M229CIN:
Revolving stainless steel threaded stud (Aisi 303), with hexagon socket head and brass washer (thread tolerance 6g).
Special requests:
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).
Version M229: galvanised steel version.

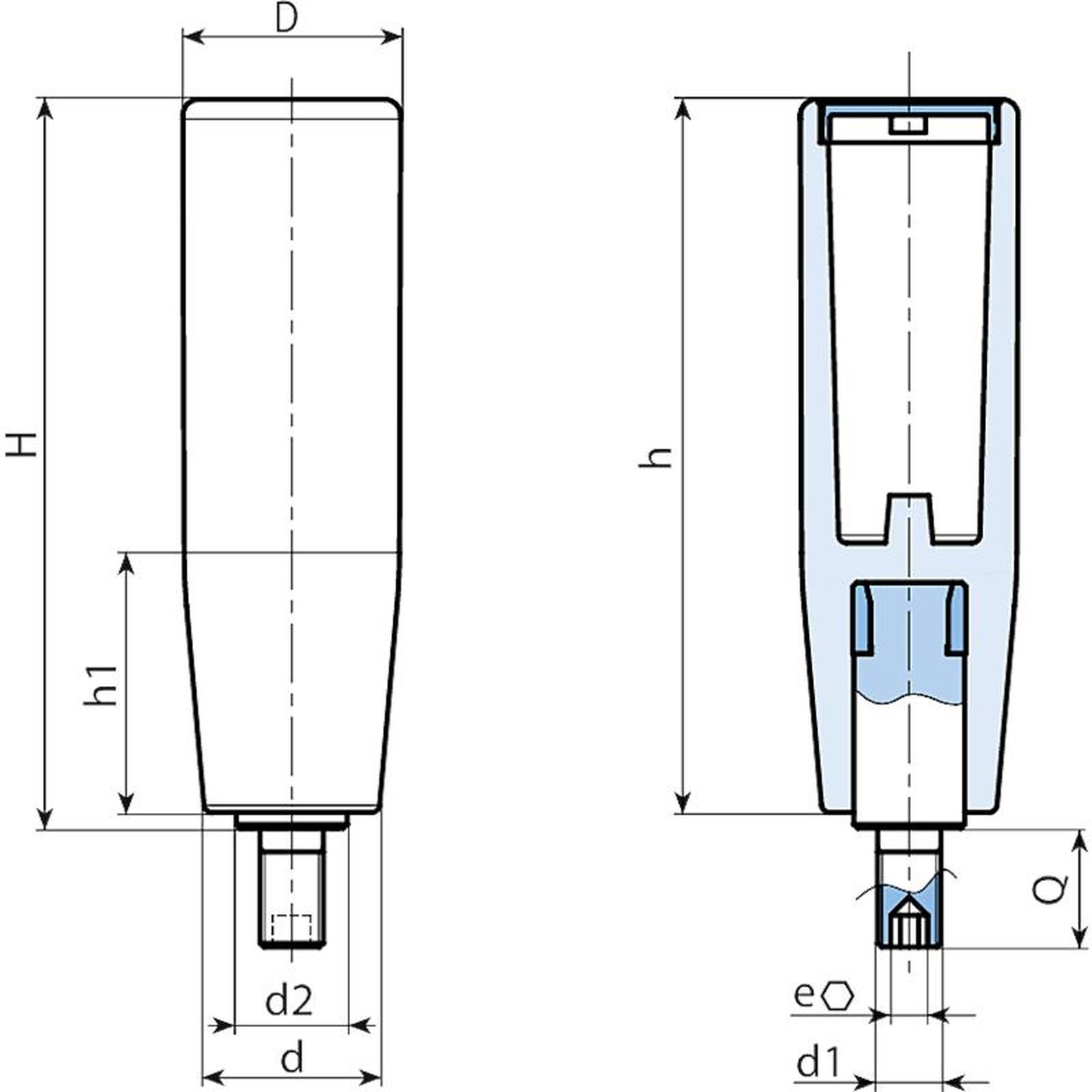

| Code | art. | H | D | d | d2 | e | h | h1 | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M22990.0002 | M22990.TM10X150113 | 92,5 | 27,5 | 22,5 | 14 | 5 | 90,5 | 35 | M10 | 15 | 78 |
| M22990.0006 | M22990.TM12X150113 | 92,5 | 27,5 | 22,5 | 14 | 5 | 90,5 | 35 | M12 | 15 | 82 |
Version M229CIN: stainless steel version.
| Code | art. | H | D | d | d2 | e | h | h1 | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M22990.0003 | M22990.TM10X150113CIN | 92,5 | 27,5 | 22,5 | 14 | 5 | 90,5 | 35 | M10 | 15 | 78 |
| M22990.0007 | M22990.TM12X150113CIN | 92,5 | 27,5 | 22,5 | 14 | 5 | 90,5 | 35 | M12 | 15 | 82 |
