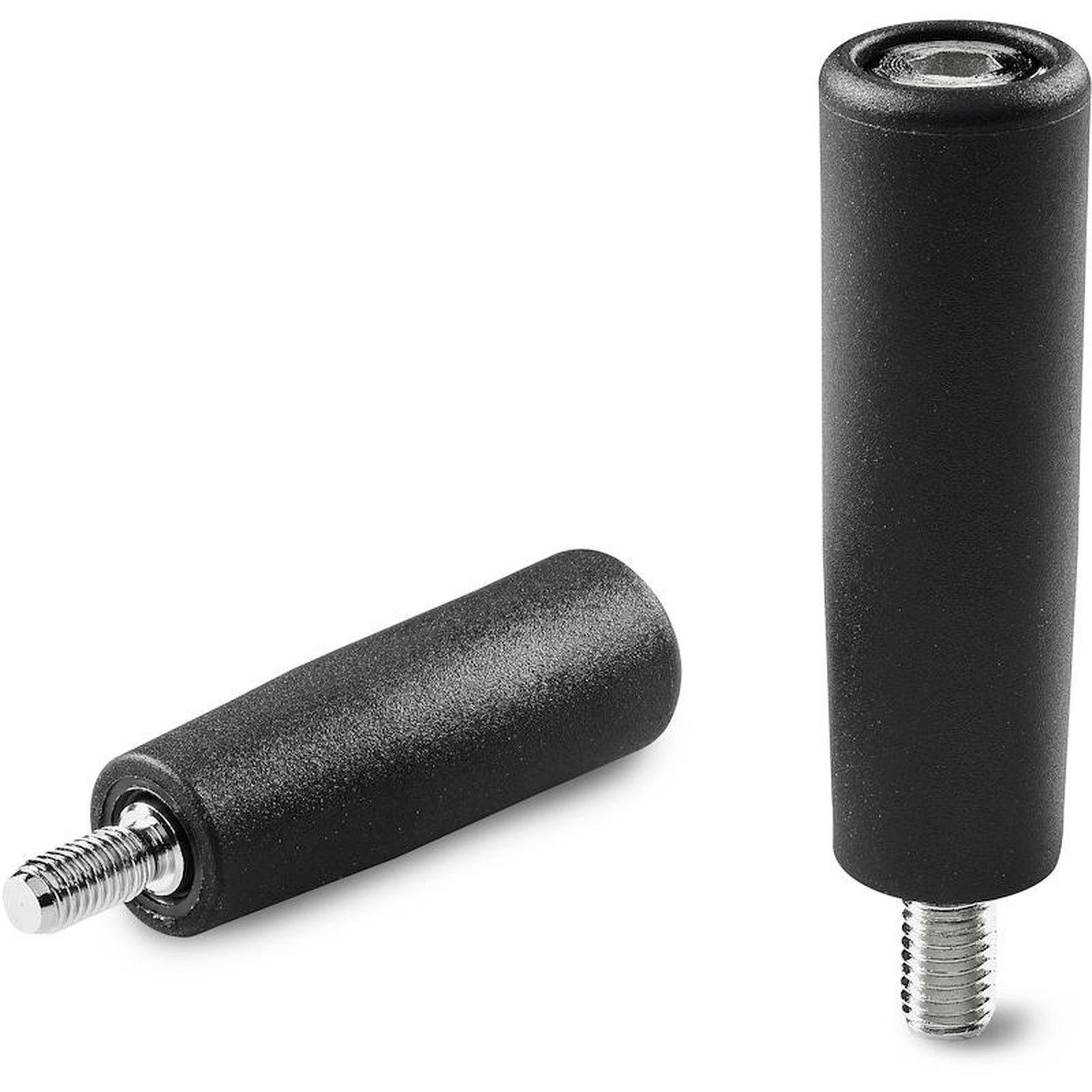

REVOLVING HANDLE WITH FIXED SCREW AND HEXAGON SOCKET HEAD
13
M151
Manici girevoli
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Special turned nickel-plated steel screw, with partially threaded stud. Hexagon socket head (thread tolerance 6g).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

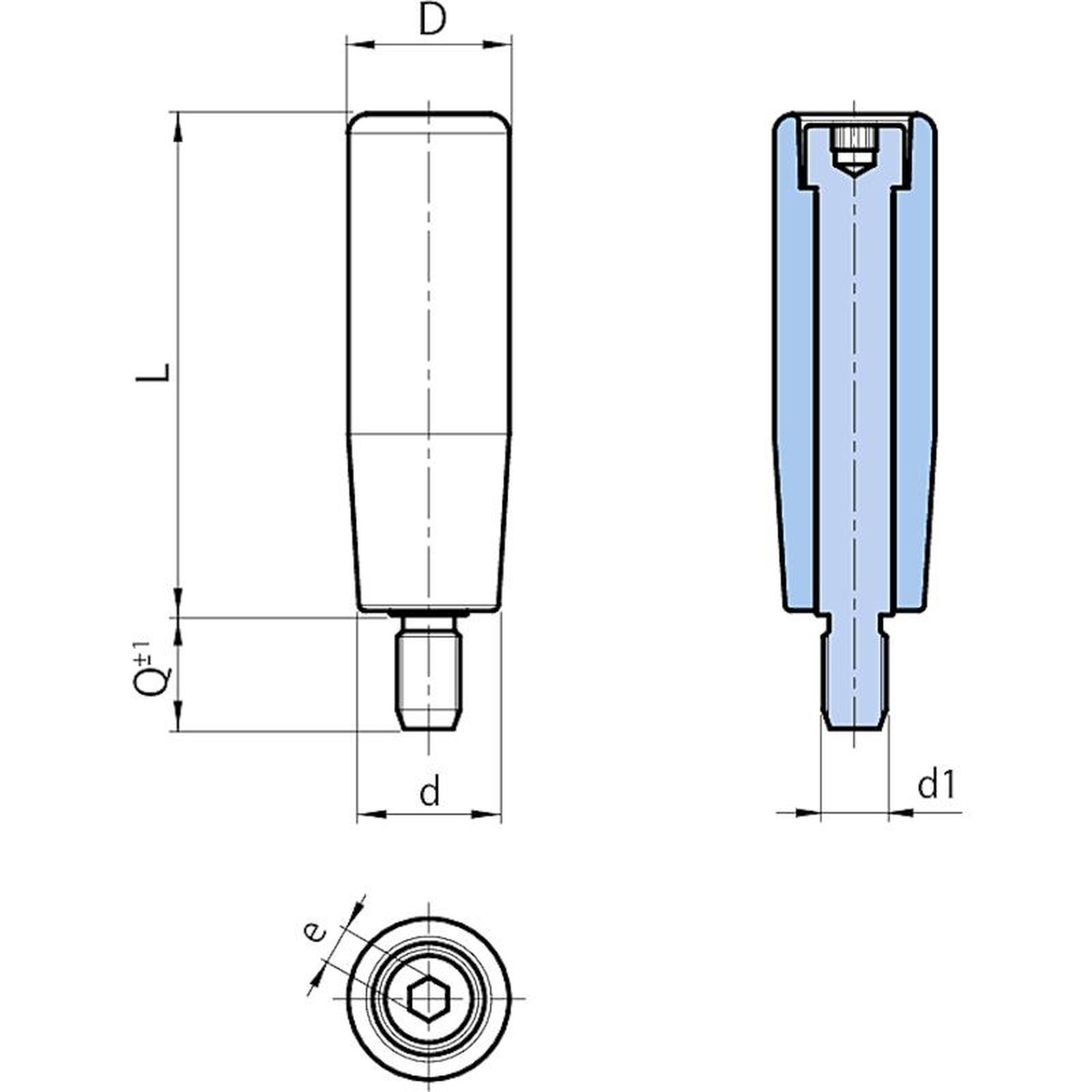

| Code | art. | L | D | d | e | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| M15150.0001 | M15150.TM08X1501H | 50 | 19 | 17 | 5 | M8 | 15 | 49 |
| M15170.0001 | M15170.TM08X1701H | 69 | 23,5 | 20 | 6 | M8 | 17 | 79 |
| M15170.0002 | M15170.TM10X1701H | 69 | 23,5 | 20 | 6 | M10 | 17 | 98 |
| M15180.0001 | M15180.TM10X1801H | 80 | 25,5 | 22 | 6 | M10 | 18 | 119 |
| M15190.0001 | M15190.TM10X1801H | 90 | 27,5 | 24 | 8 | M10 | 18 | 144 |
