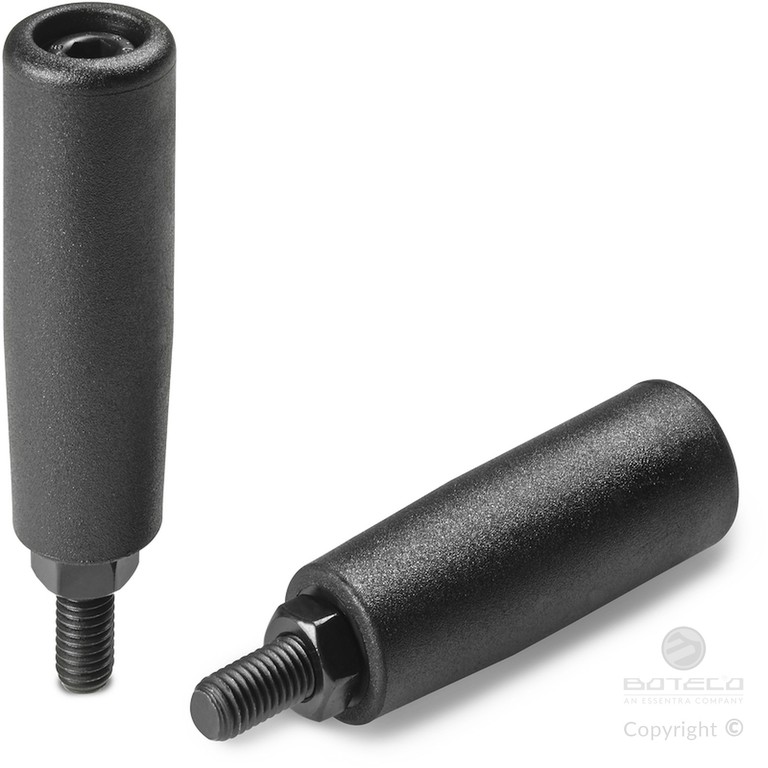

Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
M145:
Revolving galvanised steel threaded stud, with ring nut with seat for key and harmonic steel rotating spring (thread tolerance 6g).
M145CIN:
Revolving stainless steel threaded stud (Aisi 303), with ring nut with seat for key and stainless steel rotating spring (Aisi 302) (thread tolerance 6g).
Special Requests:
Upon request and for special quantities available in the colours indicated in the chart.

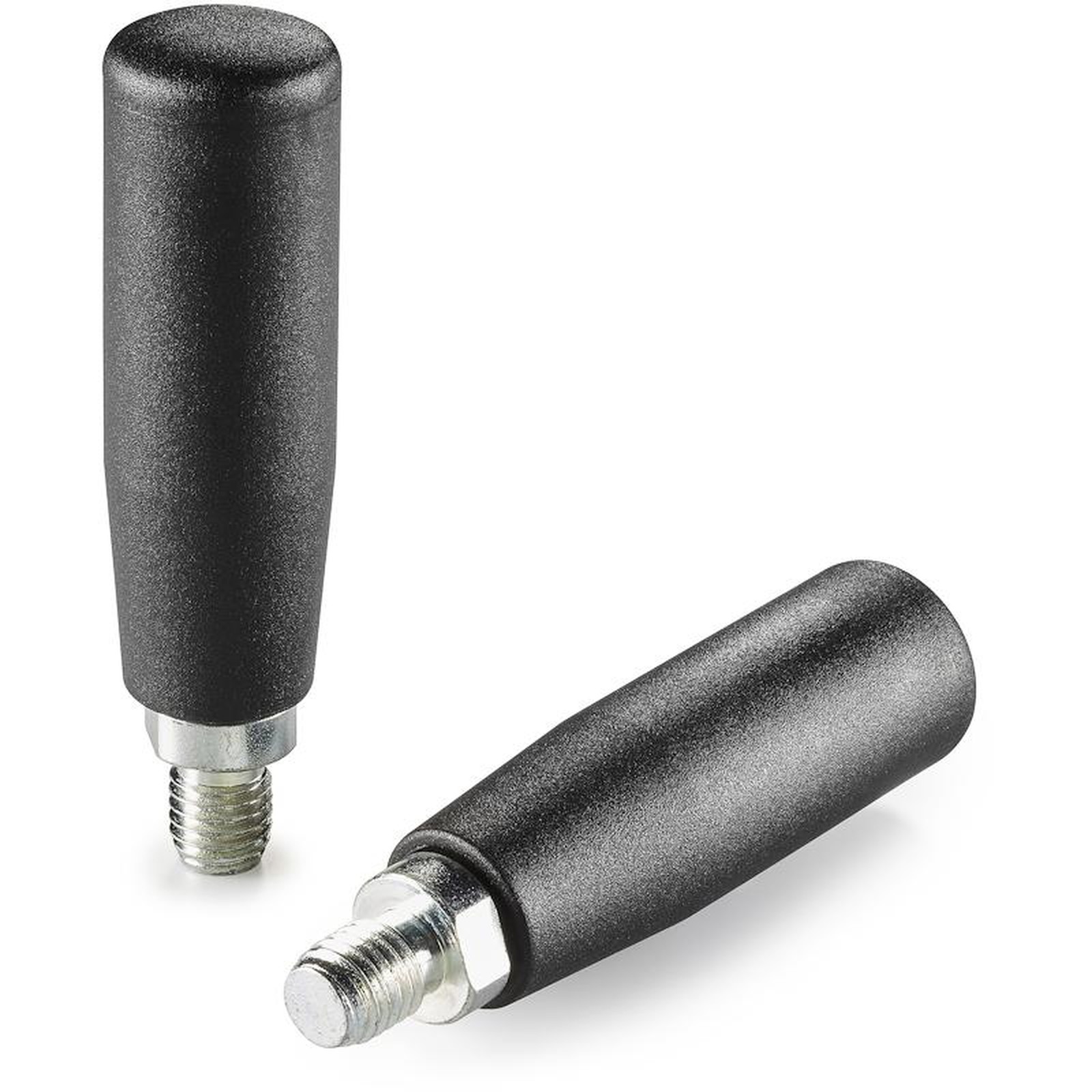

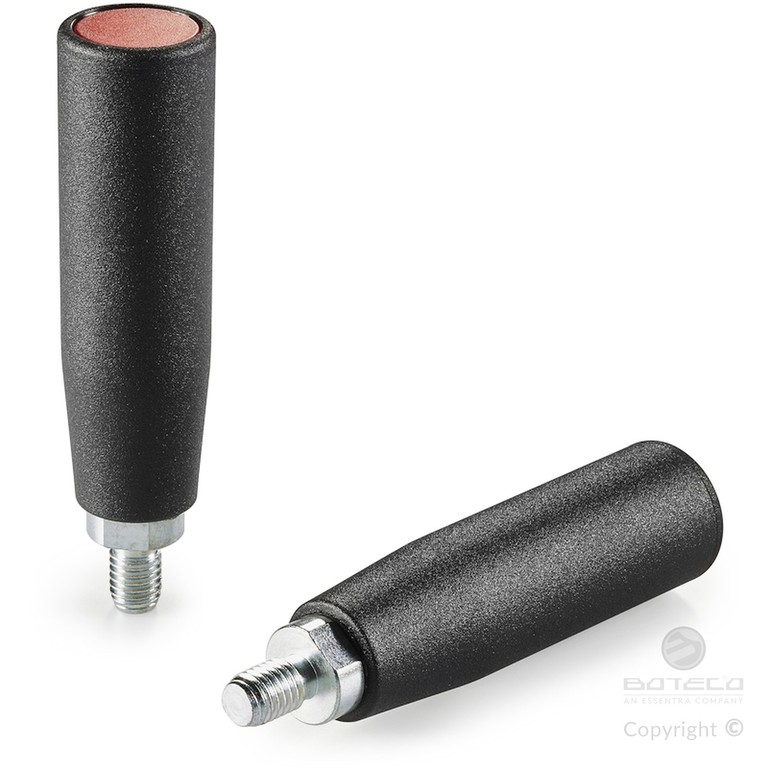

Version M145: with galvanised steel inserts.

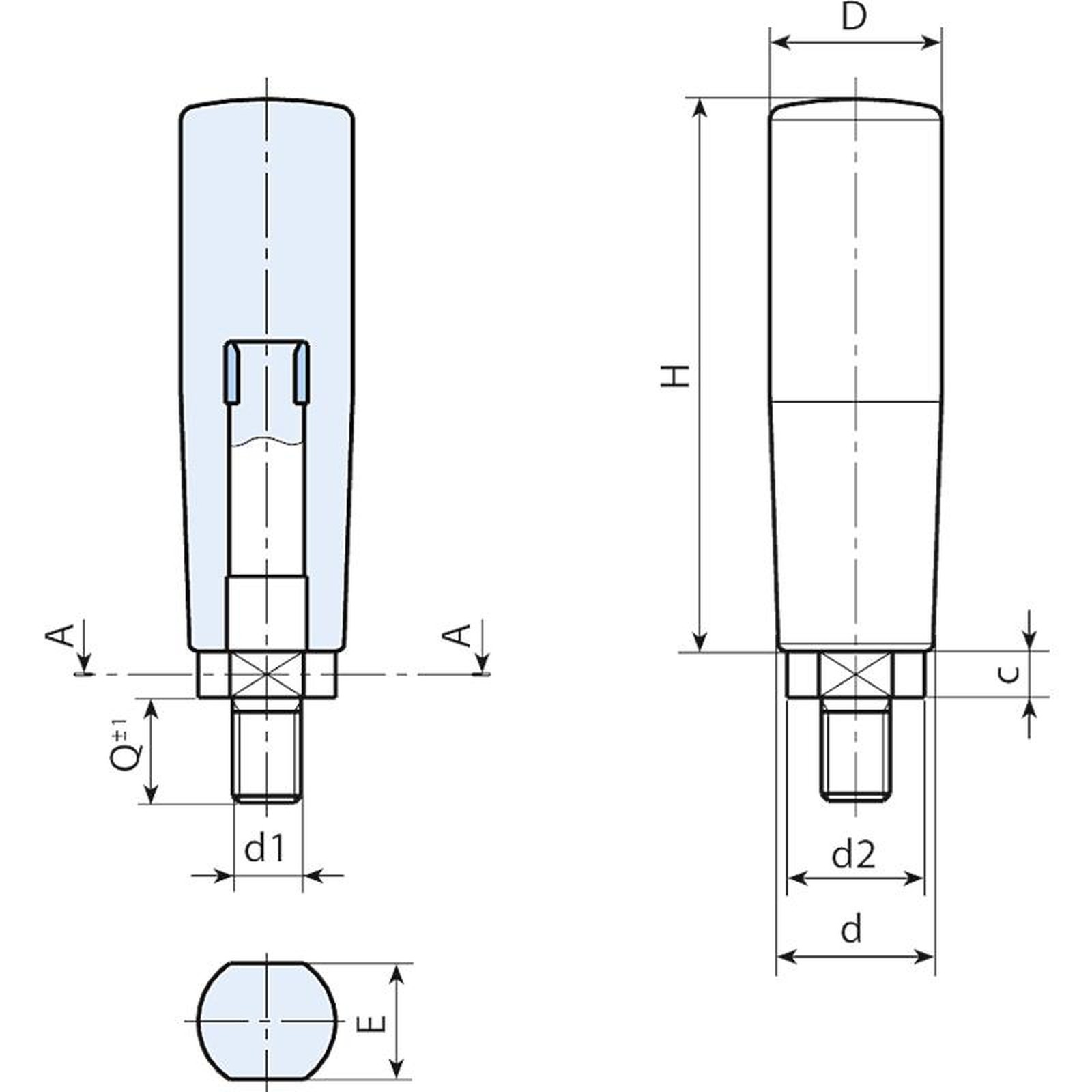

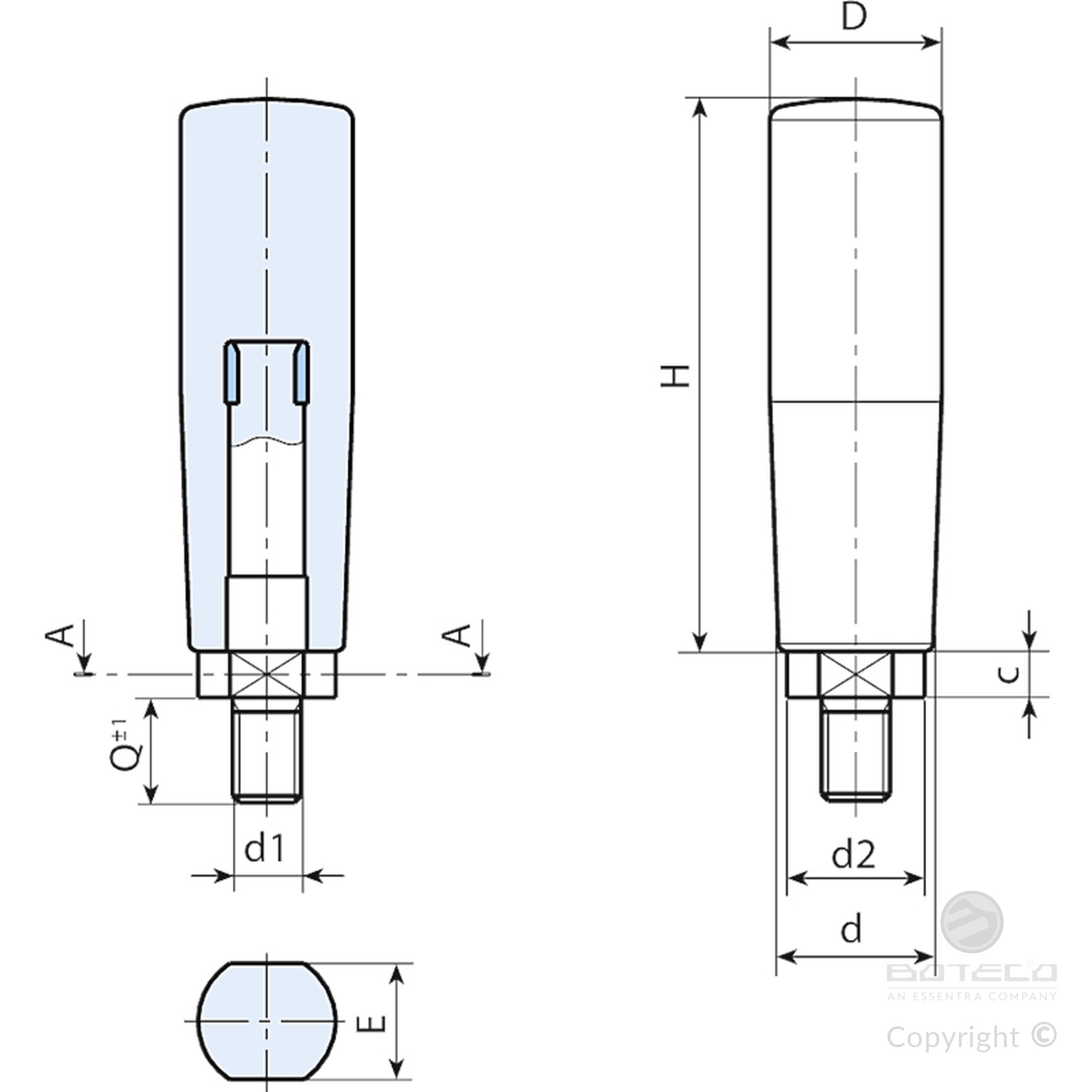

| Code | art. | H | D | d | d2 | c | E | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| M14550.0001 | M14550.TM06X1201 | 50,5 | 20 | 15 | 12 | 5 | 10 | M6 | 12 | 32 |
| M14560.0001 | M14560.TM08X1501 | 60,5 | 23,5 | 18 | 14 | 7 | 13 | M8 | 15 | 74 |
| M14570.0001 | M14570.TM08X1501 | 70 | 25 | 18,5 | 14 | 7 | 13 | M8 | 15 | 82 |
| M14570.0003 | M14570.TM10X1501 | 70 | 25 | 18,5 | 14 | 7 | 13 | M10 | 15 | 86 |
| M14580.0001 | M14580.TM10X1501 | 79 | 26 | 21,5 | 18 | 6,5 | 16 | M10 | 15 | 92 |
| M14580.0003 | M14580.TM12X1501 | 79 | 26 | 21,5 | 18 | 6,5 | 16 | M12 | 15 | 96 |
| M14590.0001 | M14590.TM10X1501 | 89,5 | 28 | 23,5 | 18 | 6,5 | 16 | M10 | 15 | 104 |
| M14590.0003 | M14590.TM12X1501 | 89,5 | 28 | 23,5 | 18 | 6,5 | 16 | M12 | 15 | 108 |

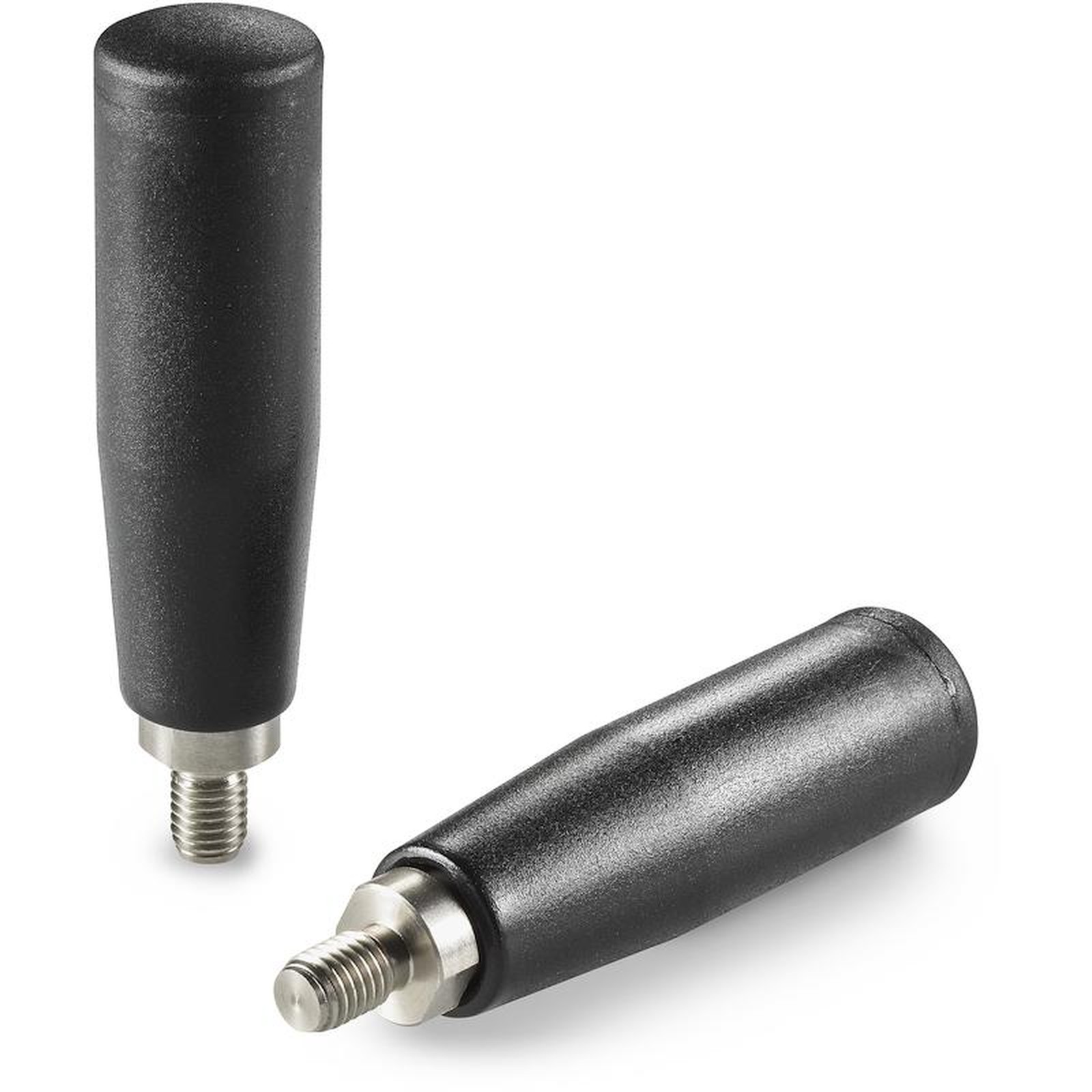

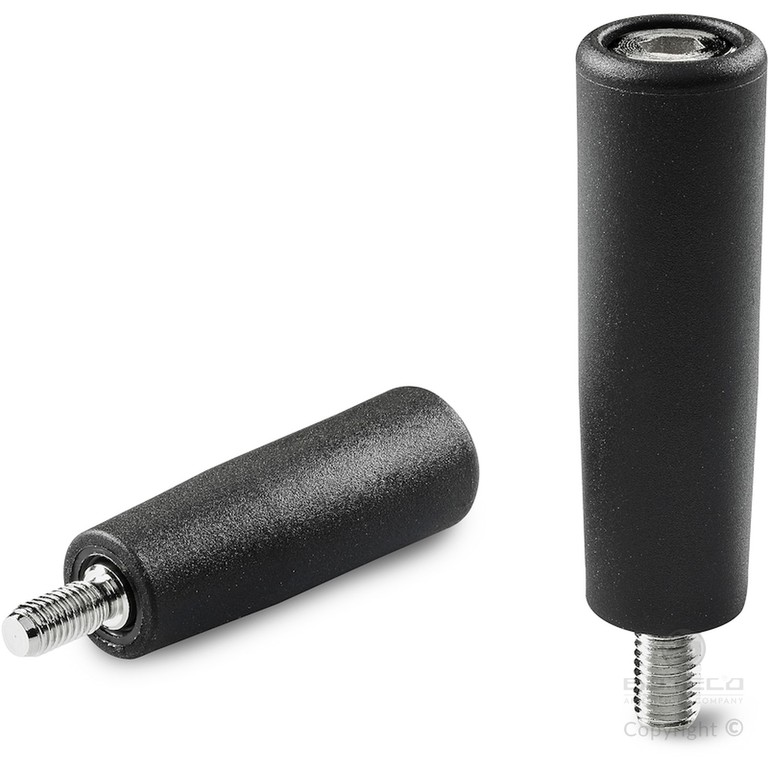

Version M145CIN: with stainless steel inserts (Aisi 303).
| Code | art. | H | D | d | d2 | c | E | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| M14550.0002 | M14550.TM06X1201CIN | 50,5 | 20 | 15 | 12 | 5 | 10 | M6 | 12 | 32 |
| M14560.0002 | M14560.TM08X1501CIN | 60,5 | 23,5 | 18 | 14 | 7 | 13 | M8 | 15 | 74 |
| M14570.0002 | M14570.TM08X1501CIN | 70 | 25 | 18,5 | 14 | 7 | 13 | M8 | 15 | 82 |
| M14570.0004 | M14570.TM10X1501CIN | 70 | 25 | 18,5 | 14 | 7 | 13 | M10 | 15 | 86 |
| M14580.0002 | M14580.TM10X1501CIN | 79 | 26 | 21,5 | 18 | 6,5 | 16 | M10 | 15 | 92 |
| M14580.0004 | M14580.TM12X1501CIN | 79 | 26 | 21,5 | 18 | 6,5 | 16 | M12 | 15 | 96 |
| M14590.0002 | M14590.TM10X1501CIN | 89,5 | 28 | 23,5 | 18 | 6,5 | 16 | M10 | 15 | 104 |
| M14590.0004 | M14590.TM12X1501CIN | 89,5 | 28 | 23,5 | 18 | 6,5 | 16 | M12 | 15 | 108 |
