Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
M144:
(1) Threaded hexagonal socket head cap screw (TCCE) in black-oxyde treated steel DIN 912.
(2) Black-oxyde treated steel nut DIN 934.
M144CIN:
(1) Threaded hexagonal socket head cap screw (TCCE) in stainless steel (Aisi 304) DIN 912.
(2) Stainless steel nut (AISI 304) DIN 934.
Special Requests:
Upon request and for special quantities available in the colours indicated in the chart.

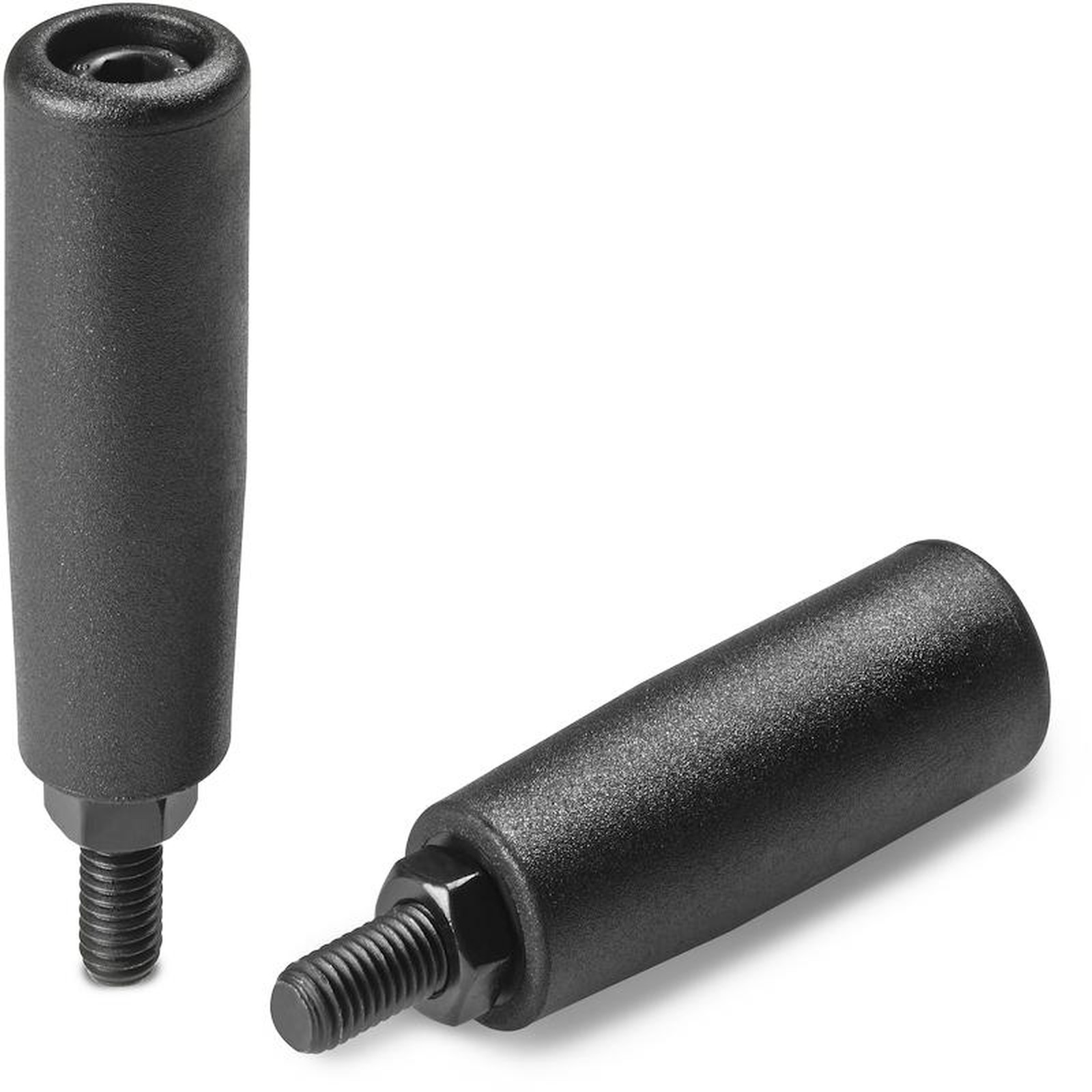

Version M144: with black oxide treated steel inserts.

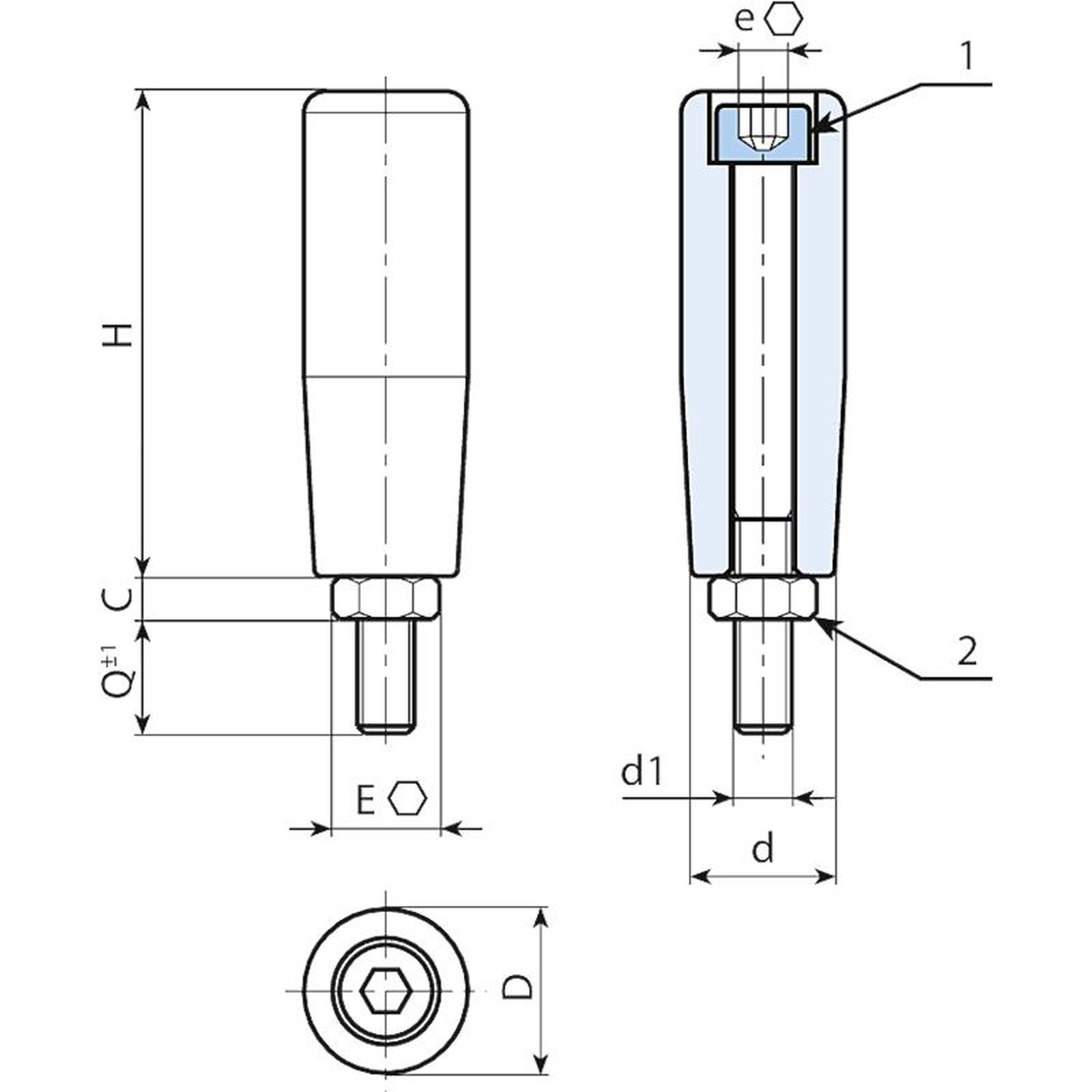

| Code | art. | H | D | d | c | E | e | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| M14450.0001 | M14450.TM06X0901 | 49 | 19 | 17 | 5 | 10 | 5 | M6 | 9 | 30 |
| M14450.0005 | M14450.TM08X1401 | 49 | 19 | 17 | 6.5 | 13 | 6 | M8 | 14 | 32 |
| M14460.0002 | M14460.TM08X1501 | 59 | 21 | 19 | 6,5 | 13 | 6 | M8 | 14,5 | 56 |
| M14470.0003 | M14470.TM08X1601 | 68,5 | 23,5 | 20 | 6,5 | 17 | 8 | M8 | 15,5 | 68 |
| M14470.0006 | M14470.TM10X1601 | 68,5 | 23,5 | 20 | 8 | 17 | 8 | M10 | 16 | 92 |
| M14480.0001 | M14480.TM10X1501 | 79 | 25,5 | 22 | 8 | 17 | 8 | M10 | 15 | 110 |
| M14490.0002 | M14490.TM12X1701 | 89,5 | 27,5 | 24 | 7 | 19 | 10 | M12 | 18 | 150 |

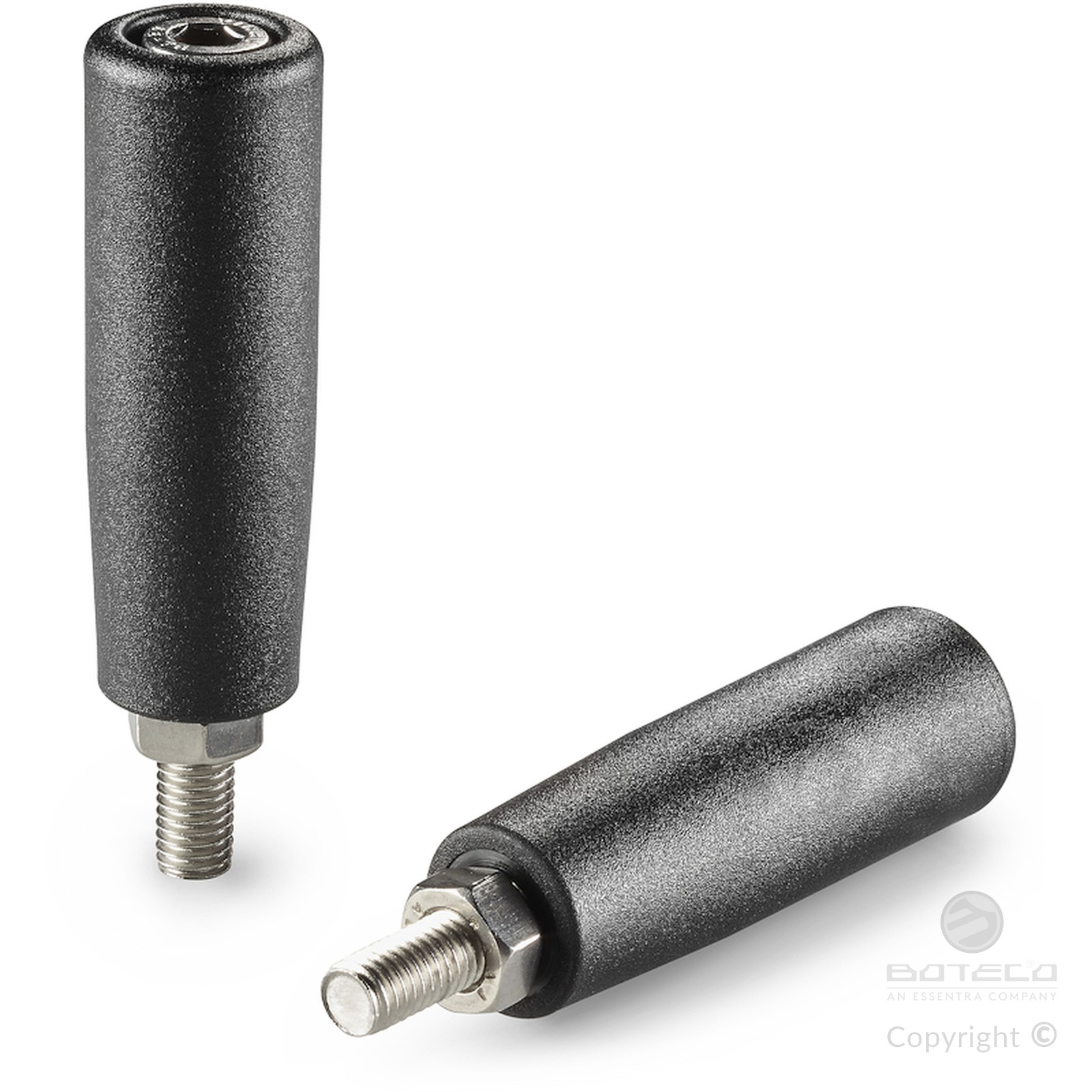

Version M144CIN: with stainless steel inserts (Aisi 304).

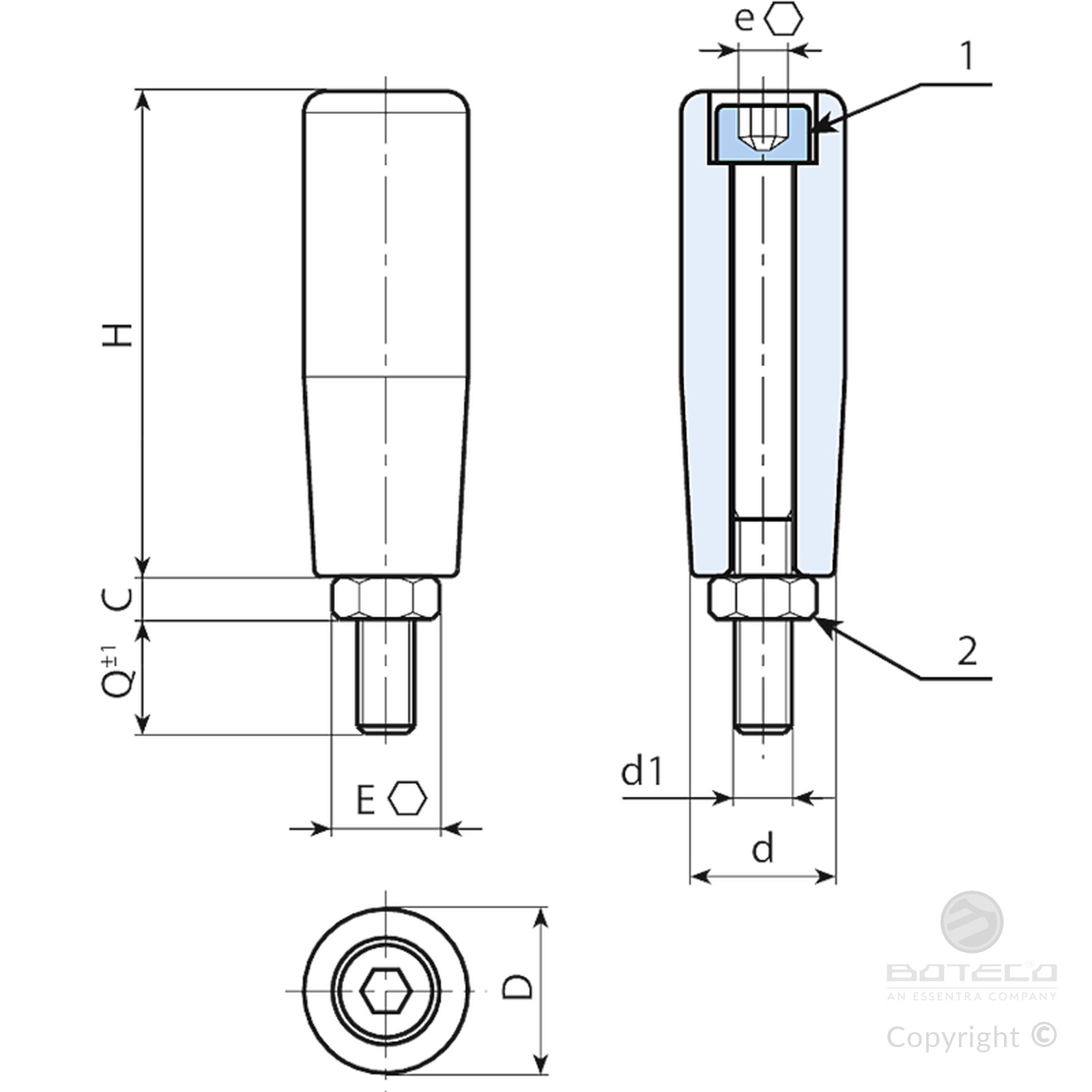

| Code | art. | H | D | d | c | E | e | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| M14450.0003 | M14450.TM06X1401CIN | 49 | 19 | 17 | 5 | 10 | 5 | M6 | 14 | 30 |
| M14450.0006 | M14450.TM08X1401CIN | 49 | 19 | 17 | 6,5 | 13 | 6 | M8 | 14 | 32 |
| M14460.0003 | M14460.TM08X1501CIN | 59 | 21 | 19 | 6,5 | 13 | 6 | M8 | 14,5 | 56 |
| M14470.0004 | M14470.TM08X1601CIN | 68,5 | 23,5 | 20 | 6,5 | 17 | 8 | M8 | 15,5 | 68 |
| M14470.0007 | M14470.TM10X1601CIN | 68,5 | 23,5 | 20 | 8 | 17 | 8 | M10 | 16 | 92 |
| M14480.0002 | M14480.TM10X1501CIN | 79 | 25,5 | 22 | 8 | 17 | 8 | M10 | 15 | 110 |
| M14490.0003 | M14490.TM12X1701CIN | 89,5 | 27,5 | 24,5 | 7 | 19 | 10 | M12 | 18 | 150 |
