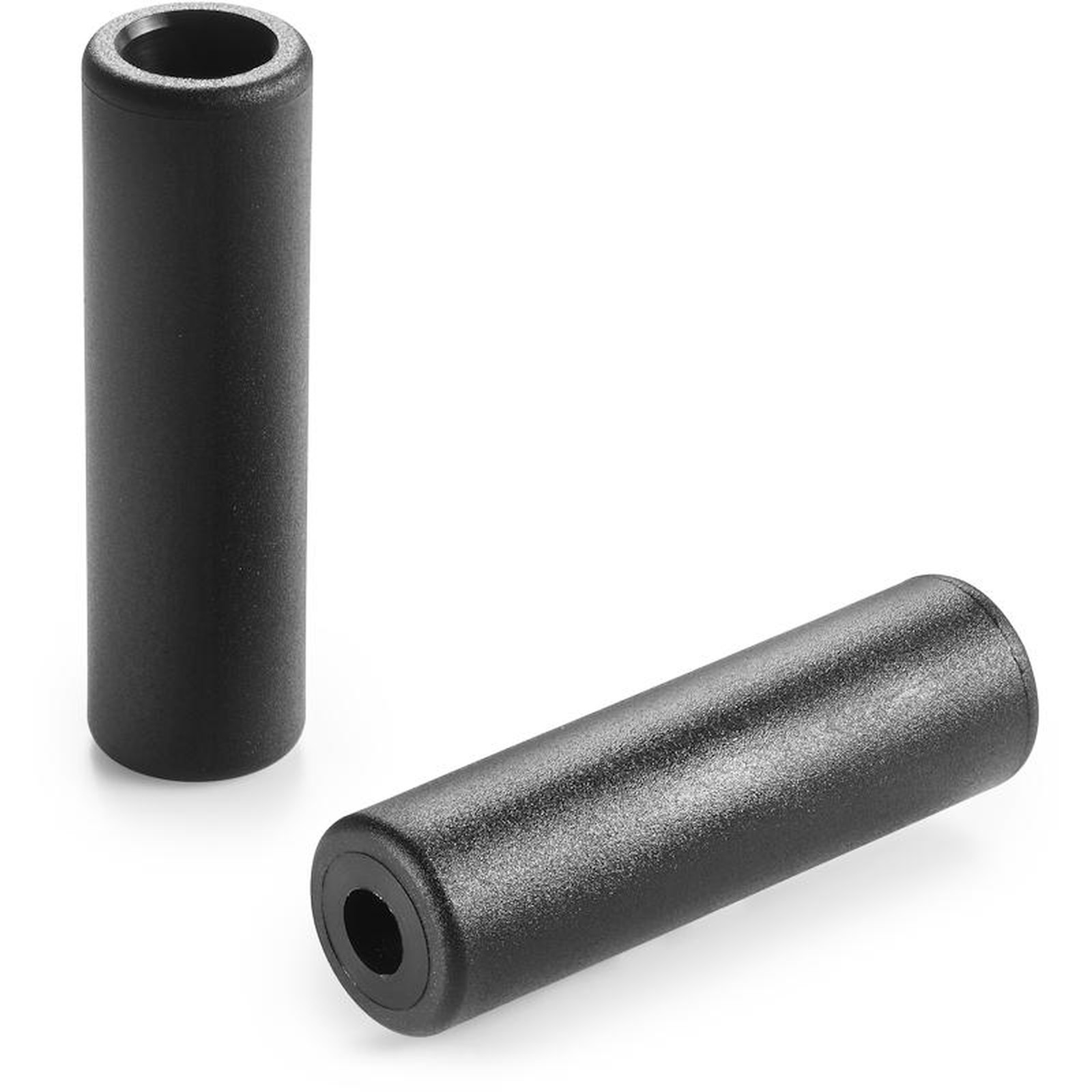

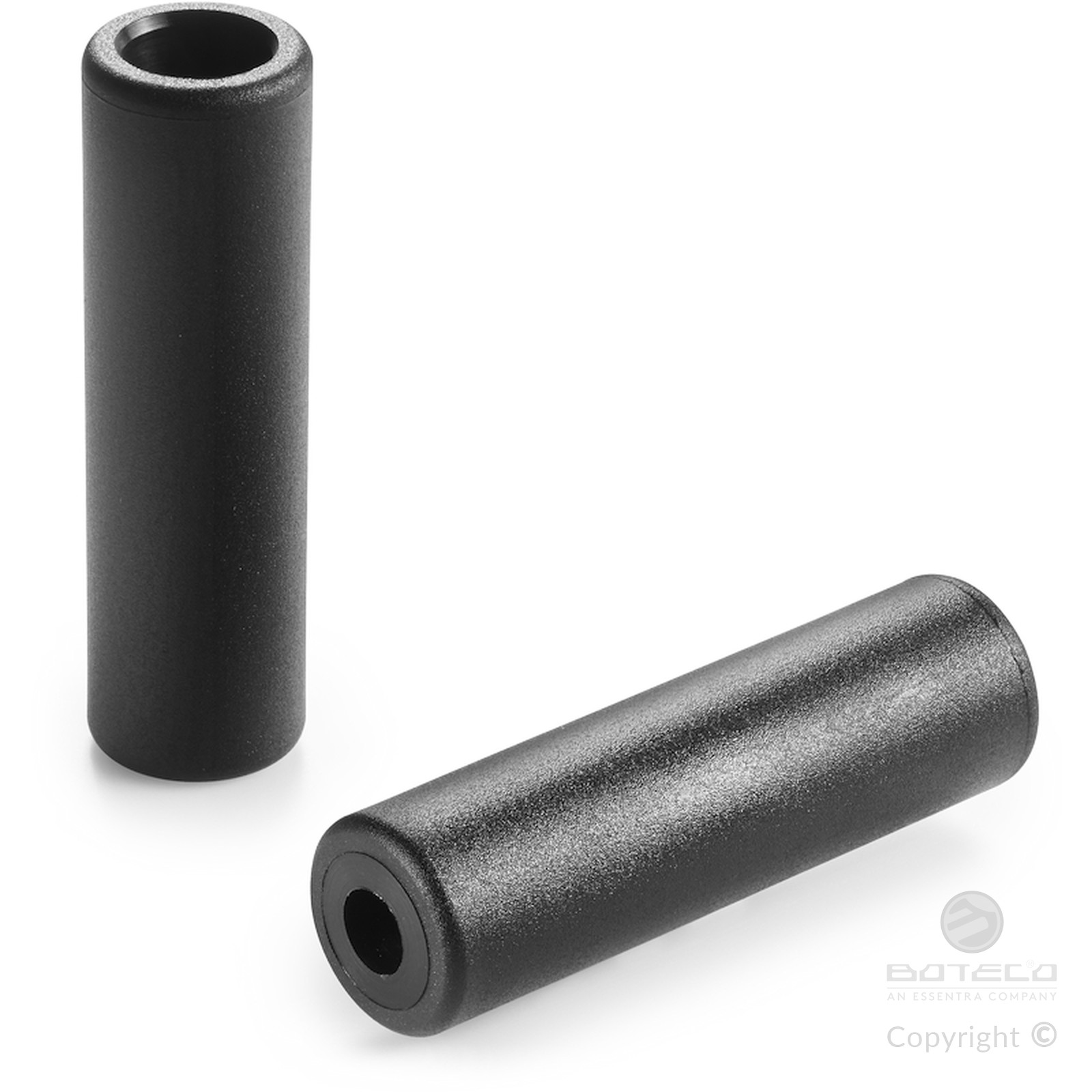

CYLINDRICAL HANDLE WITH SMOOTH BORE
13
M141
Manici con foro a pressione
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Hole:
Smooth through bore obtained by moulding the plastic (tolerance not applicable).
Special Requests:
Upon request and for special quantities available in the colours indicated in the chart.

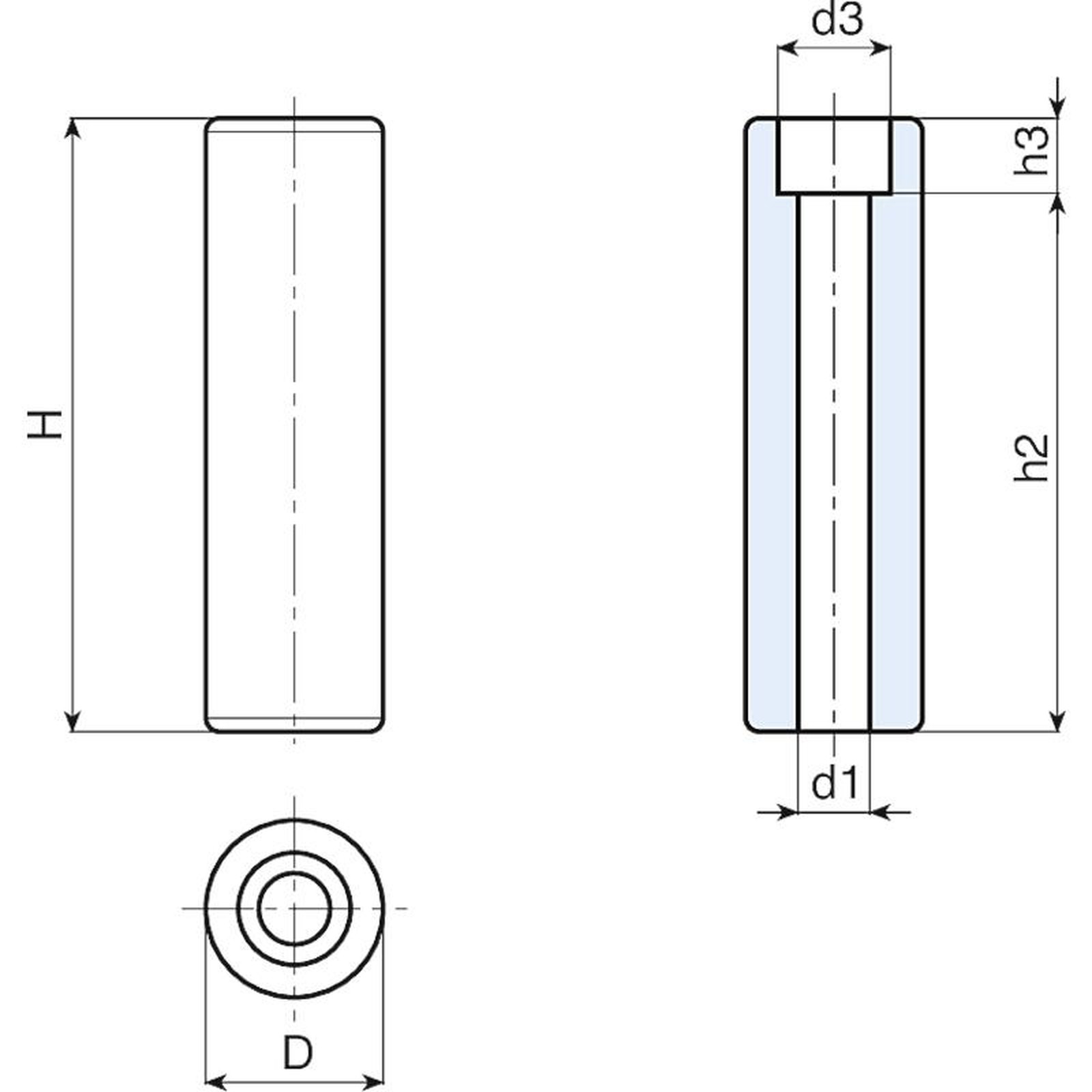

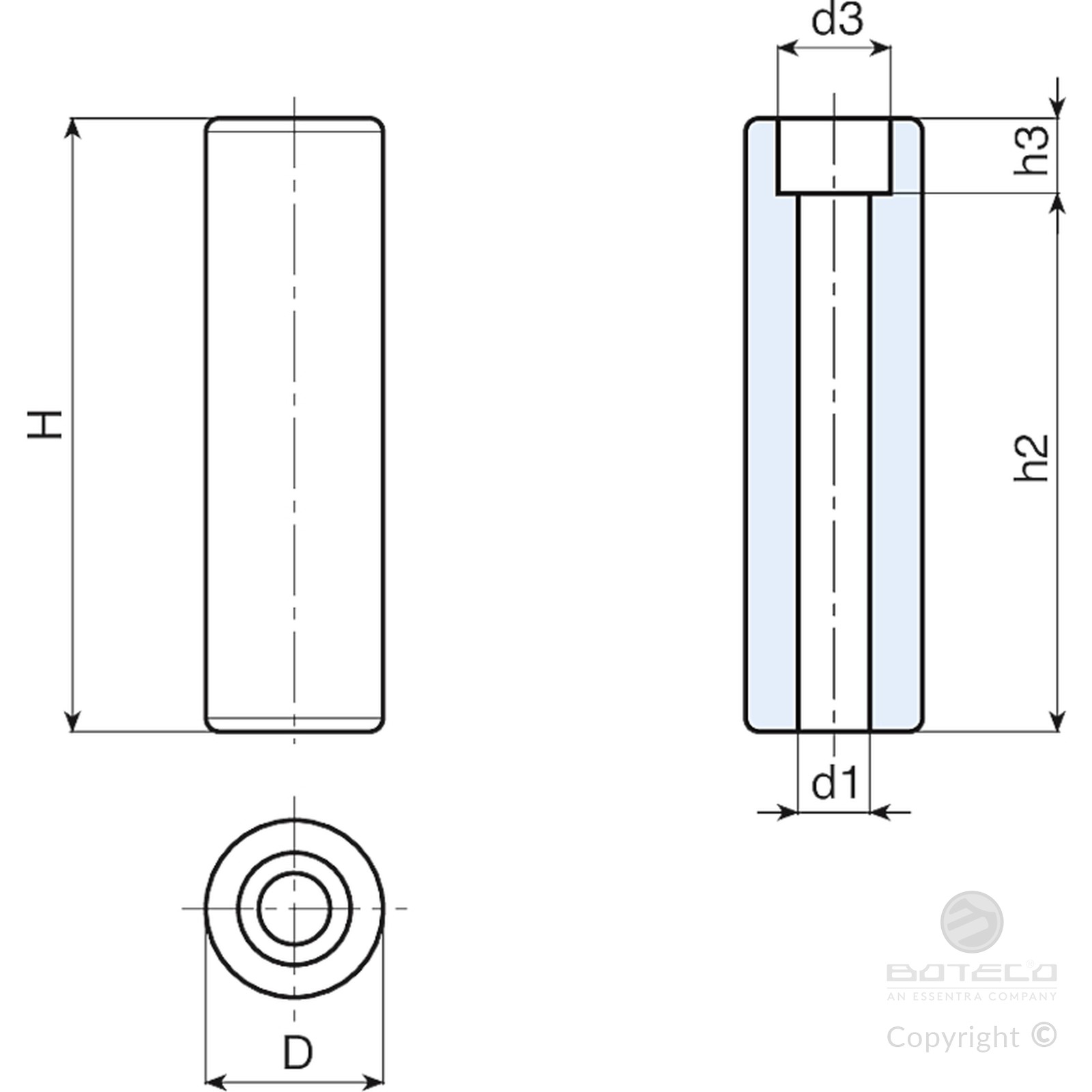

| Code | art. | H | D | h2 | h3 | d1 | d3 | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| M14182.0001 | M14182.TG10.501 | 81 | 26,5 | 70 | 11 | 10,5 | 16,5 | 44 |
| M14190.0001 | M14190.TG10.501 | 89,5 | 26,5 | 78,5 | 11 | 10,5 | 16,5 | 51 |
