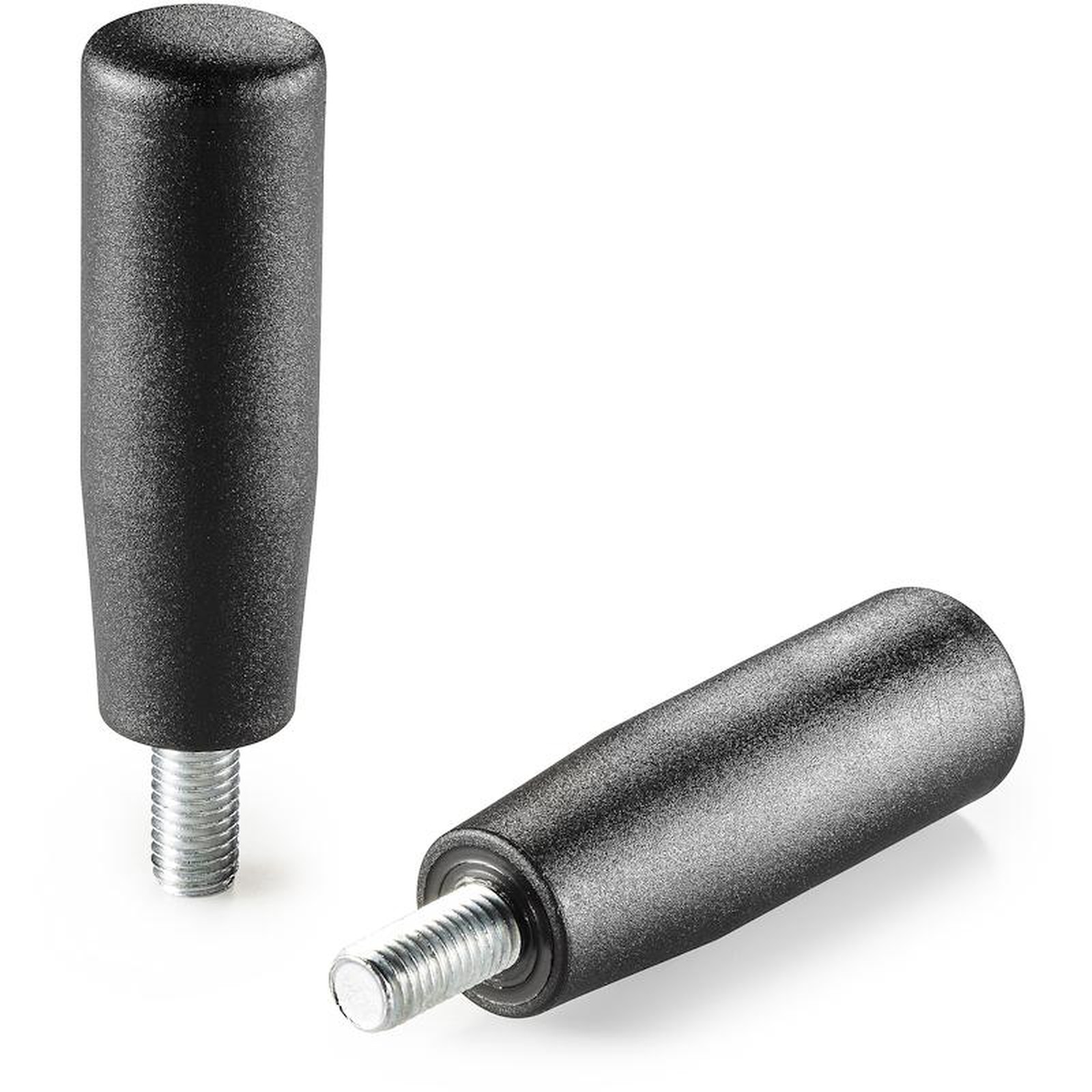

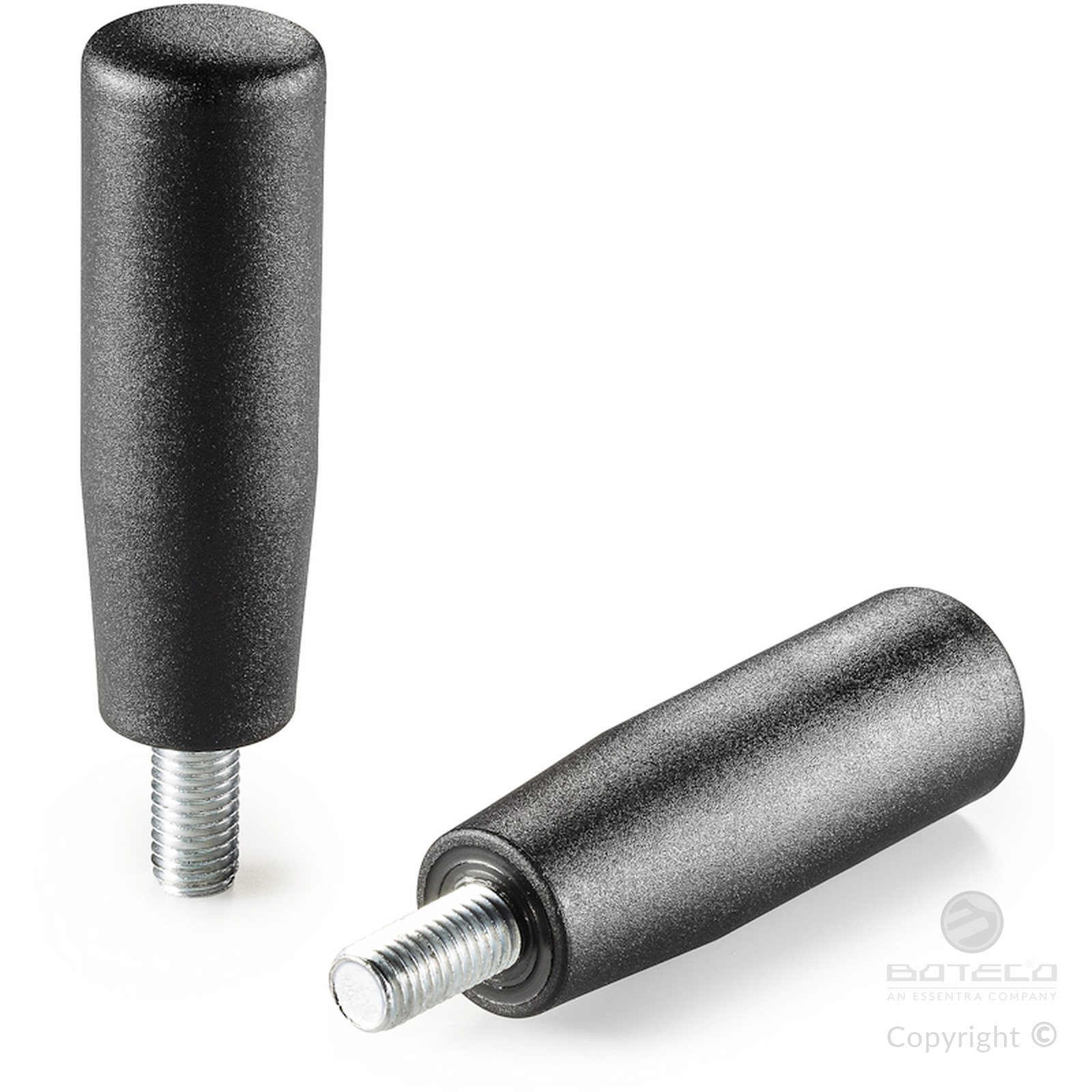

HANDLE WITH THREADED STUD
13
M140
Manici con foro/perno filettato
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel threaded stud (thread tolerance 6g).
Special Requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

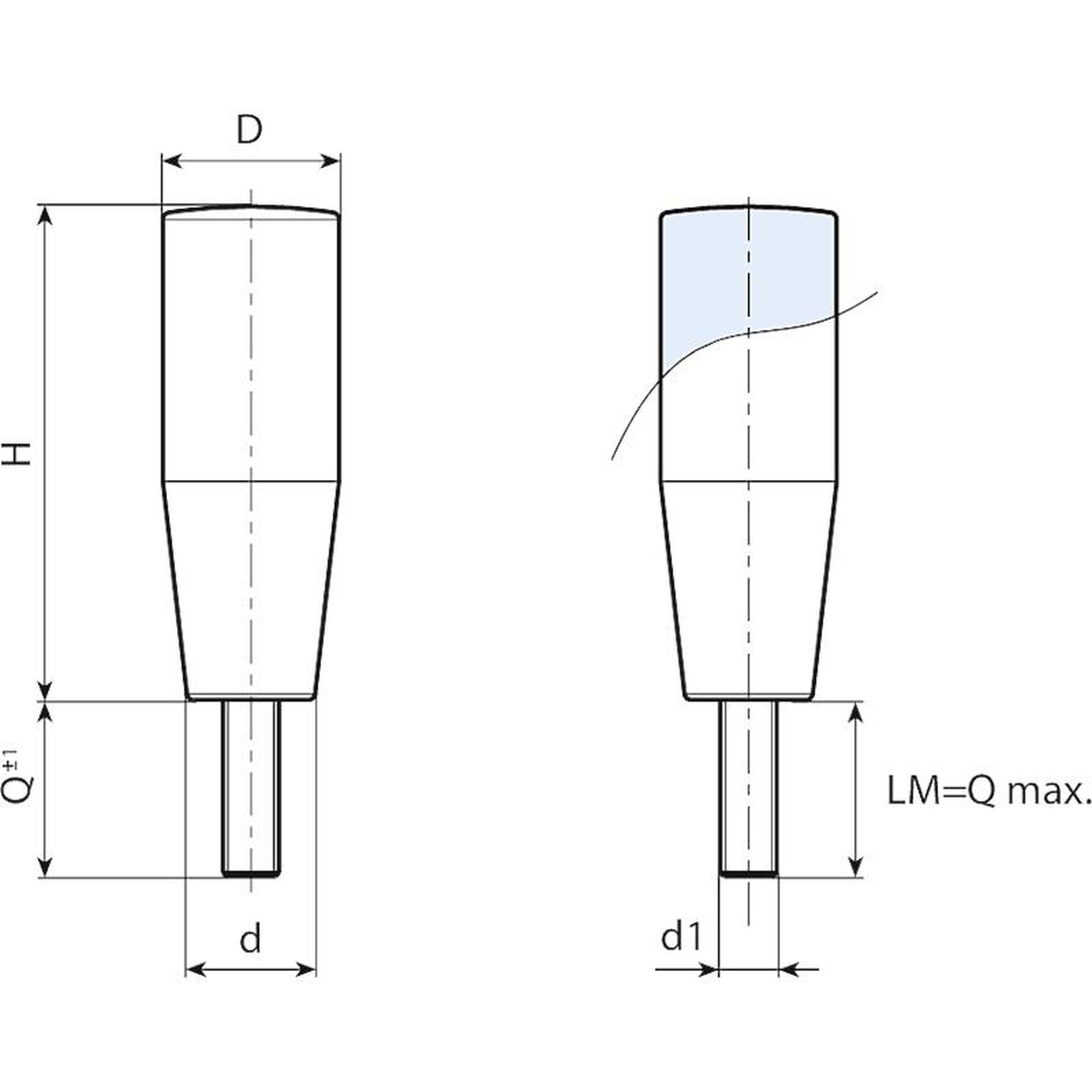

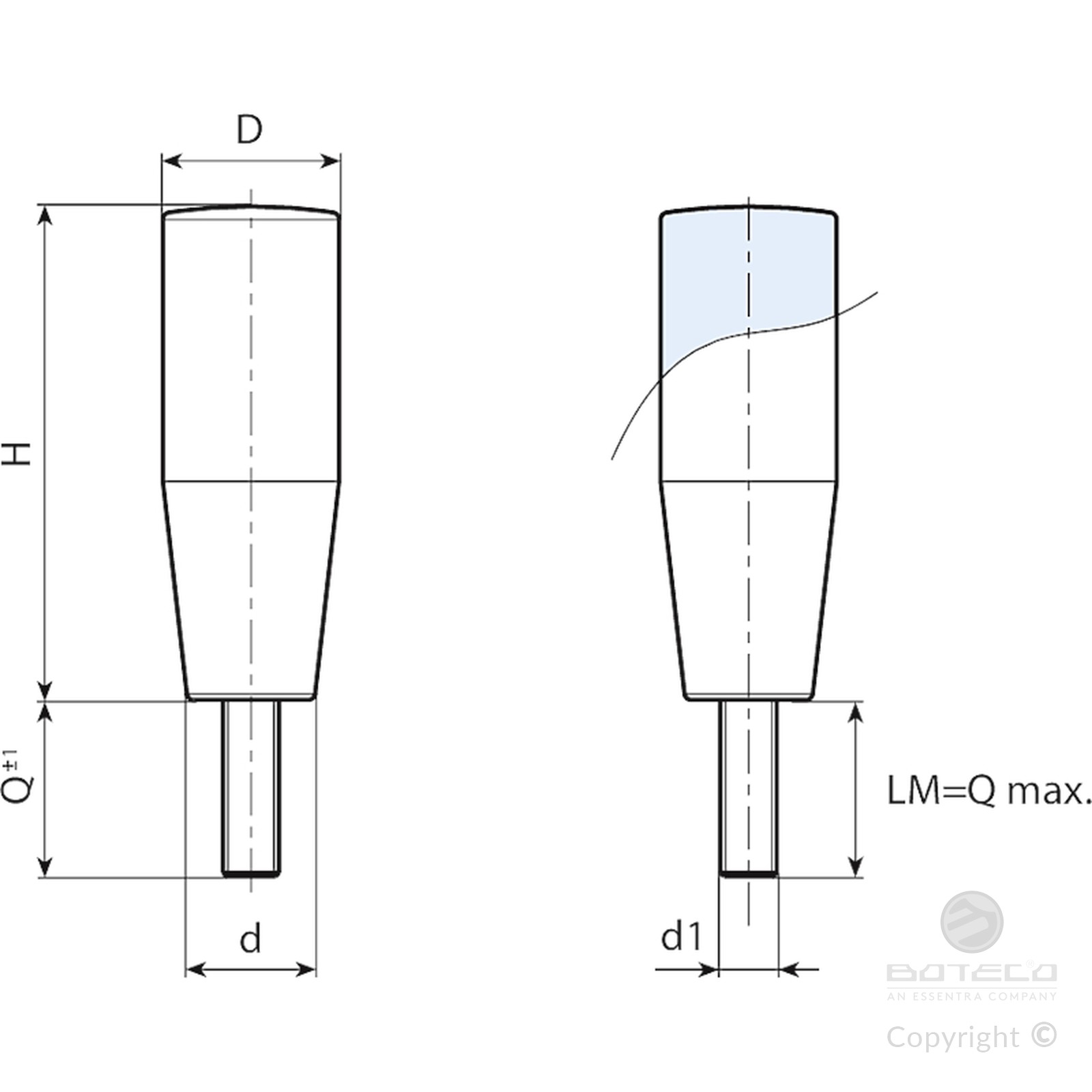

| Code | art. | H | D | d | LM | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| M14027.0001 | M14027.TM04X2001 | 27 | 14 | 11,5 | 30 | M4 | 20 | 10 |
| M14027.0002 | M14027.TM05X2001 | 27 | 14 | 11,5 | 30 | M5 | 20 | 15 |
| M14027.0004 | M14027.TM06X2001 | 27 | 14 | 11,5 | 30 | M6 | 20 | 20 |
| M14040.0003 | M14040.TM05X2001 | 40 | 18,5 | 15,5 | 30 | M5 | 20 | 20 |
| M14040.0004 | M14040.TM06X1001 | 40 | 18,5 | 15,5 | 30 | M6 | 10 | 18 |
| M14040.0006 | M14040.TM06X1601 | 40 | 18,5 | 15,5 | 30 | M6 | 16 | 19 |
| M14040.0008 | M14040.TM06X2501 | 40 | 18,5 | 15,5 | 30 | M6 | 25 | 21 |
| M14050.0001 | M14050.TM06X1001 | 50,5 | 20 | 15 | 35 | M6 | 10 | 24 |
| M14050.0003 | M14050.TM06X2001 | 50,5 | 20 | 15 | 35 | M6 | 20 | 27 |
| M14050.0007 | M14050.TM08X1001 | 50,5 | 20 | 15 | 35 | M8 | 10 | 34 |
| M14050.0008 | M14050.TM08X1501 | 50,5 | 20 | 15 | 35 | M8 | 15 | 32 |
| M14050.0011 | M14050.TM08X2001 | 50,5 | 20 | 15 | 35 | M8 | 20 | 30 |
| M14060.0003 | M14060.TM06X2001 | 60,5 | 23,5 | 18 | 35 | M6 | 20 | 40 |
| M14060.0005 | M14060.TM08X1001 | 60,5 | 23,5 | 18 | 35 | M8 | 10 | 34 |
| M14060.0008 | M14060.TM08X2001 | 60,5 | 23,5 | 18 | 35 | M8 | 20 | 42 |
| M14060.0009 | M14060.TM08X3001 | 60,5 | 23,5 | 18 | 35 | M8 | 30 | 50 |
| M14060.0010 | M14060.TM10X1501 | 60,5 | 23,5 | 18 | 35 | M10 | 15 | 40 |
| M14070.0001 | M14070.TM08X1001 | 70 | 25 | 18,5 | 35 | M8 | 10 | 51 |
| M14070.0004 | M14070.TM08X2001 | 70 | 25 | 18,5 | 35 | M8 | 20 | 54 |
| M14070.0006 | M14070.TM08X3001 | 70 | 25 | 18,5 | 35 | M8 | 30 | 57 |
| M14080.0002 | M14080.TM08X1001 | 79 | 26 | 21,5 | 35 | M8 | 10 | 74 |
| M14080.0005 | M14080.TM08X2001 | 79 | 26 | 21,5 | 35 | M8 | 20 | 77 |
| M14080.0006 | M14080.TM08X2501 | 79 | 26 | 21,5 | 35 | M8 | 25 | 78,5 |
| M14080.0008 | M14080.TM10X1001 | 79 | 26 | 21,5 | 35 | M10 | 10 | 84 |
| M14080.0011 | M14080.TM10X2001 | 79 | 26 | 21,5 | 35 | M10 | 20 | 86 |
| M14080.0012 | M14080.TM10X3001 | 79 | 26 | 21,5 | 35 | M10 | 30 | 88 |
| M14090.0002 | M14090.TM08X1001 | 89,5 | 28 | 23,5 | 35 | M8 | 10 | 74 |
| M14090.0005 | M14090.TM08X2001 | 89,5 | 28 | 23,5 | 35 | M8 | 20 | 77 |
| M14090.0007 | M14090.TM10X1001 | 89,5 | 28 | 23,5 | 35 | M10 | 10 | 95 |
| M14090.0011 | M14090.TM10X2001 | 89,5 | 28 | 23,5 | 35 | M10 | 20 | 100 |
| M14090.0013 | M14090.TM10X3001 | 89,5 | 28 | 23,5 | 35 | M10 | 30 | 105 |
| M14090.0017 | M14090.TM12X2001 | 89,5 | 28 | 23,5 | 40 | M12 | 20 | 104 |
| M14090.0020 | M14090.TM12X3001 | 89,5 | 28 | 23,5 | 40 | M12 | 30 | 112 |
| M140110.0006 | M140110.TM12X2001 | 109 | 32,5 | 27 | 80 | M12 | 20 | 162 |
Customised stud length available for a minimum of 100 pieces.
LM = Maximum mouldable length.
