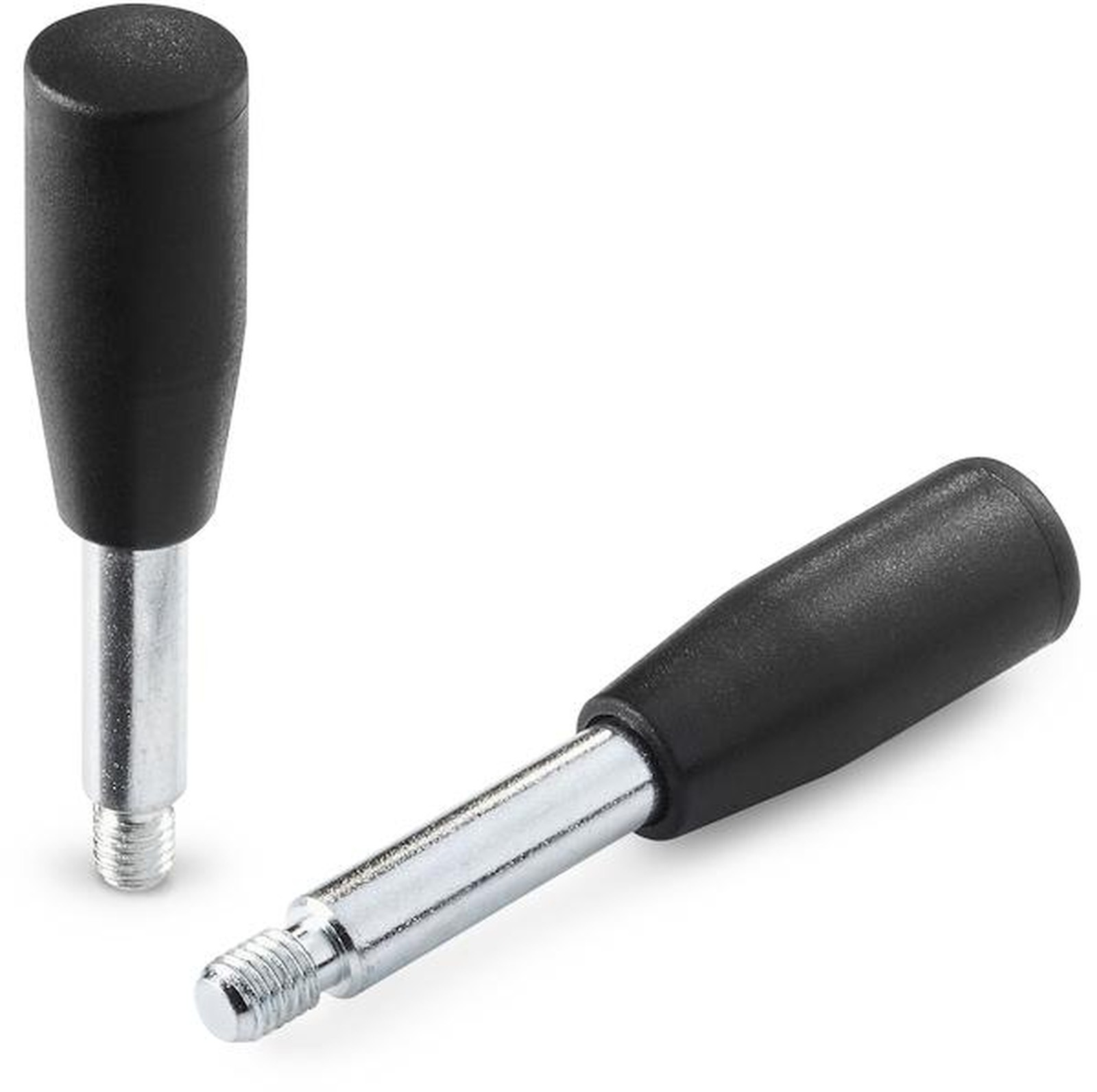

Materials:
Reinforced polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Insert:
Galvanised steel partially threaded stud (thread tolerance 6g).
Fixing method:
Push fit after moulding (high temperature), not removable.
Special Requests:
Upon request and for special quantities inserts can be supplied with dimensions according to customer’s drawing.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities available in the colours indicated in the chart.

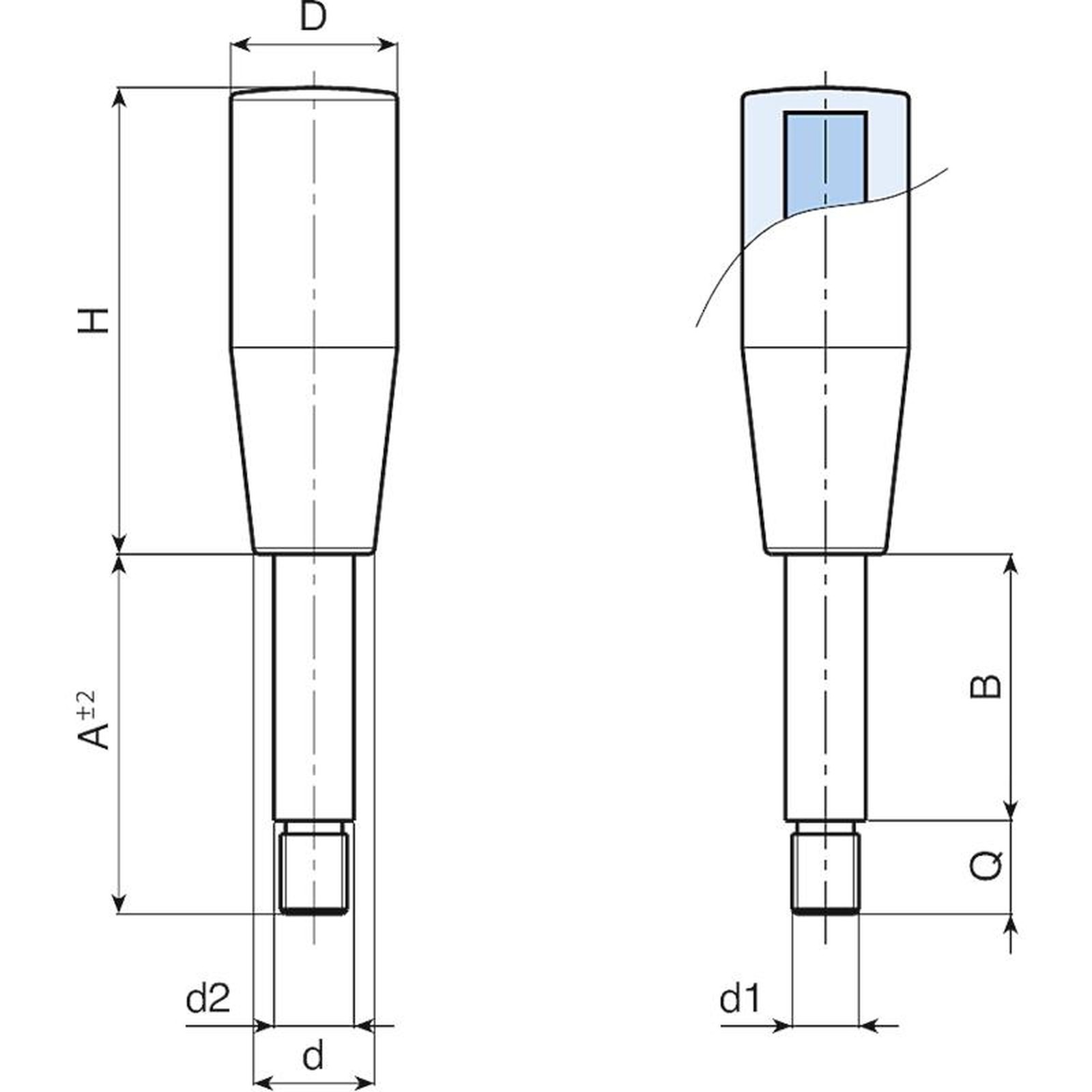

| Code | art. | H | D | d | B | d2 | A | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| M13750.0004 | M13750.TI10X2501 | 50,5 | 20 | 15 | 15 | 10 | 25 | M8 | 10 | 50 |
| M13750.0005 | M13750.TI10X3001 | 50,5 | 20 | 15 | 21 | 10 | 30 | M8 | 10 | 50 |
| M13750.0008 | M13750.TI10X4001 | 50,5 | 20 | 15 | 30 | 10 | 40 | M8 | 10 | 55 |
| M13750.0012 | M13750.TI10X5501Z1 | 50,5 | 20 | 15 | 45 | 10 | 55 | M8 | 10 | 66 |
| M13750.0018 | M13750.TI10X8001 | 50,5 | 20 | 15 | 70 | 10 | 82 | M8 | 10 | 82 |
| M13760.0006 | M13760.TI12X5801 | 61 | 23,5 | 18 | 44 | 12 | 58 | M10 | 14 | 114 |
| M13760.0007 | M13760.TI12X6501 | 61 | 23,5 | 18 | 50 | 12 | 65 | M10 | 15 | 114 |
| M13760.0010 | M13760.TI12X9501 | 61 | 23,5 | 18 | 80 | 12 | 95 | M10 | 15 | 132 |
| M13770.0006 | M13770.TI14X6501 | 70 | 25,5 | 18,5 | 50 | 14 | 65 | M12 | 15 | 142 |
| M13770.0005 | M13770.TI14X10501 | 70 | 25,5 | 18,5 | 90 | 14 | 105 | M12 | 15 | 190 |
| M13780.0005 | M13780.TI14X6501 | 79,5 | 26 | 22 | 50 | 14 | 65 | M12 | 15 | 160 |
| M13780.0001 | M13780.TI14X10501 | 79,5 | 26 | 22 | 90 | 14 | 105 | M12 | 15 | 209 |
| M13790.0002 | M13790.TI16X6701 | 89,5 | 28 | 23,5 | 50 | 16 | 67 | M14 | 17 | 150 |
| M13790.0004 | M13790.TI16X9701 | 89,5 | 28 | 23,5 | 80 | 16 | 97 | M14 | 17 | 272 |
| M13790.0001 | M13790.TI16X11701 | 89,5 | 28 | 23,5 | 100 | 16 | 117 | M14 | 17 | 305 |
