REVOLVING AND FOLDING HANDLE
13
M136
Manici pieghevoli
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:

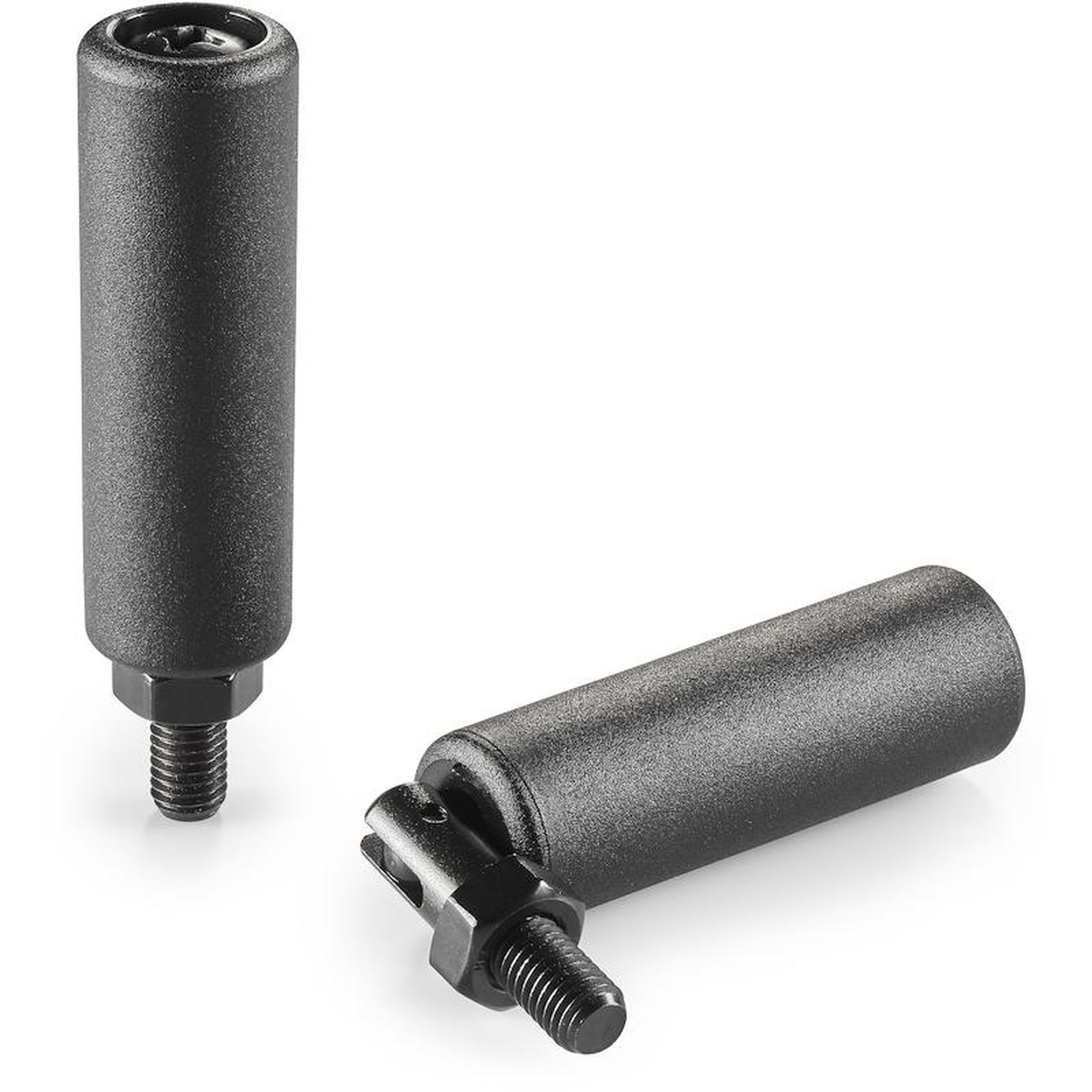

M136
1) Black oxide treated steel revolving, folding threaded cross-head stud.
(2) Threaded nut with black-oxyde treated steel DIN 934.
(3) Galvanised steel spring.

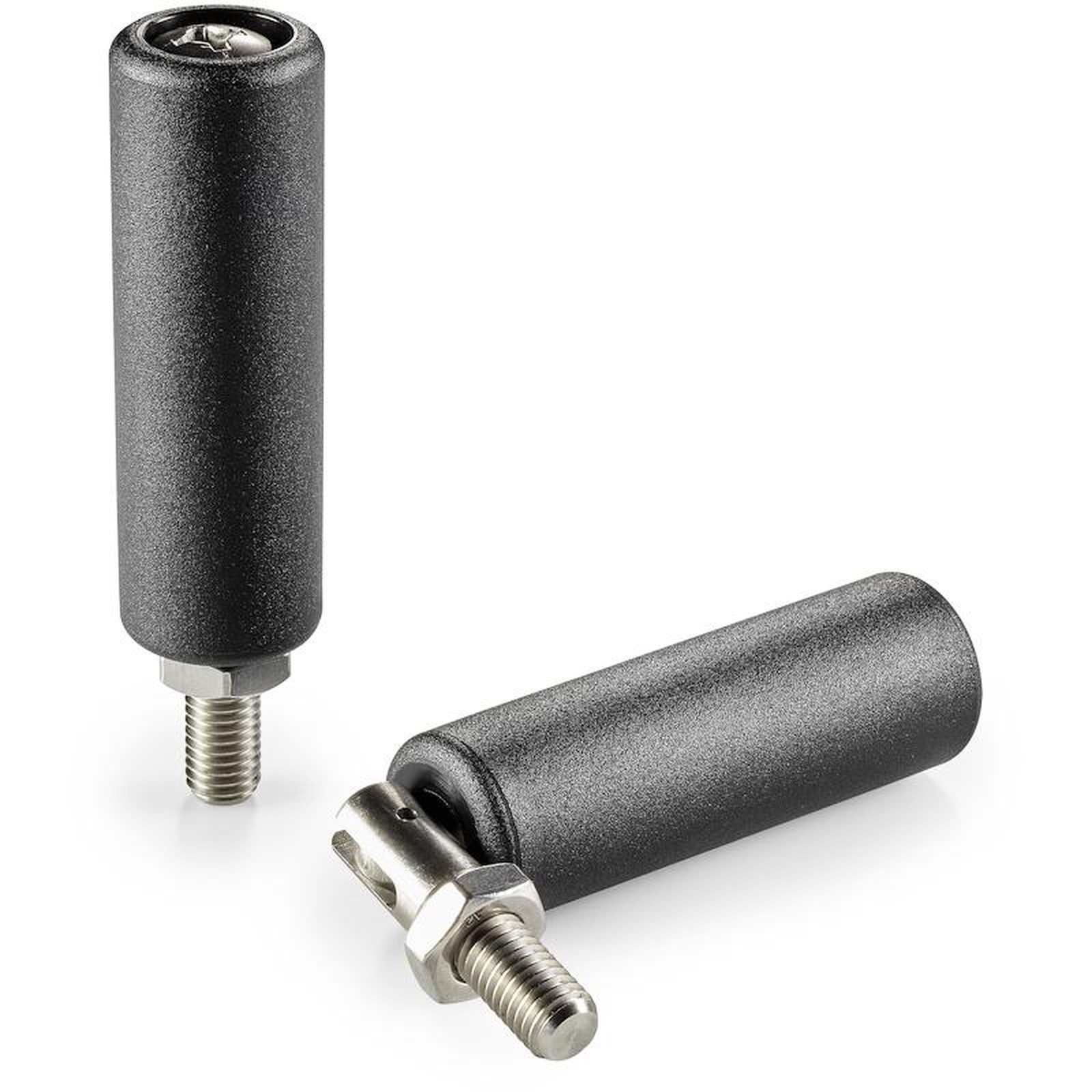

M136 CIN
(1) Stainless steel (Aisi 303) revolving, folding threaded cross-head stud.
(2) Stainless steel (Aisi 304) threaded nut DIN 934.
(3) Stainless steel spring (Aisi 302).
Special requests:
Upon request and for special quantities inserts can be supplied galvanised (add CVZ at the end of the black-oxide-treated code).
Upon request and for special quantities available in the colours indicated in the chart.
Version M136: black oxide treated steel version.
| Code | art. | H | D | d | E | R | c | h1 | d1 6g | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M13650.0001 | M13650.TM06X0901 | 49,5 | 20 | 15 | 10 | 53 | 5 | 24,5 | M6 | 9 | 39 | 270 |
| M13670.0001 | M13670.TM08X1001 | 69 | 23,5 | 20 | 13 | 73 | 6,5 | 28,5 | M8 | 10 | 71 | 840 |
| M13682.0002 | M13682.TM10X1501 | 81 | 26 | - | 17 | 87 | 8 | 35 | M10 | 15 | 152 | 1700 |
| M13690.0001 | M13690.TM10X1501 | 90 | 26 | - | 17 | 96 | 8 | 35 | M10 | 15 | 160 | 2700 |
Version M136CIN: stainless steel version (Aisi 303).
| Code | art. | H | D | d | E | R | c | h1 | d1 6g | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M13650.0002 | M13650.TM06X0901CIN | 49,5 | 20 | 15 | 10 | 53 | 5 | 24,5 | M6 | 9 | 39 | 270 |
| M13670.0002 | M13670.TM08X1001CIN | 69 | 23,5 | 20 | 13 | 73 | 6,5 | 28,5 | M8 | 10 | 71 | 840 |
| M13682.0003 | M13682.TM10X1501CIN | 81 | 26 | - | 17 | 87 | 8 | 35 | M10 | 15 | 152 | 1700 |
| M13690.0002 | M13690.TM10X1501CIN | 90 | 26 | - | 17 | 96 | 8 | 35 | M10 | 15 | 160 | 2700 |
