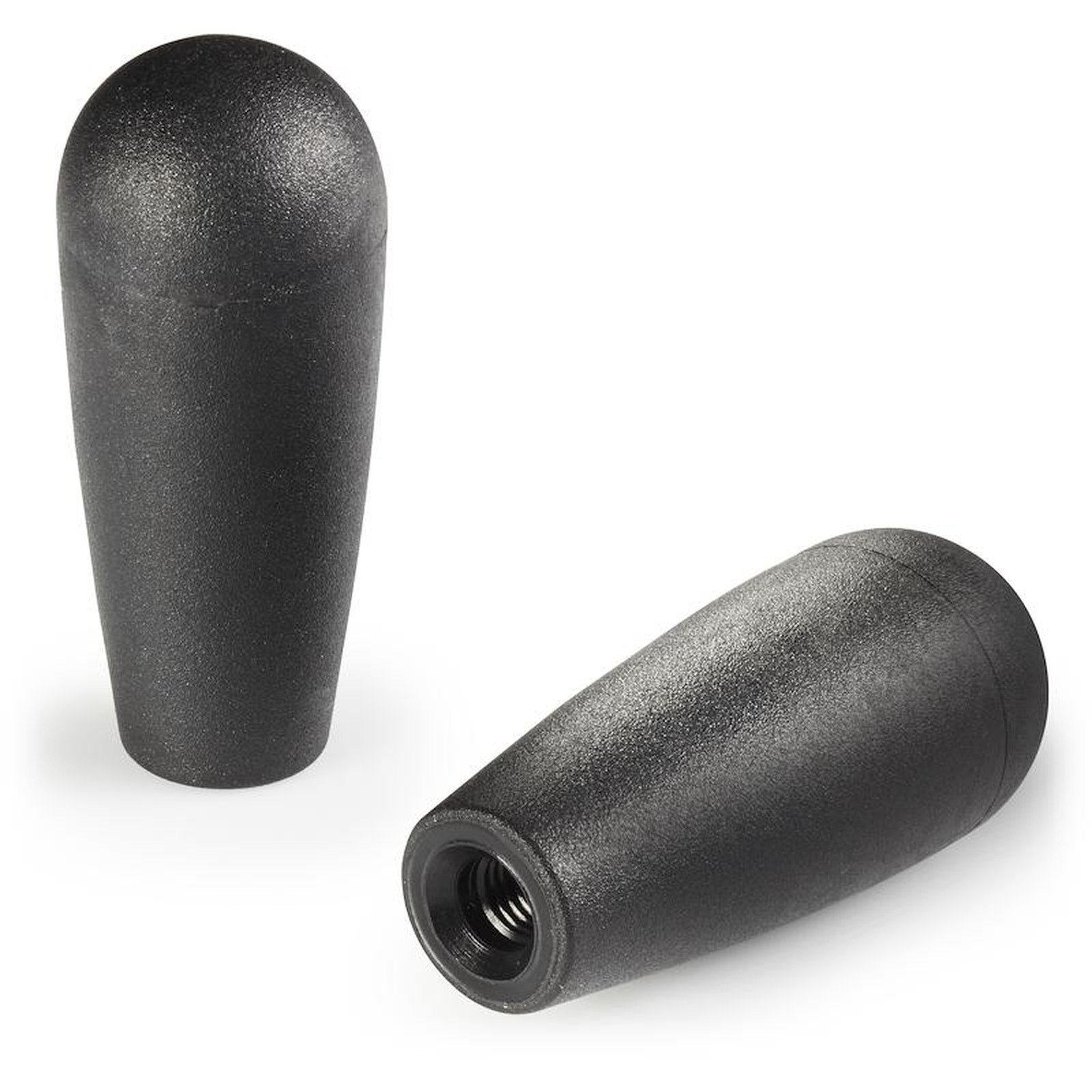

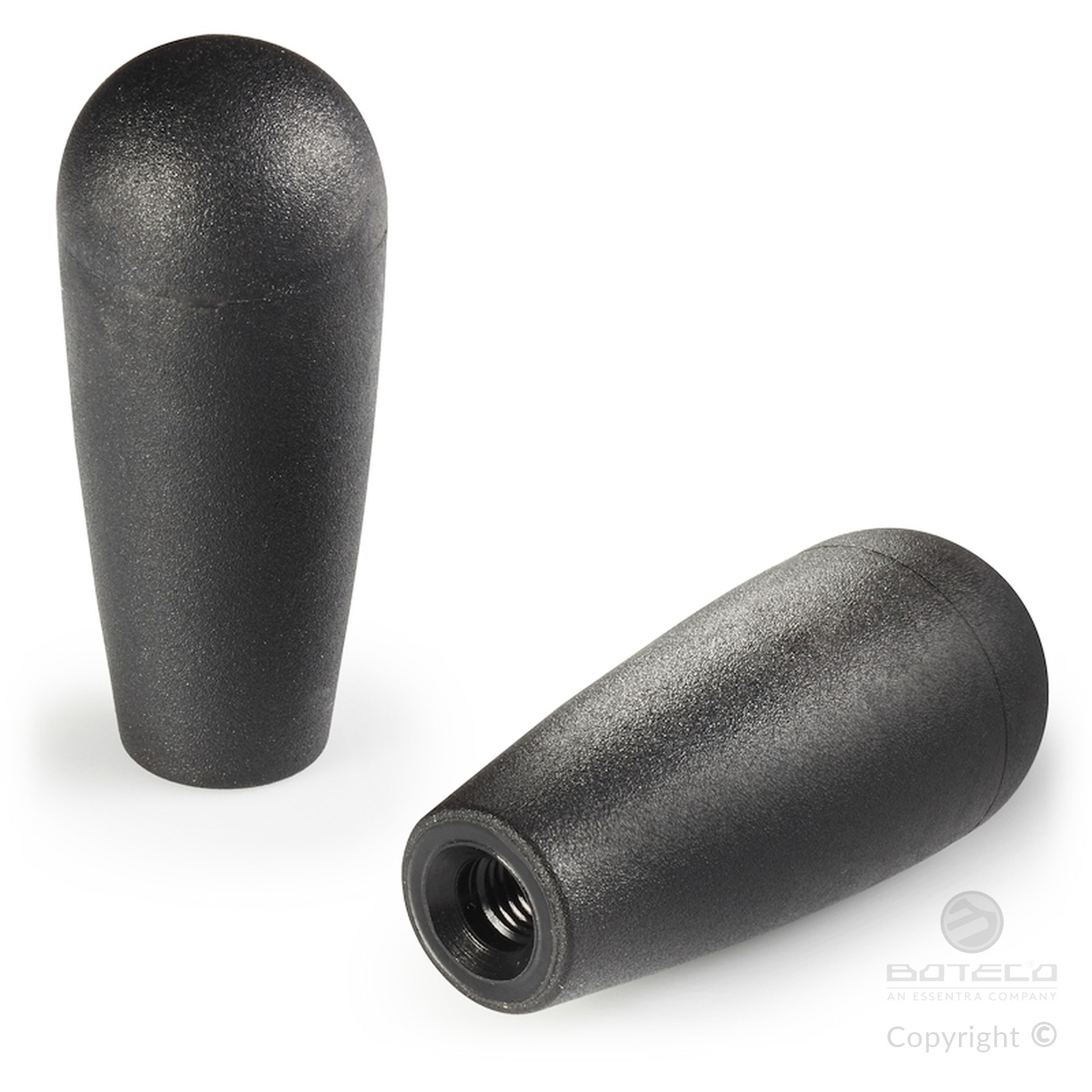

Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Hole:
Version TG:
Blind smooth bore, with deformable fixing ribs, obtained by moulding the plastic.
Version TM:
Female threaded hole obtained by moulding the plastic (thread tolerance not applicable).
Fixing method:
Version TG:
Push-fit.
Special Requests:
Upon request and for special quantities the handle can be supplied with threaded hole (code TM).
Upon request and for special quantities diameter d1 can be supplied to customer’s drawing.
Upon request and for special quantities available in the colours indicated in the chart.
Version TM: With threaded hole.

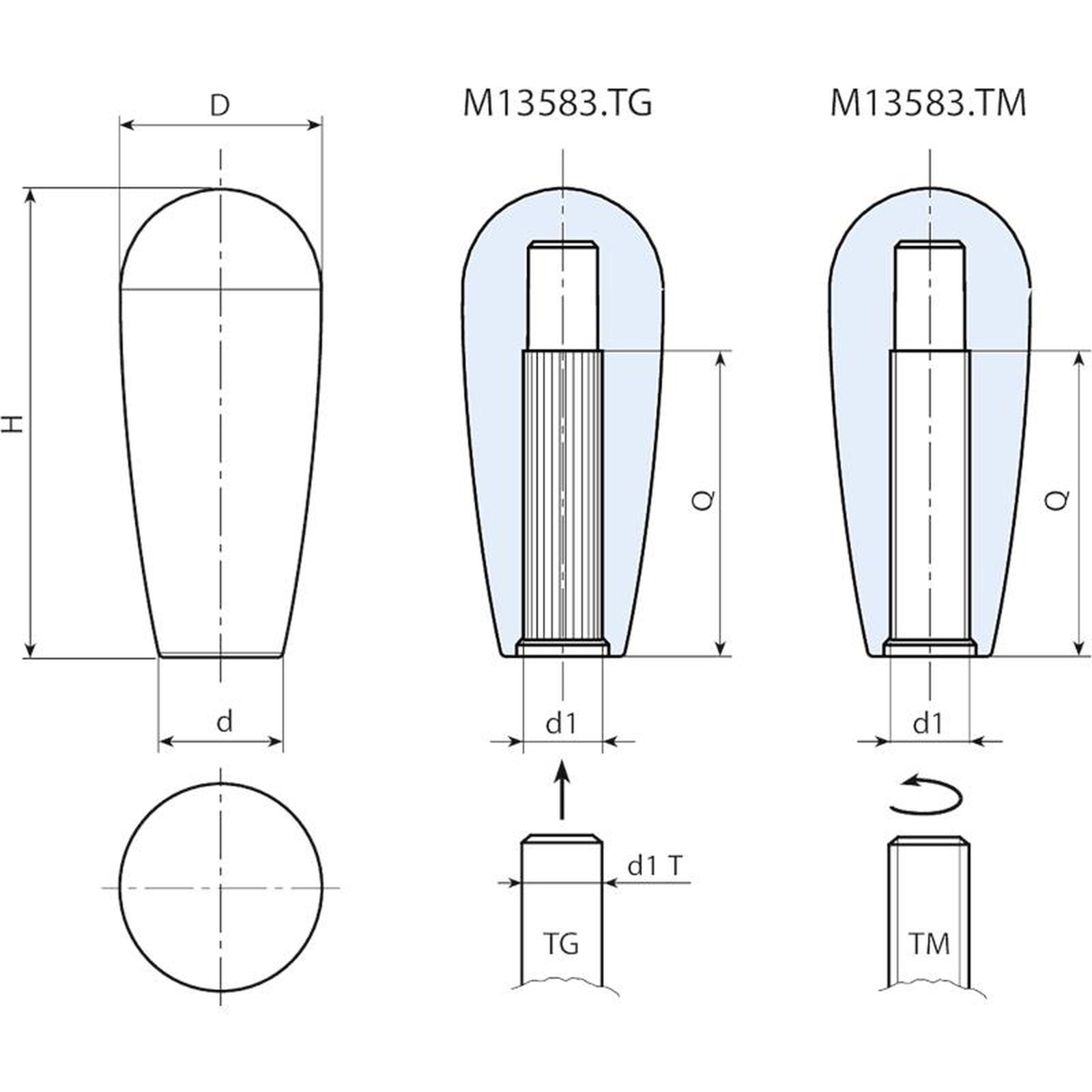

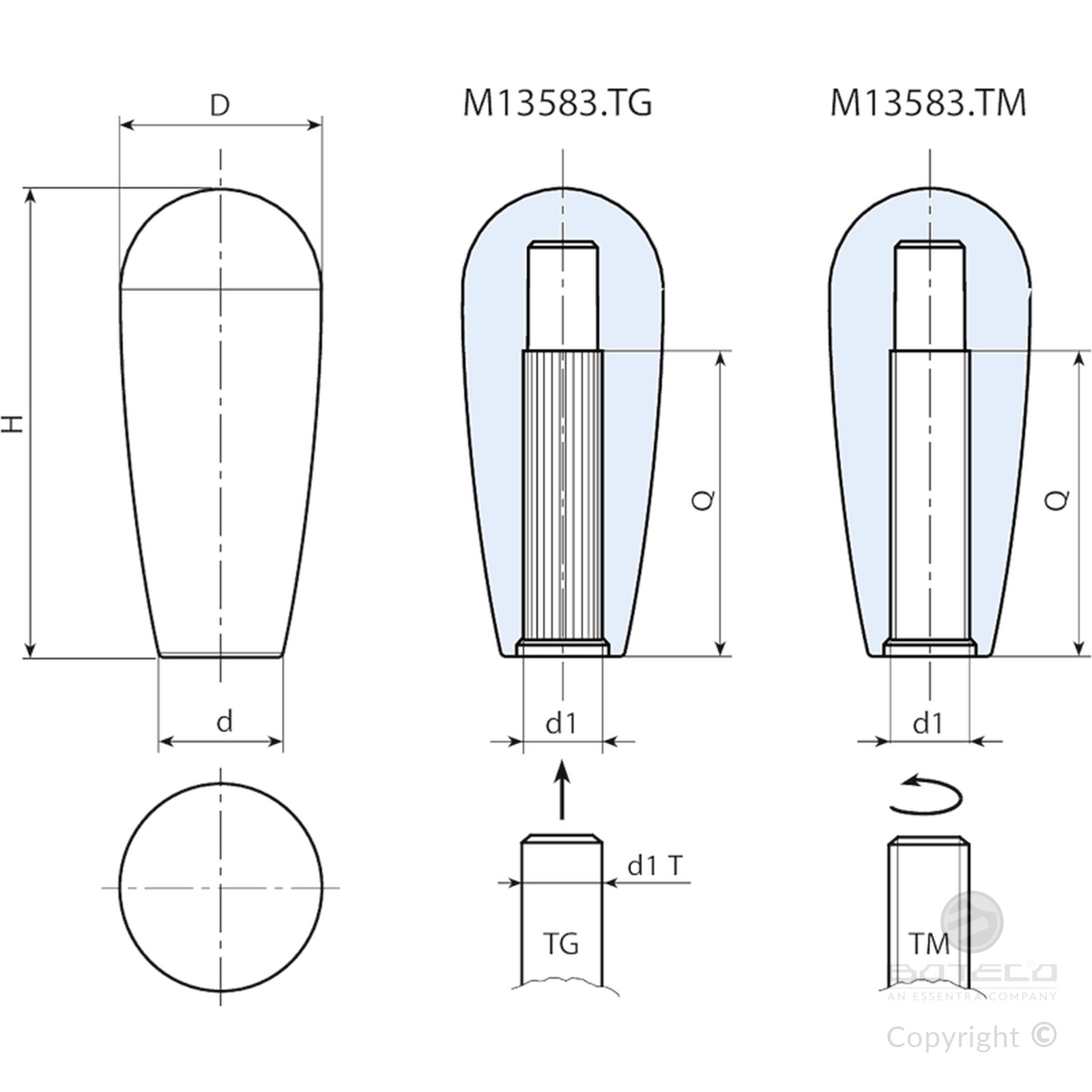

| Code | art. | H | D | d | d1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|
| M13583.0017 | M13583.TM1001 | 84,5 | 35,5 | 23 | M10 | 50 | 64 |
Version TG: With push-fit hole.
| Code | art. | H | D | d | d1 T | d1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| M13583.0004 | M13583.TG1001 | 84,5 | 35,5 | 23 | +0 -0,058 | 10 | 50 | 64 |
| M13583.0008 | M13583.TG1201 | 84,5 | 35,5 | 23 | +0 -0,070 | 12 | 50 | 62 |
| M13583.0011 | M13583.TG1401 | 84,5 | 35,5 | 23 | +0 -0,070 | 14 | 50 | 59 |
