Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
M129:
Revolving galvanised steel threaded stud, with hexagon socket head and harmonic steel rotating spring (thread tolerance 6g).
M129CIN:
Revolving stainless steel threaded stud (Aisi 303), with hexagon socket head and stainless steel rotating spring (Aisi 302) (thread tolerance 6g).
Special Requests:
Upon request and for special quantities available in the colours indicated in the chart.

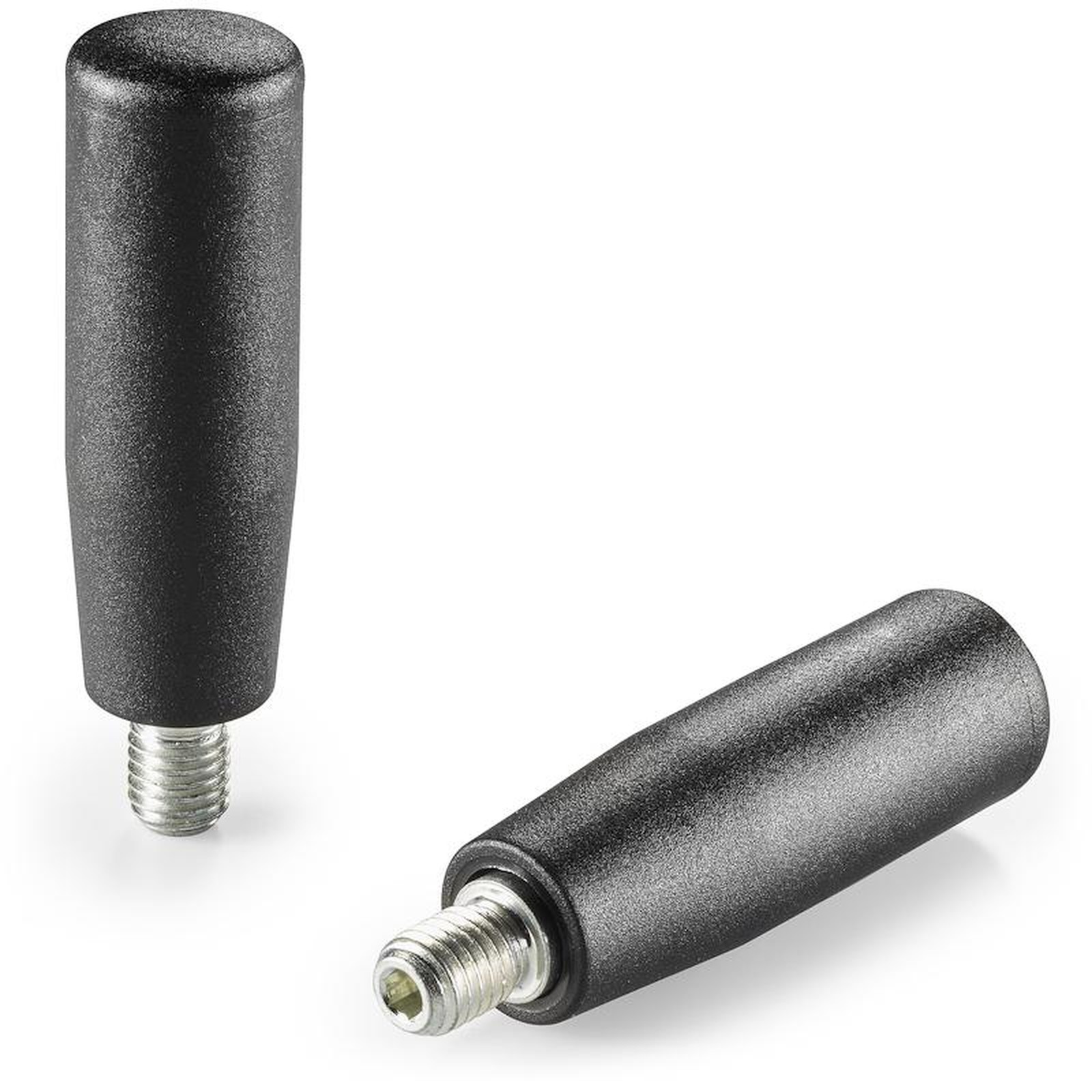

Version M129: with galvanised steel insert.

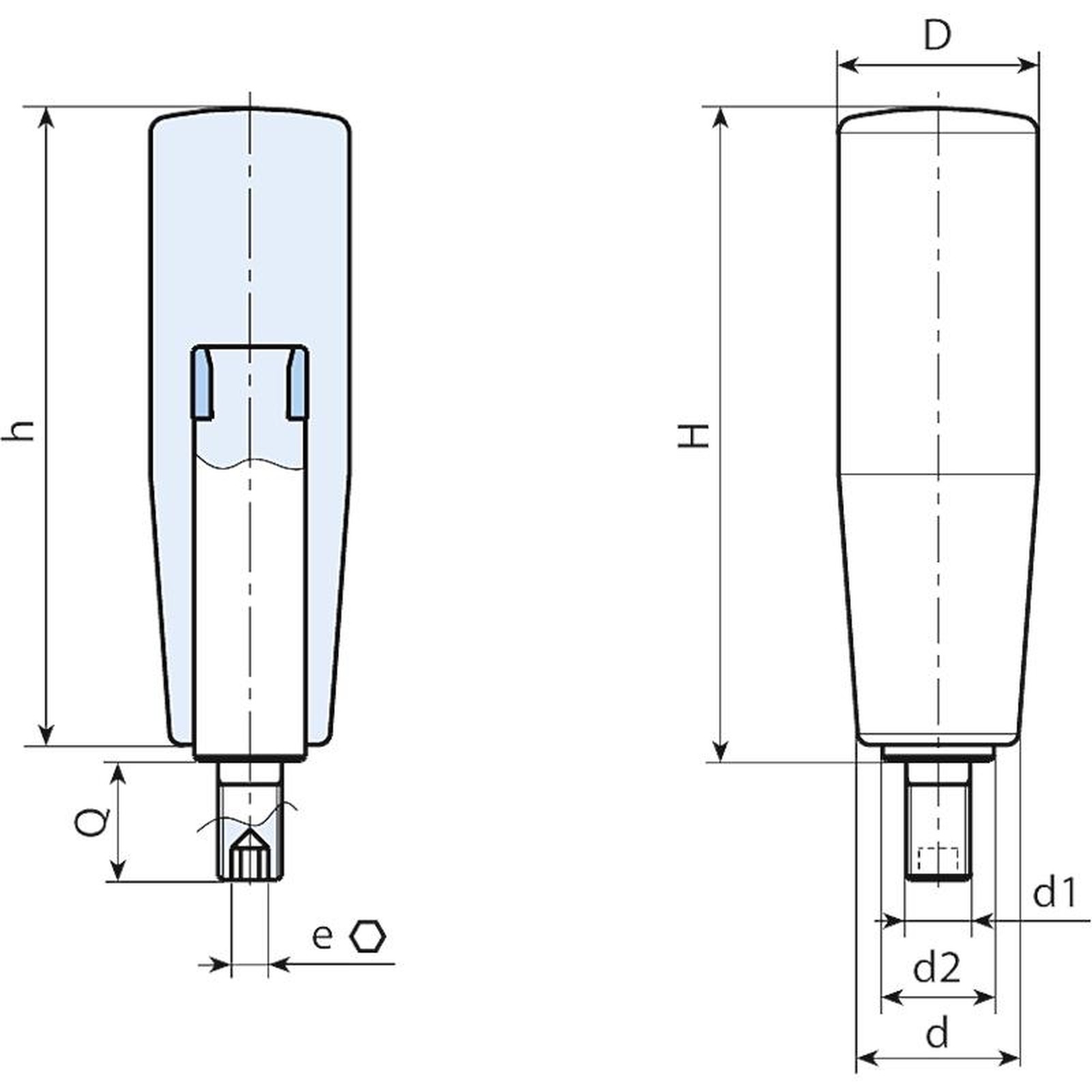

| Code | art. | H | h | D | d | d2 | e | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| M12950.0001 | M12950.TM06X1201 | 52 | 50,5 | 20 | 15 | 10 | 3 | M6 | 12 | 42 |
| M12960.0001 | M12960.TM06X1201 | 62,5 | 60,5 | 23,5 | 18 | 10 | 3 | M6 | 12 | 54 |
| M12960.0003 | M12960.TM08X1501 | 62,5 | 60,5 | 23,5 | 18 | 10 | 4 | M8 | 15 | 60 |
| M12970.0001 | M12970.TM08X1501 | 72 | 70 | 25 | 18,5 | 10 | 4 | M8 | 15 | 92 |
| M12970.0003 | M12970.TM10X1501 | 72 | 70 | 25 | 18,5 | 10 | 4 | M10 | 15 | 94 |
| M12980.0001 | M12980.TM08X1501 | 81.5 | 79 | 26 | 22 | 14 | 4 | M8 | 15 | 98 |
| M12980.0004 | M12980.TM10X1501 | 81.5 | 79 | 26 | 22 | 14 | 5 | M10 | 15 | 104 |
| M12980.0007 | M12980.TM12X1501 | 81.5 | 79 | 26 | 22 | 14 | 5 | M12 | 15 | 104 |
| M12990.0001 | M12990.TM10X1501 | 92 | 89,5 | 28 | 23,5 | 14 | 5 | M10 | 15 | 118 |
| M12990.0003 | M12990.TM12X1501 | 92 | 89,5 | 28 | 23,5 | 14 | 5 | M12 | 15 | 120 |

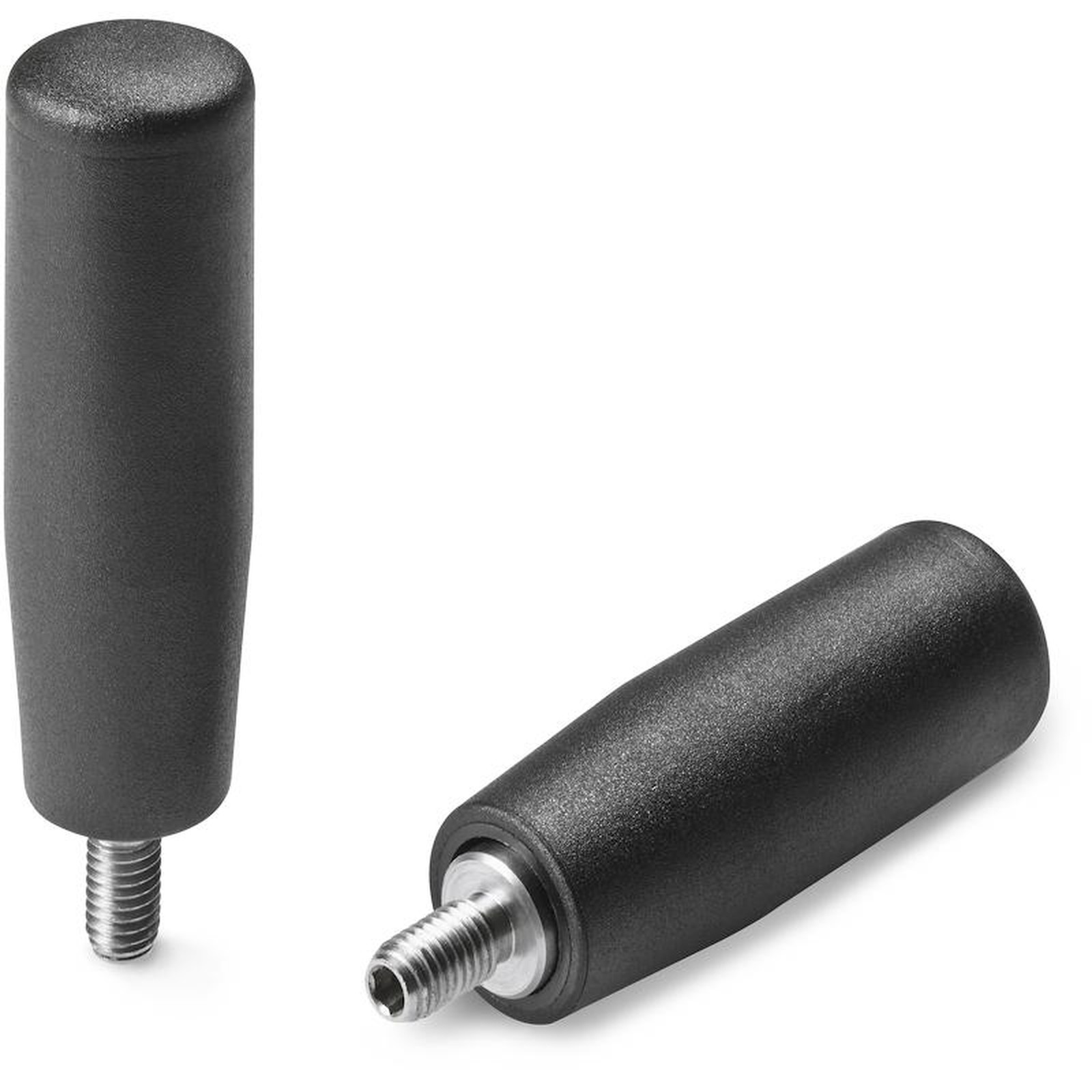

Version M129CIN: with stainless steel insert (Aisi 303).
| Code | art. | H | h | D | d | d2 | e | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| M12950.0002 | M12950.TM06X1201CIN | 52 | 50,5 | 20 | 15 | 10 | 3 | M6 | 12 | 42 |
| M12960.0002 | M12960.TM06X1201CIN | 62,5 | 60,5 | 23,5 | 18 | 10 | 3 | M6 | 12 | 54 |
| M12960.0004 | M12960.TM08X1501CIN | 62,5 | 60,5 | 23,5 | 18 | 10 | 4 | M8 | 15 | 60 |
| M12970.0002 | M12970.TM08X1501CIN | 72 | 70 | 25 | 18,5 | 10 | 4 | M8 | 15 | 92 |
| M12980.0003 | M12980.TM08X1501CIN | 81.5 | 79 | 26 | 22 | 14 | 4 | M8 | 15 | 98 |
| M12980.0005 | M12980.TM10X1501CIN | 81.5 | 79 | 26 | 22 | 14 | 5 | M10 | 15 | 104 |
| M12980.0011 | M12980.TM12X1501CIN | 81.5 | 79 | 26 | 22 | 14 | 5 | M12 | 15 | 104 |
| M12990.0002 | M12990.TM10X1501CIN | 92 | 89,5 | 28 | 23,5 | 14 | 5 | M10 | 15 | 118 |
| M12990.0004 | M12990.TM12X1501CIN | 92 | 89,5 | 28 | 23,5 | 14 | 5 | M12 | 15 | 120 |
