GEAR STICK HANDLE
13
M128
Manici con foro a pressione
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Hole:
Blind smooth bore, with deformable fixing ribs, obtained by moulding the plastic.
Fixing method:
Push-fit.
Special Requests:
Upon request and for special quantities diameter d1 can be supplied to customer’s drawing.
Upon request and for special quantities available in the colours indicated in the chart.

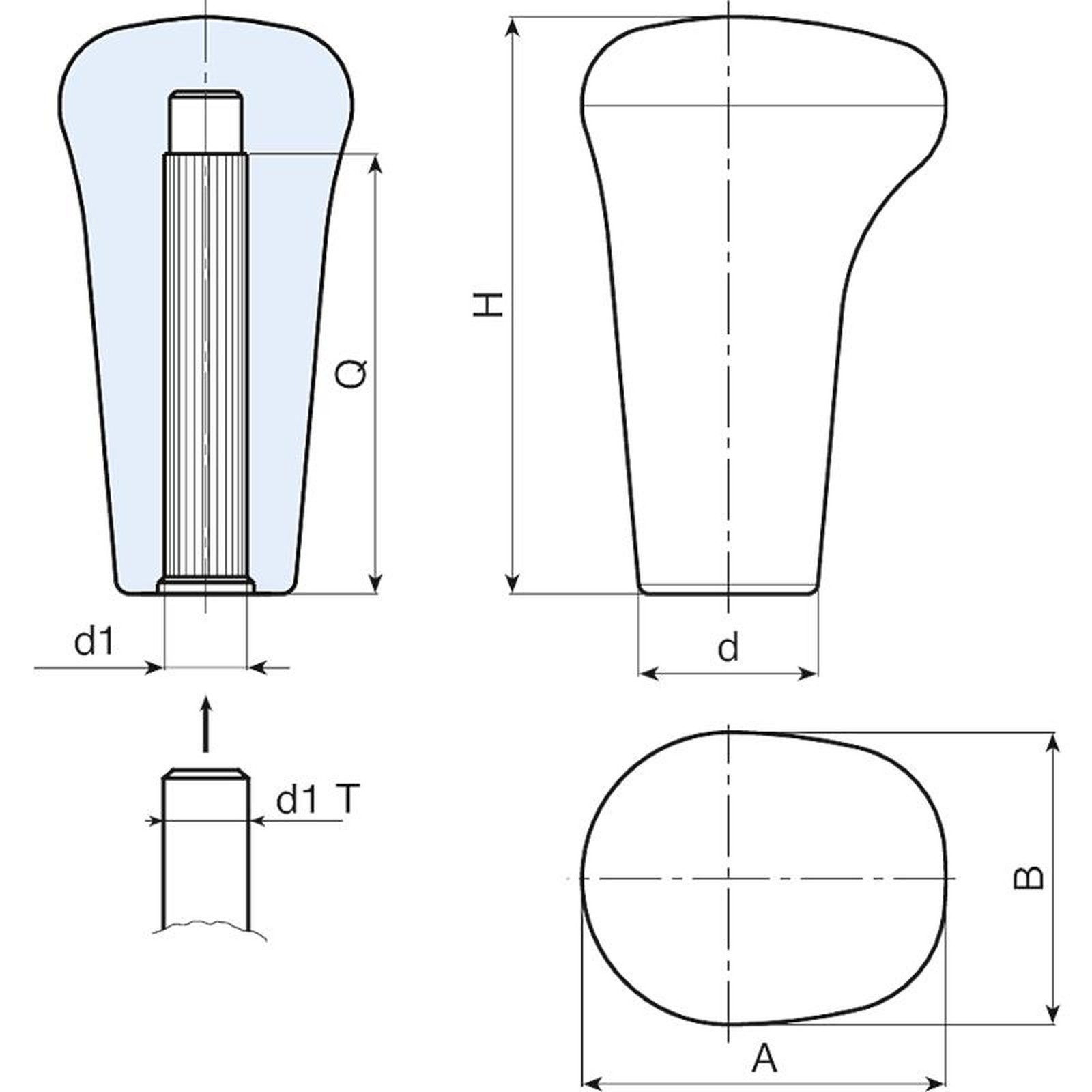

| Code | art. | H | A | B | d | d1 T | d1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| M12880.0001 | M12880.TG1201 | 80 | 50 | 40 | 25,5 | +0 -0,058 | 12 | 55 | 74 |
| M12880.0003 | M12880.TG1401 | 80 | 50 | 40 | 25,5 | +0 -0,070 | 14 | 70 | 70 |
| M12880.0004 | M12880.TG1601 | 80 | 50 | 40 | 25,5 | +0 -0,070 | 16 | 70 | 65 |
