KNOB WITH STEEL INDEXING PLUNGER, LONG NOSE PIN AND LOCK NUT

22

W913


Spintori filettati passo fine - con pomello

    Materials:

    (3) Stainless steel spring (Aisi 301).

    (4) Reinforced polyamide lobed knob. Cannot be disassembled. Resistant to oils and greases.

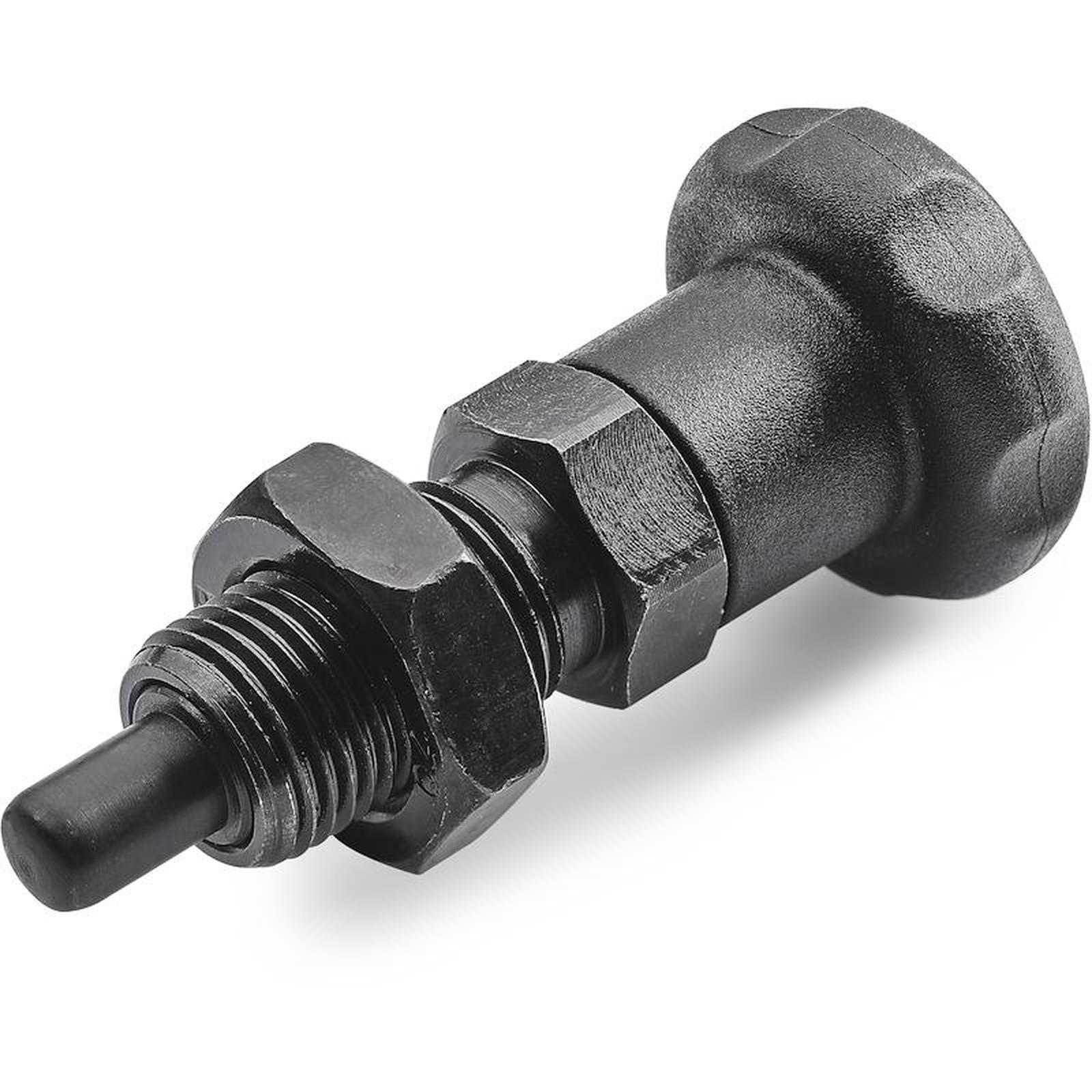

    W913:

    (2) Threaded high-resistance steel hexagon ring nut.

    (1) Hardened high resistance steel plunger pin.

    (5) Threaded steel lock nut (UNI 5589).

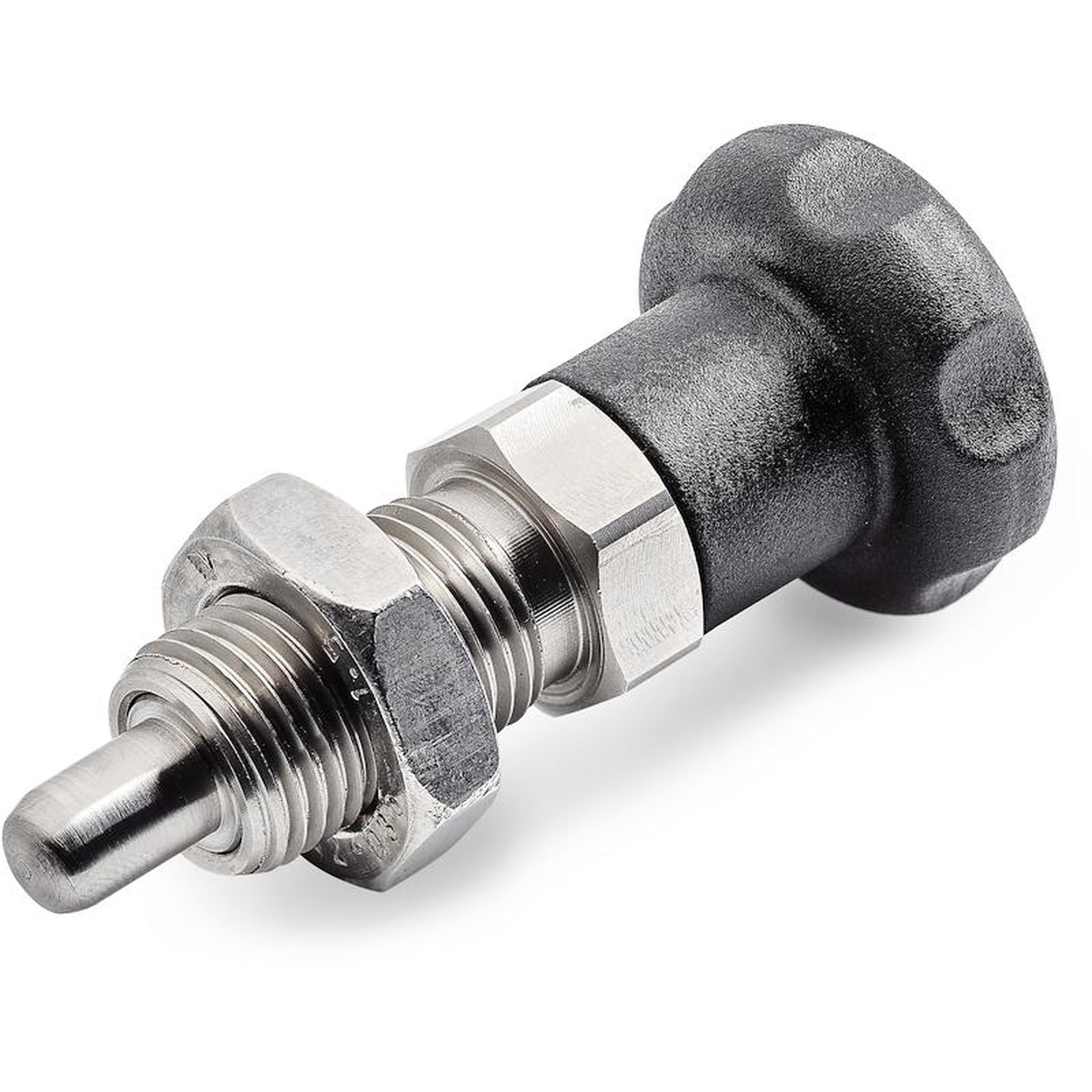

    W913CIN:

    (2) Threaded stainless steel hexagon ring nut (Aisi 303).

    (1) Stainless steel plunger pin (Aisi 303).

    (5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:

    (4) Satin.

    (1-2-5) Smooth.

    Colour:

    (4) Black (RAL 9011).

    W913:

    (1-2-5) Black-oxide treated.

    W913CIN:

    (1-2-5) Natural.

    ATTENTION:

    > We recommend an H7 tolerance for the plunger stem bore.

    > The nut is supplied assembled.

    Special Requests:

    On request and for special quantities the knob can be supplied in the colours indicated in the table.

    On request the nut can be supplied disassembled.

    Data sheet

    Version W913 - black-oxide treated steel

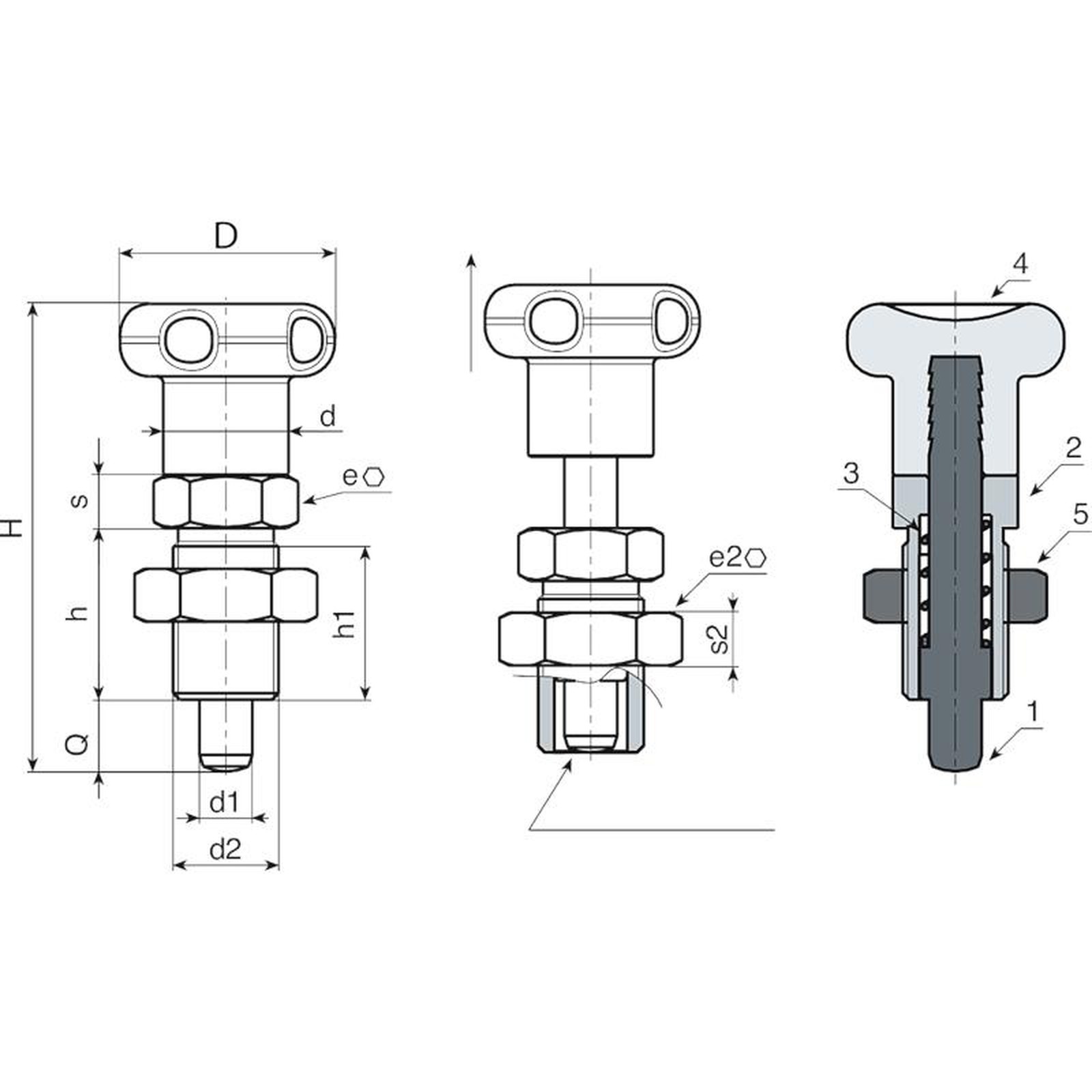

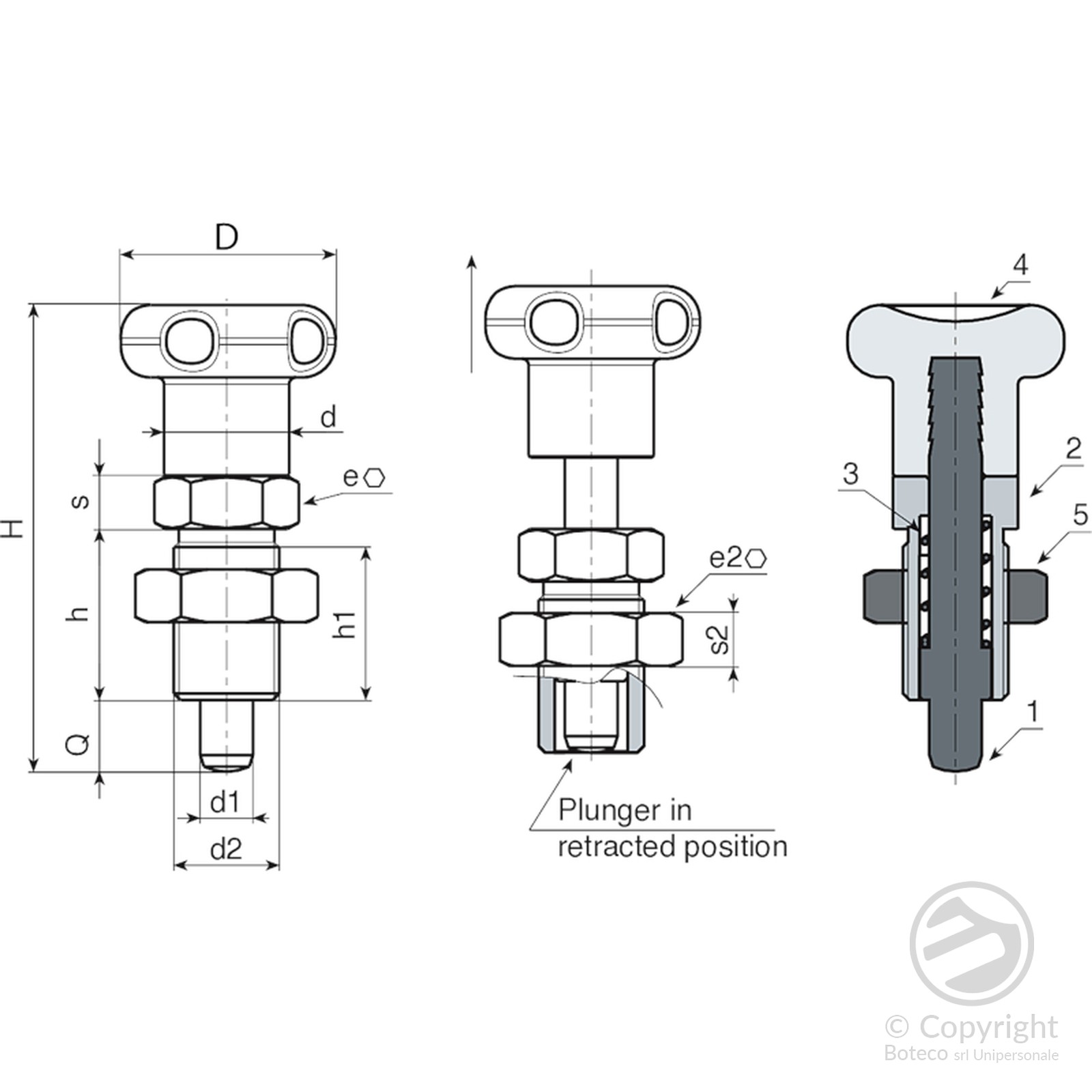

    Code Art. D H h h1 d2 d e s e2 s2 d1 -0,02 -0,04 Q Weight (g)
    W913010.0001 W913010.Q05X0801 22 48 17 15 M10x1 12 12 5 17 6 5 8 25
    W913012.0001 W913012.Q06X0901 27 57 20 18 M12x1,5 14 14 6 19 7 6 9 41
    W913016.0006 W913016.Q08X1201 33 72 26 23 M16x1,5 19 19 8 24 8 8 12 89
    W913016.0007 W913016.Q10X1201 33 72 26 23 M16x1,5 19 19 8 24 8 10 12 89
    W913020.0002 W913020.Q12X1501 33 84 33 30 M20x1,5 19 22 10 30 9 12 15 153
    Code Art. D H h h1 d2 d e s e2 s2 d1 -0,02 -0,04 Q Weight (g)
    W913010.0002 W913010.I05X0801CIN 22 48 17 15 M10x1 12 12 5 17 6 5 8 25
    W913012.0002 W913012.I06X0901CIN 27 57 20 18 M12x1,5 14 14 6 19 7 6 9 41
    W913016.0005 W913016.I08X1201CIN 33 72 26 23 M16x1,5 19 19 8 24 8 8 12 89
    W913016.0001 W913016.I10X1201CIN 33 72 26 23 M16x1,5 19 19 8 24 8 10 12 89
    W913020.0001 W913020.I12X1501CIN 33 84 33 30 M20x1,5 19 22 10 30 9 12 15 153
