KNOB WITH STEEL INDEXING PLUNGER AND LONG NOSE PIN

22

W912


Spintori filettati passo fine - con pomello

    Materials:

    (3) Stainless steel spring (Aisi 301).

    (4) Reinforced polyamide lobed knob. Cannot be disassembled. Resistant to oils and greases.

    W912:

    (2) Threaded high-resistance steel hexagon ring nut.

    (1) Hardened high resistance steel plunger pin.

    W912CIN:

    (2) Threaded stainless steel hexagon ring nut (Aisi 303).

    (1) Stainless steel plunger pin (Aisi 303).

    Surface finish:

    (4) Satin.

    (1-2-3) Smooth.

    Colour:

    (4) Black (RAL 9011).

    W912:

    (1-2) Black-oxide treated.

    W912CIN:

    (1-2) Natural.

    ATTENTION:

    > We recommend an H7 tolerance for the plunger stem bore.

    Special Requests:

    On request and for special quantities the knob can be supplied in the colours indicated in the table.

    Data sheet

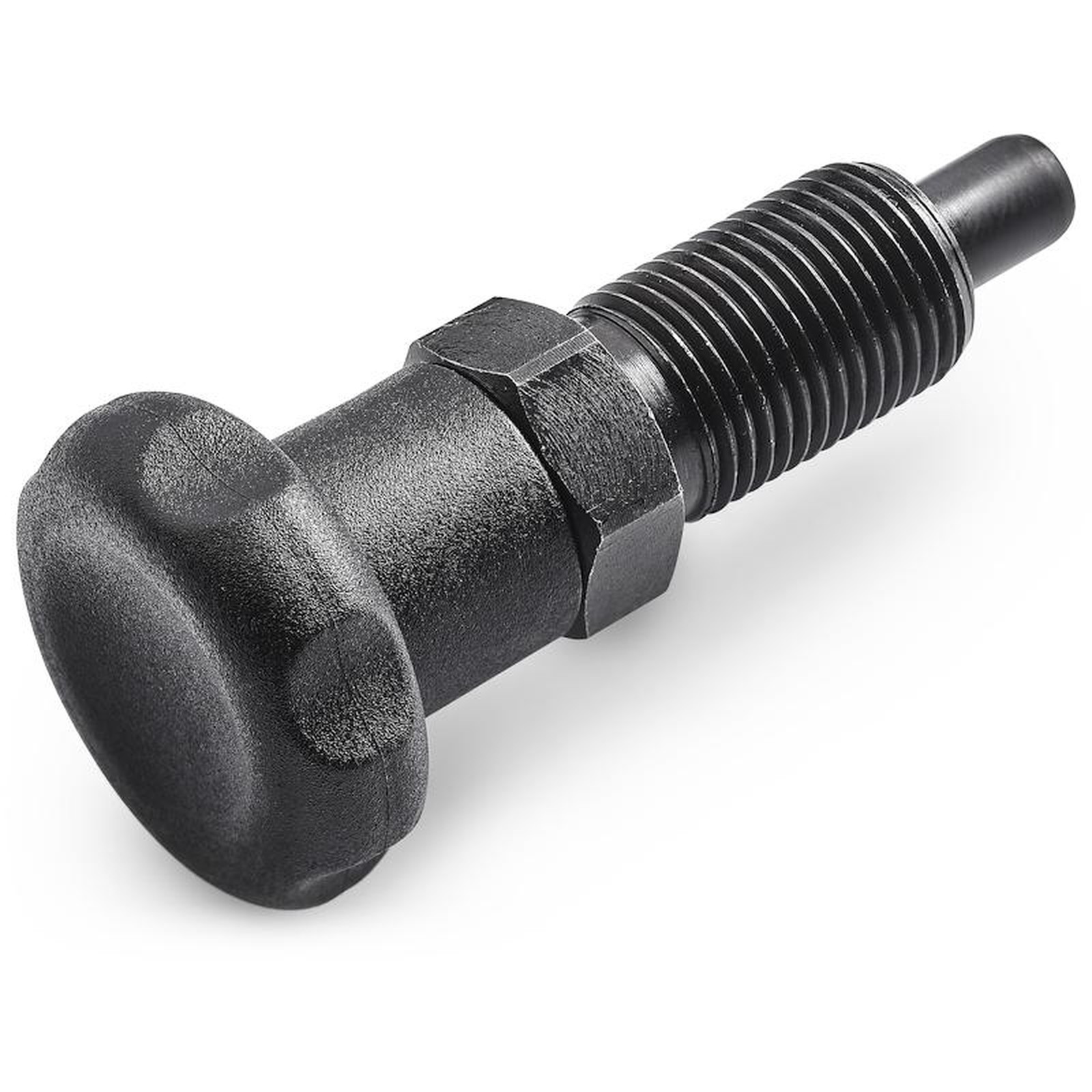

    Version W912 - black-oxide treated steel

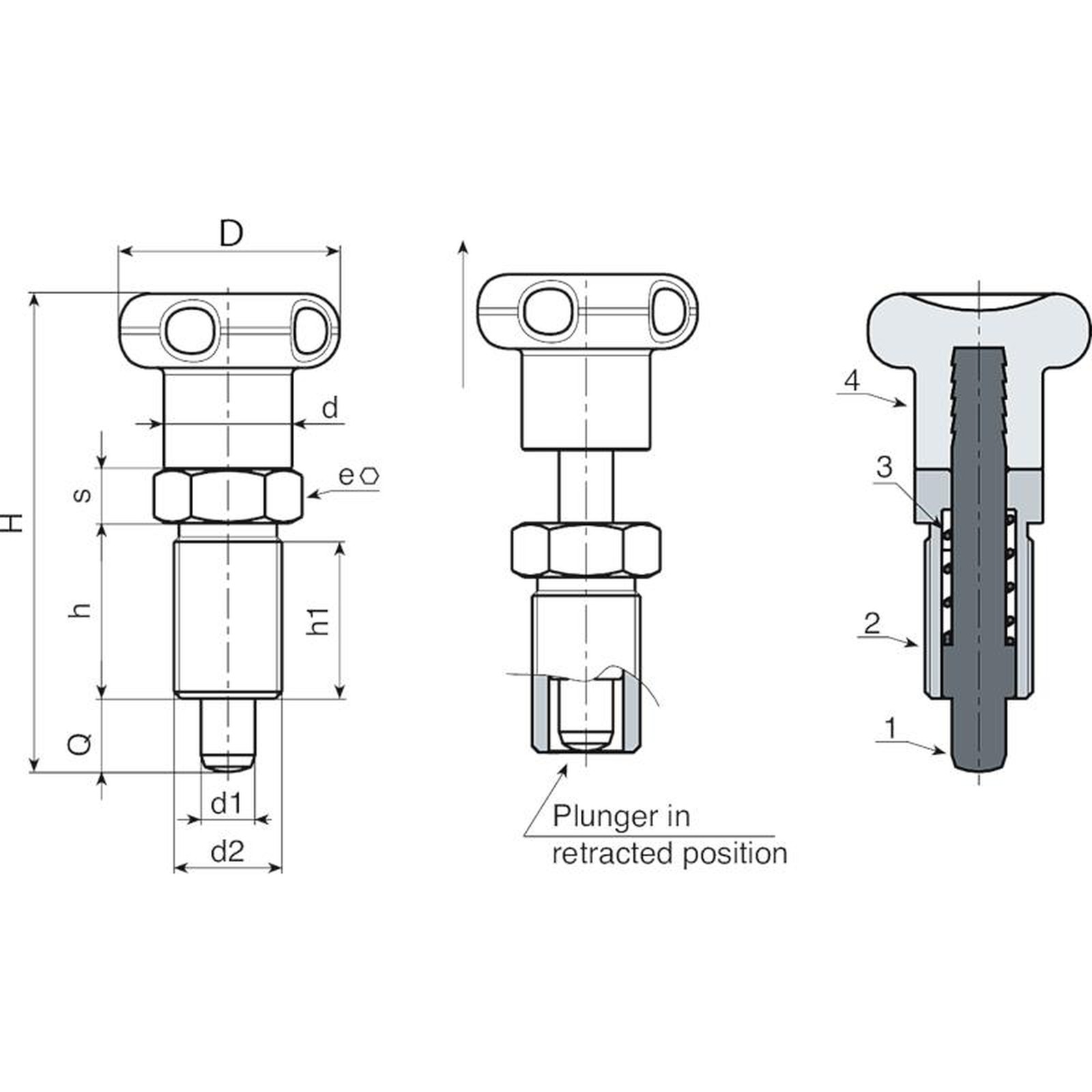

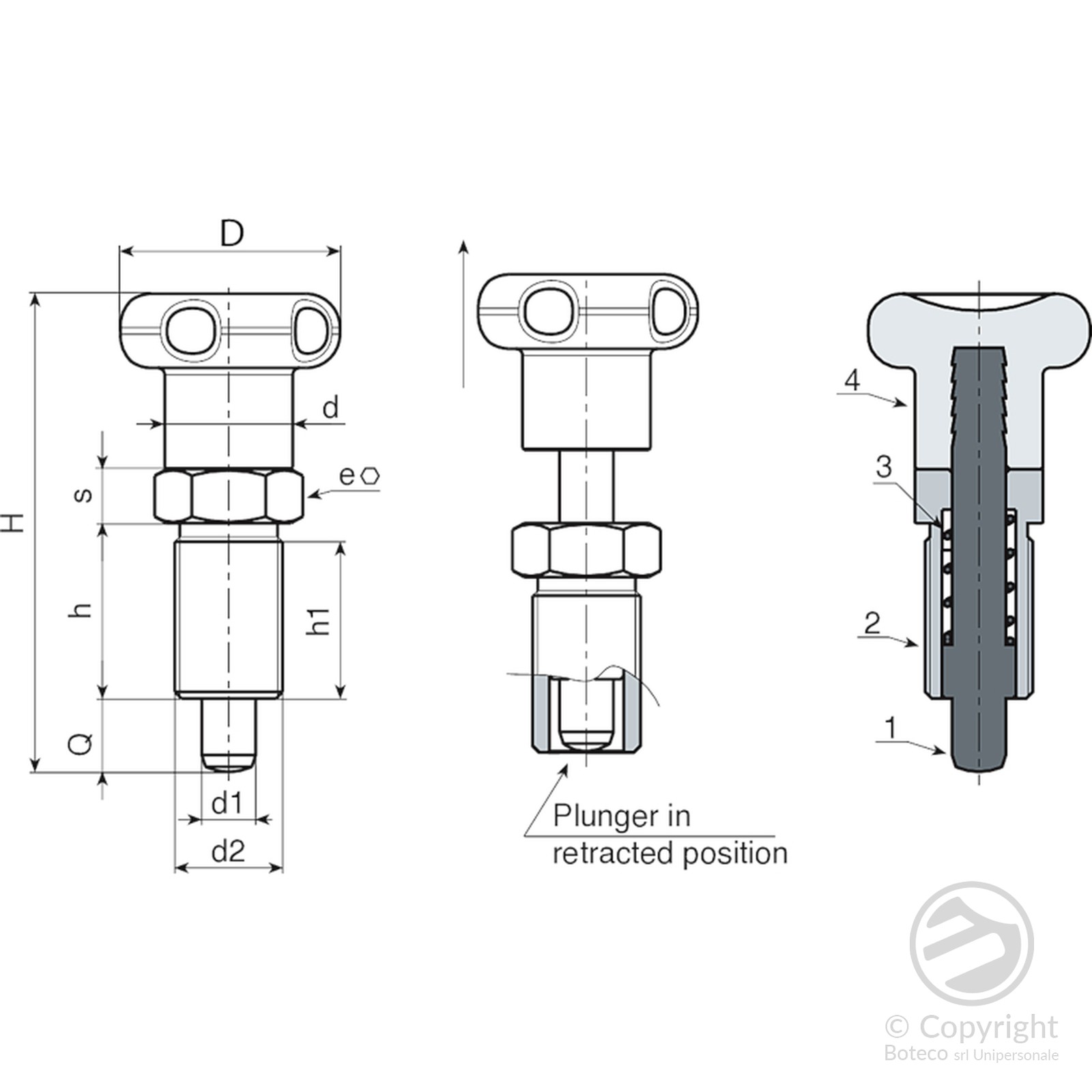

    Code Art. D H h h1 d2 d e s d1 -0,02 -0,04 Q Weight (g)
    W912010.0001 W912010.Q05X0801 22 48 17 15 M10x1 12 12 5 5 8 19
    W912012.0002 W912012.Q06X0901 27 57 20 18 M12x1,5 14 14 6 6 9 31
    W912016.0004 W912016.Q08X1201 33 72 26 23 M16x1,5 19 19 8 8 12 73
    W912016.0006 W912016.Q10X1201 33 72 26 23 M16x1,5 19 19 8 10 12 74
    W912020.0001 W912020.Q12X1501 33 84 33 30 M20x1,5 19 22 10 12 15 128

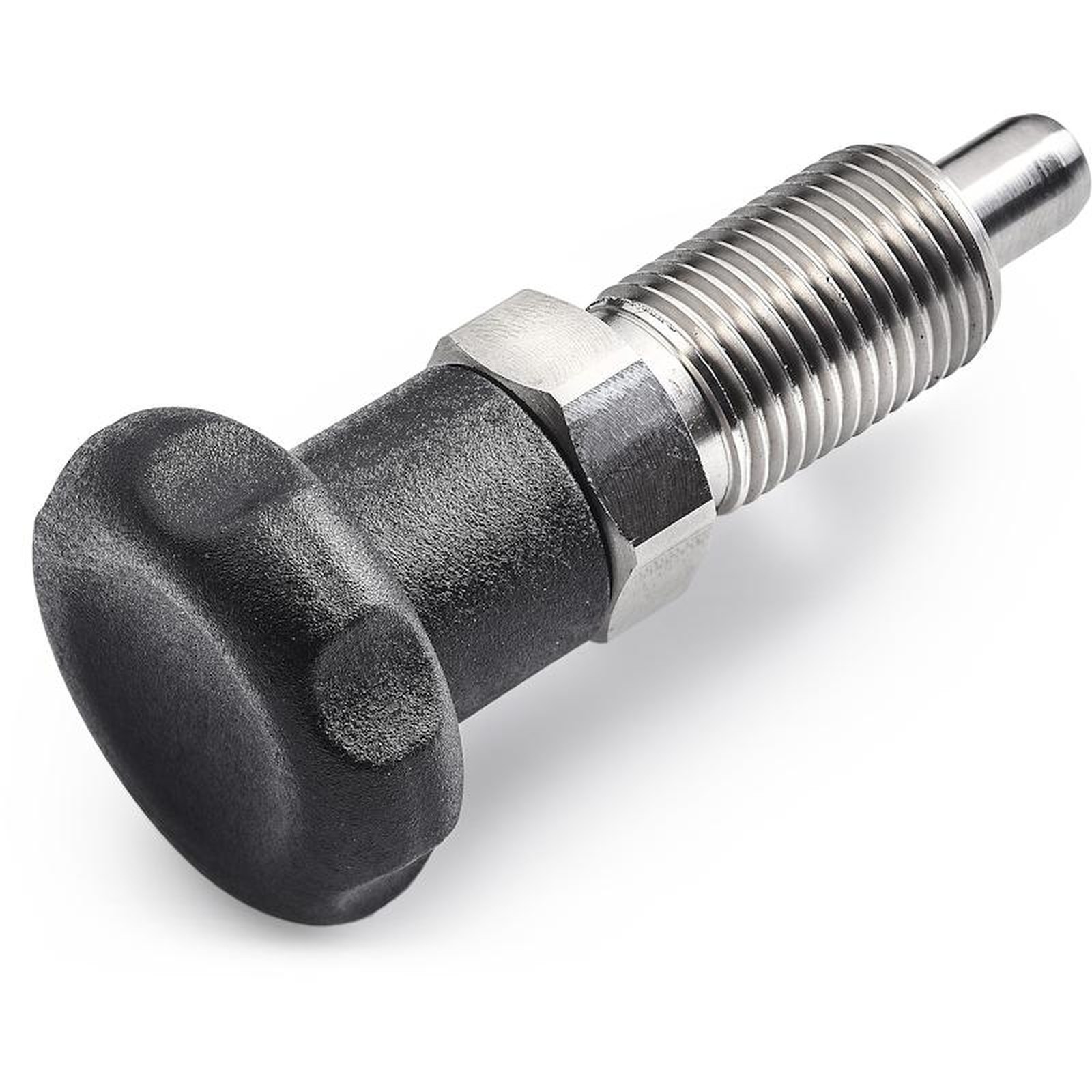

    Version W912 CIN - stainless steel (Aisi 303)

    Code Art. D H h h1 d2 d e s d1 -0,02 -0,04 Q Weight (g)
    W912010.0002 W912010.I05X0801CIN 22 48 17 15 M10x1 12 12 5 5 8 19
    W912012.0001 W912012.I06X0901CIN 27 57 20 18 M12x1,5 14 14 6 6 9 31
    W912016.0005 W912016.I08X1201CIN 33 72 26 23 M16x1,5 19 19 8 8 12 73
    W912016.0001 W912016.I10X1201CIN 33 72 26 23 M16x1,5 19 19 8 10 12 74
    W912020.0002 W912020.I12X1501CIN 33 84 33 30 M20x1,5 19 22 10 12 15 128
