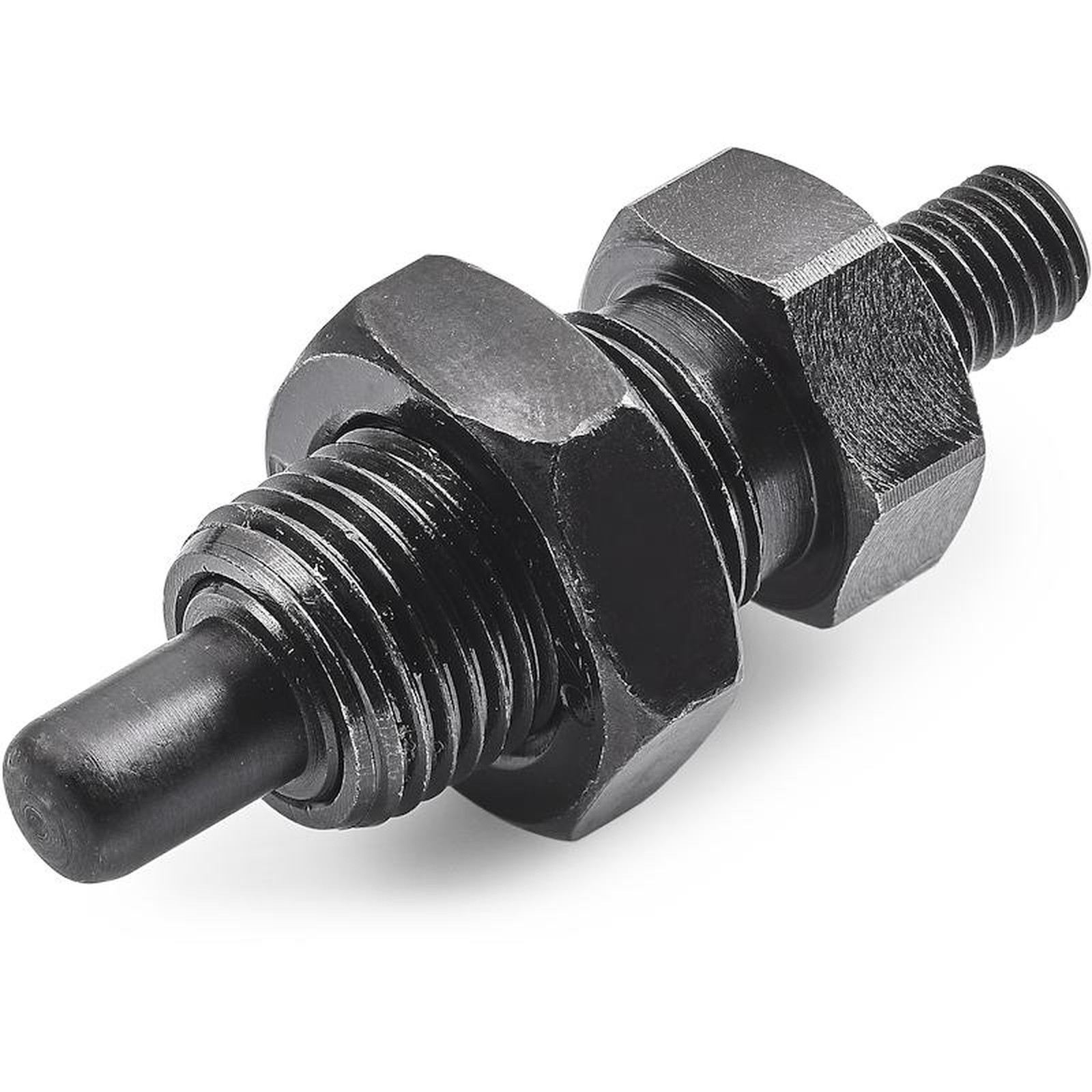

STEEL INDEXING PLUNGER WITH LONG NOSE PIN AND LOCK NUT

22

W911


Spintori filettati passo fine - senza pomello

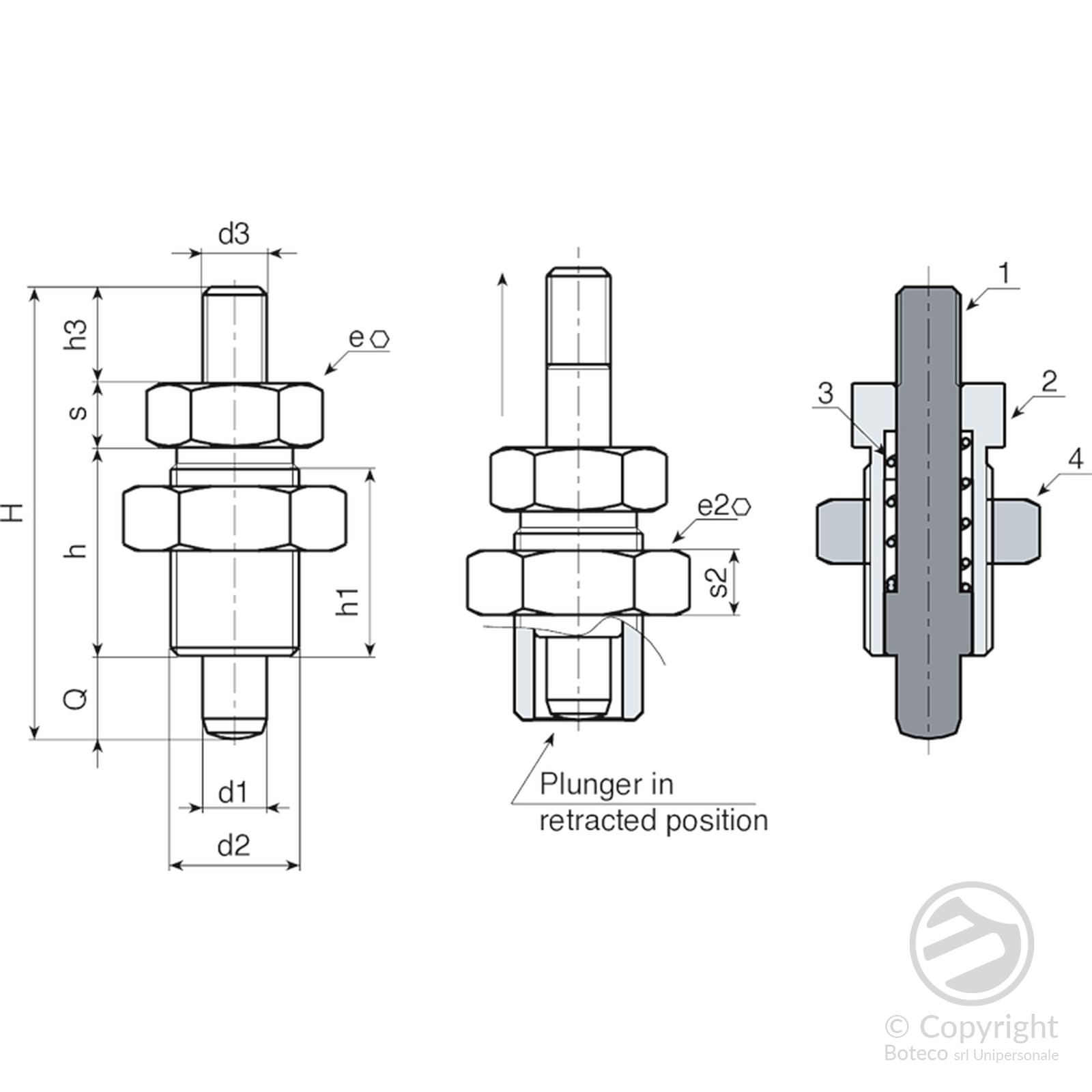

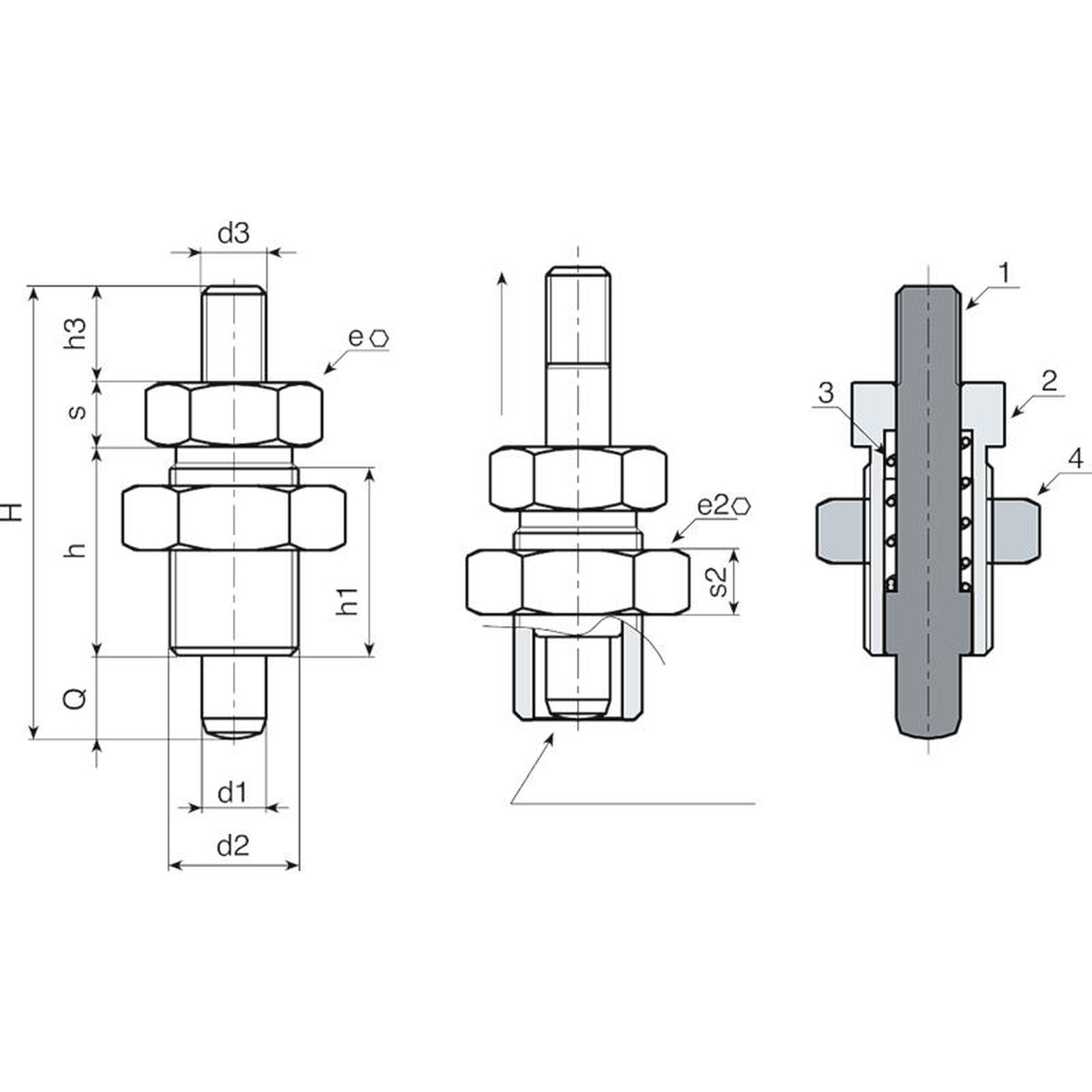

    Materials:

    (3) Stainless steel spring (Aisi 301).

    W911:

    (2) Threaded high-resistance steel hexagon ring nut.

    (1) Hardened high resistance steel plunger pin.

    (4) Threaded steel lock nut (UNI 5589).

    W911CIN:

    (2) Threaded stainless steel hexagon ring nut (Aisi 303).

    (1) Stainless steel plunger pin (Aisi 303).

    (4) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:

    Smooth.

    Colour:

    W911: Black-oxide treated.

    W911CIN: Natural.

    ATTENTION:

    > We recommend an H7 tolerance for the plunger stem bore.

    > The nut is supplied assembled.

    Special Requests:

    On request the nut can be supplied disassembled.

    Note:

    This plunger version can be coupled with any hanwheel with threaded insert, to be ordered separately (see additional pictures).

    Data sheet

    Version W911 - black-oxide treated steel

    Code Art. H h h1 d2 d3 h3 e s e2 s2 d1 -0,02 -0,04 Q Weight (g)
    W911010.0001 W911010.Q05X08 36 17 15 M10x1 M04 6 12 5 17 6 5 8 20
    W911012.0001 W911012.Q06X09 45 20 18 M12x1,5 M05 10 14 6 19 7 6 9 32
    W911016.0001 W911016.Q08X12 58 26 23 M16x1,5 M08 12 19 8 24 8 8 12 62
    W911016.0002 W911016.Q10X12 58 26 23 M16x1,5 M08 12 19 8 24 8 10 12 63
    W911020.0001 W911020.Q12X15 70 33 30 M20x1,5 M10 12 22 10 30 9 12 15 134

    Version W911 CIN - stainless steel (Aisi 303)

    Code Art. H h h1 d2 d3 h3 e s e2 s2 d1 -0,02 -0,04 Q Weight (g)
    W911010.0002 W911010.I05X08CIN 36 17 15 M10x1 M04 6 12 5 17 6 5 8 20
    W911012.0002 W911012.I06X09CIN 45 20 18 M12x1,5 M05 10 14 6 19 7 6 9 32
    W911016.0003 W911016.I08X12CIN 58 26 23 M16x1,5 M08 12 19 8 24 8 8 12 62
    W911016.0004 W911016.I10X12CIN 58 26 23 M16x1,5 M08 12 19 8 24 8 10 12 63
    W911020.0002 W911020.I12X15CIN 70 33 30 M20x1,5 M10 12 22 10 30 9 12 15 134
