STEEL INDEXING PLUNGER WITH LONG NOSE PIN

22

W910


Spintori filettati passo fine - senza pomello

    Materials:

    (3) Stainless steel spring (Aisi 301).

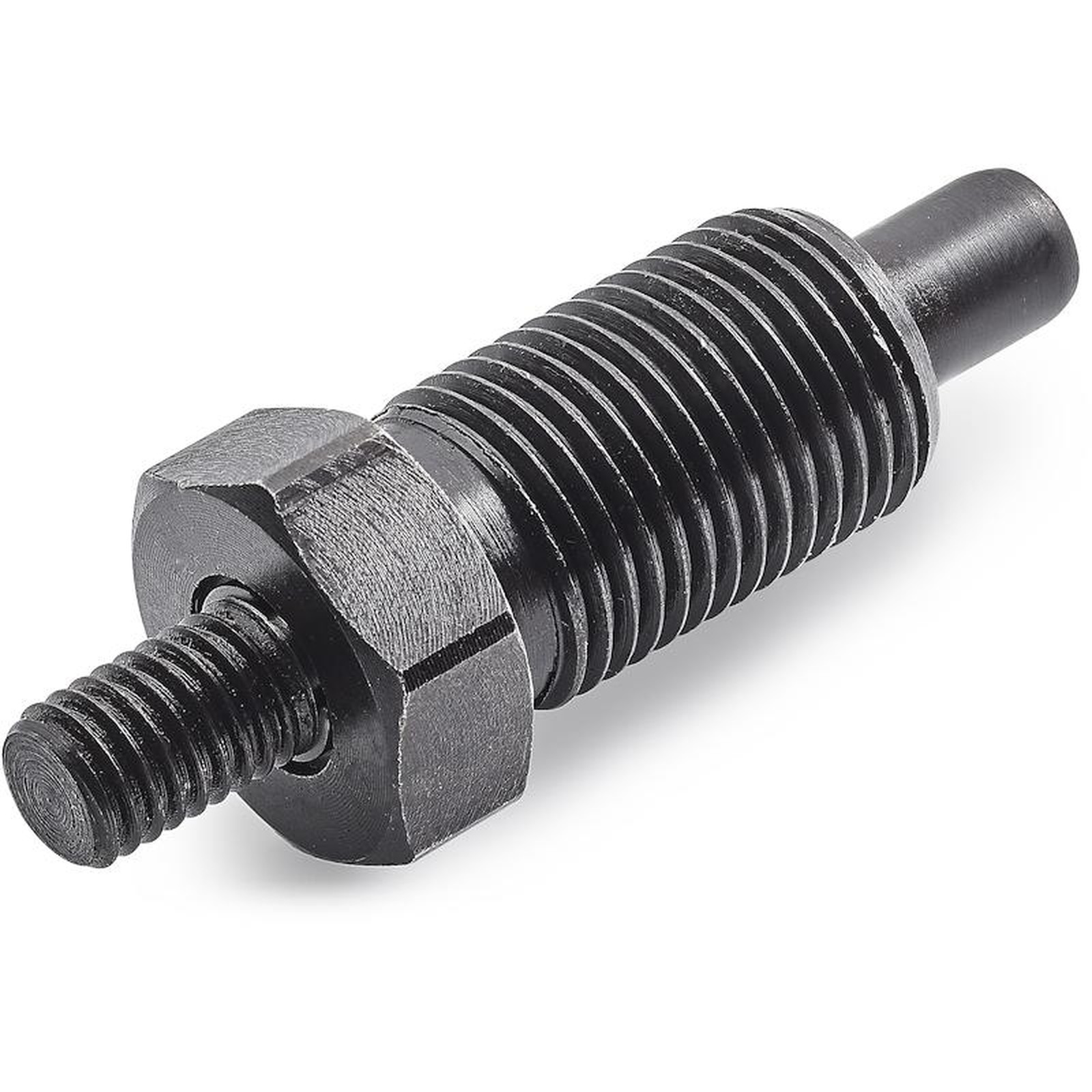

    W910:

    (2) Threaded high-resistance steel hexagon ring nut.

    (1) Hardened high resistance steel plunger pin.

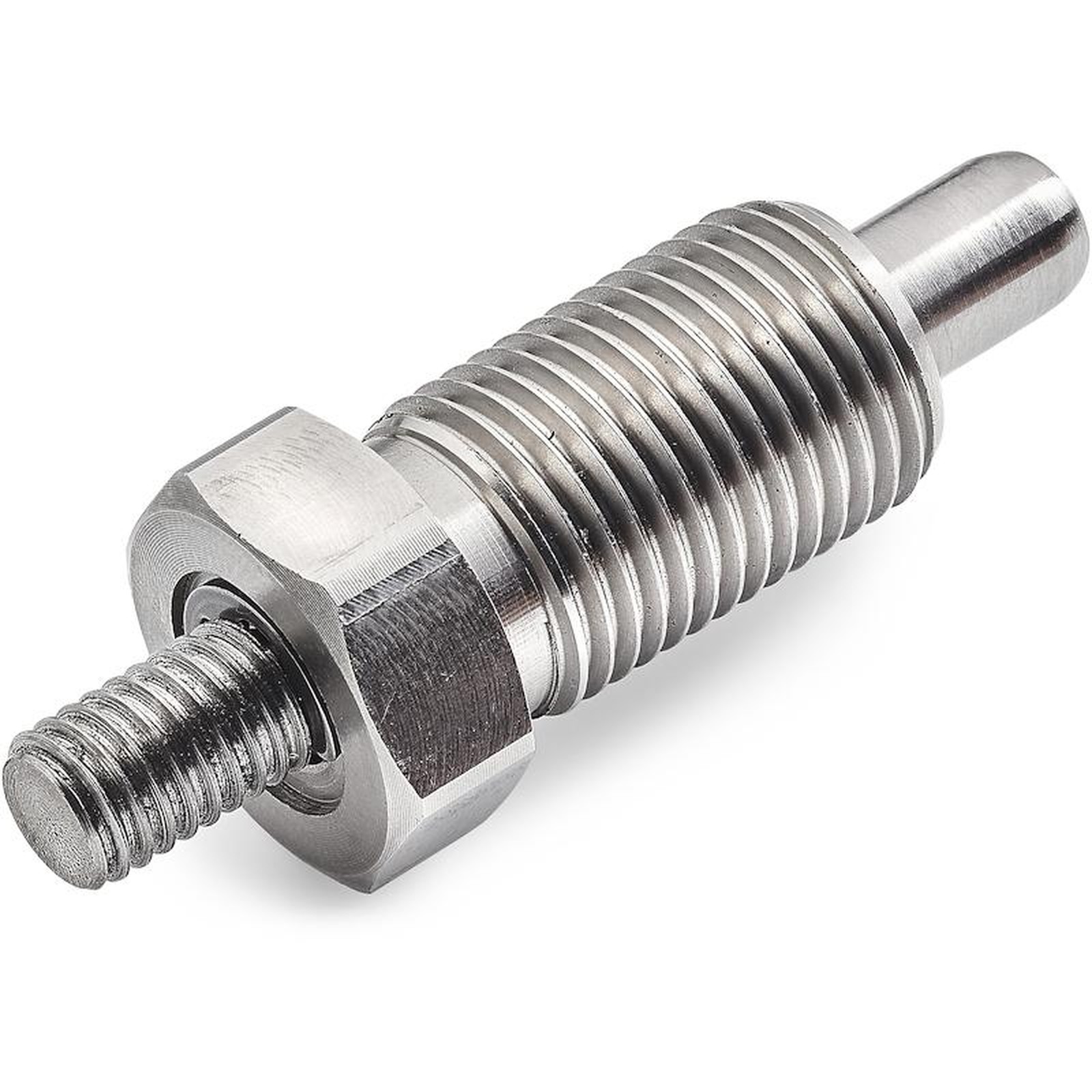

    W910CIN:

    (2) Threaded stainless steel hexagon ring nut (Aisi 303).

    (1) Stainless steel plunger pin (Aisi 303).

    Surface finish:

    Smooth.

    Colour:

    W910: Black-oxide treated.

    W910CIN: Natural.

    ATTENTION:

    > We recommend an H7 tolerance for the plunger stem bore.

    Special Requests:

    None.

    Note:

    This plunger version can be coupled with any hanwheel with threaded insert, to be ordered separately (see additional pictures).

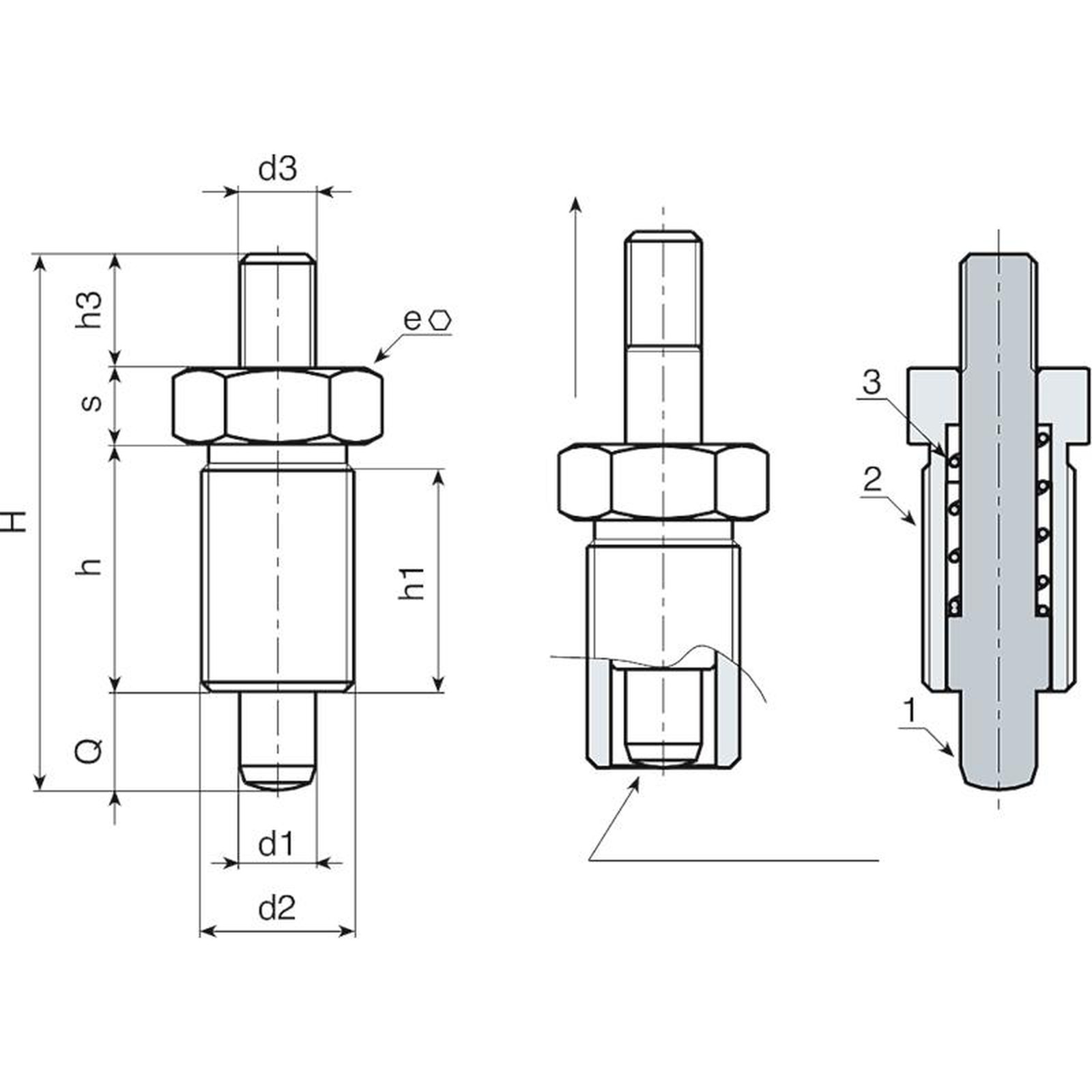

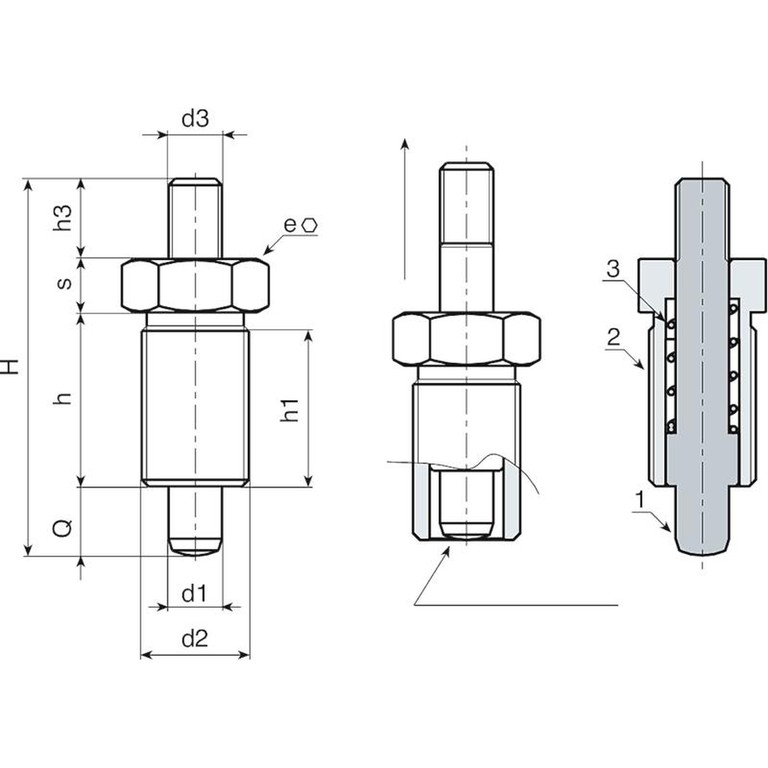

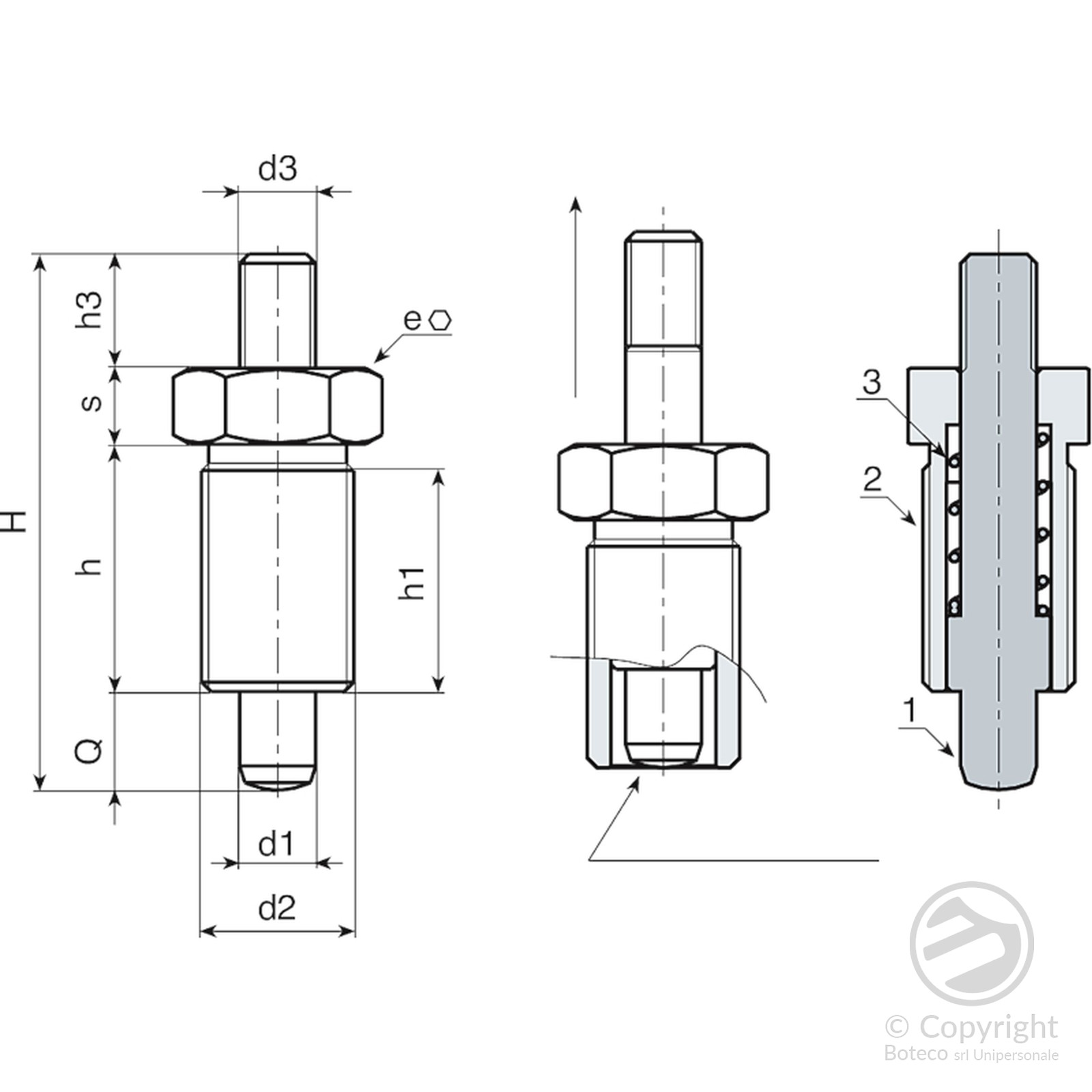

    Data sheet

    Version W910 - black-oxide treated steel

    Code Art. H h h1 d2 d3 h3 e s d1 -0,02 -0,04 Q Weight (g)
    W910010.0001 W910010.Q05X08 36 17 15 M10x1 M04 6 12 5 5 8 13
    W910012.0002 W910012.Q06X09 45 20 18 M12x1,5 M05 10 14 6 6 9 22
    W910016.0003 W910016.Q08X12 58 26 23 M16x1,5 M08 12 19 8 8 12 54
    W910016.0004 W910016.Q10X12 58 26 23 M16x1,5 M08 12 19 8 10 12 55
    W910020.0002 W910020.Q12X15 70 33 30 M20x1,5 M10 12 22 10 12 15 104

    Version W910 CIN - stainless steel (Aisi 303)

    Code Art. H h h1 d2 d3 h3 e s d1 -0,02 -0,04 Q Weight (g)
    W910010.0002 W910010.I05X08CIN 36 17 15 M10x1 M04 6 12 5 5 8 13
    W910012.0001 W910012.I06X09CIN 45 20 18 M12x1,5 M05 10 14 6 6 9 22
    W910016.0001 W910016.I08X12CIN 58 26 23 M16x1,5 M08 12 19 8 8 12 54
    W910016.0002 W910016.I10X12CIN 58 26 23 M16x1,5 M08 12 19 8 10 12 55
    W910020.0001 W910020.I12X15CIN 70 33 30 M20x1,5 M10 12 22 10 12 15 104
