Materials:
(3) Lever in die-cast zamak.

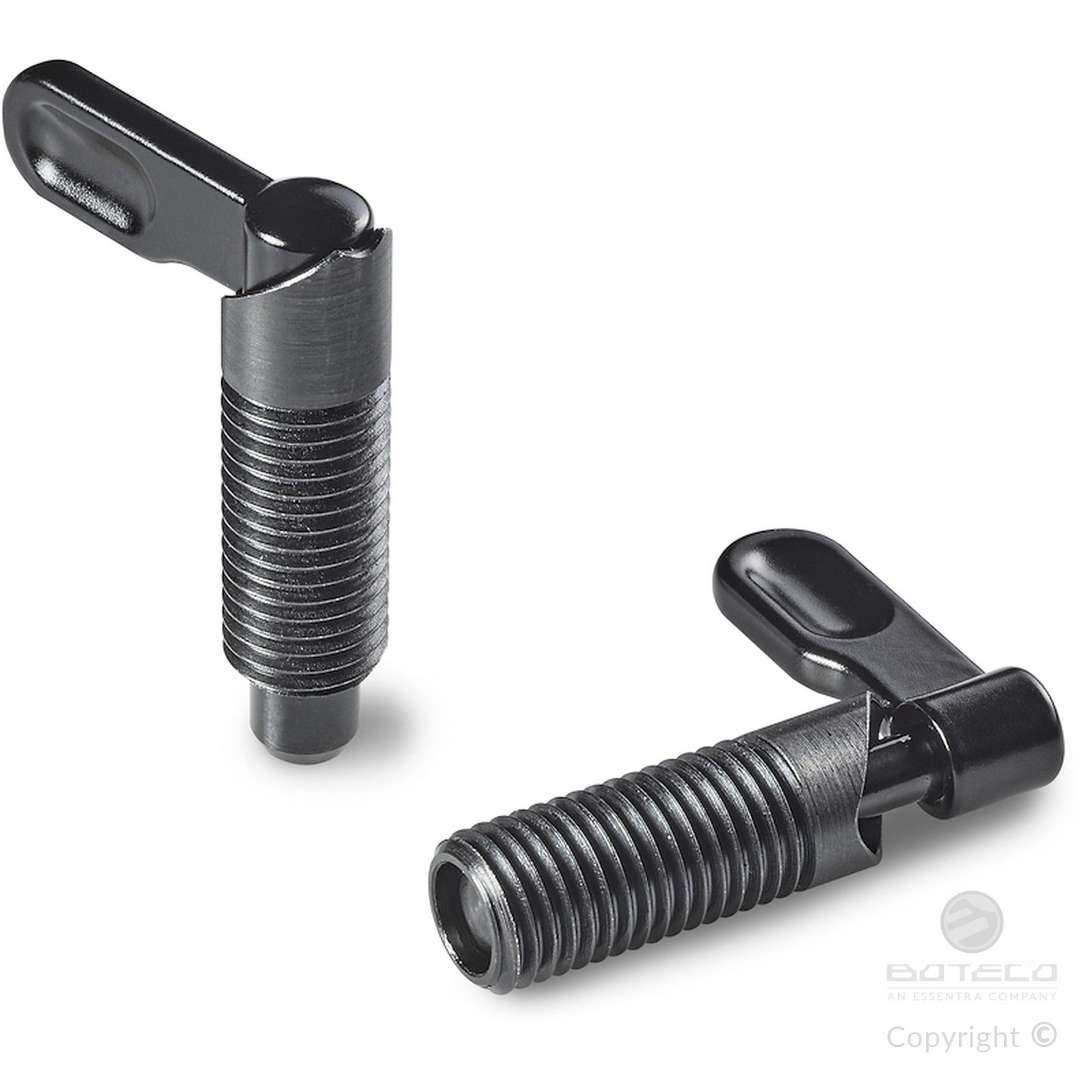

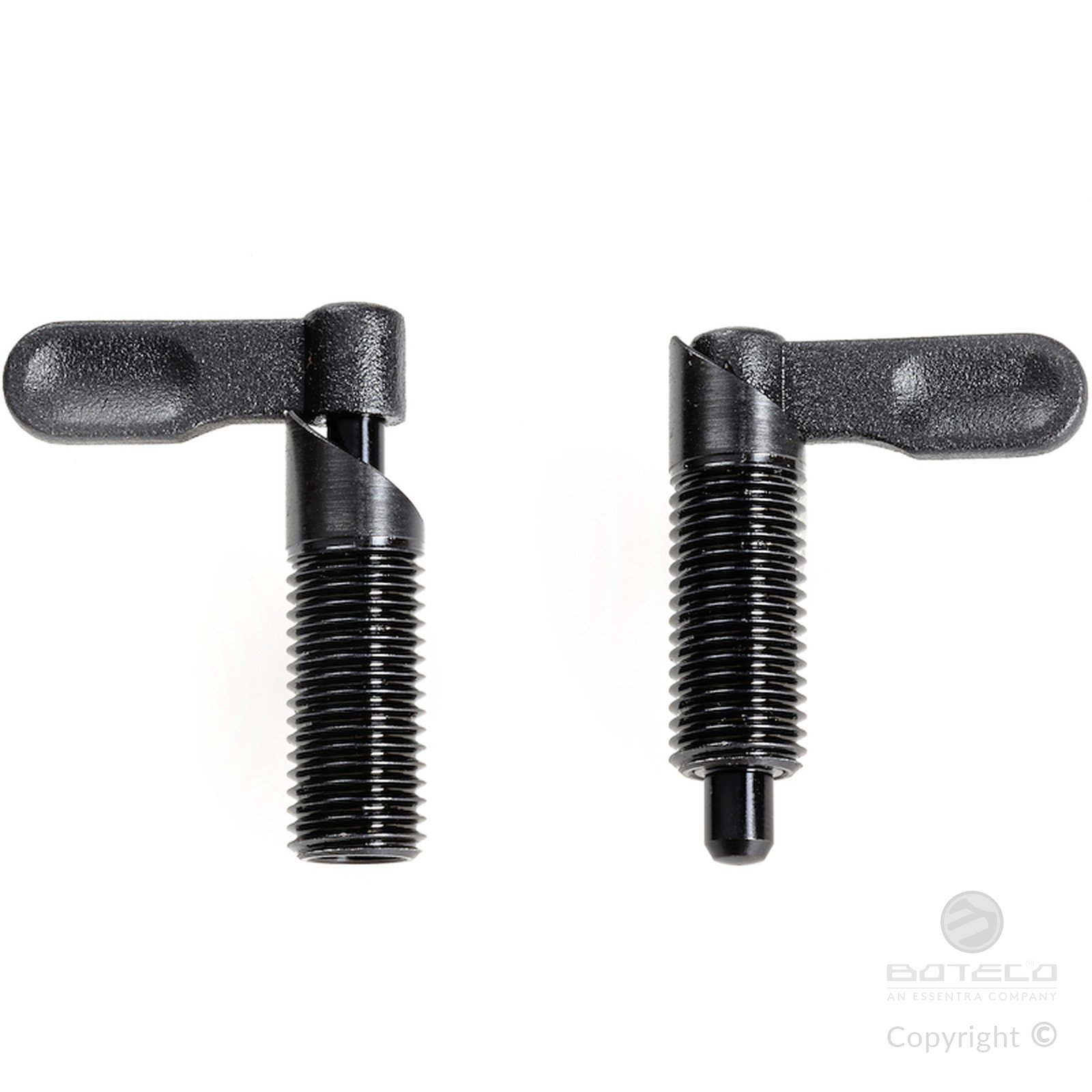

W815:
(1) Hardened high resistance steel plunger pin.
(2) Threaded turned high-resistance steel body with seat for locking position.
(5) Galvanised steel spring.

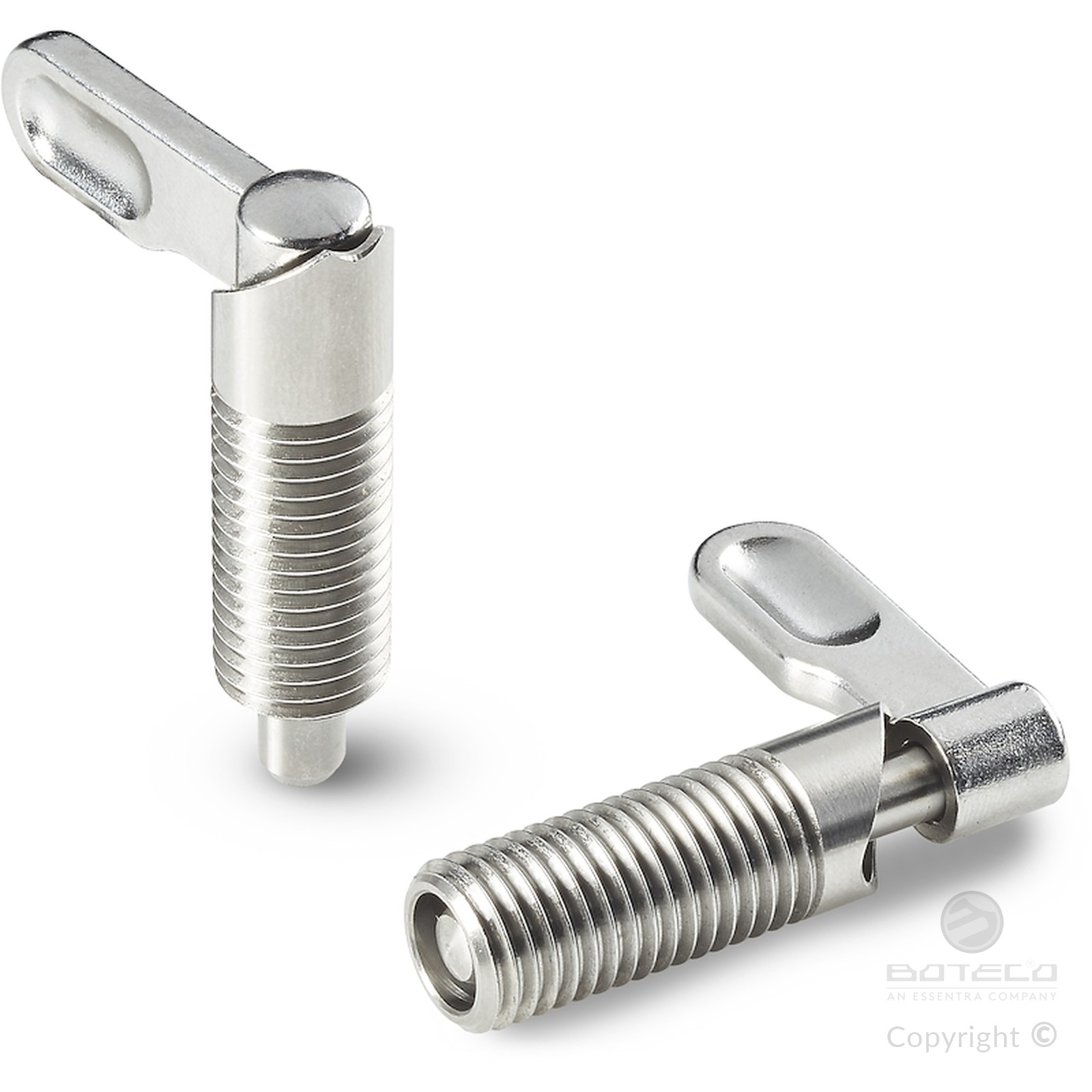

W815CIN:
(1) Stainless steel plunger pin (Aisi 303).
(2) Threaded turned high-resistance stainless steel body (Aisi 303) with seat for locking position.
(5) Stainless steel spring (Aisi 301).
Surface finish:
(3) Satin.
(1-2) Smooth.
Colour:
(3) Epoxy powder coated, black (RAL 9011).
W815:(1-2) Black-oxide treated.
W815CIN:(1-2) Natural.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
Special Requests:
Upon request and for special quantities the plunger thread can be supplied with standard coarse pitch.

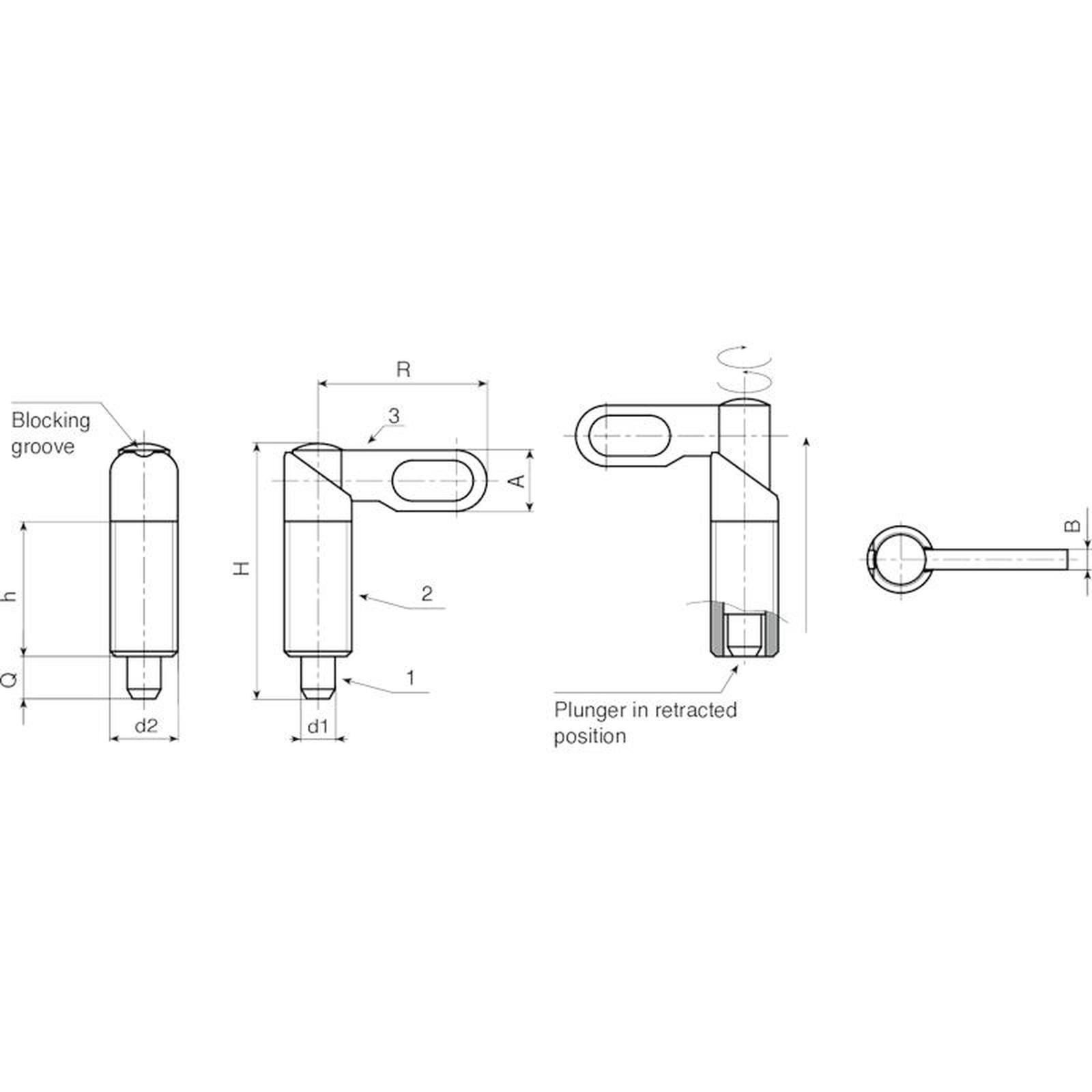

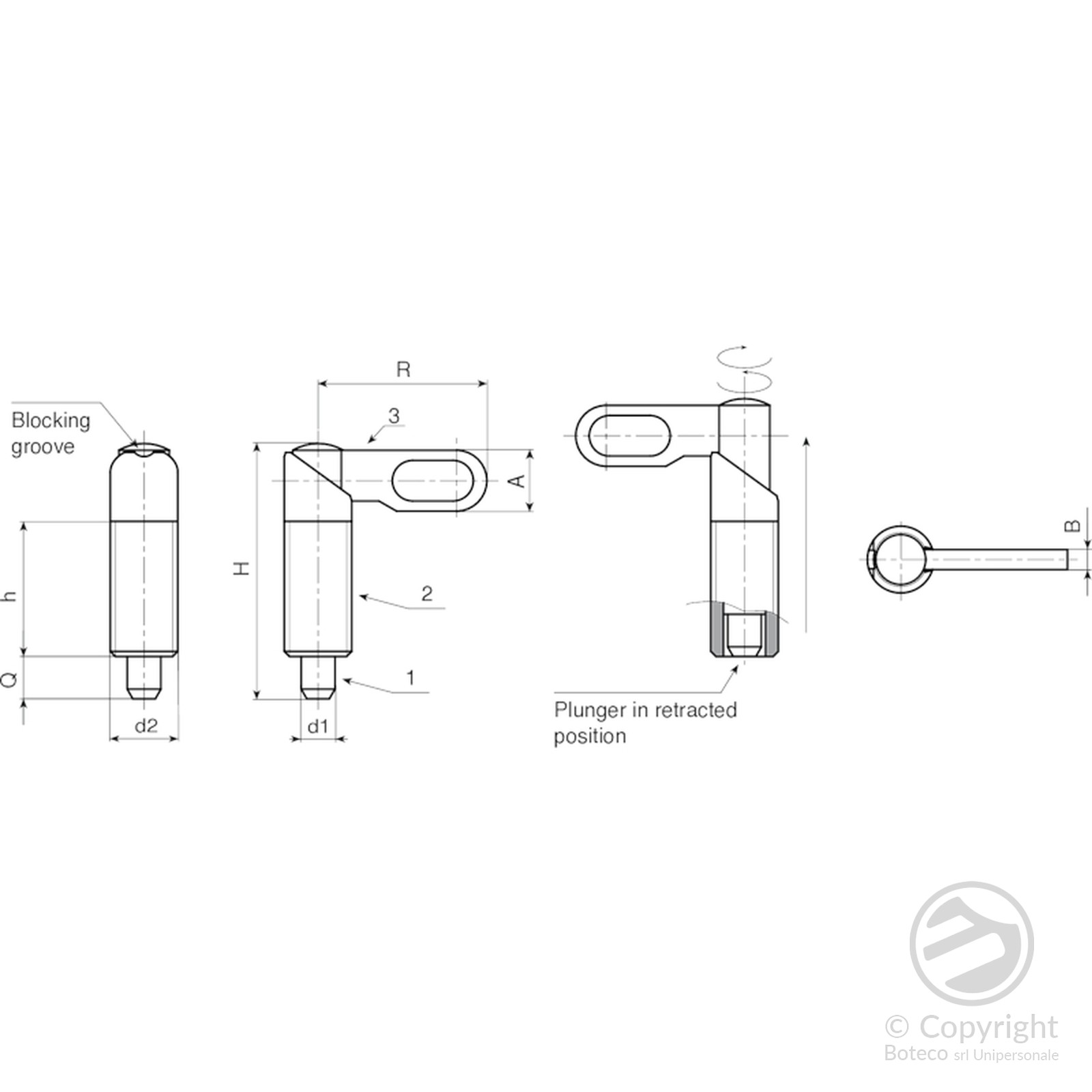

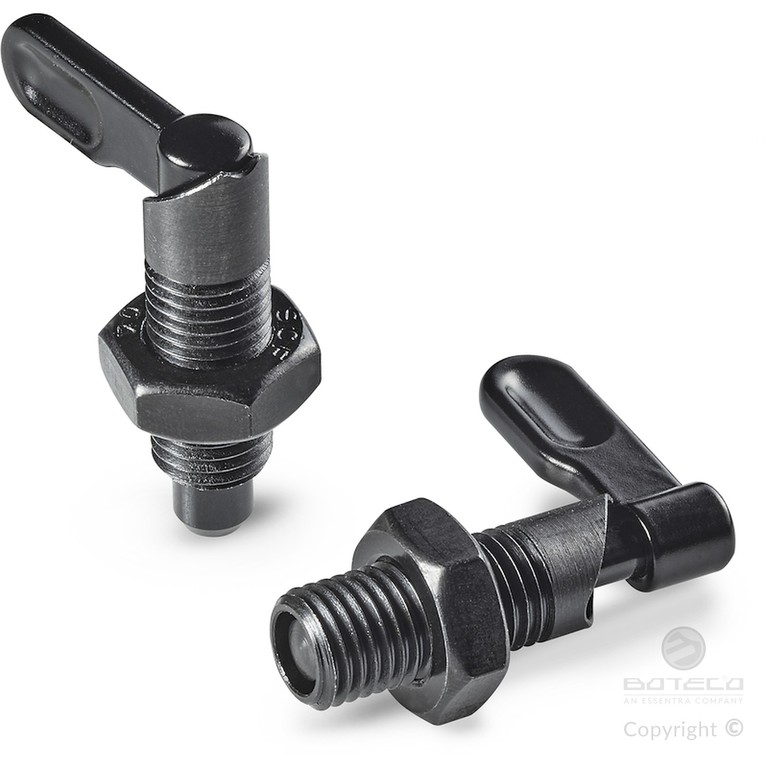

Version W815 - black-oxide treated steel
| Code | Art. | R | H | h | A | B | d2 | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| W81510.0004 | W81510.V04 | 25 | 38 | 20 | 9 | 3 | M10x1 | 4 | 6 | 18 |
| W81510.0005 | W81510.V05 | 25 | 38 | 20 | 9 | 3 | M10x1 | 5 | 6 | 19 |
| W81510.0006 | W81510.V06 | 25 | 38 | 20 | 9 | 3 | M10x1 | 6 | 6 | 21 |
| W81512.0004 | W81512.V05 | 30 | 47 | 25 | 11 | 3.5 | M12X1,5 | 5 | 8 | 30 |
| W81512.0005 | W81512.V06 | 30 | 47 | 25 | 11 | 3.5 | M12X1,5 | 6 | 8 | 30 |
| W81512.0006 | W81512.V08 | 30 | 47 | 25 | 11 | 3.5 | M12X1,5 | 8 | 8 | 33 |
| W81516.0004 | W81516.V06 | 40 | 60,5 | 32 | 14,5 | 5 | M16x1,5 | 6 | 10 | 73 |
| W81516.0005 | W81516.V08 | 40 | 60,5 | 32 | 14,5 | 5 | M16x1,5 | 8 | 10 | 75 |
| W81516.0006 | W81516.V10 | 40 | 60,5 | 32 | 14,5 | 5 | M16x1,5 | 10 | 10 | 77 |
| W81520.0004 | W81520.V08 | 50 | 70 | 35 | 18 | 6 | M20x1,5 | 8 | 12 | 137 |
| W81520.0005 | W81520.V10 | 50 | 70 | 35 | 18 | 6 | M20x1,5 | 10 | 12 | 173 |
| W81520.0006 | W81520.V12 | 50 | 70 | 35 | 18 | 6 | M20x1,5 | 12 | 12 | 143 |
Version W815 CIN - stainless steel (Aisi 303)
| Code | Art. | R | H | h | A | B | d2 | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| W81510.0001 | W81510.I04CIN | 25 | 38 | 20 | 9 | 3 | M10x1 | 4 | 6 | 18 |
| W81510.0002 | W81510.I05CIN | 25 | 38 | 20 | 9 | 3 | M10x1 | 5 | 6 | 19 |
| W81510.0003 | W81510.I06CIN | 25 | 38 | 20 | 9 | 3 | M10x1 | 6 | 6 | 21 |
| W81512.0001 | W81512.I05CIN | 30 | 47 | 25 | 11 | 3.5 | M12X1,5 | 5 | 8 | 30 |
| W81512.0002 | W81512.I06CIN | 30 | 47 | 25 | 11 | 3.5 | M12X1,5 | 6 | 8 | 30 |
| W81512.0003 | W81512.I08CIN | 30 | 47 | 25 | 11 | 3.5 | M12X1,5 | 8 | 8 | 33 |
| W81516.0001 | W81516.I06CIN | 40 | 60,5 | 32 | 14,5 | 5 | M16x1,5 | 6 | 10 | 73 |
| W81516.0002 | W81516.I08CIN | 40 | 60,5 | 32 | 14,5 | 5 | M16x1,5 | 8 | 10 | 75 |
| W81516.0003 | W81516.I10CIN | 40 | 60,5 | 32 | 14,5 | 5 | M16x1,5 | 10 | 10 | 77 |
| W81520.0001 | W81520.I08CIN | 50 | 70 | 35 | 18 | 6 | M20x1,5 | 8 | 12 | 137 |
| W81520.0002 | W81520.I10CIN | 50 | 70 | 35 | 18 | 6 | M20x1,5 | 10 | 12 | 142 |
| W81520.0003 | W81520.I12CIN | 50 | 70 | 35 | 18 | 6 | M20x1,5 | 12 | 12 | 143 |
