KNOB WITH LOCKING STEEL INDEXING PLUNGER - WITH LOCK NUT

22

W811


Spintori filettati passo fine - con pomello

    Materials:

    (3) Stainless steel spring (Aisi 301).

    (4) Reinforced polyamide lobed knob. Cannot be disassembled. Resistant to oils and greases.

    W811:

    (2) Threaded high-resistance steel hexagon ring nut.

    (1) Hardened high resistance steel plunger pin.

    (5) Threaded steel lock nut (UNI 5589).

    W811 CIN:

    (2) Threaded stainless steel hexagon ring nut (Aisi 303).

    (1) Stainless steel plunger pin (Aisi 303).

    (5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:

    (4) Satin.

    (1-2-5) Smooth.

    Colour:

    (4) Black (RAL 9011).

    W811:

    (1-2-5) Black-oxide treated.

    W811 CIN:

    (1-2-5) Natural.

    ATTENTION:

    > We recommend an H7 tolerance for the plunger stem bore.

    > The nut is supplied assembled.

    Special Requests:

    On request and for special quantities the knob can be supplied in the colours indicated in the table.

    On request the nut can be supplied disassembled.

    Data sheet

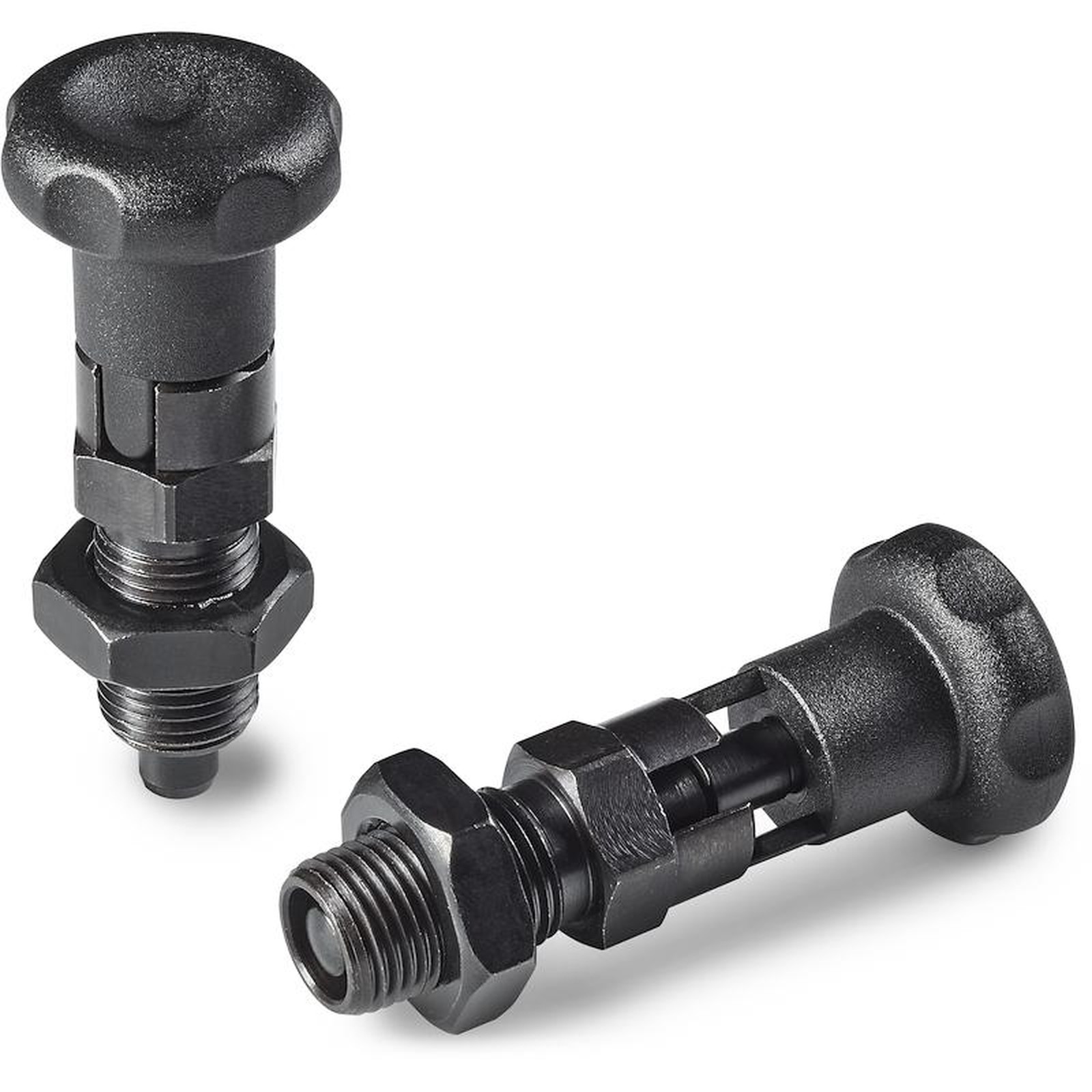

    Version W811 - black-oxide treated steel

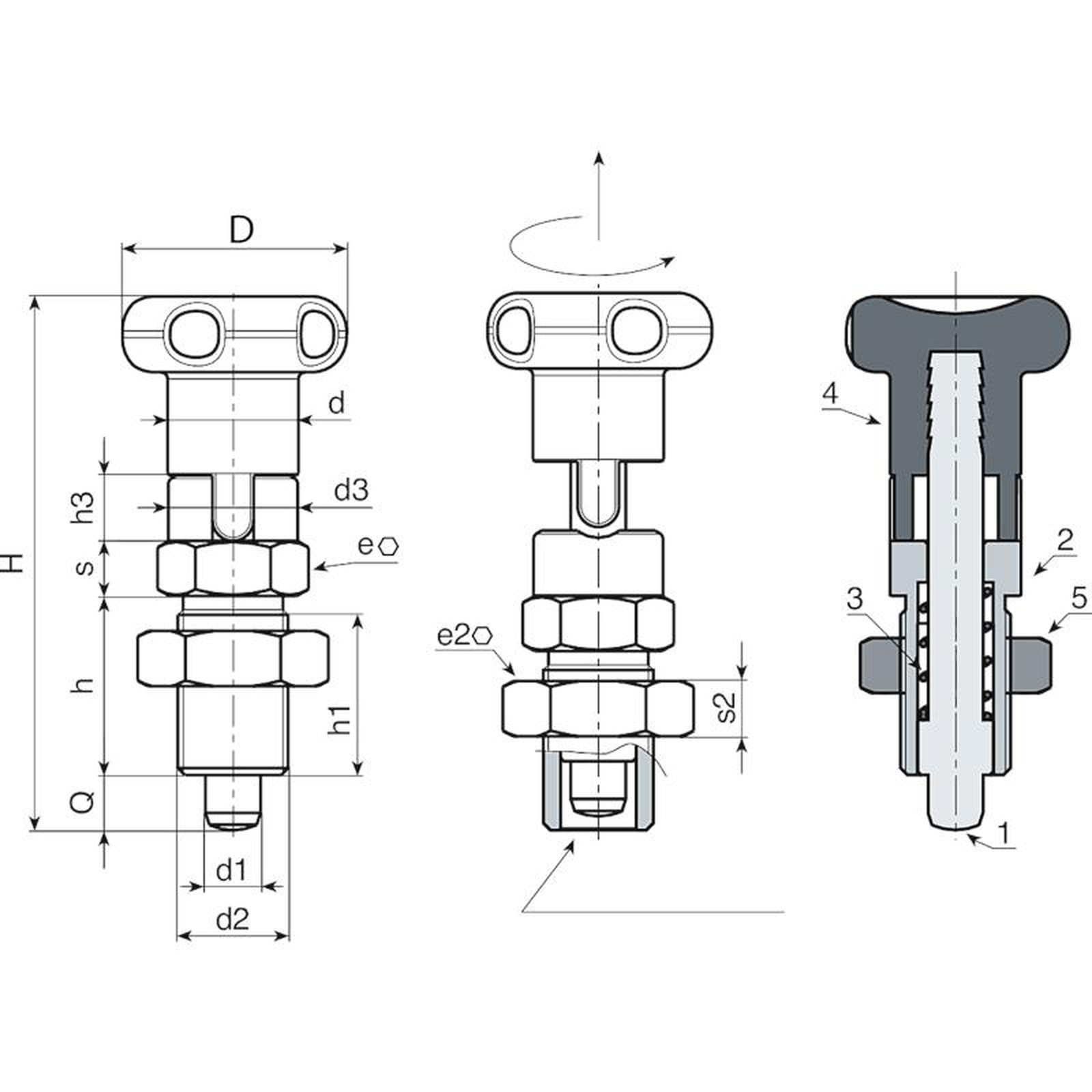

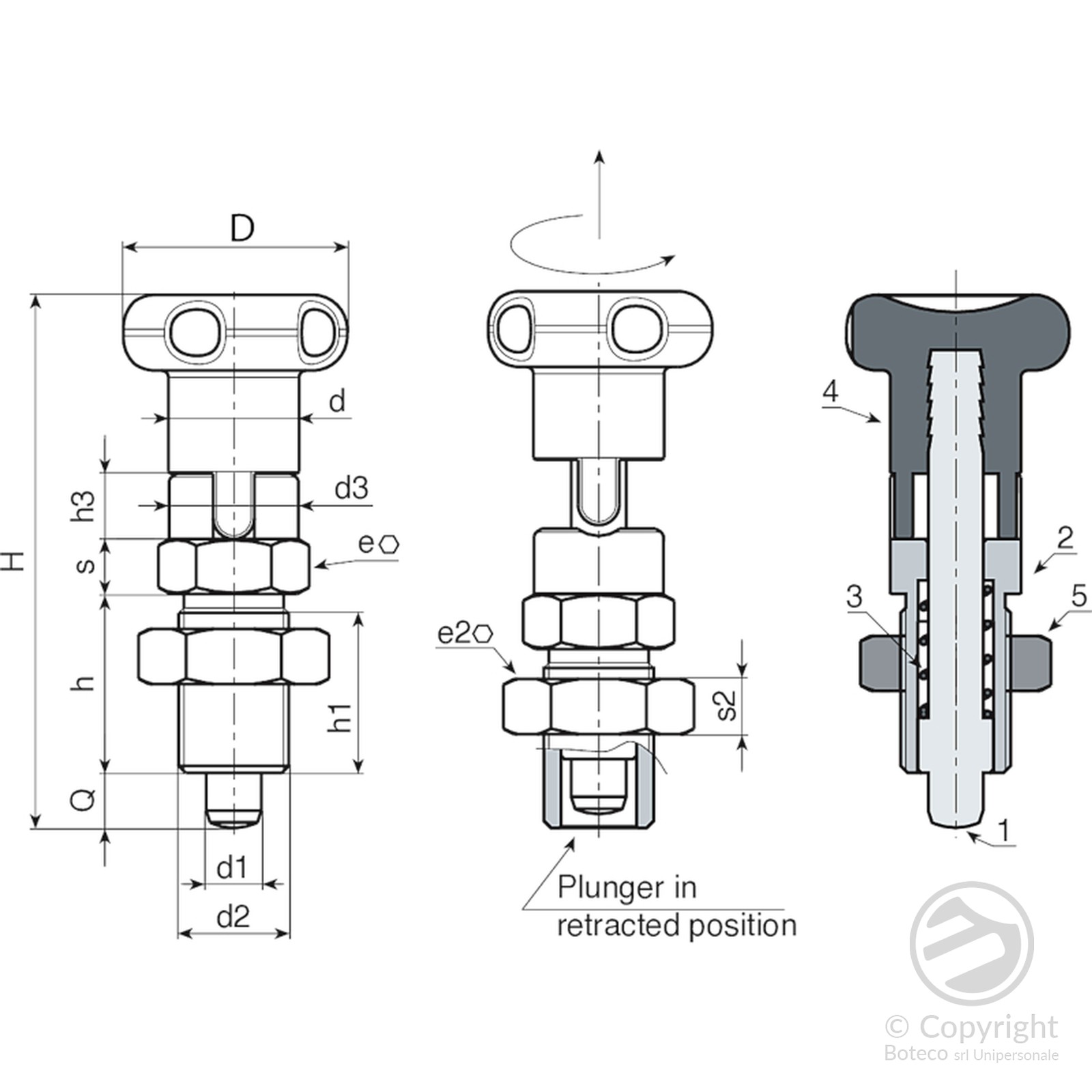

    Code Art. D H h h1 h3 d3 d2 d e s e2 s2 d1 -0,02 -0,04 Q Weight (g)
    W811.0006 W811.Q0501 22 51.5 17 15 6.5 11.8 M10x1 12 12 5 17 6 5 5 29
    W811.0007 W811.Q0601 27 61.5 20 18 7.5 13.8 M12x1,5 14 14 6 19 7 6 6 47
    W811.0008 W811.Q0801 33 77.5 26 23 9.5 18.8 M16x1,5 19 19 8 24 8 8 8 105
    W811.0009 W811.Q1001 33 90.5 33 30 11.5 18.8 M20x1,5 19 22 10 30 9 10 10 172

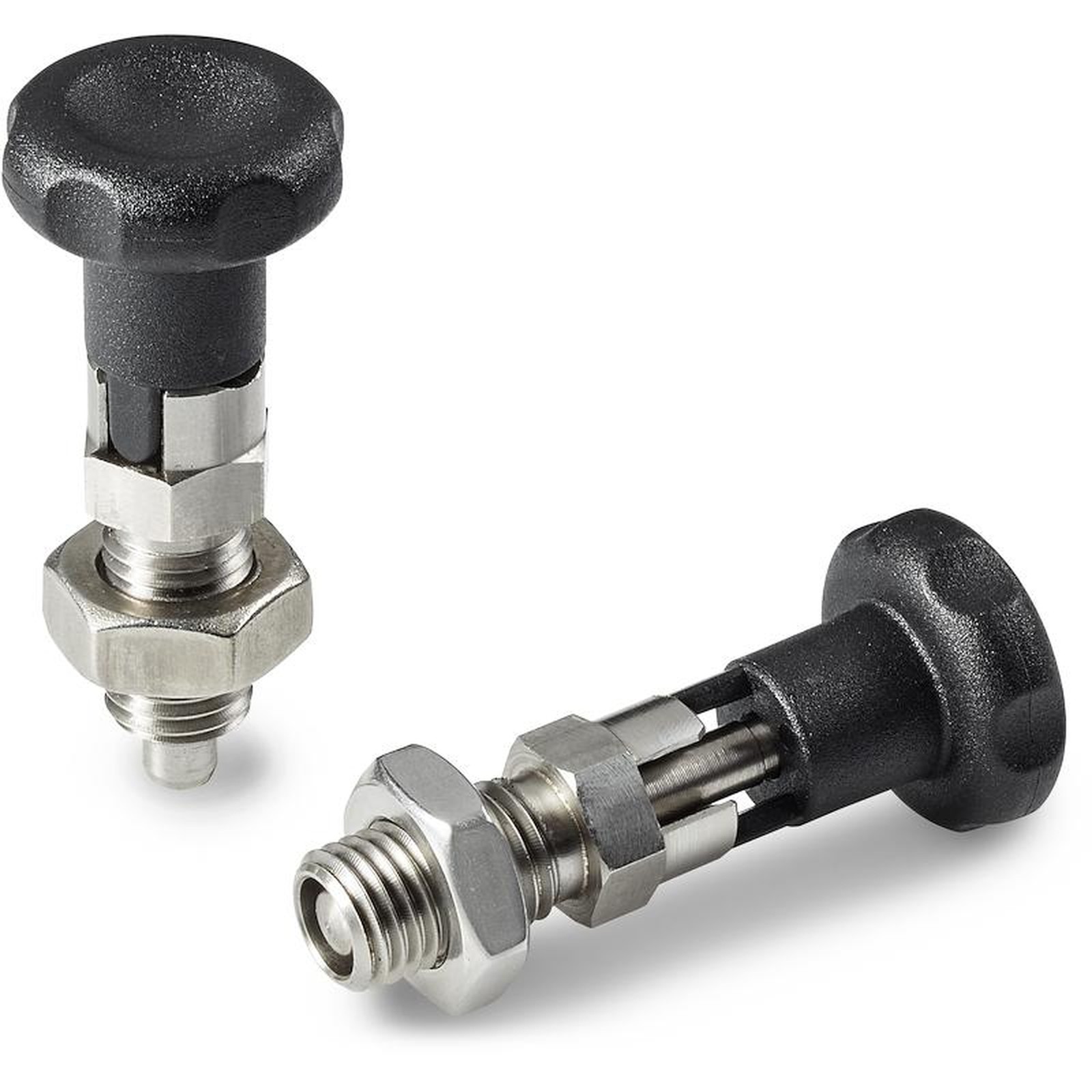

    Version W811 CIN - stainless steel (Aisi 303)

    Code Art. D H h h1 h3 d3 d2 d e s e2 s2 d1 -0,02 -0,04 Q Weight (g)
    W811.0001 W811.I0501CIN 22 51.5 17 15 6.5 11.8 M10x1 12 12 5 17 6 5 5 29
    W811.0002 W811.I0601CIN 27 61.5 20 18 7.5 13.8 M12x1,5 14 14 6 19 7 6 6 47
    W811.0003 W811.I0801CIN 33 77.5 26 23 9.5 18.8 M16x1,5 19 19 8 24 8 8 8 105
    W811.0004 W811.I1001CIN 33 90.5 33 30 11.5 18.8 M20x1,5 19 22 10 30 9 10 10 172
