KNOB WITH LOCKING STEEL INDEXING PLUNGER
22
W810
Spintori filettati passo fine - con pomello
Materials:
(3) Stainless steel spring (Aisi 301).
(4) Reinforced polyamide lobed knob. Cannot be disassembled. Resistant to oils and greases.
W810:
(2) Threaded high-resistance steel hexagon ring nut.
(1) Hardened high resistance steel plunger pin.
W810CIN:
(2) Threaded stainless steel hexagon ring nut (Aisi 303).
(1) Stainless steel plunger pin (Aisi 303).
Surface finish:
(4) Satin.
(1-2) Smooth.
Colour:
(4) Black (RAL 9011).
W810:
(1-2) Black-oxide treated.
W810 CIN:
(1-2) Natural.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
Special Requests:
On request and for special quantities the knob can be supplied in the colours indicated in the table.

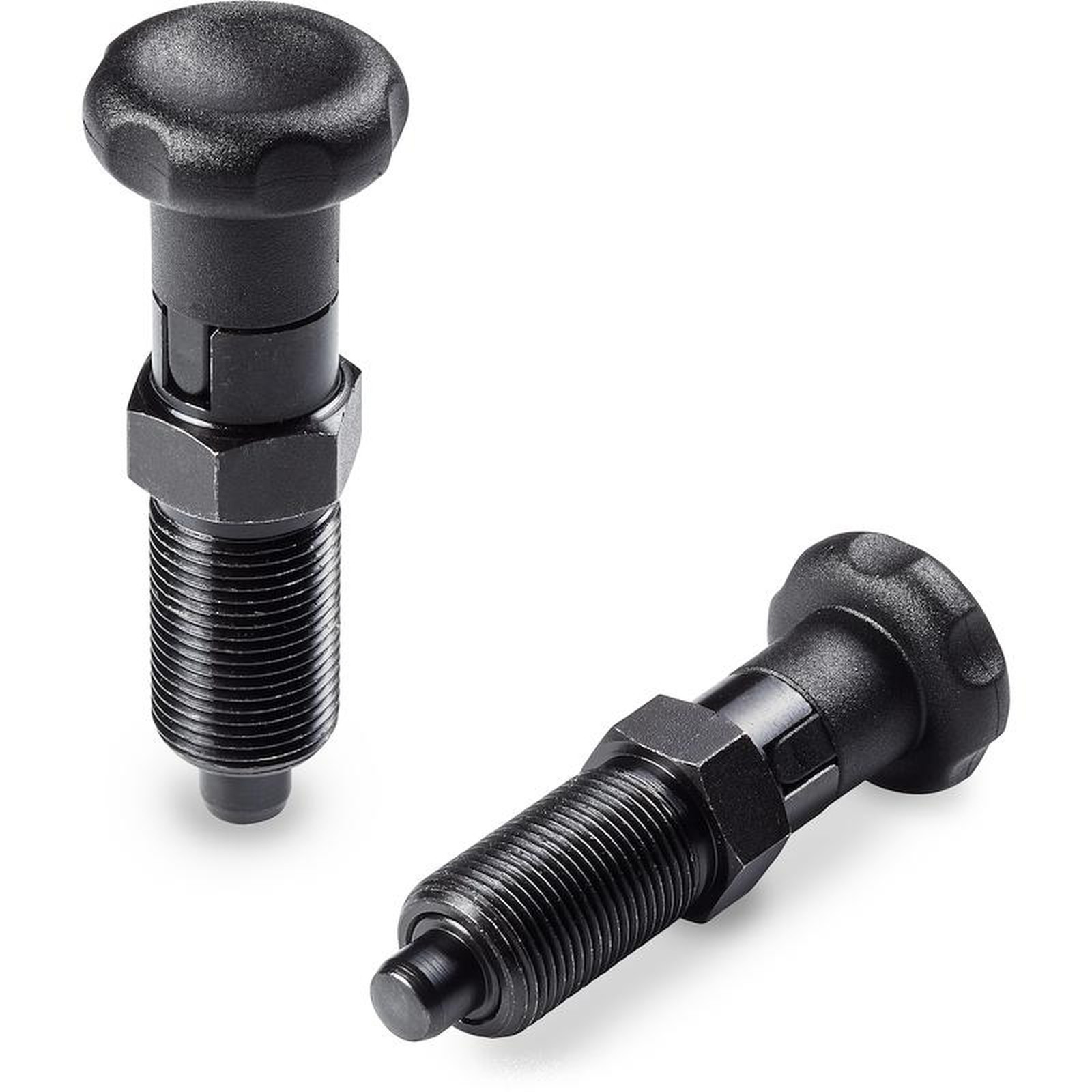

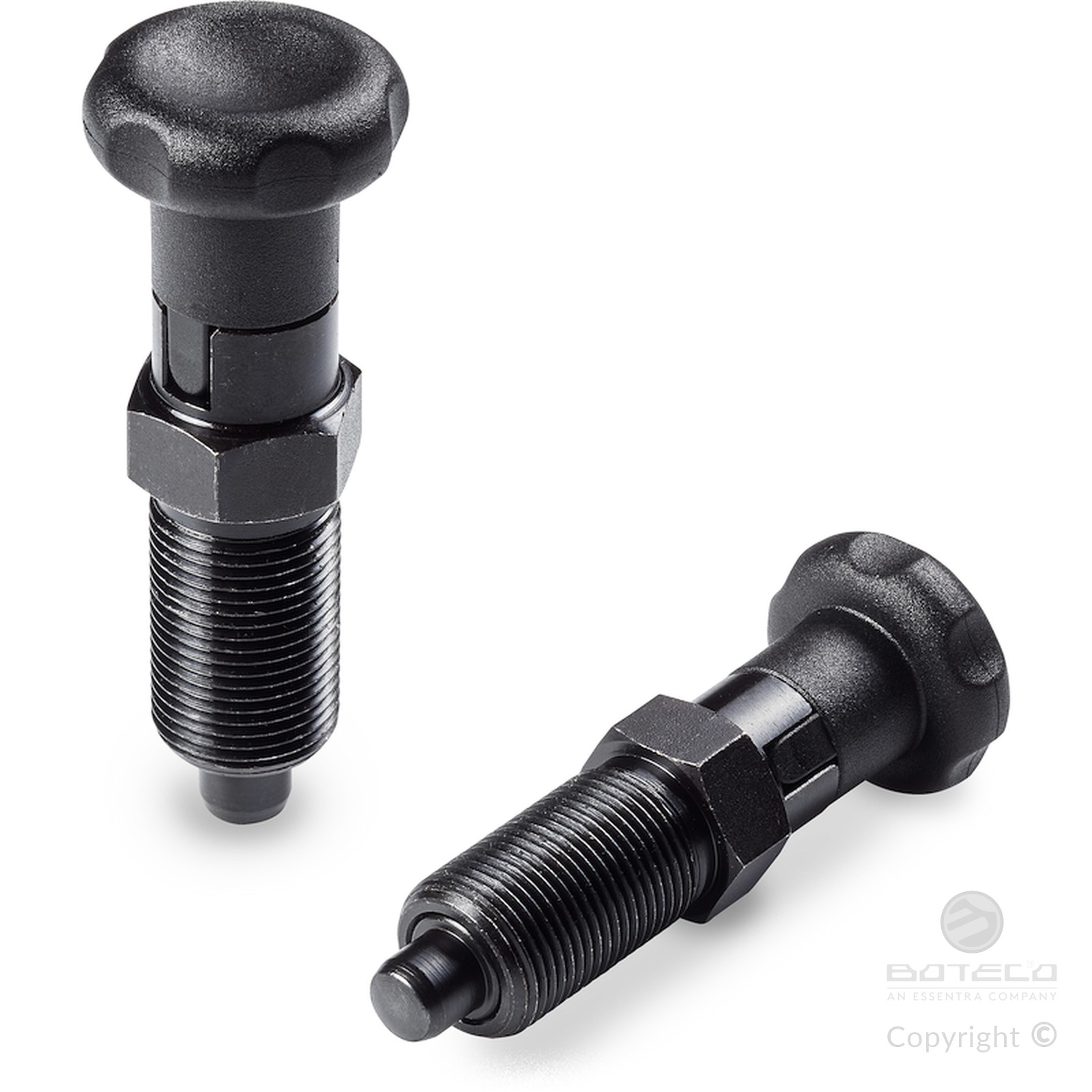

Version W810 - black-oxide treated steel

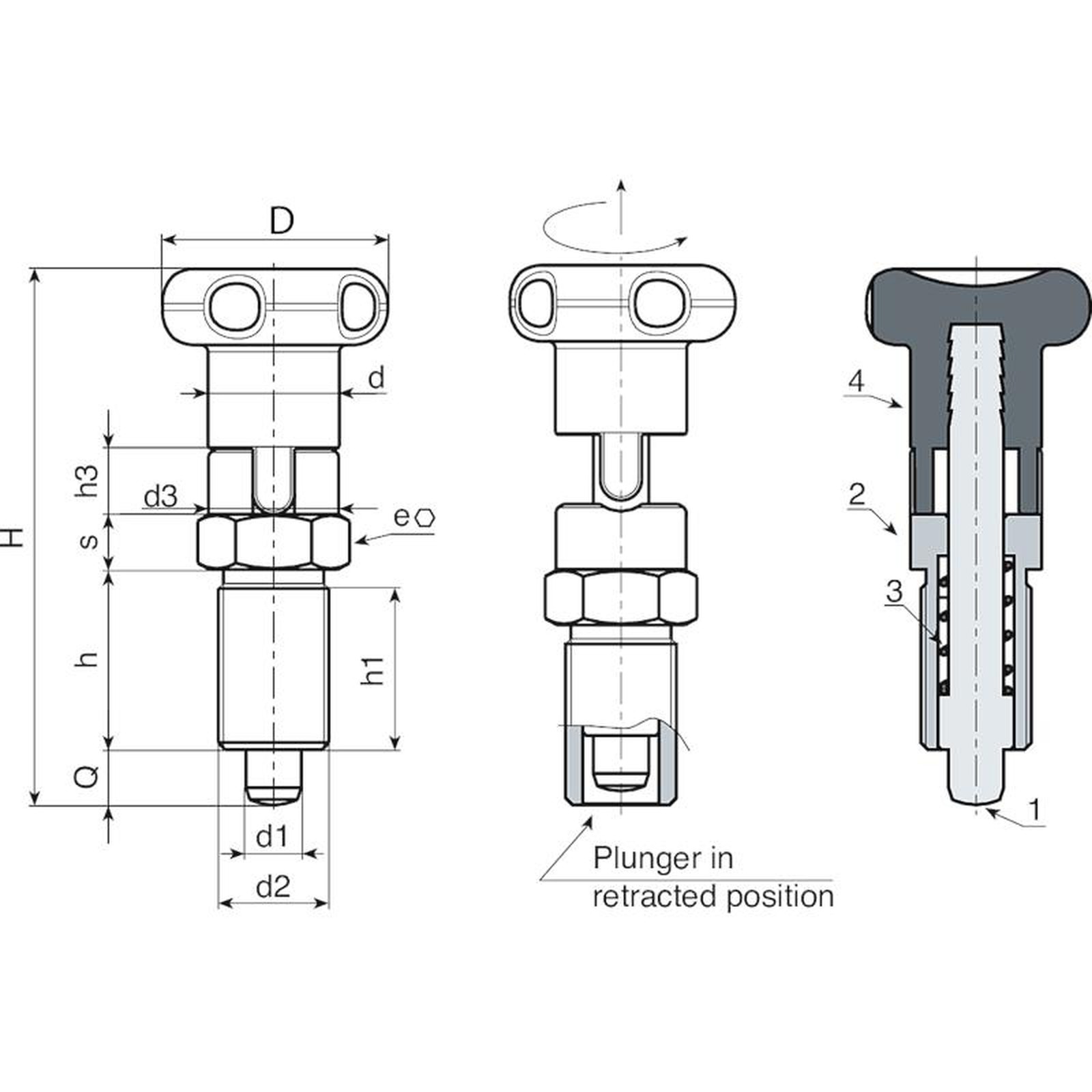

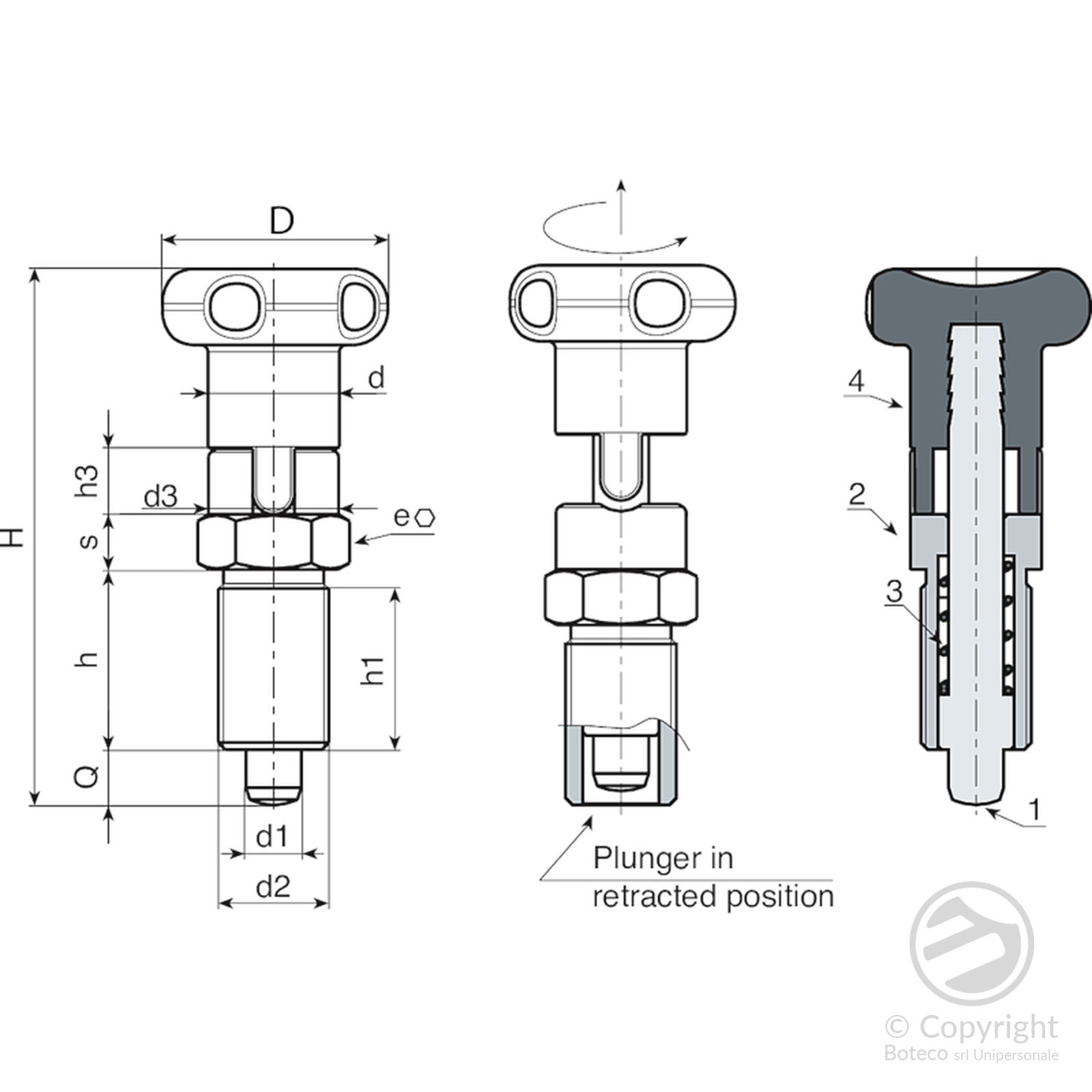

| Code | Art. | D | H | h | h1 | h3 | d3 | d2 | d | e | s | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W810.0005 | W810.Q0501 | 22 | 51.5 | 17 | 15 | 6.5 | 11.8 | M10x1 | 12 | 12 | 5 | 5 | 5 | 22 |
| W810.0006 | W810.Q0601 | 27 | 61.5 | 20 | 18 | 7.5 | 13.8 | M12x1,5 | 14 | 14 | 6 | 6 | 6 | 37 |
| W810.0007 | W810.Q0801 | 33 | 77.5 | 26 | 23 | 9.5 | 18.8 | M16x1,5 | 19 | 19 | 8 | 8 | 8 | 87 |
| W810.0008 | W810.Q1001 | 33 | 90.5 | 33 | 30 | 11.5 | 18.8 | M20x1,5 | 19 | 22 | 10 | 10 | 10 | 142 |

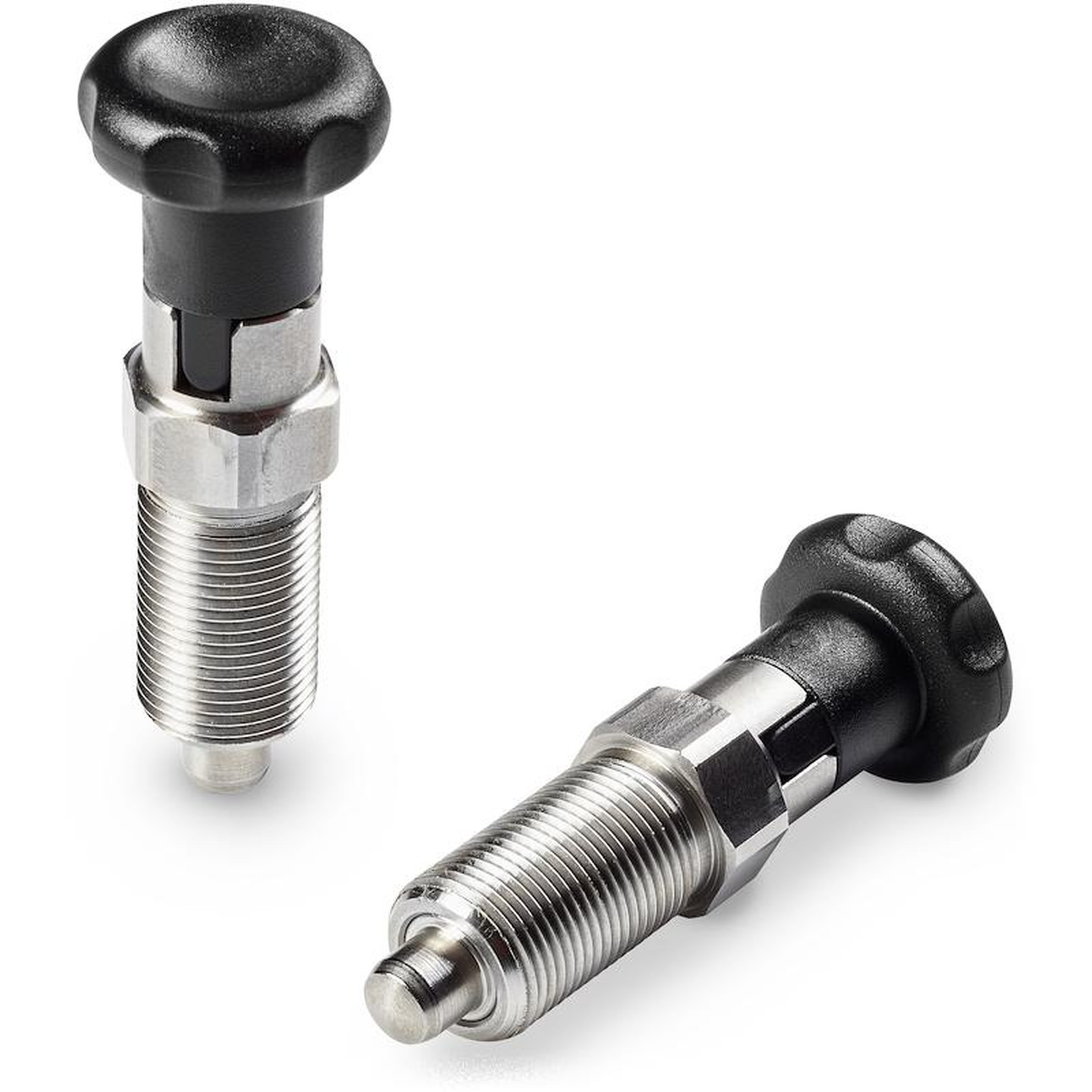

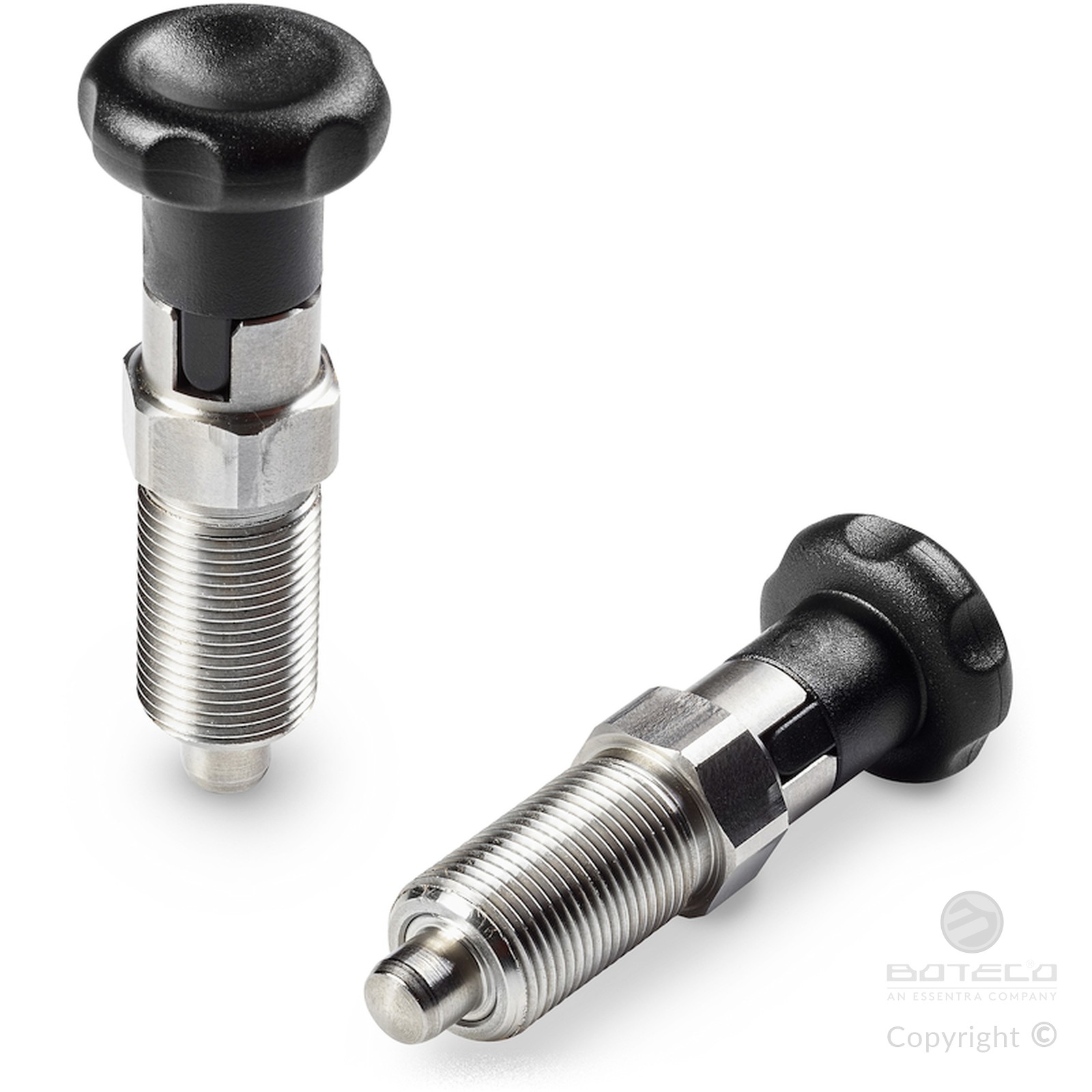

Version W810 CIN - stainless steel (Aisi 303)
| Code | Art. | D | H | h | h1 | h3 | d3 | d2 | d | e | s | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W810.0001 | W810.I0501CIN | 22 | 51.5 | 17 | 15 | 6.5 | 11.8 | M10x1 | 12 | 12 | 5 | 5 | 5 | 22 |
| W810.0002 | W810.I0601CIN | 27 | 61.5 | 20 | 18 | 7.5 | 13.8 | M12x1,5 | 14 | 14 | 6 | 6 | 6 | 37 |
| W810.0003 | W810.I0801CIN | 33 | 77.5 | 26 | 23 | 9.5 | 18.8 | M16x1,5 | 19 | 19 | 8 | 8 | 8 | 87 |
| W810.0004 | W810.I1001CIN | 33 | 90.5 | 33 | 30 | 11.5 | 18.8 | M20x1,5 | 19 | 22 | 10 | 10 | 10 | 142 |
