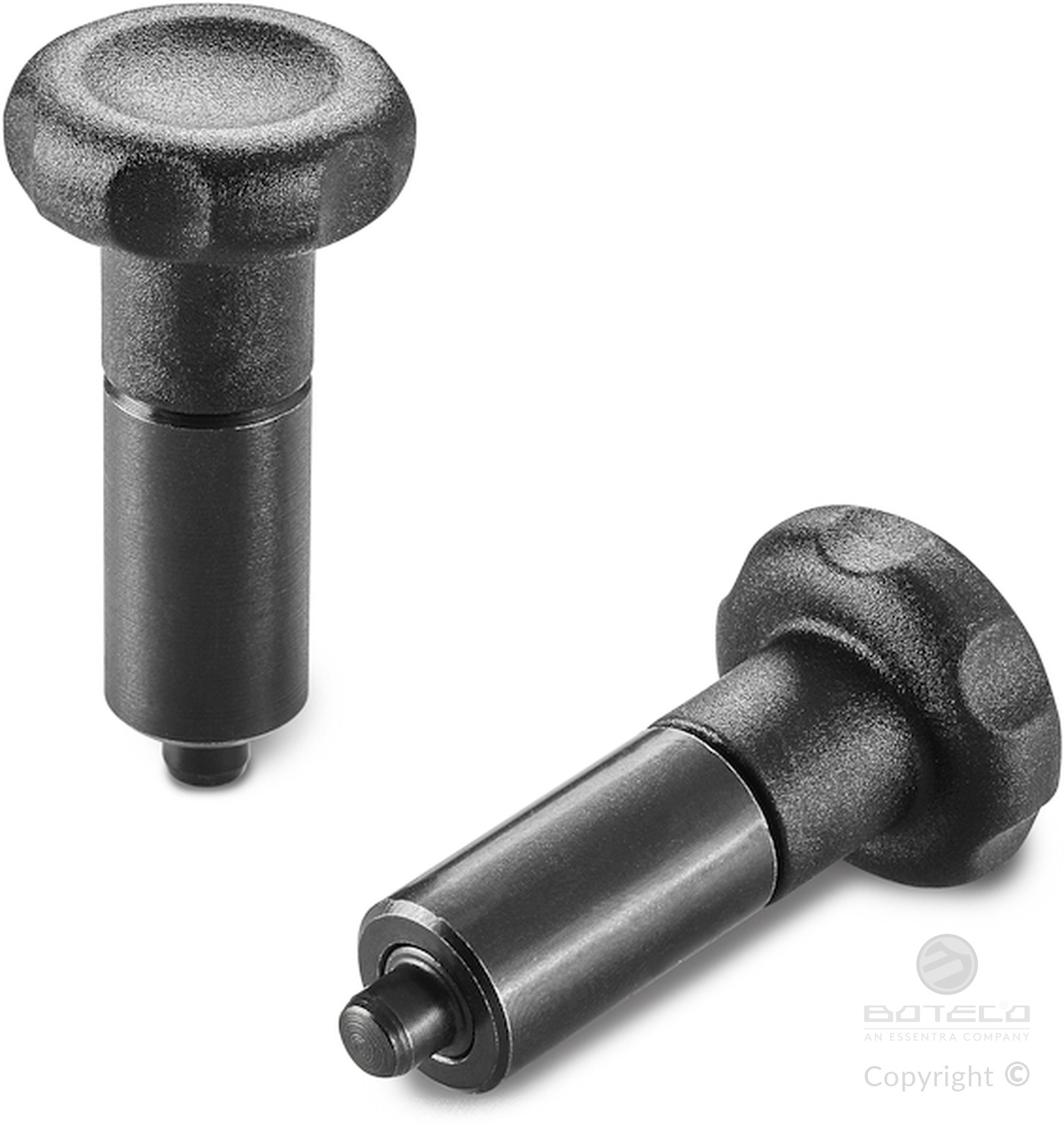

KNOB WITH SMOOTH WELDABLE BLACK OXIDE TREATED STEEL PLUNGER
22
W806
Spintori con corpo liscio con fissaggi alternativi
Materials:
(4) Reinforced polyamide lobed knob.
Resistant to oils and greases.
Surface finish:
(4) Satin.
(1-2) Smooth.
Colour:
(4) Black (RAL 9011).
(1-2) Black-oxide treated.
Inserts:
(3) Galvanised steel spring.
(2) Smooth bored body in weldable steel.
(1) Hardened high resistance steel plunger pin.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
Special Requests:
On request and for special quantities the knob can be supplied in the colours indicated in the table.
ATTENTION:
To avoid problems when welding the steel body to the machinery, the plastic knob is supplied disassembled. Screw in the knob once the part has cooled down.

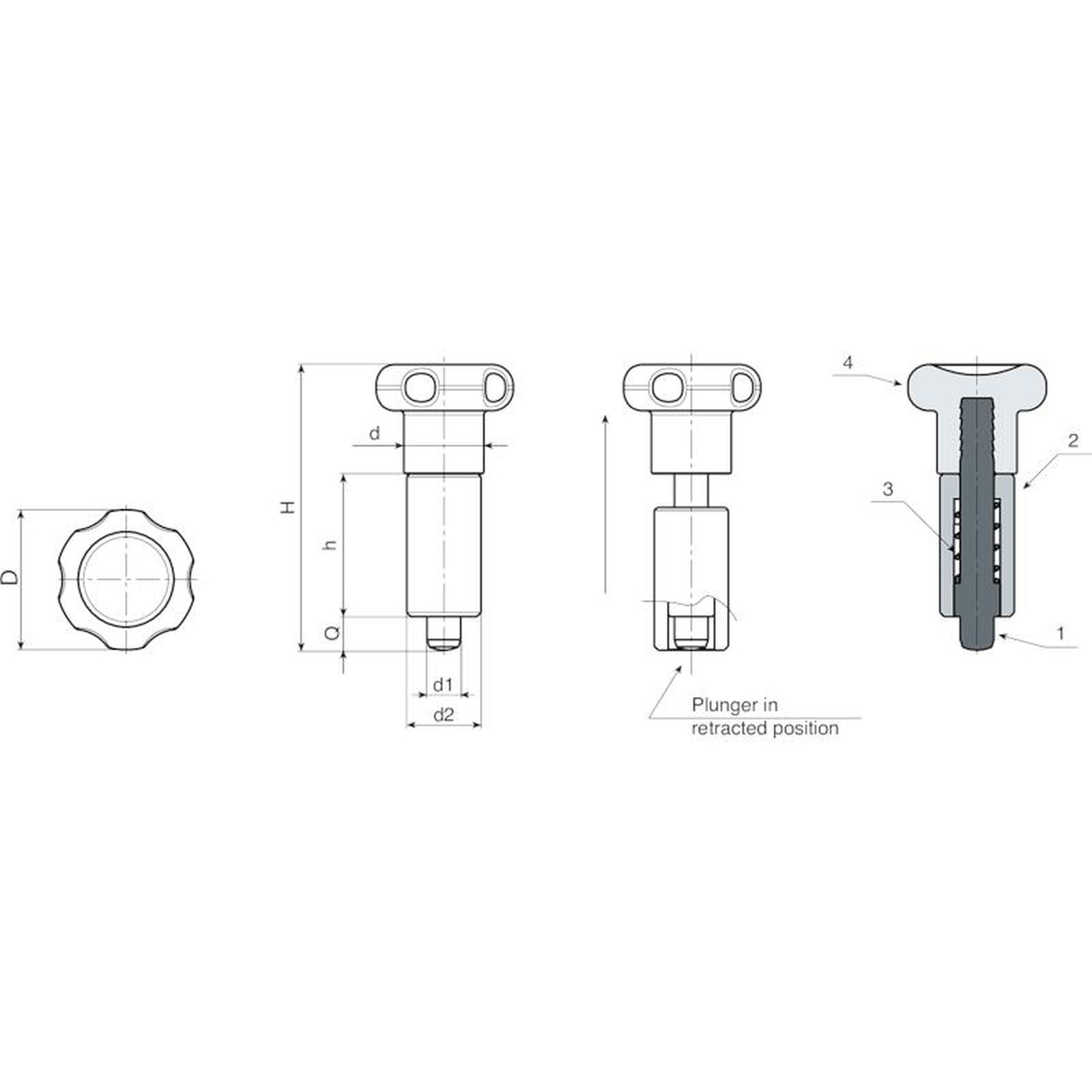

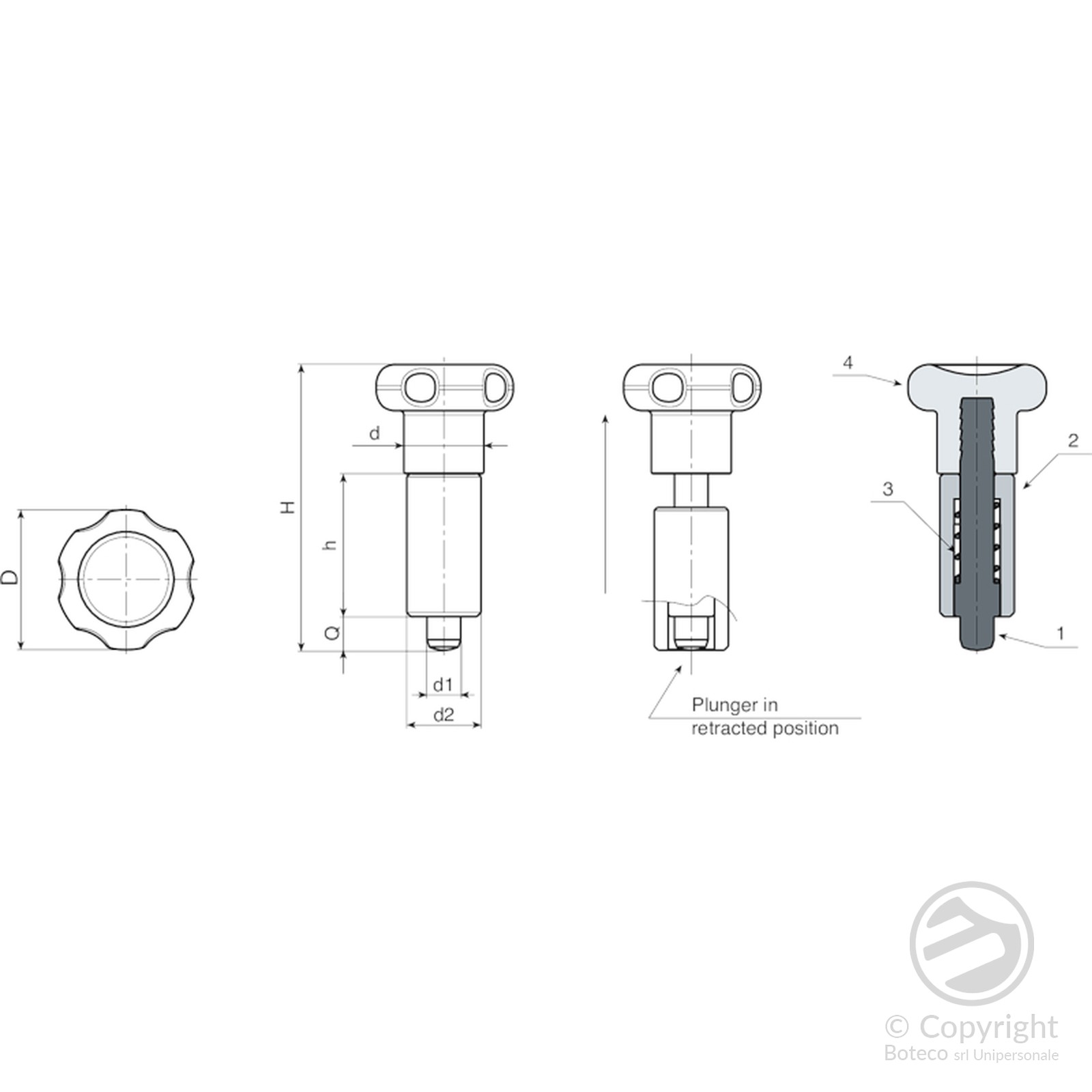

| Code | Art. | D | H | h | d2 | d | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| W806.0001 | W806.Q0501 | 22 | 45 | 22 | 12 | 12 | 5 | 5 | 23 |
| W806.0002 | W806.Q0601 | 27 | 54 | 26 | 14 | 14 | 6 | 6 | 40 |
| W806.0003 | W806.Q0801 | 33 | 68 | 34 | 18 | 19 | 8 | 8 | 84 |
