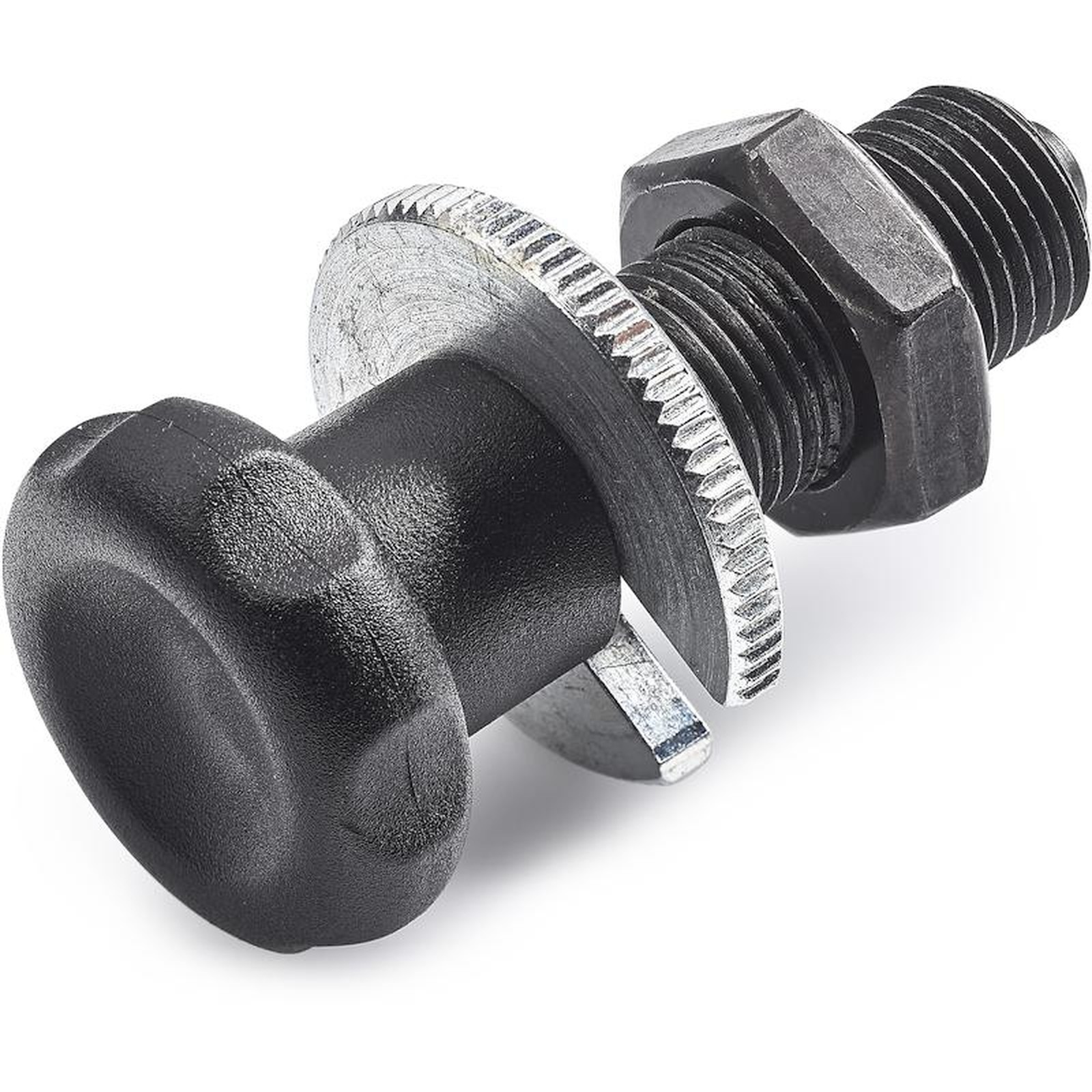

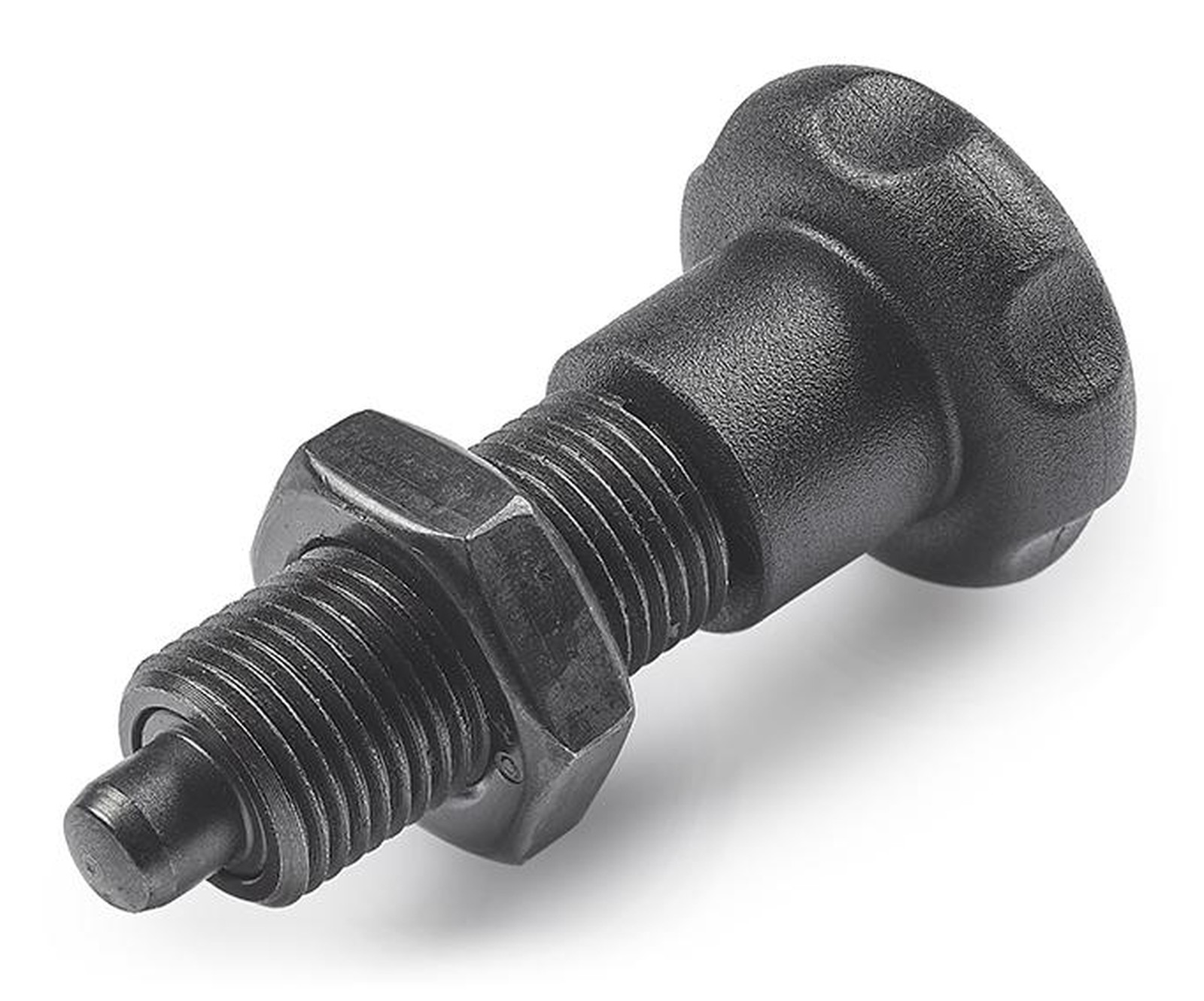

KNOB WITH STEEL INDEXING PLUNGER WITHOUT RING NUT - WITH LOCK NUT

22

W805


Spintori filettati passo fine - con pomello

    Materials:

    (3) Stainless steel spring (Aisi 301).

    (4) Reinforced polyamide lobed knob. Cannot be disassembled. Resistant to oils and greases.

    W805:

    (2) Threaded high-resistance steel body with seat for key.

    (1) Hardened high resistance steel plunger pin.

    (5) Threaded steel lock nut (UNI 5589).

    W805CIN:

    (2) Threaded stainless steel body (Aisi 303), with seat for key.

    (1) Stainless steel plunger pin (Aisi 303).

    (5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:

    (4) Satin.

    (1-2-5) Smooth.

    Colour:

    (4) Black (RAL 9011).

    W805:

    (1-2) Black-oxide treated.

    W805CIN:

    (1-2) Natural.

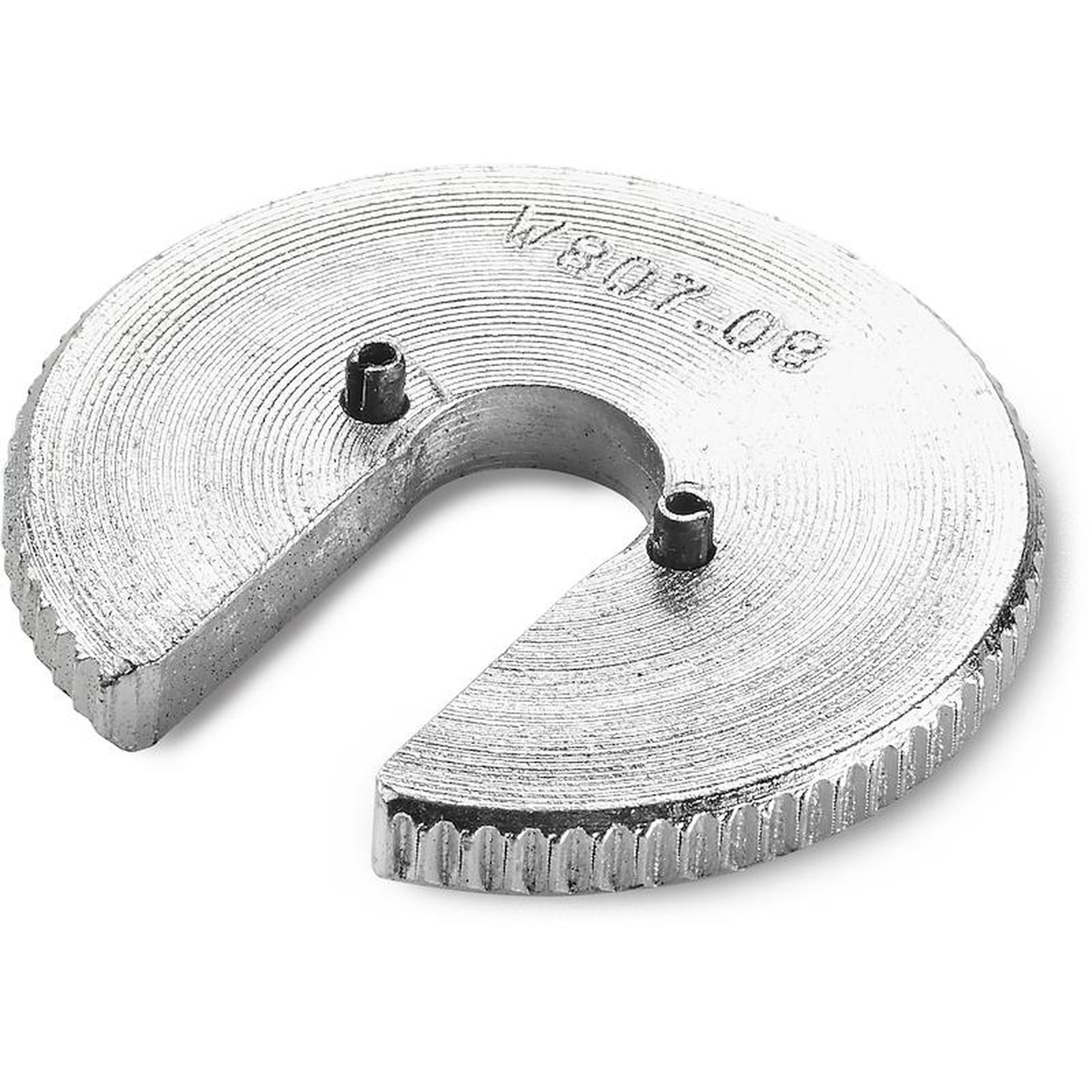

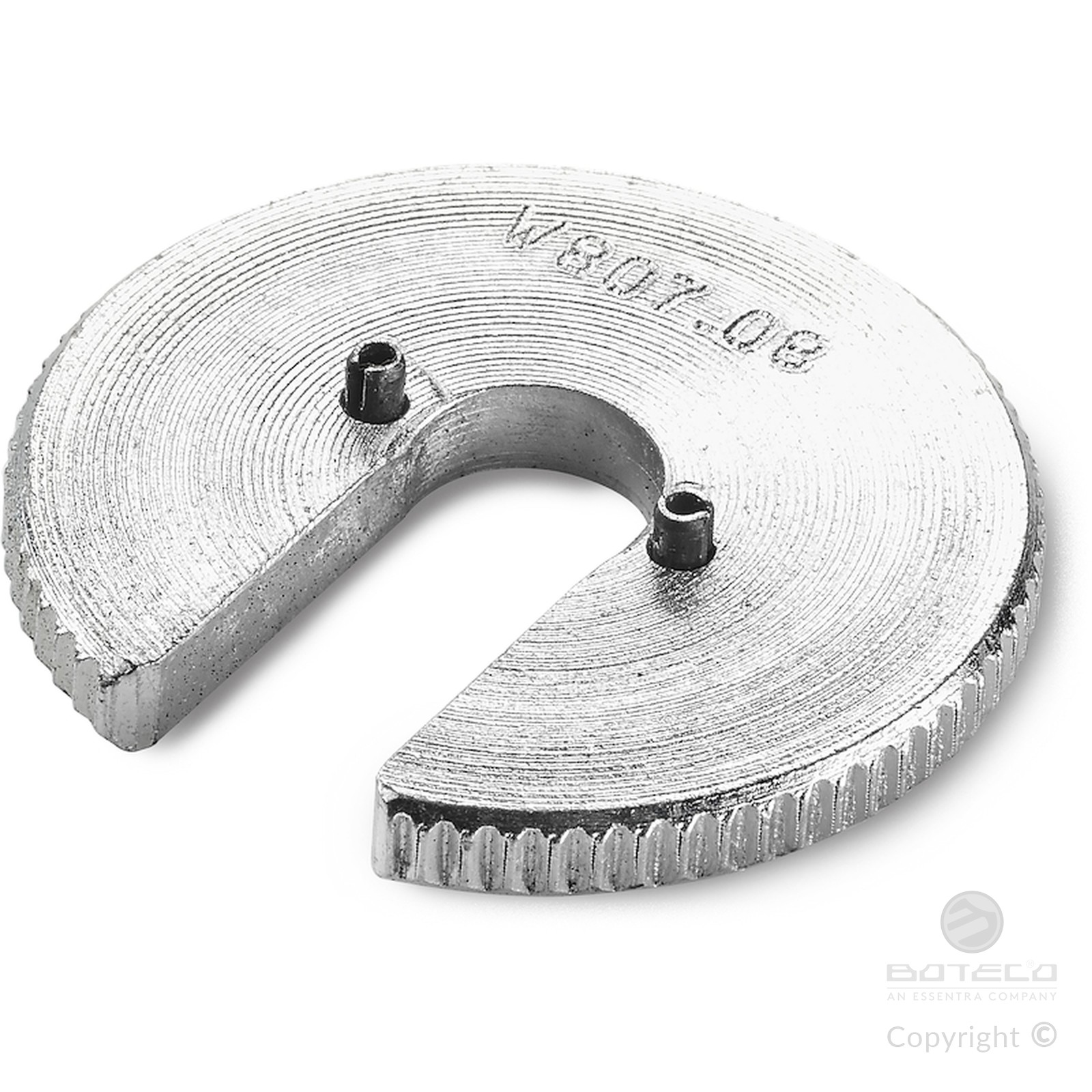

    Locking key:

    Upon request the locking key with article code W807 is available.

    ATTENTION:

    > We recommend an H7 tolerance for the plunger stem bore.

    > The nut is supplied assembled.

    Special Requests:

    On request and for special quantities the knob can be supplied in the colours indicated in the table.

    Upon request locking keys are available.

    On request the nut can be supplied disassembled.

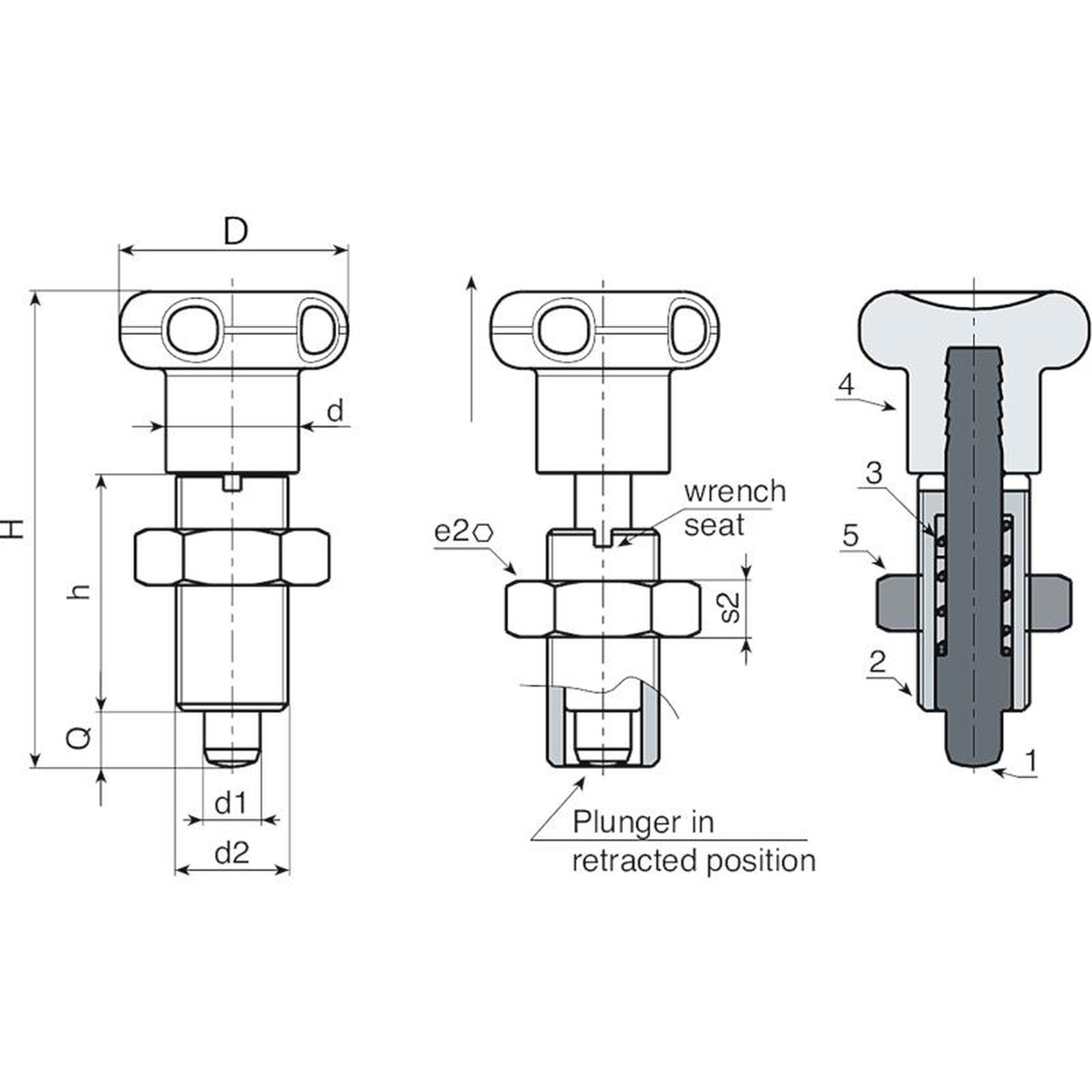

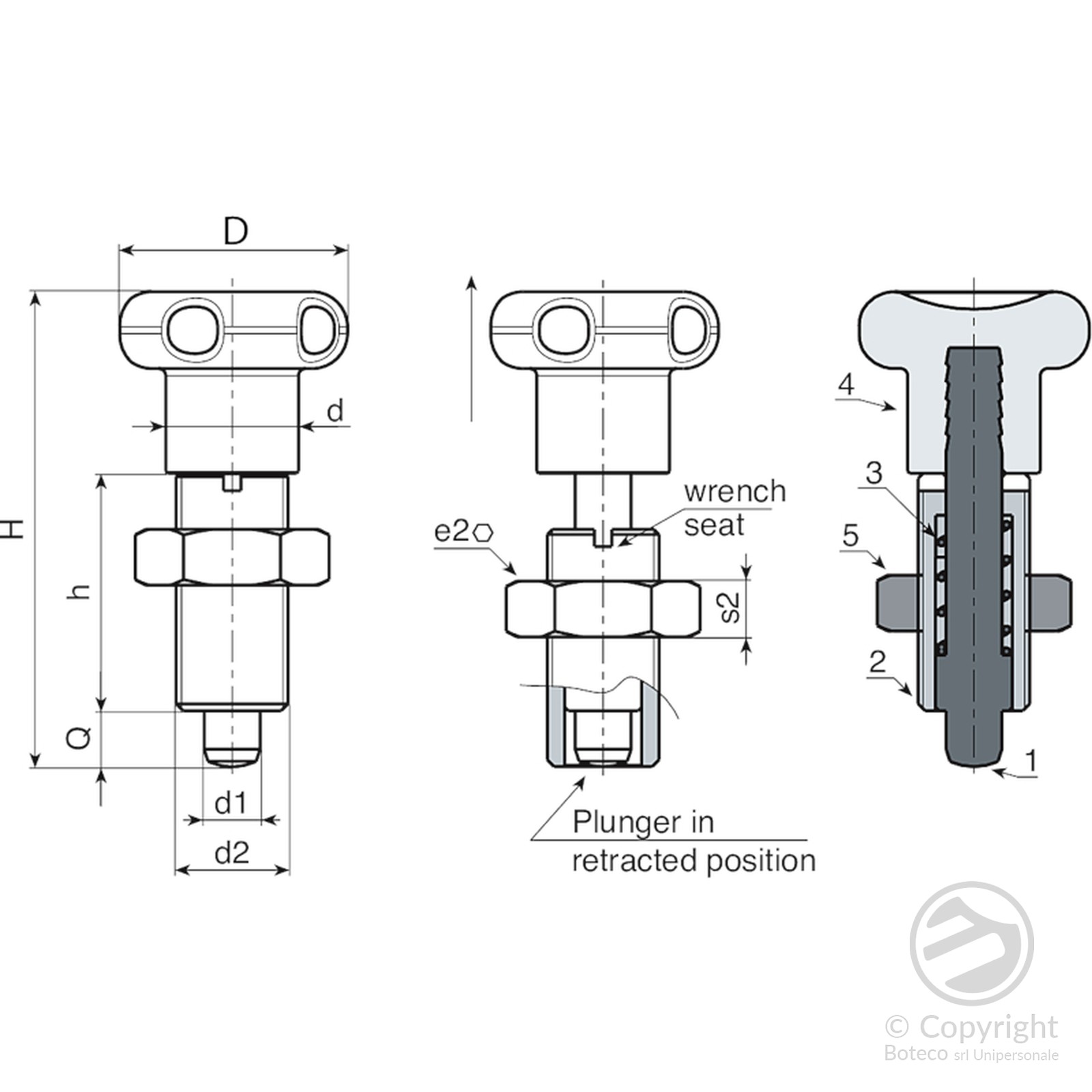

    Data sheet

    Version W805 - black-oxide treated steel

    Code Art. D H h d2 d e2 s2 d1 -0,02 -0,04 Q Weight (g) Key
    W805.0006 W805.Q0501 22 45 22 M10x1 12 17 6 5 5 23 W807.05
    W805.0008 W805.Q0601 27 54 26 M12x1,5 14 19 7 6 6 38 W807.06
    W805.0009 W805.Q0801 33 68 34 M16x1,5 19 24 8 8 8 82 W807.08
    W805.0011 W805.Q1001 33 79 43 M20x1,5 19 30 9 10 10 133 W807.10

    Version W805 CIN - stainless steel (Aisi 303)

    Code Art. D H h d2 d e2 s2 d1 -0,02 -0,04 Q Weight (g) Key
    W805.0001 W805.I0501CIN 22 45 22 M10x1 12 17 6 5 5 23 W807.05
    W805.0002 W805.I0601CIN 27 54 26 M12x1,5 14 19 7 6 6 38 W807.06
    W805.0003 W805.I0801CIN 33 68 34 M16x1,5 19 24 8 8 8 82 W807.08
    W805.0005 W805.I1001CIN 33 79 43 M20x1,5 19 30 9 10 10 133 W807.10
