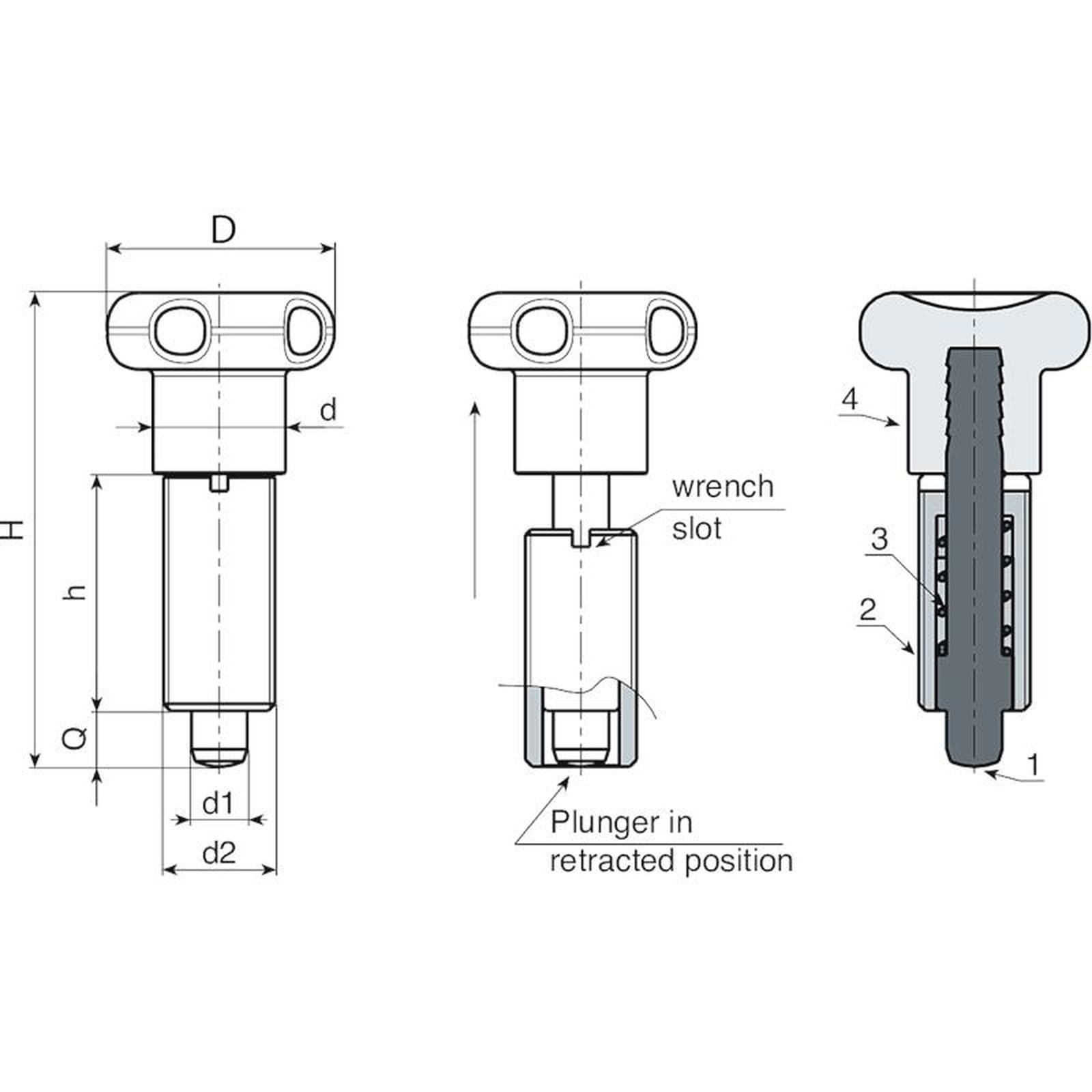

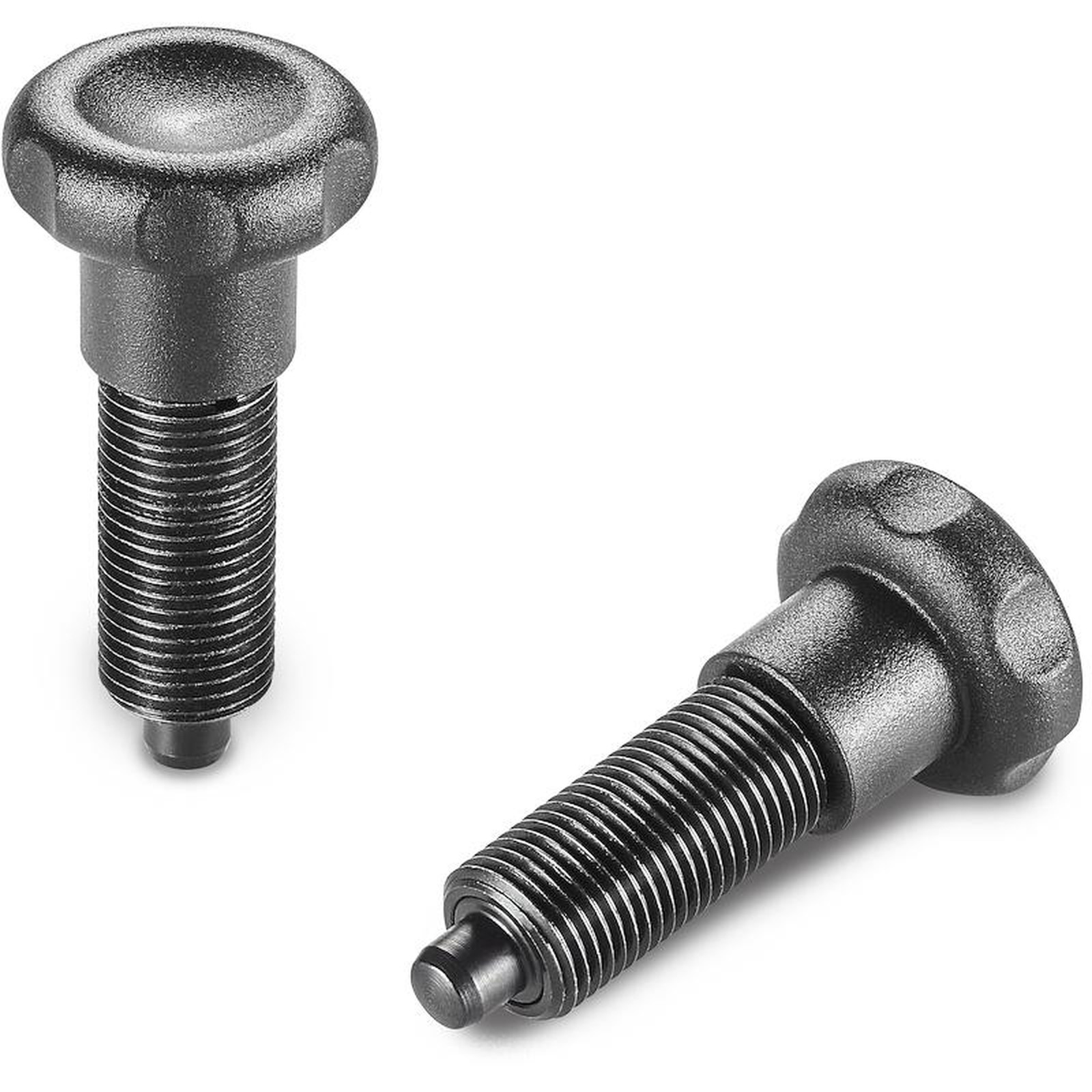

KNOB WITH STEEL INDEXING PLUNGER WITHOUT RING NUT
22
W804
Spintori filettati passo fine - con pomello
Materials:
(3) Stainless steel spring (Aisi 301).
(4) Reinforced polyamide lobed knob. Cannot be disassembled. Resistant to oils and greases.
W804:
(2) Threaded high-resistance steel body with seat for key.
(1) Hardened high resistance steel plunger pin.
W804CIN:
(2) Threaded stainless steel body (Aisi 303), with seat for key.
(1) Stainless steel plunger pin (Aisi 303).
Surface finish:
(4) Satin.
(1-2) Smooth.
Colour:
(4) Black (RAL 9011).
W804:
(1-2) Black-oxide treated.
W804CIN:
(1-2) Natural.
Locking key:

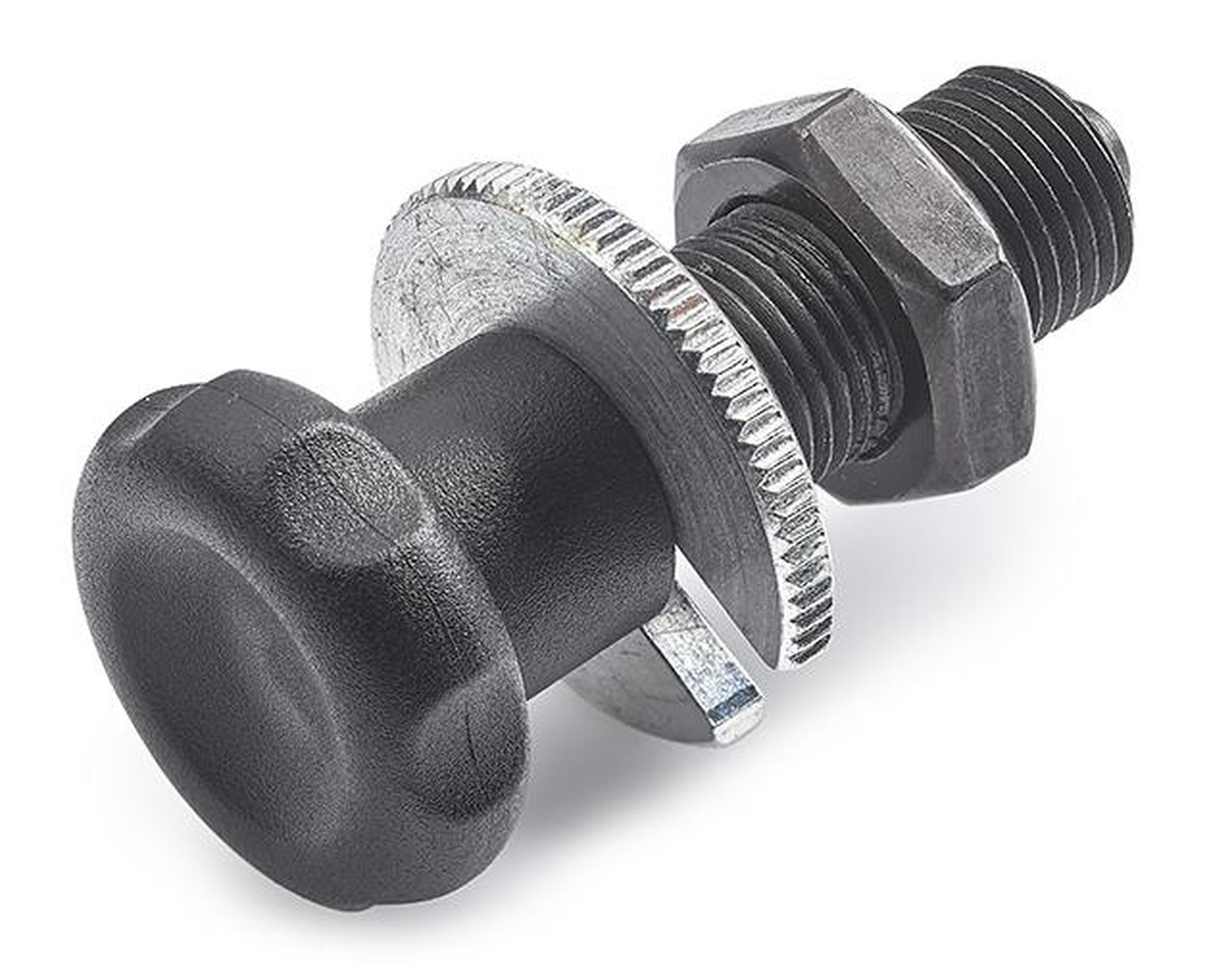

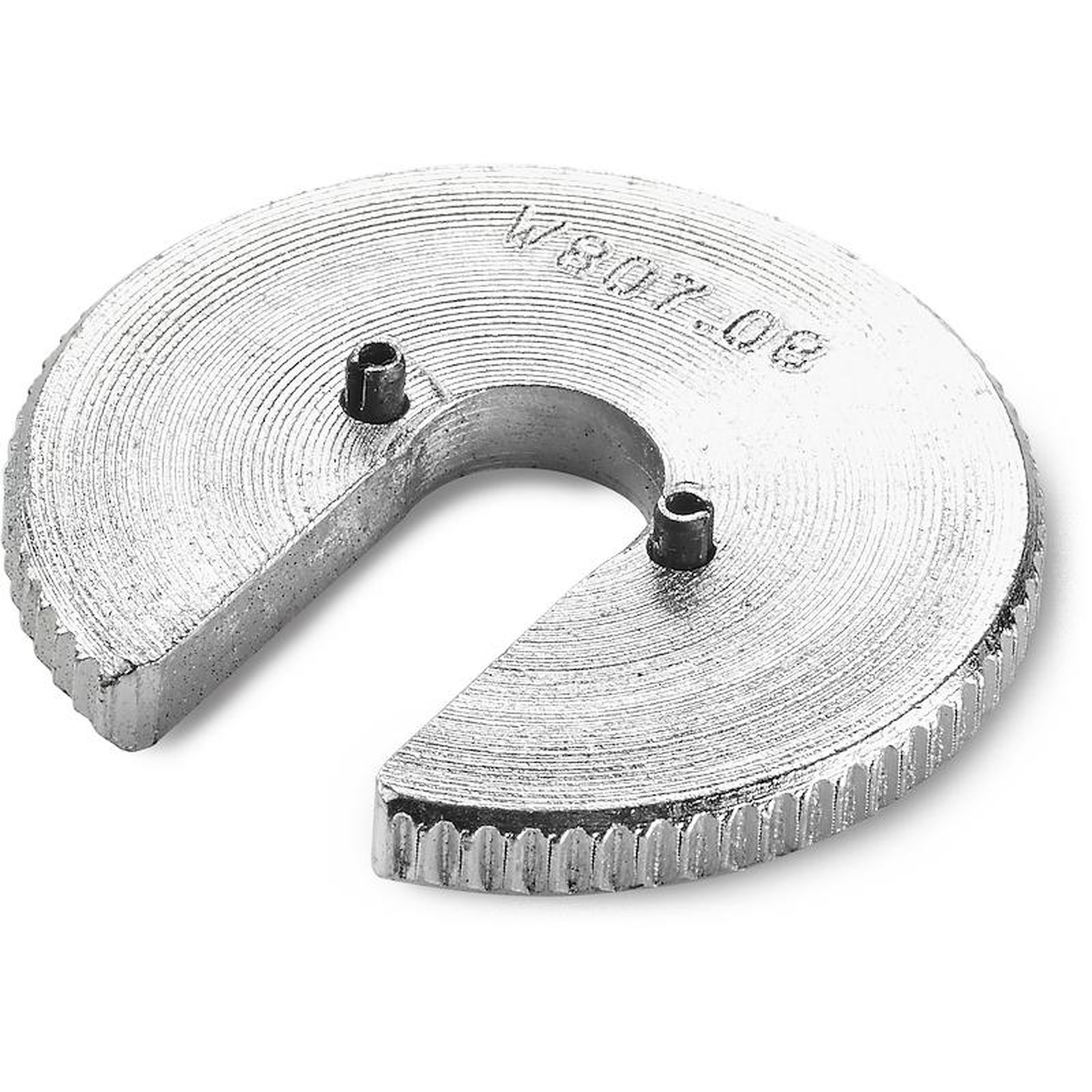

Upon request the locking key with article code W807 is available.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
Special Requests:
On request and for special quantities the knob can be supplied in the colours indicated in the table.
Upon request locking keys are available.
Version W804 - black-oxide treated steel
| Code | Art. | D | H | h | d2 | d | d1 -0,02 -0,04 | Q | Weight (g) | Key |
|---|---|---|---|---|---|---|---|---|---|---|
| W804.0005 | W804.Q0501 | 22 | 45 | 22 | M10x1 | 12 | 5 | 5 | 16 | W807.05 |
| W804.0006 | W804.Q0601 | 27 | 54 | 26 | M12x1,5 | 14 | 6 | 6 | 28 | W807.06 |
| W804.0007 | W804.Q0801 | 33 | 68 | 34 | M16x1,5 | 19 | 8 | 8 | 64 | W807.08 |
| W804.0008 | W804.Q1001 | 33 | 79 | 43 | M20x1,5 | 19 | 10 | 10 | 113 | W807.10 |
Version W804 CIN - stainless steel (Aisi 303)
| Code | Art. | D | H | h | d2 | d | d1 -0,02 -0,04 | Q | Weight (g) | Key |
|---|---|---|---|---|---|---|---|---|---|---|
| W804.0001 | W804.I0501CIN | 22 | 45 | 22 | M10x1 | 12 | 5 | 5 | 16 | W807.05 |
| W804.0002 | W804.I0601CIN | 27 | 54 | 26 | M12x1,5 | 14 | 6 | 6 | 28 | W807.06 |
| W804.0003 | W804.I0801CIN | 33 | 68 | 34 | M16x1,5 | 19 | 8 | 8 | 64 | W807.08 |
| W804.0004 | W804.I1001CIN | 33 | 79 | 43 | M20x1,5 | 19 | 10 | 10 | 113 | W807.10 |
