STEEL INDEXING PLUNGER WITH LOCK NUT

22

W803


Spintori filettati passo fine - senza pomello

    Materials:

    (3) Stainless steel spring (Aisi 301).

    W803:

    (2) Threaded high-resistance steel hexagon ring nut.

    (1) Hardened high resistance steel plunger pin.

    (4) Threaded steel lock nut (UNI 5589).

    W803CIN:

    (2) Threaded stainless steel hexagon ring nut (Aisi 303).

    (1) Stainless steel plunger pin (Aisi 303).

    (4) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:

    Smooth.

    Colour:

    W803: Black-oxide treated.

    W803CIN: Natural.

    ATTENTION:

    > We recommend an H7 tolerance for the plunger stem bore.

    > The nut is supplied assembled.

    Special Requests:

    On request the nut can be supplied disassembled.

    Note:

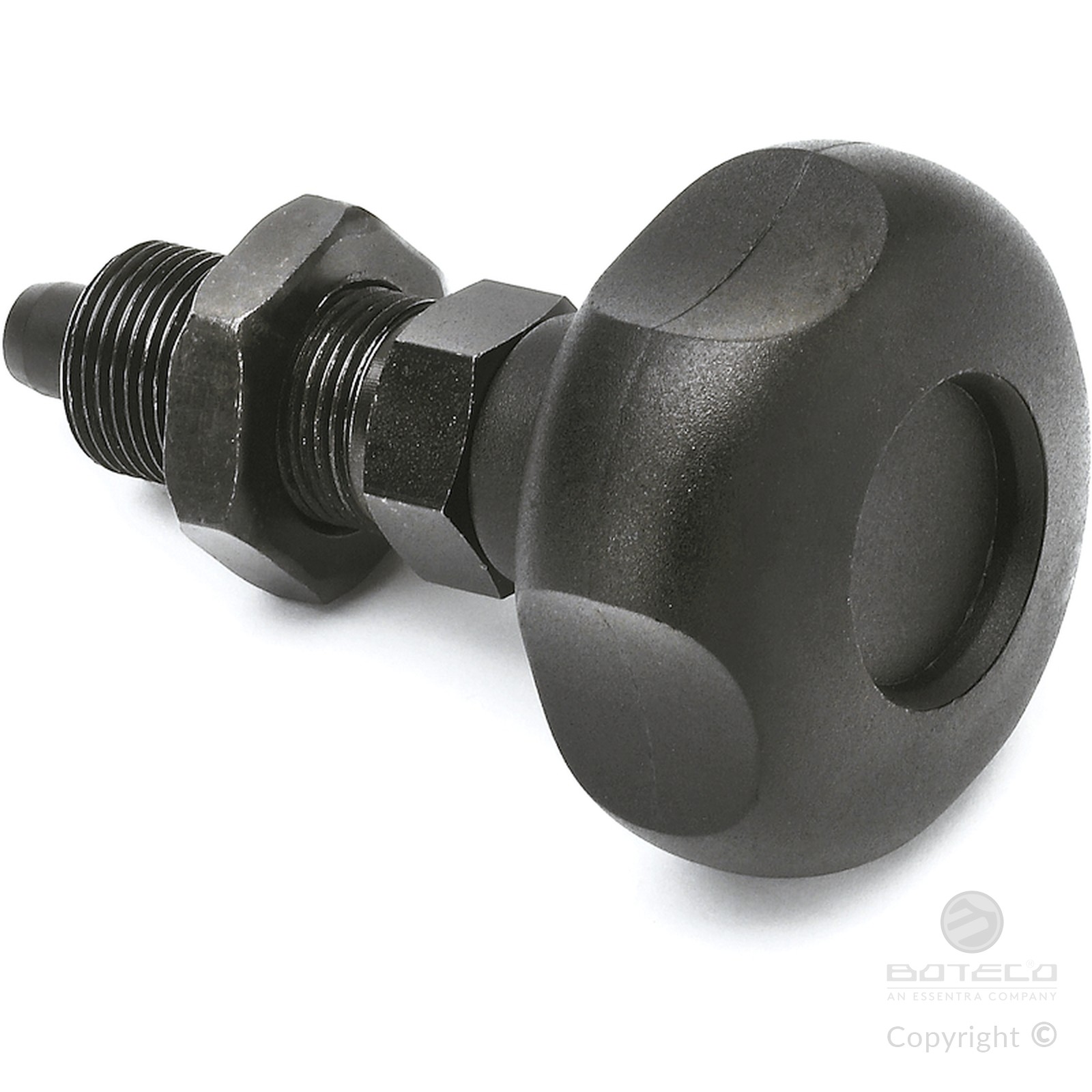

    This plunger version can be coupled with any hanwheel with threaded insert, to be ordered separately (see additional pictures).

    Data sheet

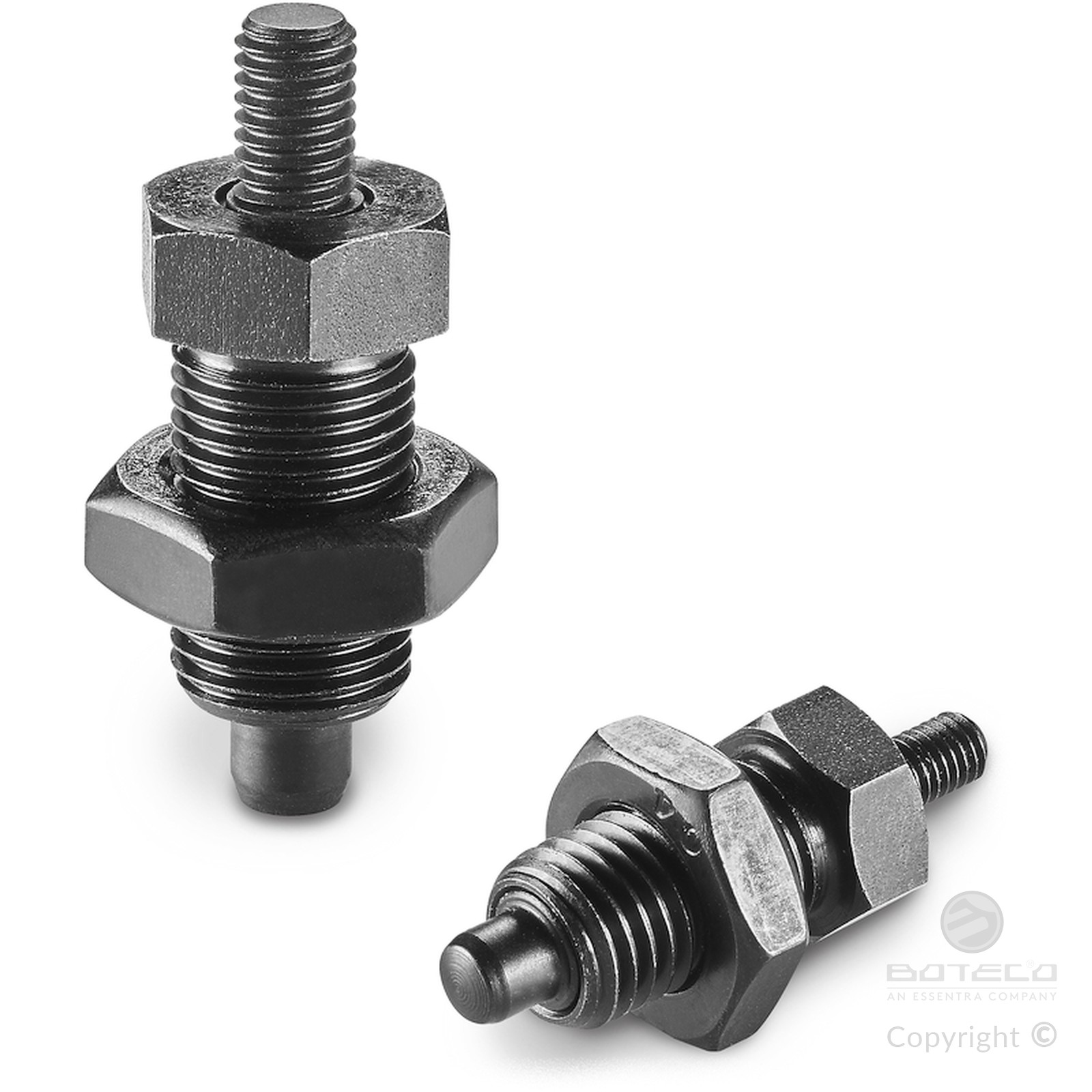

    Version W803 - black-oxide treated steel

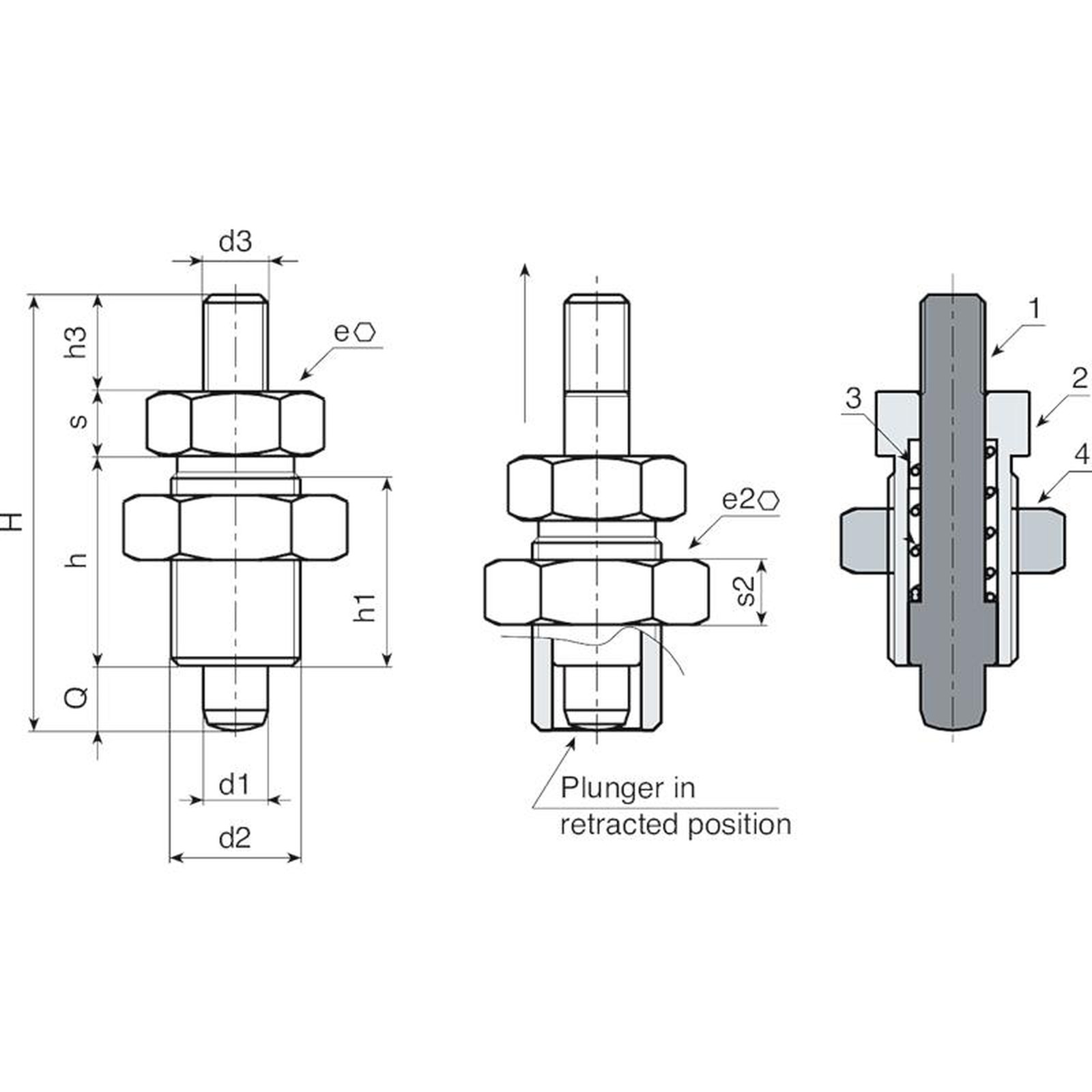

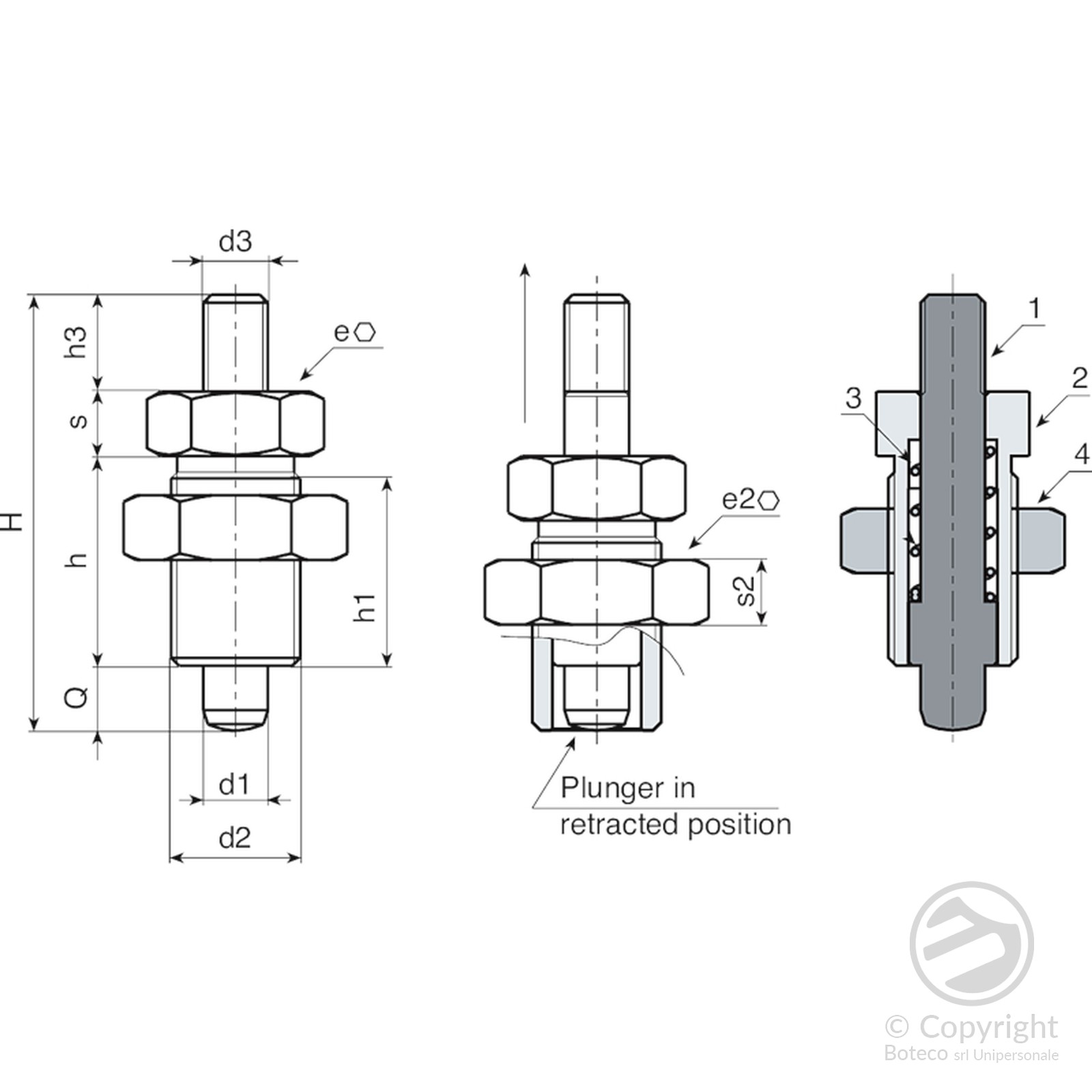

    Code Art. H h h1 d2 d3 h3 e s e2 s2 d1 -0,02 -0,04 Q Weight (g)
    W803.0006 W803.R05 33 17 15 M10x1 M04 6 12 5 17 6 5 5 20
    W803010.0002 W803010.R05M05 33 17 15 M10x1 M05 6 12 5 17 6 5 5 20
    W803.0007 W803.R06 42 20 18 M12x1,5 M05 10 14 6 19 7 6 6 32
    W803012.0002 W803012.R06M06 42 20 18 M12x1,5 M06 10 14 6 19 7 6 6 32
    W803.0008 W803.R08 54 26 23 M16x1,5 M08 12 19 8 24 8 8 8 62
    W803.0009 W803.R10 65 33 30 M20x1,5 M10 12 22 10 30 9 10 10 134
    W803020.0001 W803020.R10M08 65 33 30 M20x1,5 M08 12 22 10 30 9 10 10 134

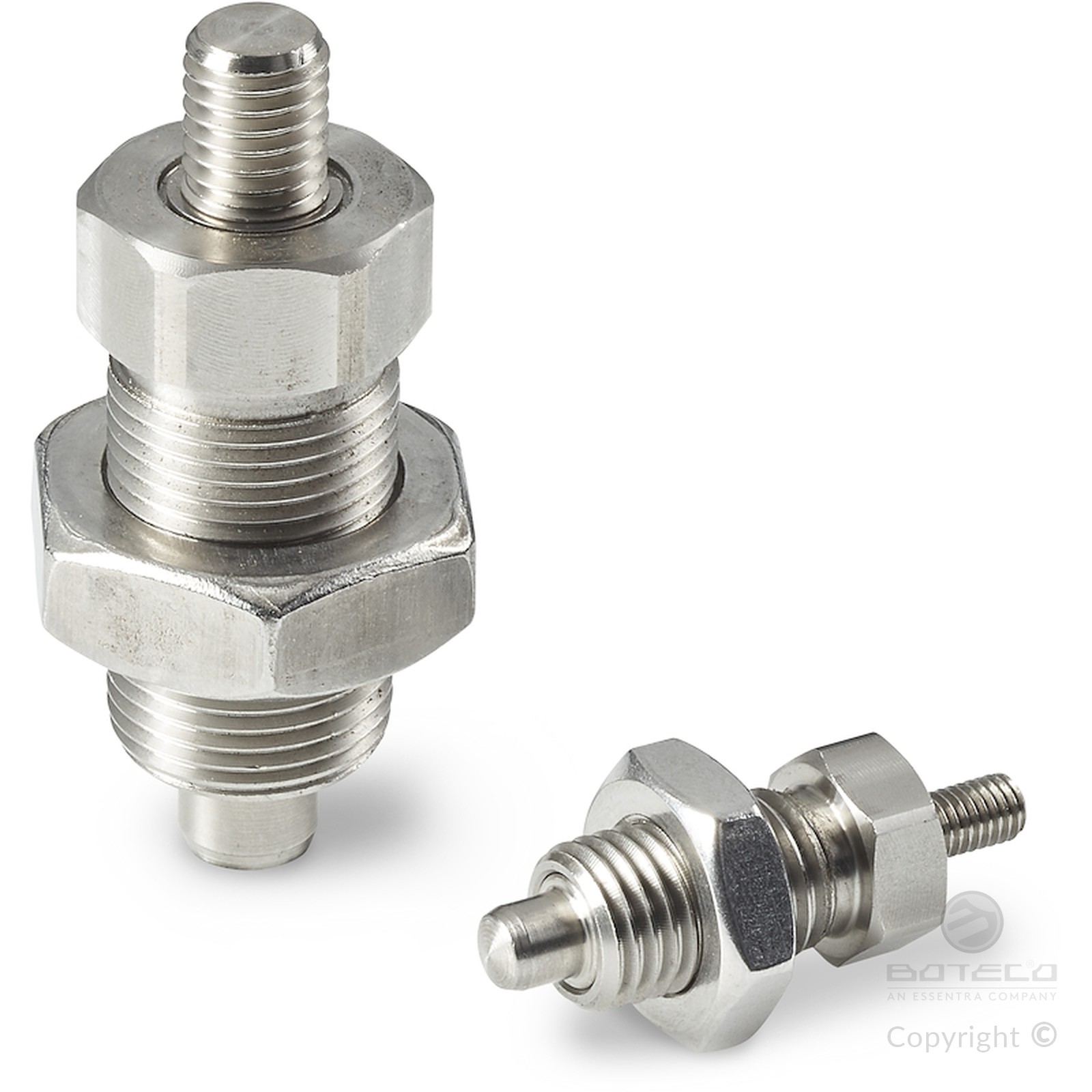

    Version W803 CIN - stainless steel (Aisi 303)

    Code Art. H h h1 d2 d3 h3 e s e2 s2 d1 -0,02 -0,04 Q Weight (g)
    W803.0001 W803.I05CIN 33 17 15 M10x1 M04 6 12 5 17 6 5 5 20
    W803010.0001 W803010.I05M05CIN 33 17 15 M10x1 M05 6 12 5 17 6 5 5 20
    W803.0002 W803.I06CIN 42 20 18 M12x1,5 M05 10 14 6 19 7 6 6 32
    W803012.0001 W803012.I06M06CIN 42 20 18 M12x1,5 M06 10 14 6 19 7 6 6 32
    W803.0003 W803.I08CIN 54 26 23 M16x1,5 M08 12 19 8 24 8 8 8 62
    W803.0004 W803.I10CIN 65 33 30 M20x1,5 M10 12 22 10 30 9 10 10 134
    W803020.0002 W803020.I10M08CIN 65 33 30 M20x1,5 M08 12 22 10 30 9 10 10 134
