STEEL INDEXING PLUNGER

22

W802


Spintori filettati passo fine - senza pomello

    Materials:

    (3) Stainless steel spring (Aisi 301).

    W802:

    (2) Threaded high-resistance steel hexagon ring nut.

    (1) Hardened high resistance steel plunger pin.

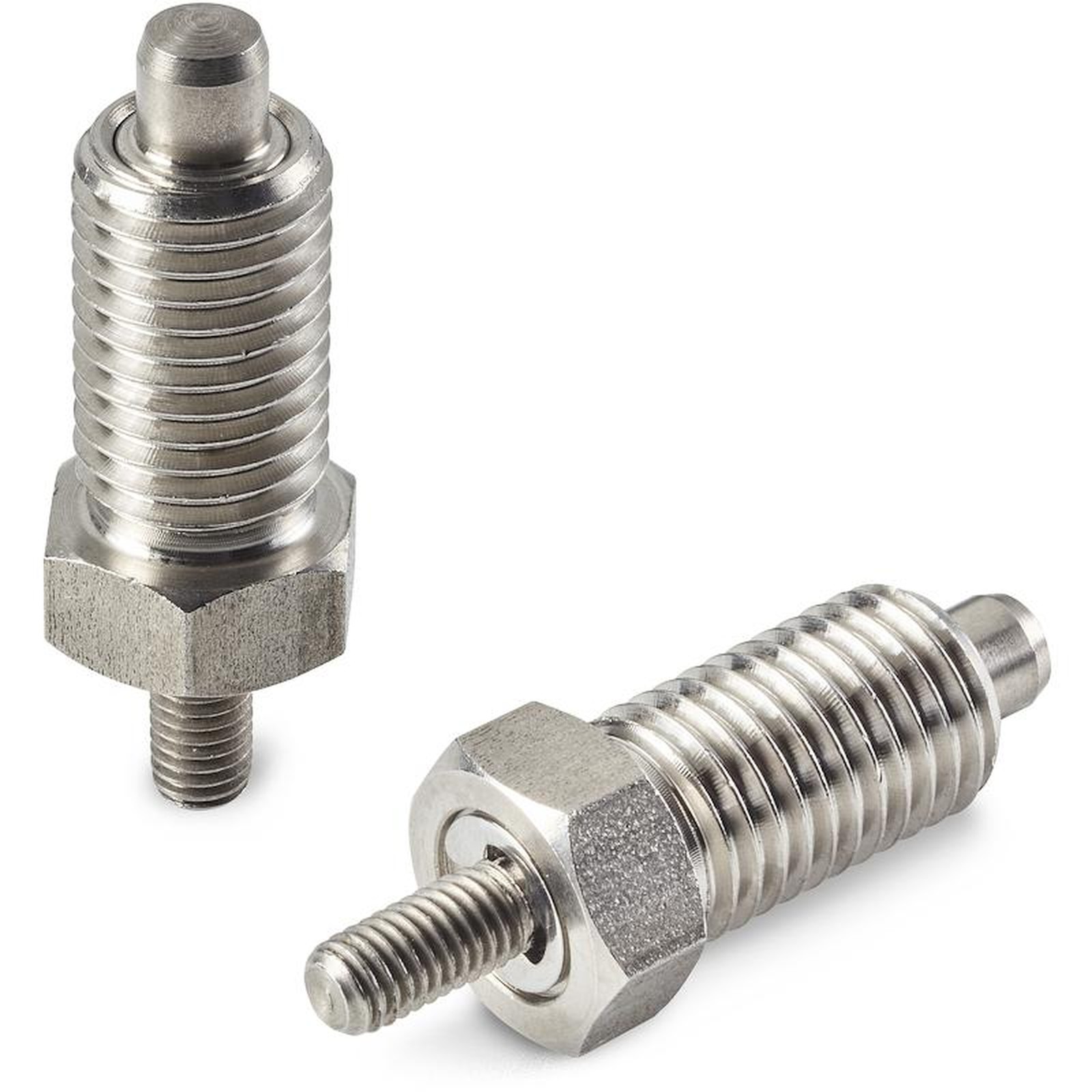

    W802CIN:

    (2) Threaded stainless steel hexagon ring nut (Aisi 303).

    (1) Stainless steel plunger pin (Aisi 303).

    Surface finish:

    Smooth.

    Colour:

    W802: Black-oxide treated.

    W802CIN: Natural.

    ATTENTION:

    > We recommend an H7 tolerance for the plunger stem bore.

    Special Requests:

    None.

    Note:

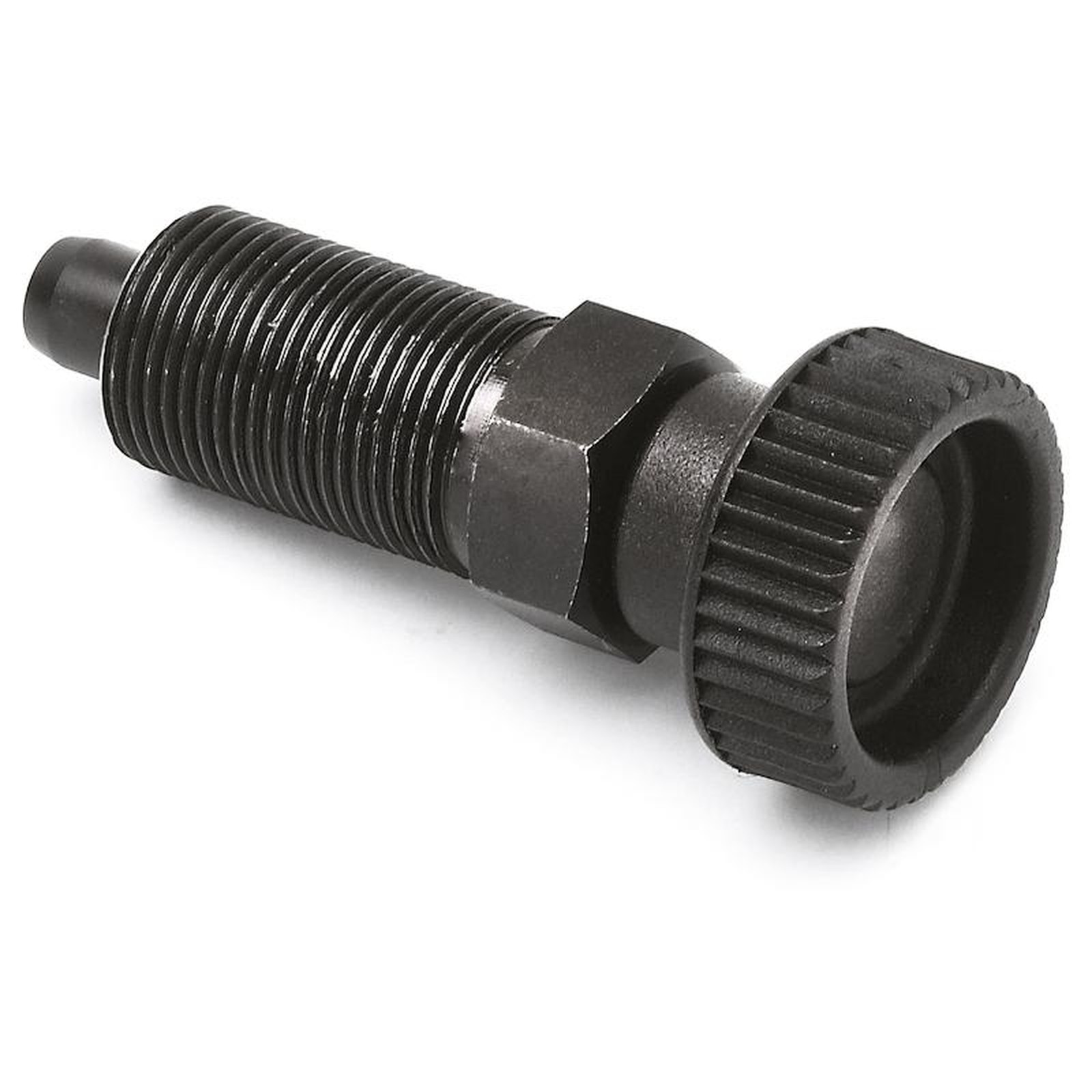

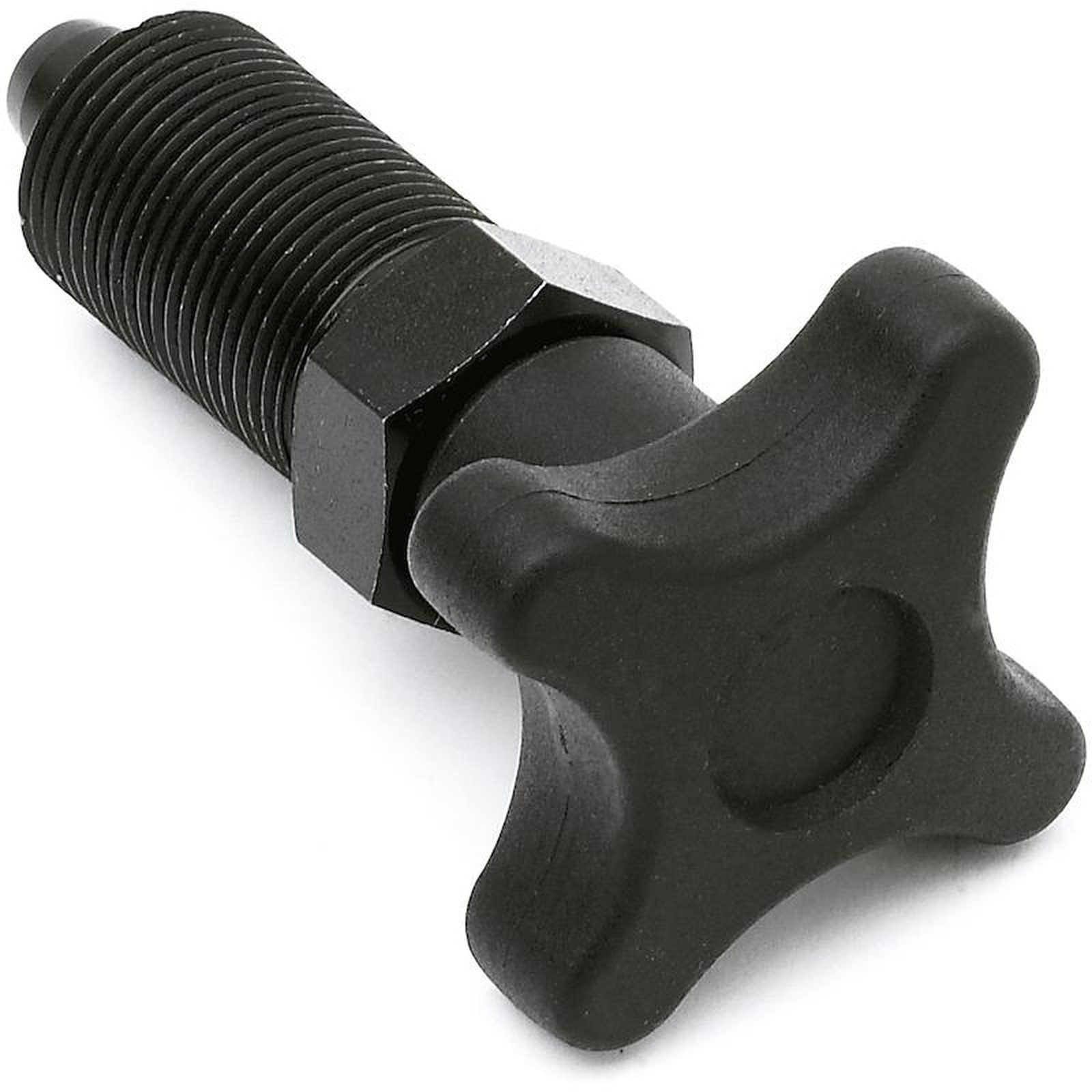

    This plunger version can be coupled with any hanwheel with threaded insert, to be ordered separately (see additional pictures).

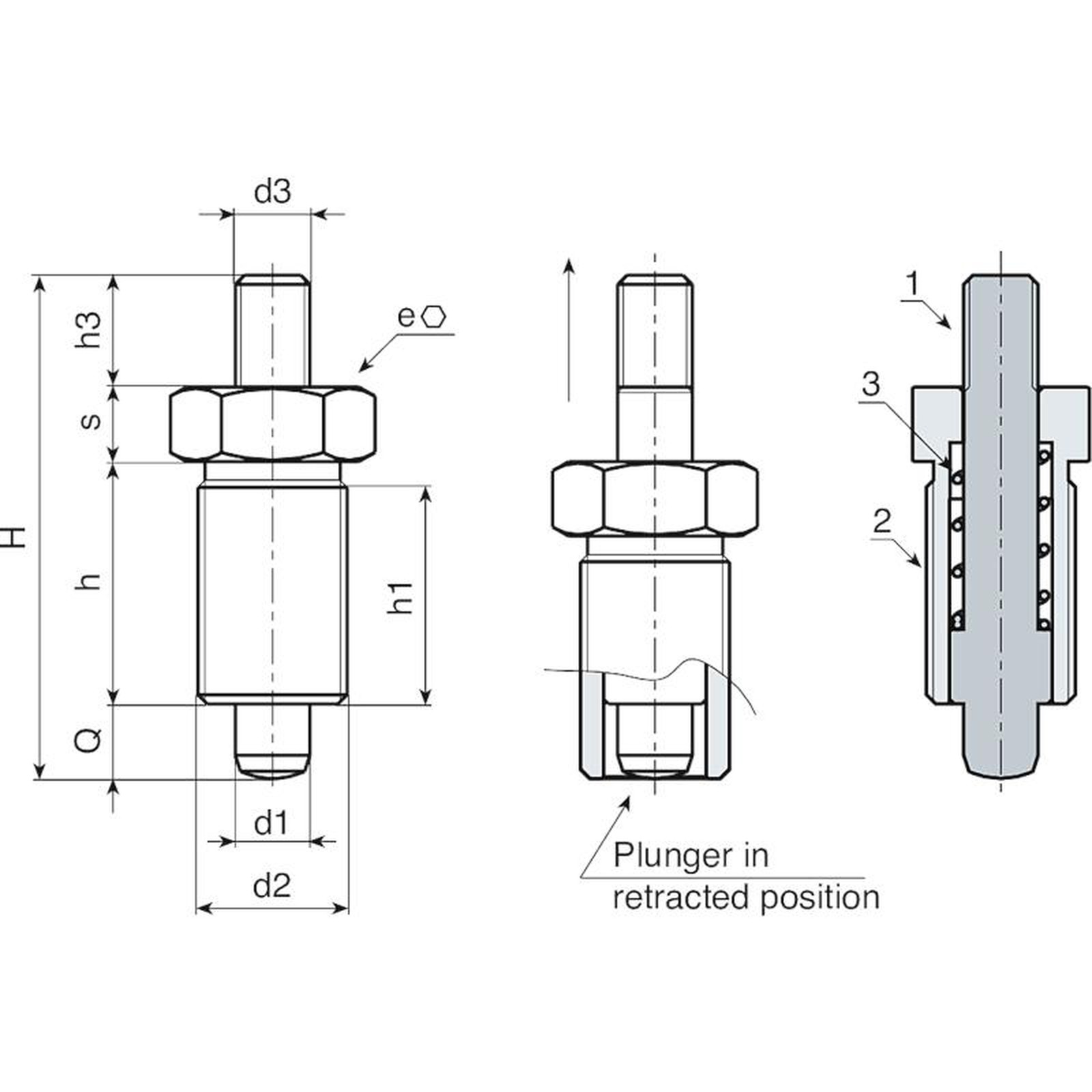

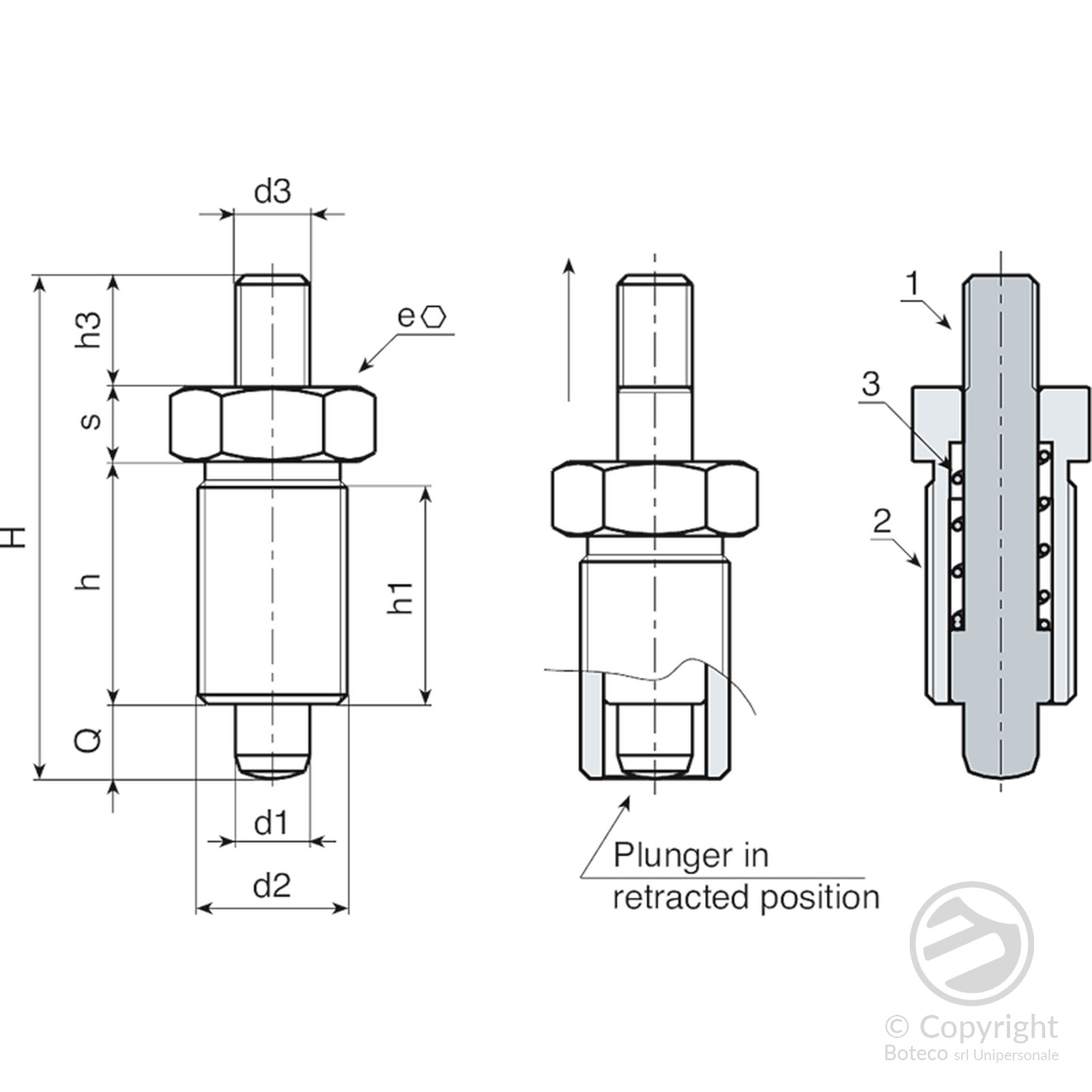

    Data sheet

    Version W802 - black-oxide treated steel

    Code Art. H h h1 d2 d3 h3 e s d1 -0,02 -0,04 Q Weight (g)
    W802.0005 W802.R05 33 17 15 M10x1 M04 6 12 5 5 5 13
    W802010.0002 W802010.R05M05 33 17 15 M10x1 M05 6 12 5 5 5 13
    W802.0006 W802.R06 42 20 18 M12x1,5 M05 10 14 6 6 6 22
    W802012.0002 W802012.R06M06 42 20 18 M12x1,5 M06 10 14 6 6 6 22
    W802.0007 W802.R08 54 26 23 M16x1,5 M08 12 19 8 8 8 54
    W802.0008 W802.R10 65 33 30 M20x1,5 M10 12 22 10 10 10 104
    W802020.0002 W802020.R10M08 65 33 30 M20x1,5 M08 12 22 10 10 10 104

    Version W802 CIN - stainless steel (Aisi 303)

    Code Art. H h h1 d2 d3 h3 e s d1 -0,02 -0,04 Q Weight (g)
    W802.0001 W802.I05CIN 33 17 15 M10x1 M04 6 12 5 5 5 13
    W802010.0001 W802010.I05M05CIN 33 17 15 M10x1 M05 6 12 5 5 5 13
    W802.0002 W802.I06CIN 42 20 18 M12x1,5 M05 10 14 6 6 6 22
    W802012.0001 W802012.I06M06CIN 42 20 18 M12x1,5 M06 10 14 6 6 6 22
    W802.0003 W802.I08CIN 54 26 23 M16x1,5 M08 12 19 8 8 8 54
    W802.0004 W802.I10CIN 65 33 30 M20x1,5 M10 12 22 10 10 10 104
    W802020.0001 W802020.I10M08CIN 65 33 30 M20x1,5 M08 12 22 10 10 10 104
