KNOB WITH STEEL INDEXING PLUNGER AND LOCK NUT

22

W801


Spintori filettati passo fine - con pomello

    Materials:

    (3) Stainless steel spring (Aisi 301).

    (4) Reinforced polyamide lobed knob. Cannot be disassembled. Resistant to oils and greases.

    W801:

    (2) Threaded high-resistance steel hexagon ring nut.

    (1) Hardened high resistance steel plunger pin.

    (5) Threaded steel lock nut (UNI 5589).

    W801CIN:

    (2) Threaded stainless steel hexagon ring nut (Aisi 303).

    (1) Stainless steel plunger pin (Aisi 303).

    (5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:

    (4) Satin.

    (1-2-3-5) Smooth.

    Colour:

    (4) Black (RAL 9011).

    W801:

    (1-2-5) Black-oxide treated.

    W801CIN:

    (1-2-5) Natural.

    ATTENTION:

    > We recommend an H7 tolerance for the plunger stem bore.

    > The nut is supplied assembled.

    Special Requests:

    On request and for special quantities the knob can be supplied in the colours indicated in the table.

    On request the nut can be supplied disassembled.

    Data sheet

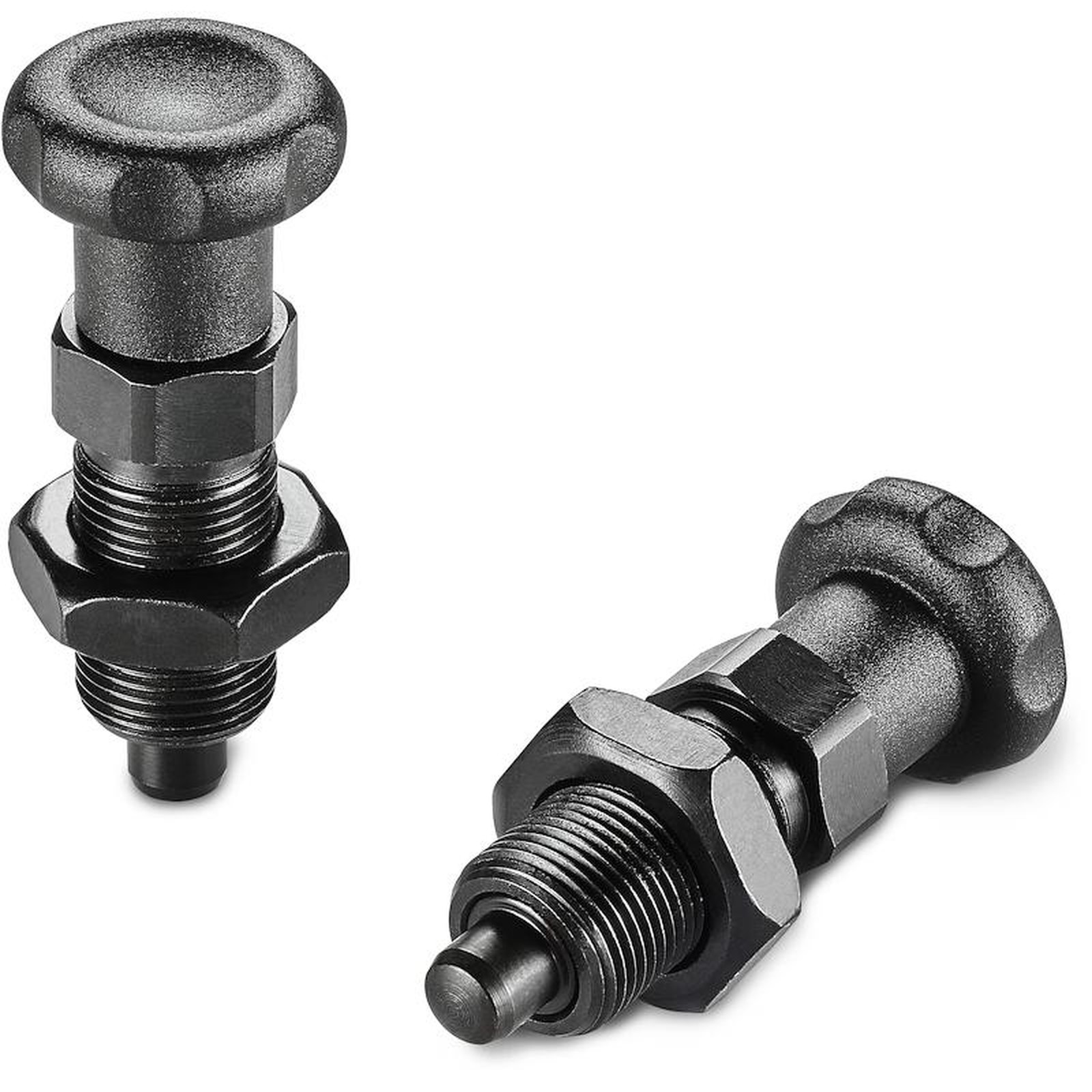

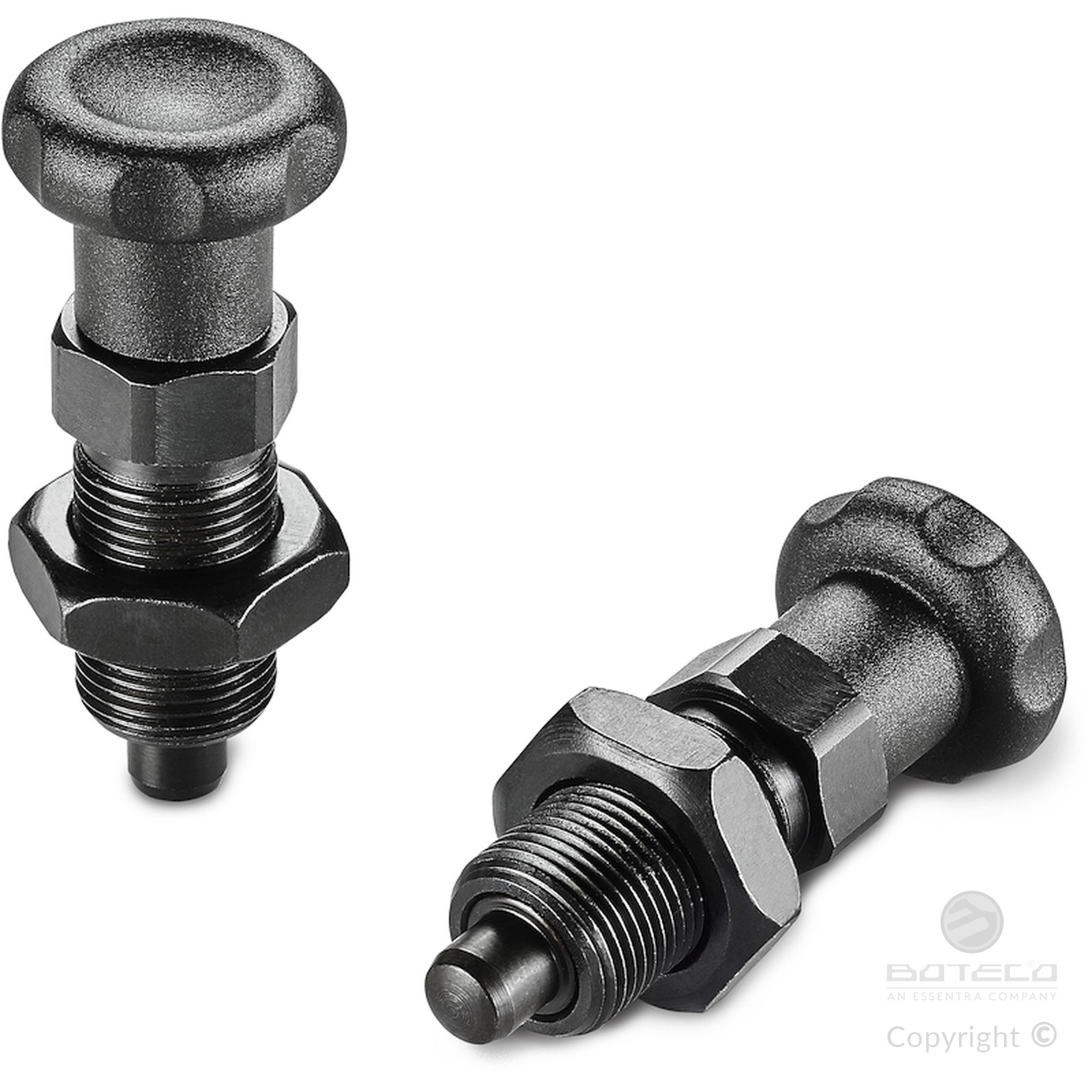

    Version W801 - black-oxide treated steel

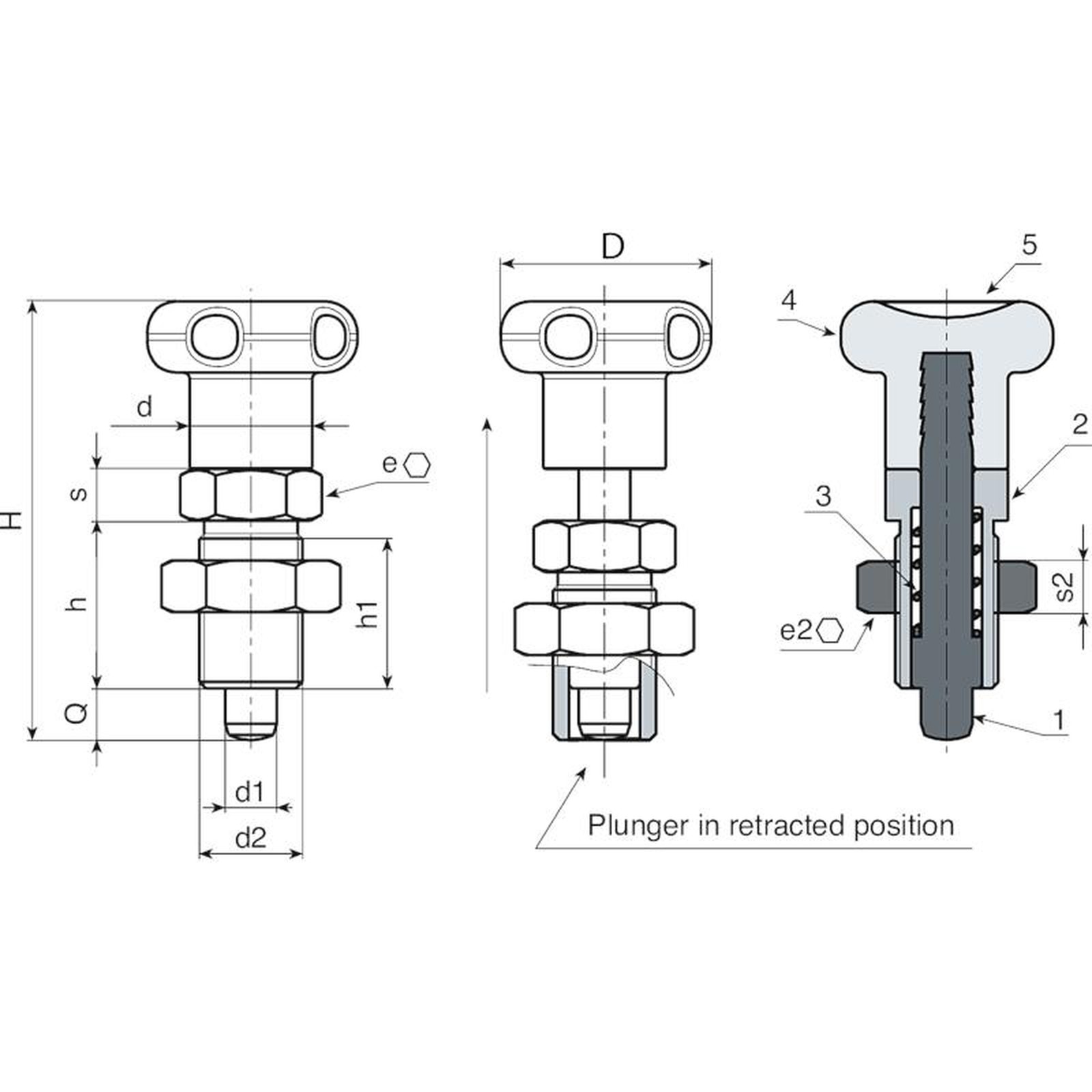

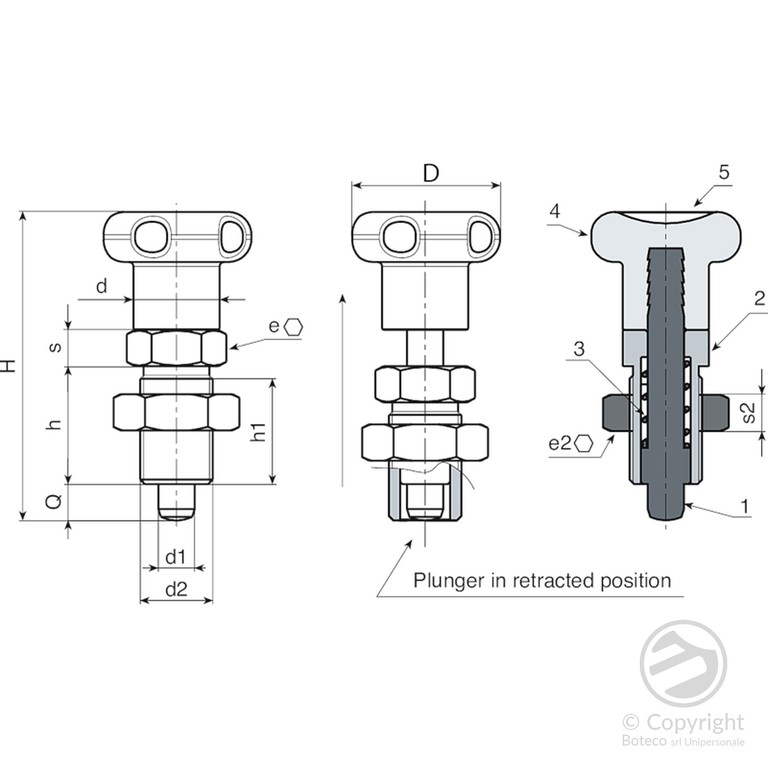

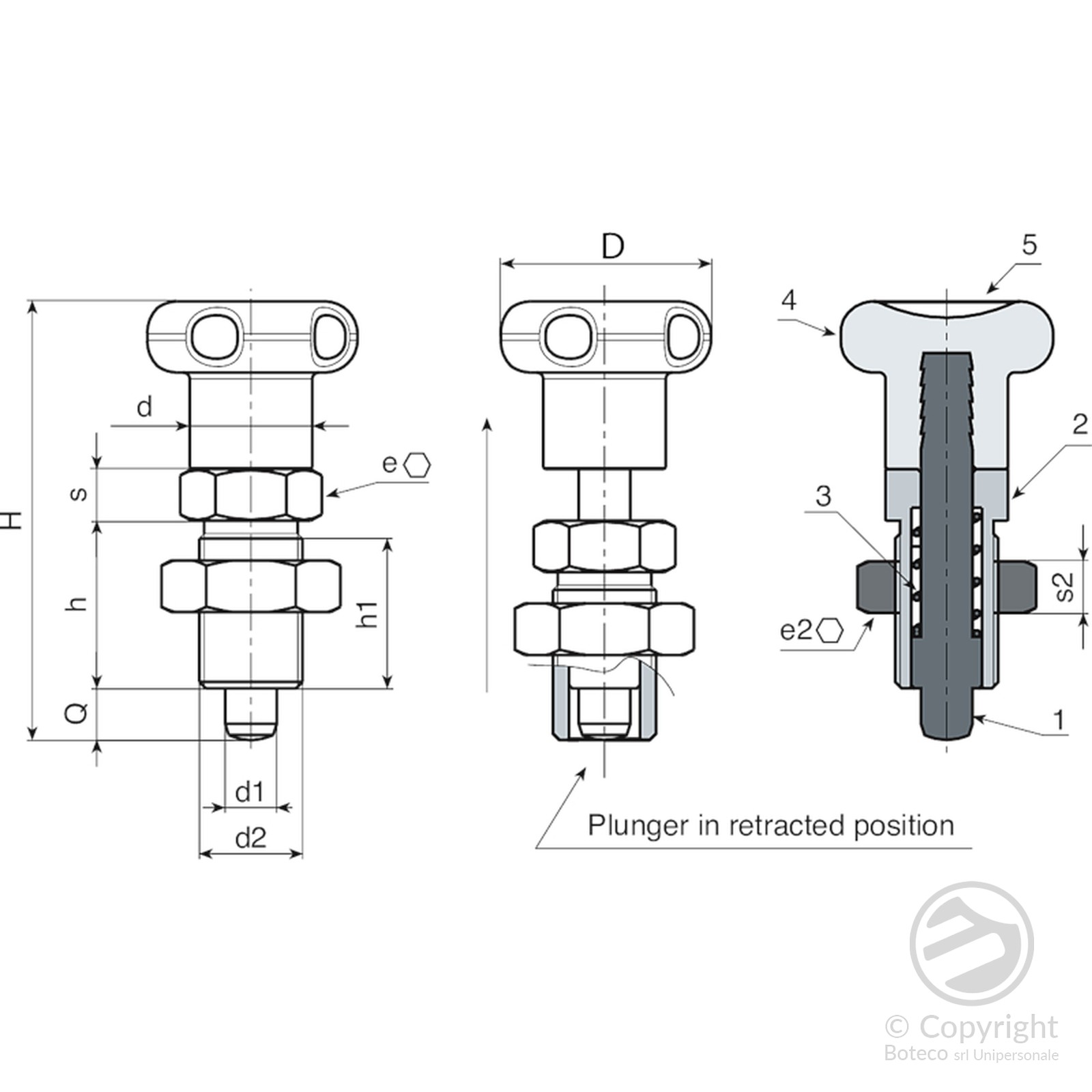

    Code Art. D H h h1 d2 d e s e2 s2 d1 -0,02 -0,04 Q Weight (g)
    W801.0007 W801.Q0501 22 45 17 15 M10x1 12 12 5 17 6 5 5 25
    W801.0008 W801.Q0601 27 54 20 18 M12x1,5 14 14 6 19 7 6 6 41
    W801.0009 W801.Q0801 33 68 26 23 M16x1,5 19 19 8 24 8 8 8 89
    W801.0010 W801.Q1001 33 79 33 30 M20x1,5 19 22 10 30 9 10 10 153

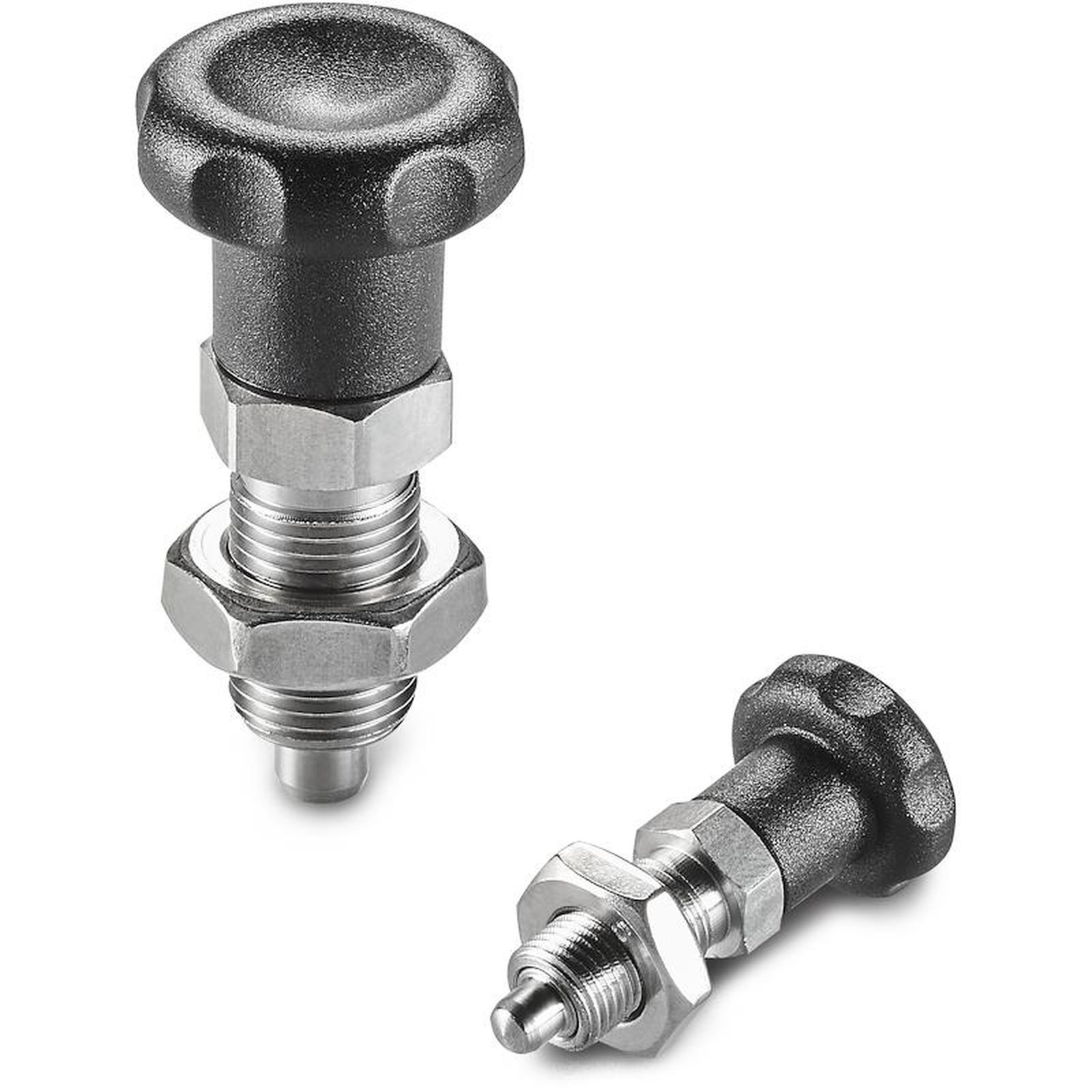

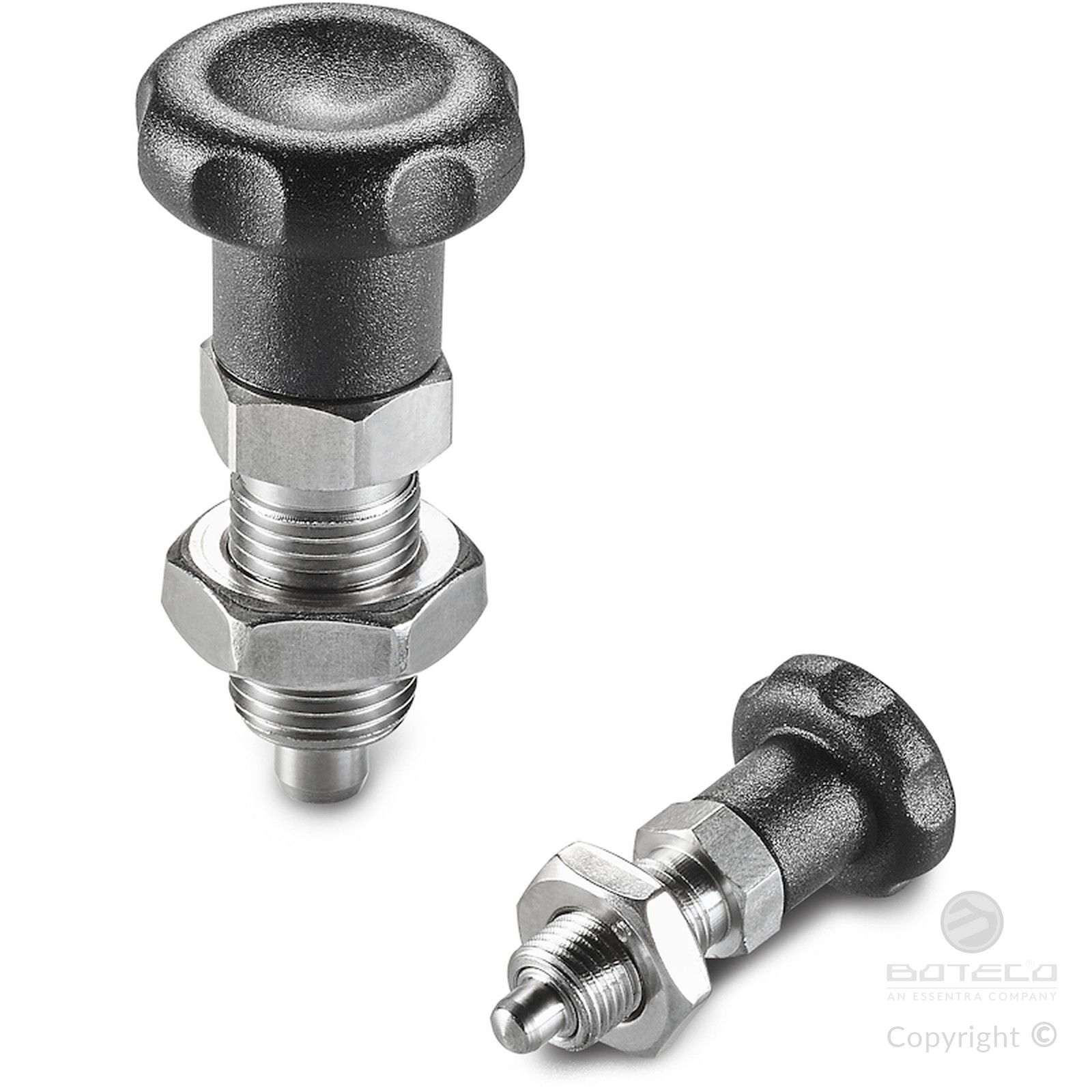

    Version W801 CIN - stainless steel (Aisi 303)

    Code Art. D H h h1 d2 d e s e2 s2 d1 -0,02 -0,04 Q Weight (g)
    W801.0001 W801.I0501CIN 22 45 17 15 M10x1 12 12 5 17 6 5 5 25
    W801.0003 W801.I0601CIN 27 54 20 18 M12x1,5 14 14 6 19 7 6 6 41
    W801.0004 W801.I0801CIN 33 68 26 23 M16x1,5 19 19 8 24 8 8 8 89
    W801.0006 W801.I1001CIN 33 79 33 30 M20x1,5 19 22 10 30 9 10 10 153
