STEEL INDEXING PLUNGER WITH RING - WITH NUT
22
W798
Spintori filettati passo grosso - senza pomello
Materials:
(1) Stainless steel plunger pin (Aisi 303).
(3) Stainless steel spring (Aisi 302).
(4) Harmonic stainless steel spring ring.
W798:
(2) Indexing plunger body in free-cutting steel.
(5) Threaded steel lock nut (UNI 5589).
W798 CIN:
(2) Stainless steel (Aisi 303) indexing plunger body.
(5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).
Surface finish:
W798:
(2-5) Galvanised.
(1-4) Natural.
W798 CIN:
(1-2-4-5) Natural.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
> The nut is supplied assembled.
Special Requests:
On request the nut can be supplied disassembled.
Version W798 - galvanised steel

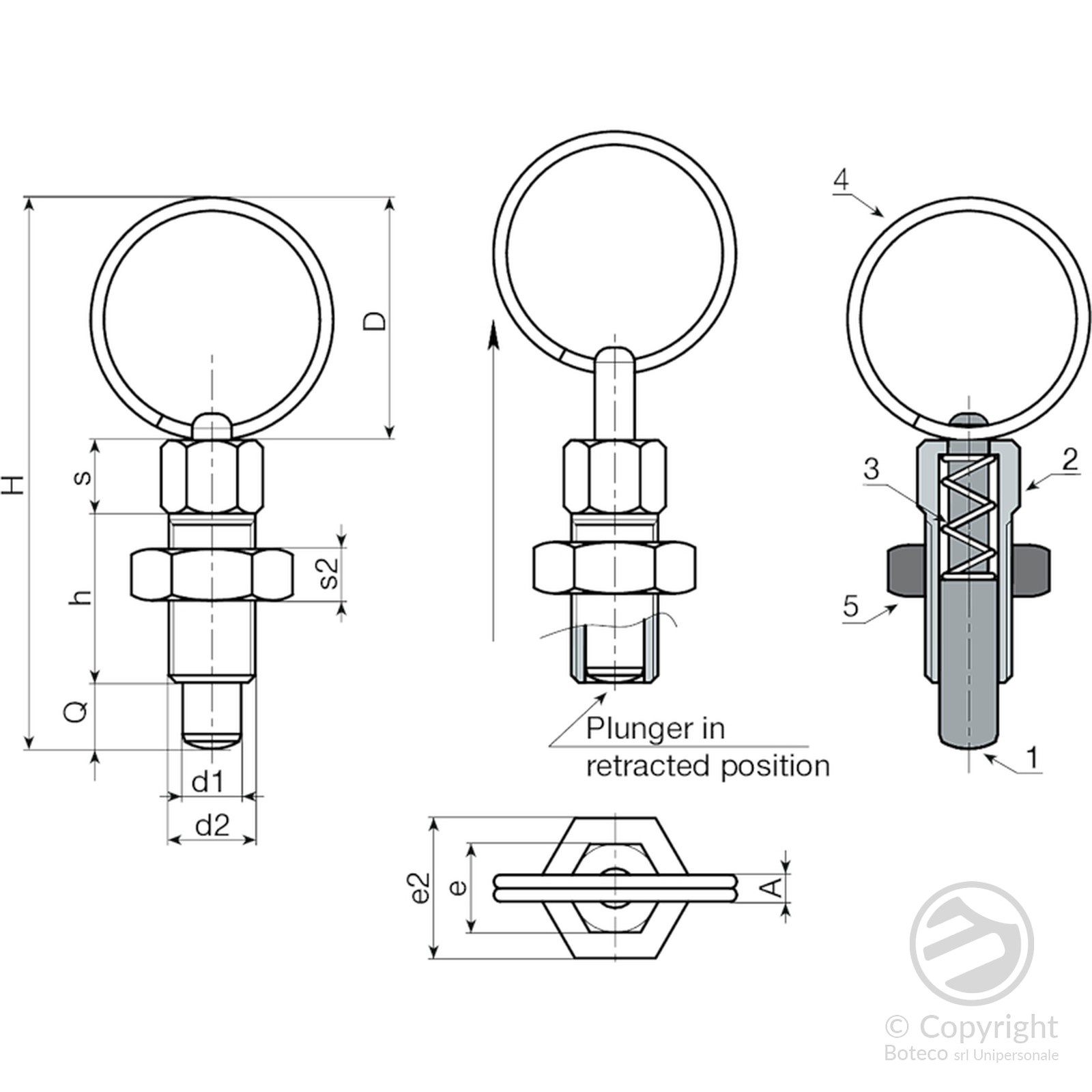

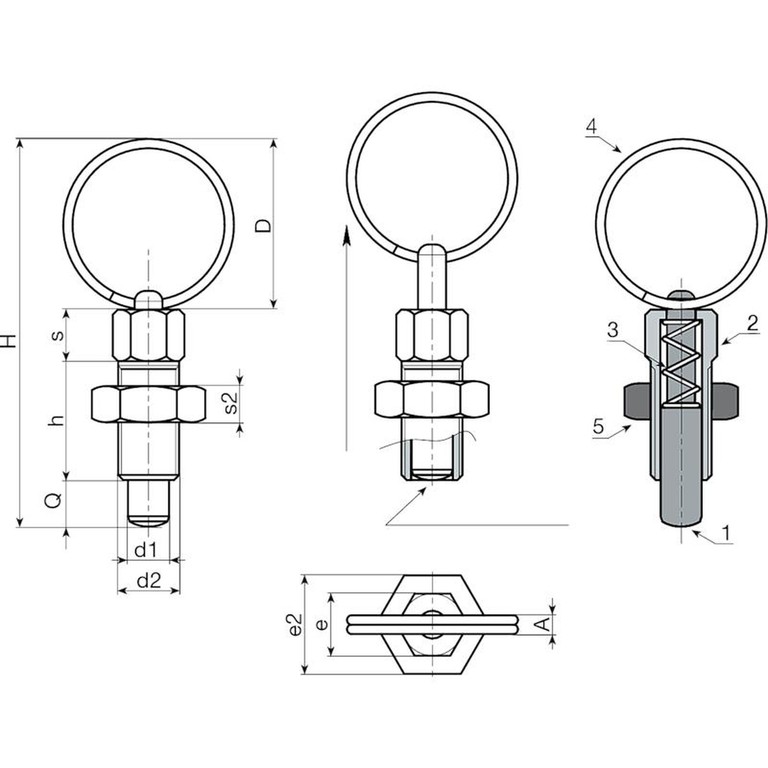

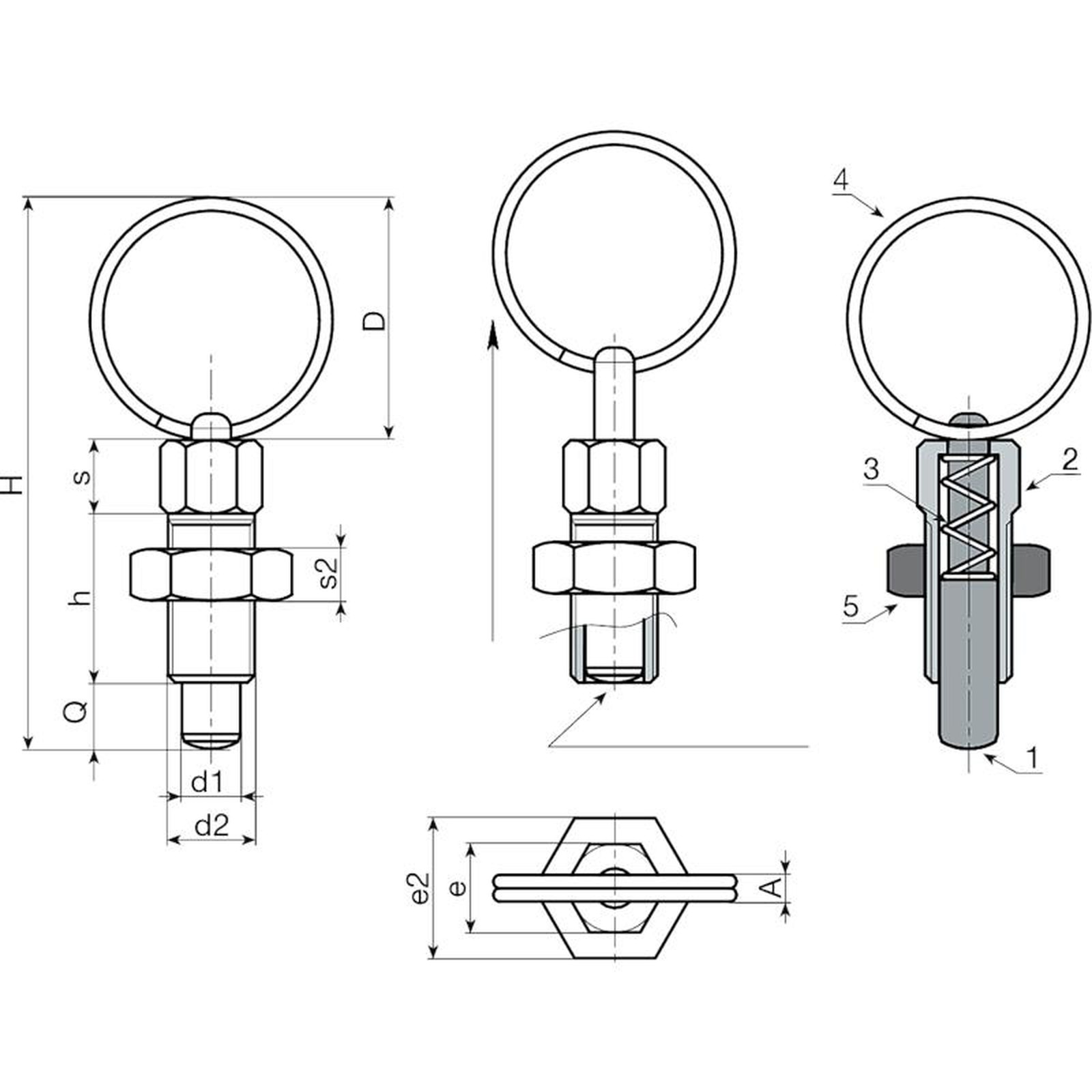

| Code | Art. | D | H | h | A | e | s | d2 | e2 | s2 | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W798.0001 | W798.J04 | 15 | 35.5 | 12 | 2 | 6 | 4.5 | M6 | 10 | 4 | 4 | 4 | 7 |
| W798.0003 | W798.J05 | 19 | 46 | 16 | 2.5 | 8 | 6 | M8 | 13 | 5 | 5 | 5 | 16 |
| W798.0005 | W798.J06 | 27 | 60.5 | 20 | 3 | 10 | 7.5 | M10 | 17 | 6 | 6 | 6 | 31 |
| W798.0007 | W798.J08 | 33 | 75 | 24 | 3.5 | 12 | 9 | M12 | 19 | 7 | 8 | 8 | 50 |
Version W798 CIN - stainless steel (Aisi 303)
| Code | Art. | D | H | h | A | e | s | d2 | e2 | s2 | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W798.0002 | W798.J04CIN | 15 | 35.5 | 12 | 2 | 6 | 4.5 | M6 | 10 | 4 | 4 | 4 | 7 |
| W798.0004 | W798.J05CIN | 19 | 46 | 16 | 2.5 | 8 | 6 | M8 | 13 | 5 | 5 | 5 | 16 |
| W798.0006 | W798.J06CIN | 27 | 60.5 | 20 | 3 | 10 | 7.5 | M10 | 17 | 6 | 6 | 6 | 31 |
| W798.0008 | W798.J08CIN | 33 | 75 | 24 | 3.5 | 12 | 9 | M12 | 19 | 7 | 8 | 8 | 50 |
