STEEL INDEXING PLUNGER WITH RING
22
W797
Spintori filettati passo grosso - senza pomello
Materials:
(1) Stainless steel plunger pin (Aisi 303).
(3) Stainless steel spring (Aisi 302).
(4) Harmonic stainless steel spring ring.
W797:
(2) Indexing plunger body in free-cutting steel.
W797CIN:
(2) Stainless steel (Aisi 303) indexing plunger body.
Surface finish:
W797:
(2) Galvanised.
(4) Natural.
W797CIN:
(1-2-4) Natural.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
Special Requests:
None.

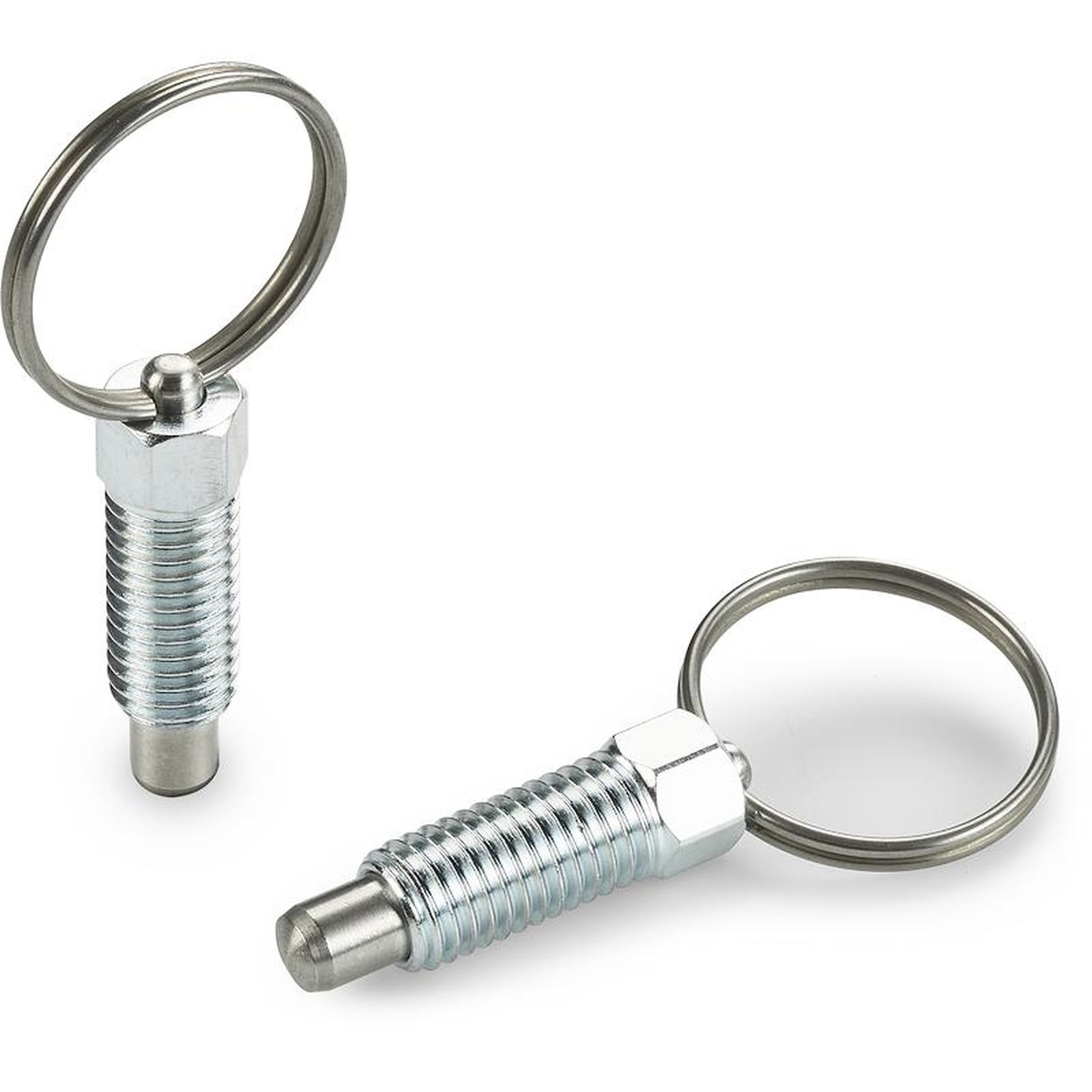

Version W797 - galvanised steel

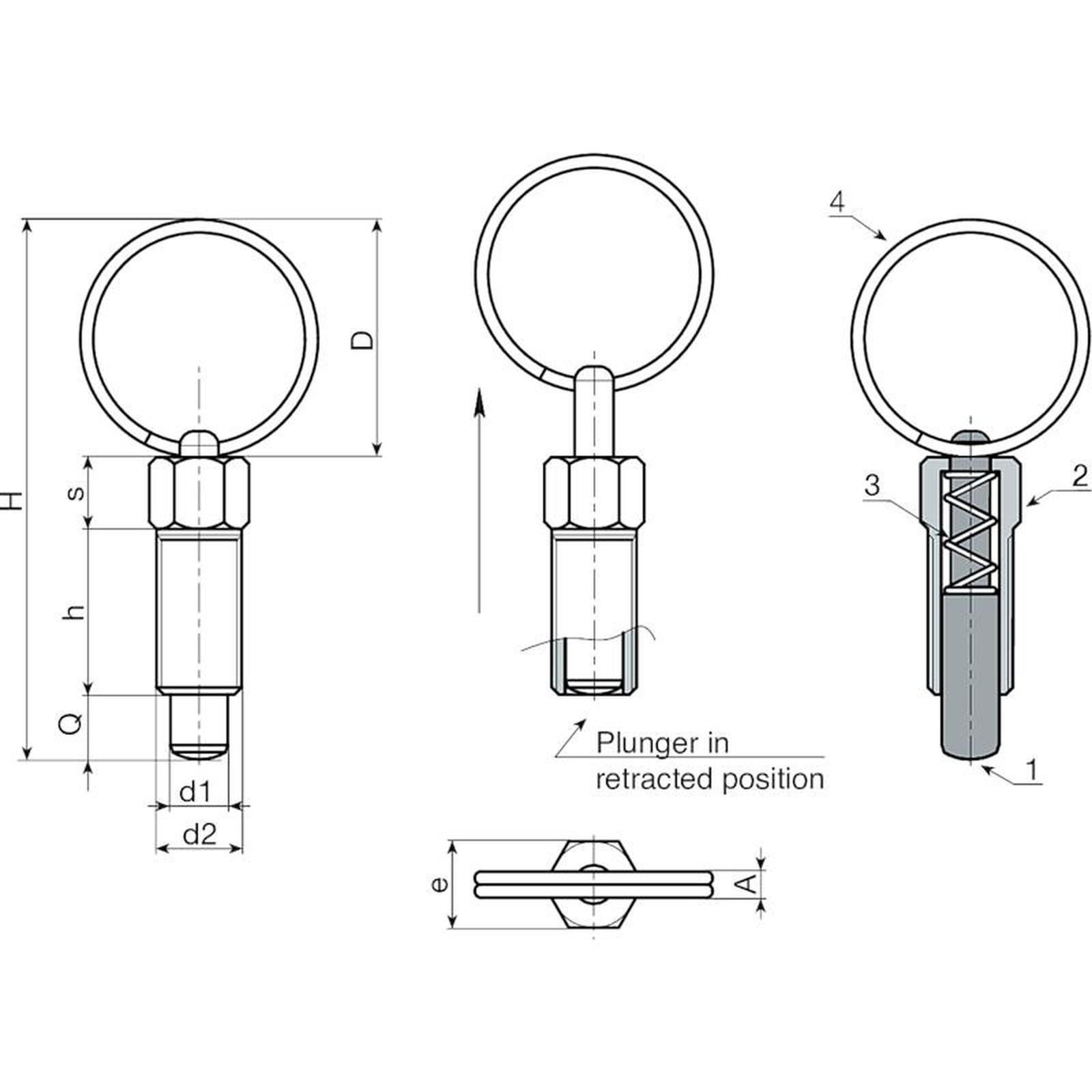

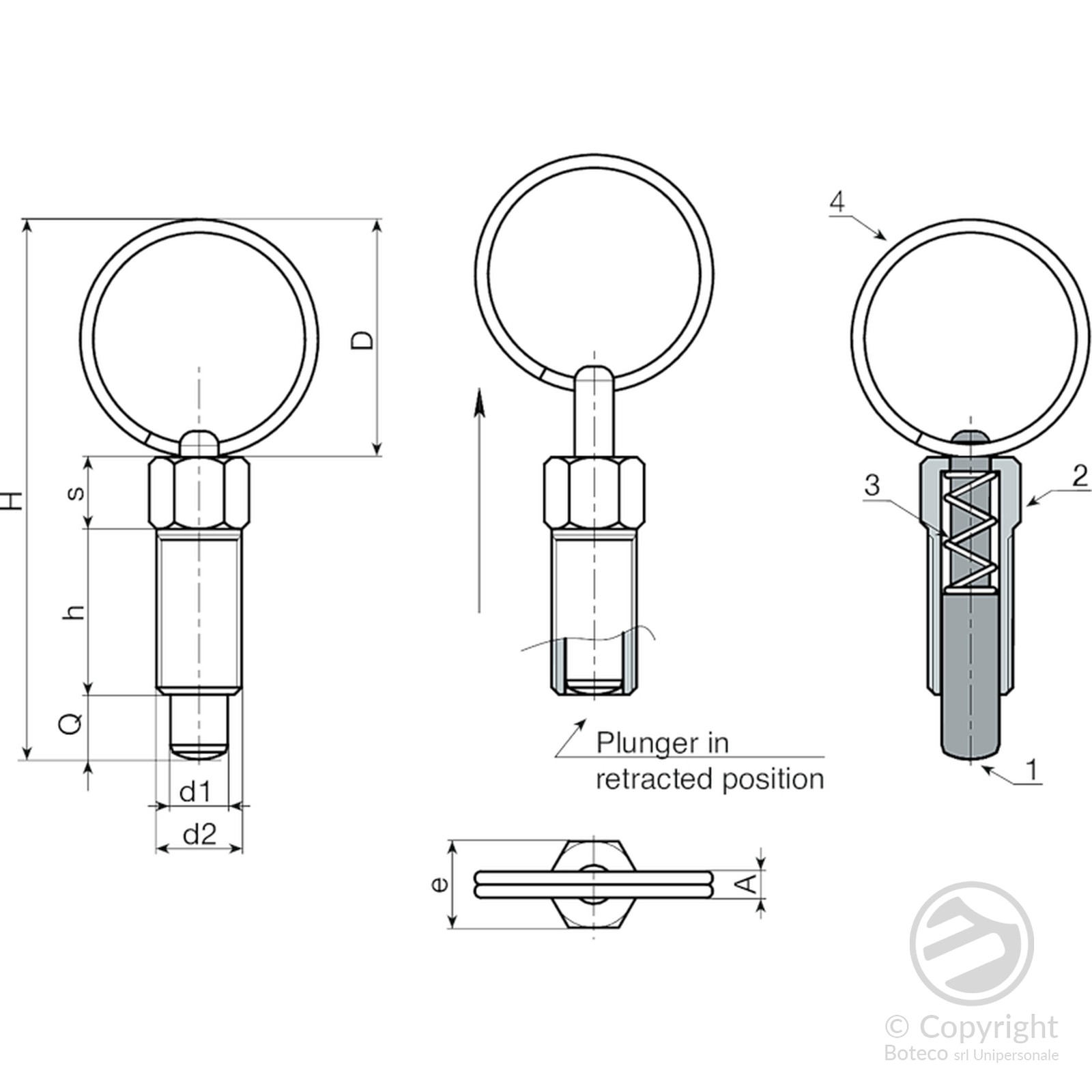

| Code | Art. | D | H | h | A | e | s | d2 | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| W797.0001 | W797.J04 | 15 | 35.5 | 12 | 2 | 6 | 4.5 | M6 | 4 | 4 | 5 |
| W797.0003 | W797.J05 | 19 | 46 | 16 | 2.5 | 8 | 6 | M8 | 5 | 5 | 11 |
| W797.0005 | W797.J06 | 27 | 60.5 | 20 | 3 | 10 | 7.5 | M10 | 6 | 6 | 23 |
| W797.0007 | W797.J08 | 33 | 75 | 24 | 3.5 | 12 | 9 | M12 | 8 | 8 | 38 |

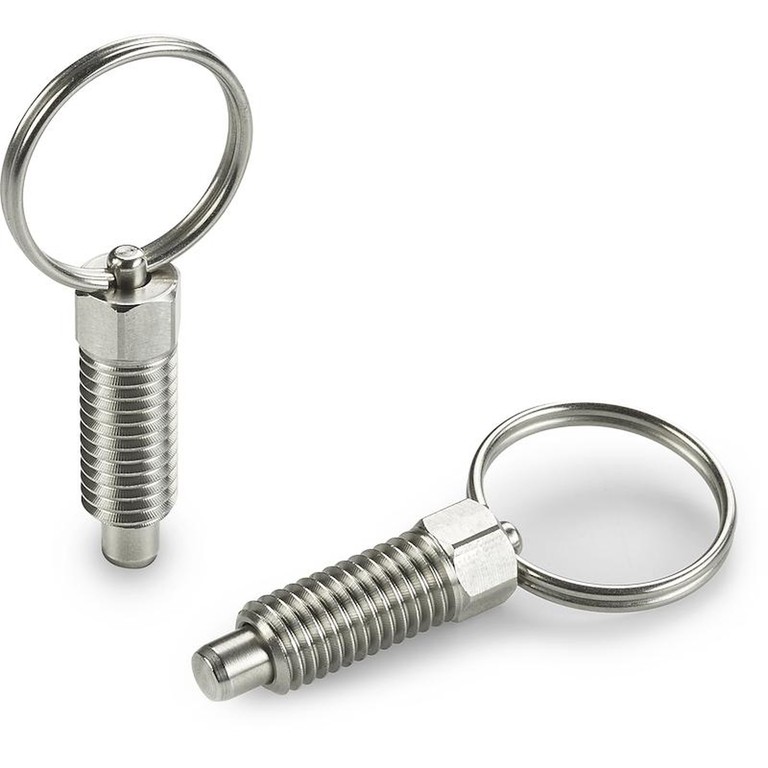

Version W797 CIN - stainless steel (Aisi 303)
| Code | Art. | D | H | h | A | e | s | d2 | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| W797.0002 | W797.J04CIN | 15 | 35.5 | 12 | 2 | 6 | 4.5 | M6 | 4 | 4 | 5 |
| W797.0004 | W797.J05CIN | 19 | 46 | 16 | 2.5 | 8 | 6 | M8 | 5 | 5 | 11 |
| W797.0006 | W797.J06CIN | 27 | 60.5 | 20 | 3 | 10 | 7.5 | M10 | 6 | 6 | 23 |
| W797.0008 | W797.J08CIN | 33 | 75 | 24 | 3.5 | 12 | 9 | M12 | 8 | 8 | 38 |
