KNOB WITH STEEL INDEXING PLUNGER
22
W795
Spintori filettati passo grosso - con pomello

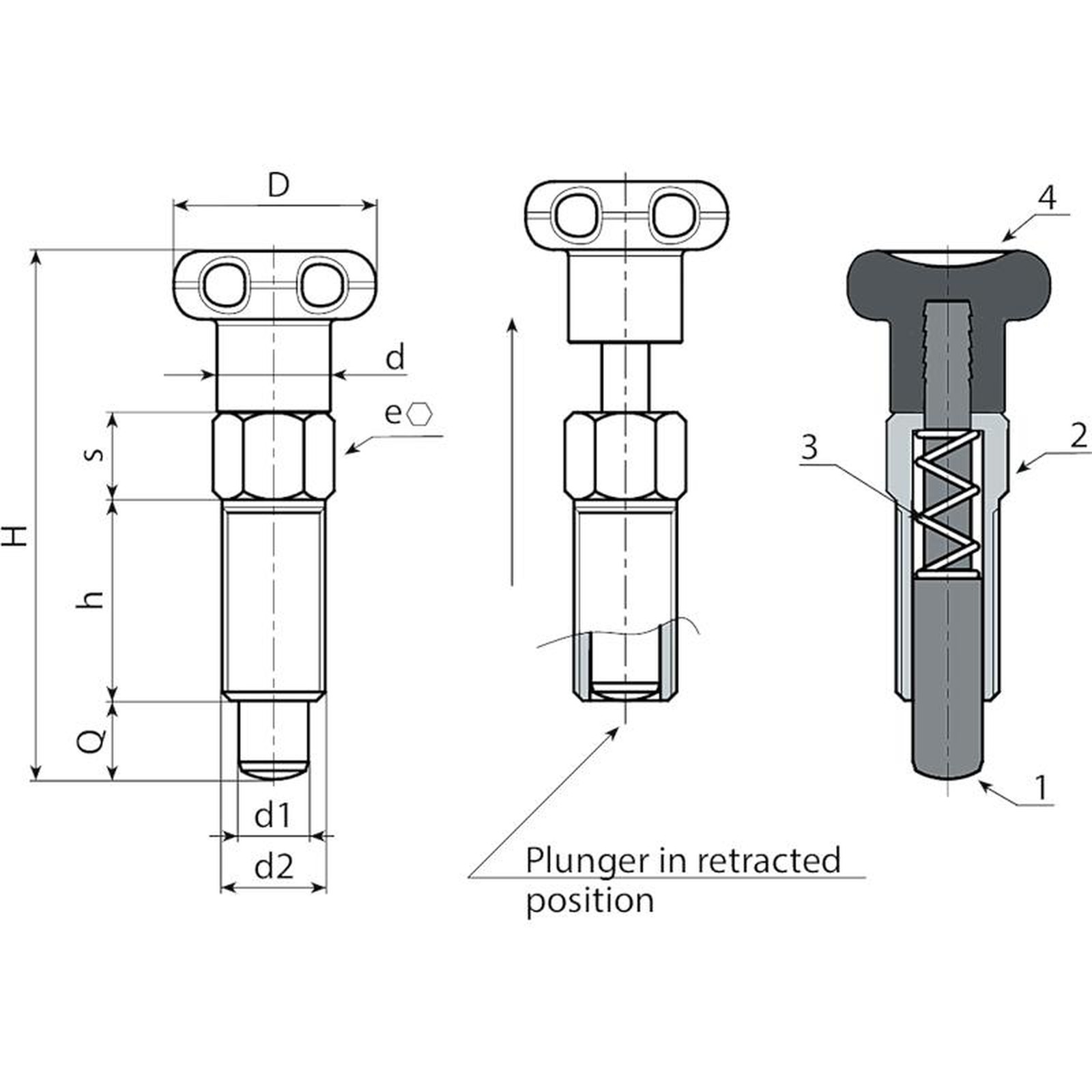

Materials:
(1) Stainless steel plunger pin (Aisi 303).
(3) Stainless steel spring (Aisi 302).
(4) Reinforced polyamide lobed knob. Cannot be disassembled. Resistant to oils and greases.
W795:
(2) Indexing plunger body in free-cutting steel.
W795 CIN:
(2) Stainless steel (Aisi 303) indexing plunger body.
Surface finish:
(4) Satin.
(1-2-3) Smooth.
Colour:
(4) Black (RAL 9011).
W795:
(2) Galvanised.
W795 CIN:
(1-2) Natural.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
Special Requests:
None.

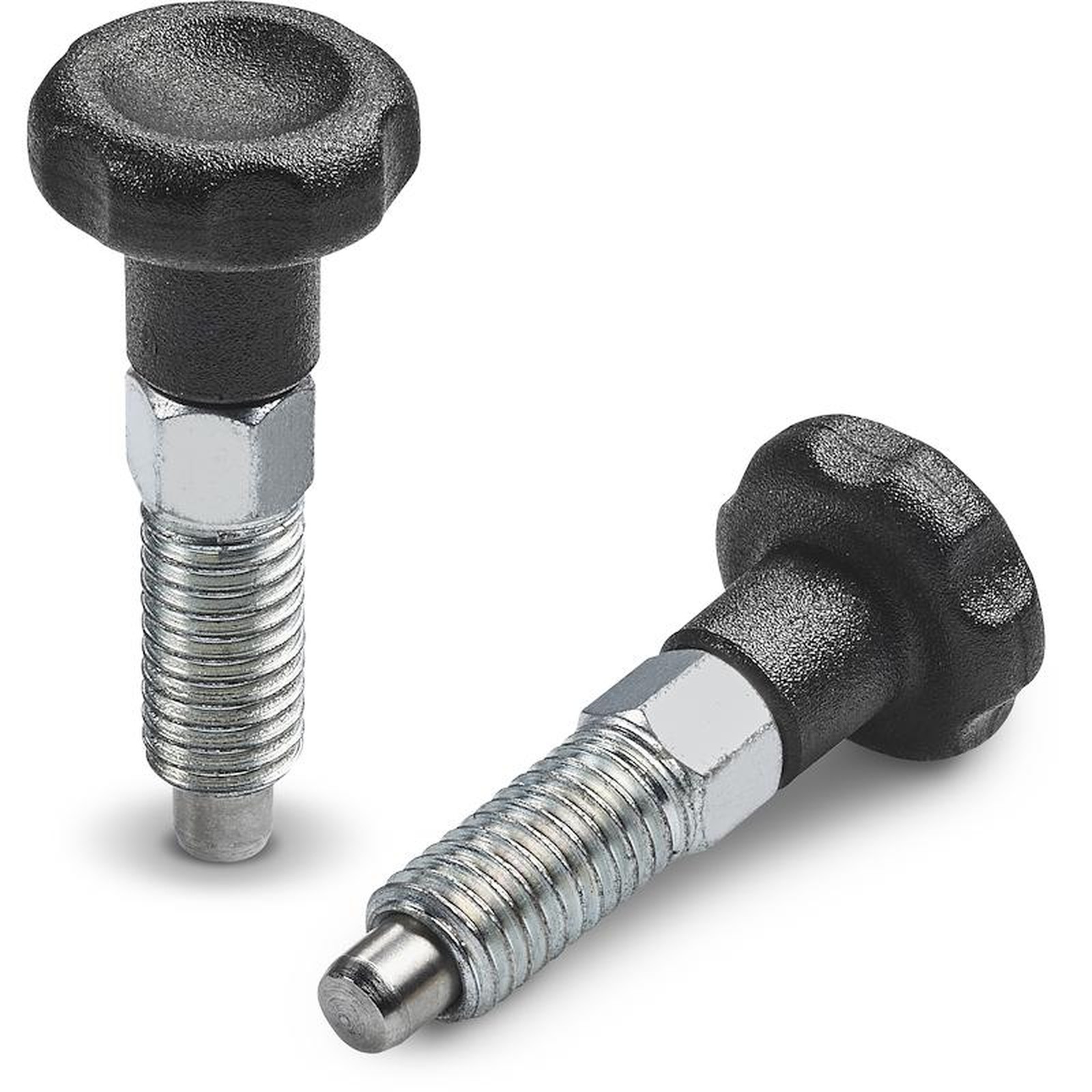

Version W795 - galvanised steel
| Code | Art. | D | d | H | h | e | s | d2 | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| W795.0001 | W795.J0401 | 14 | 7 | 33 | 12 | 6 | 5 | M6 | 4 | 4 | 5 |
| W795.0003 | W795.J0501 | 18 | 9 | 42 | 16 | 8 | 6 | M8 | 5 | 5 | 11 |
| W795.0005 | W795.J0601 | 22 | 11 | 52 | 20 | 10 | 7,5 | M10 | 6 | 6 | 23 |
| W795.0007 | W795.J0801 | 24 | 13 | 61 | 24 | 12 | 9 | M12 | 8 | 8 | 38 |

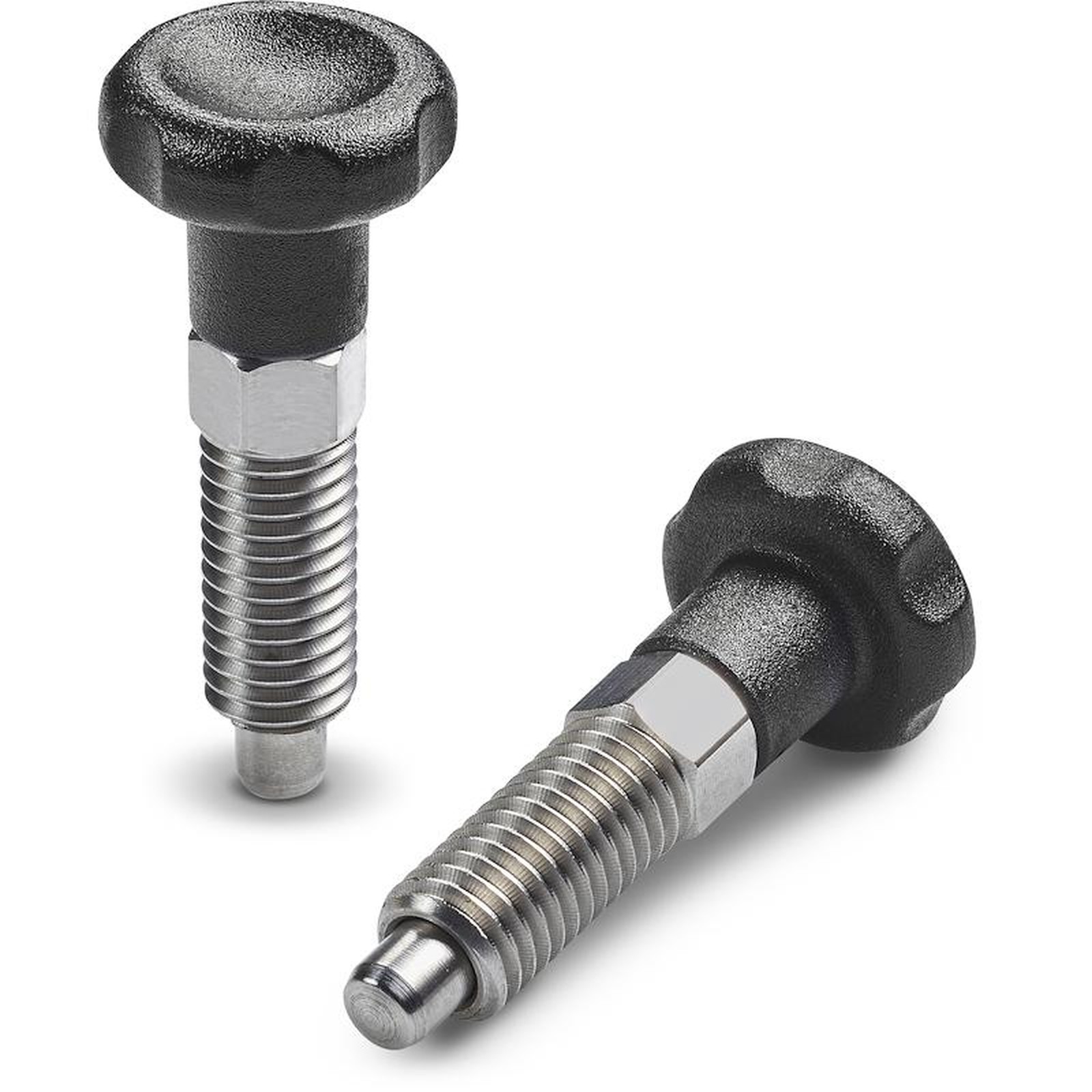

Version W795 CIN - stainless steel (Aisi 303)
| Code | Art. | D | d | H | h | e | s | d2 | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| W795.0002 | W795.J0401CIN | 14 | 7 | 33 | 12 | 6 | 5 | M6 | 4 | 4 | 5 |
| W795.0004 | W795.J0501CIN | 18 | 9 | 42 | 16 | 8 | 6 | M8 | 5 | 5 | 11 |
| W795.0006 | W795.J0601CIN | 22 | 11 | 52 | 20 | 10 | 7,5 | M10 | 6 | 6 | 23 |
| W795.0008 | W795.J0801CIN | 24 | 13 | 61 | 24 | 12 | 9 | M12 | 8 | 8 | 38 |
