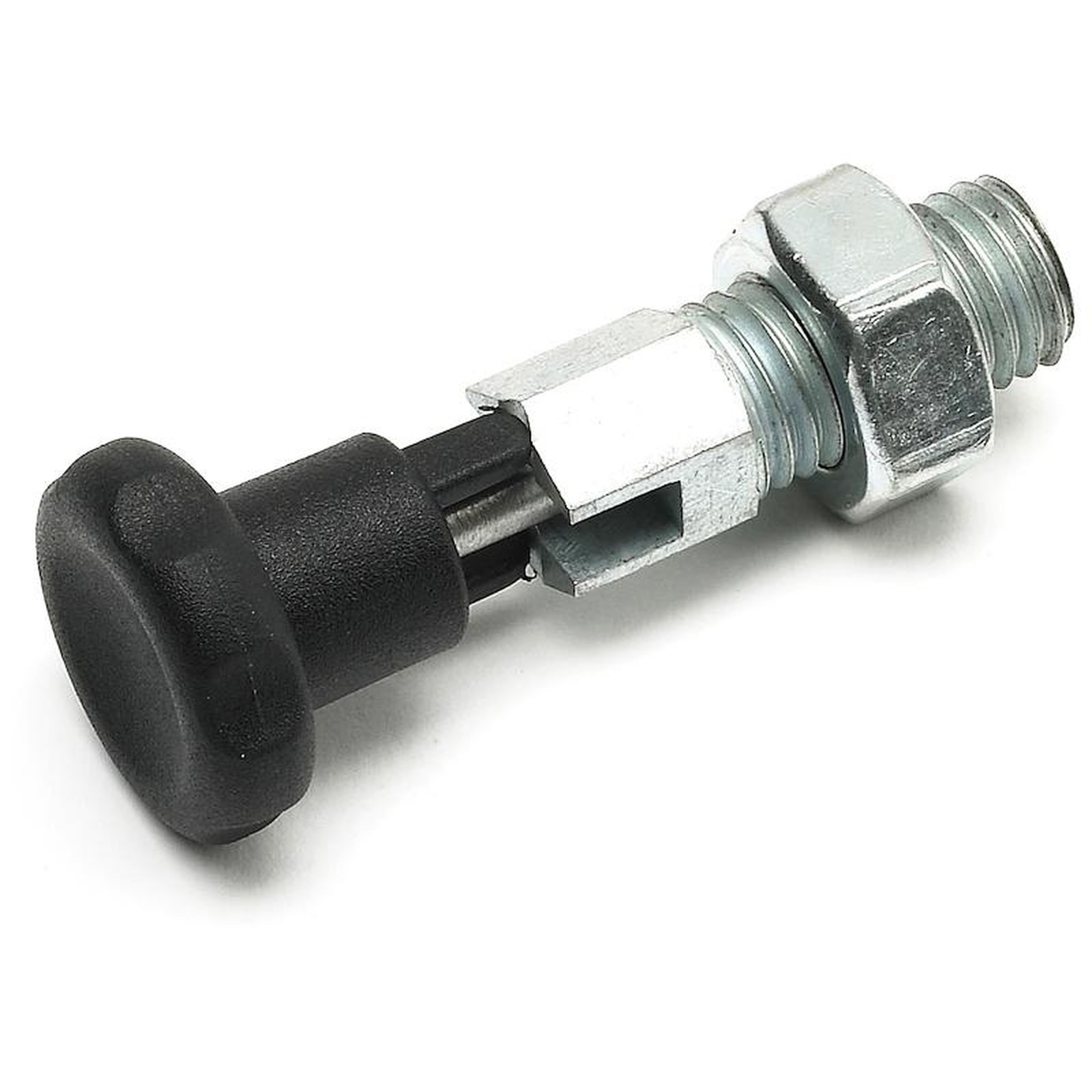

KNOB WITH LOCKING STEEL INDEXING PLUNGER - WITH NUT
22
W794
Spintori filettati passo grosso - con pomello
Materials:
(1) Stainless steel plunger pin (Aisi 303).
(3) Stainless steel spring (Aisi 302).
(4) Reinforced polyamide lobed knob. Cannot be disassembled. Resistant to oils and greases.
W794:
(2) Locking indexing plunger body in free-cutting steel.
(5) Threaded steel lock nut (UNI 5589).
W794 CIN:
(2) Stainless steel (Aisi 303) locking indexing plunger body.
(5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).
Surface finish:
(4) Satin.
(1-2-5) Smooth.
Colour:
(4) Black (RAL 9011).
W794:
(2-5) Galvanised.
W794 CIN:
(1-2-5) Natural.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
> The nut is supplied assembled.
Special Requests:
On request the nut can be supplied disassembled.
Version W794 - galvanised steel

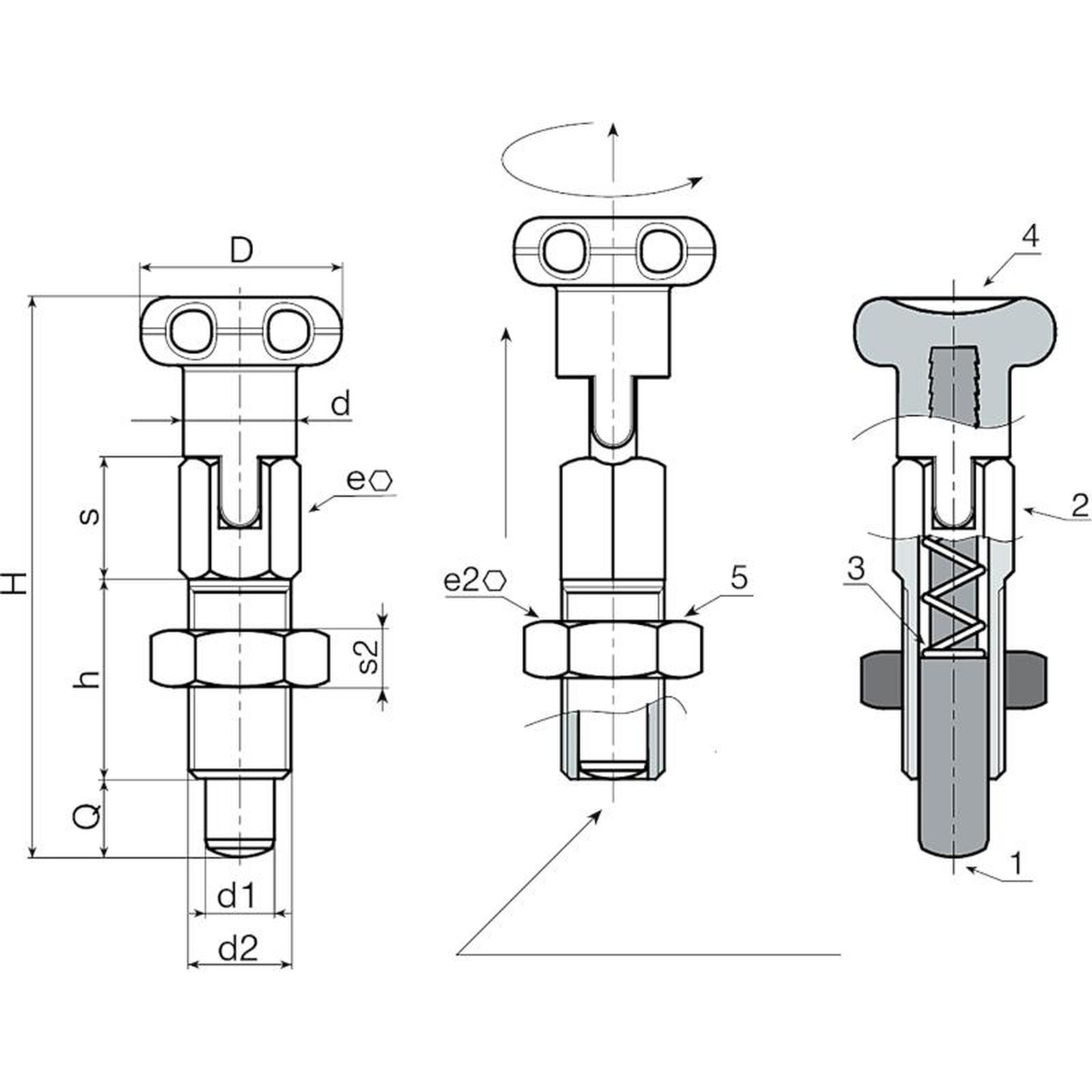

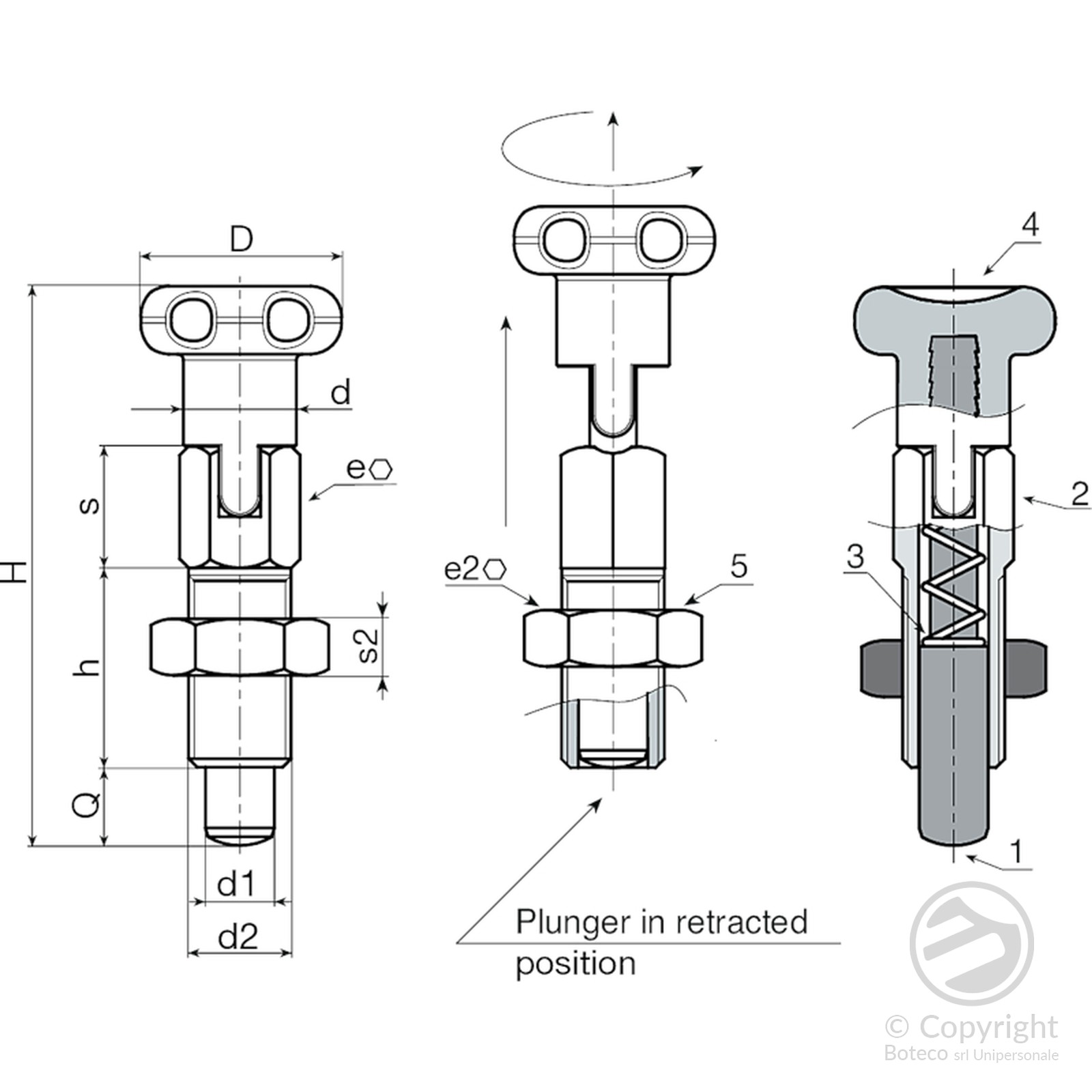

| Code | Art. | D | d | H | h | e | s | d2 | e2 | s2 | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W794.0001 | W794.J0401 | 14 | 7 | 36 | 12 | 6 | 8 | M6 | 10 | 4 | 4 | 4 | 7 |
| W794.0003 | W794.J0501 | 18 | 9 | 46 | 16 | 8 | 10 | M8 | 13 | 5 | 5 | 5 | 16 |
| W794.0005 | W794.J0601 | 22 | 11 | 55 | 20 | 10 | 11 | M10 | 17 | 6 | 6 | 6 | 32 |
| W794.0007 | W794.J0801 | 24 | 13 | 58 | 24 | 12 | 14 | M12 | 19 | 7 | 8 | 8 | 51 |
Version W794 CIN - stainless steel (Aisi 303)
| Code | Art. | D | d | H | h | e | s | d2 | e2 | s2 | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W794.0002 | W794.J0401CIN | 14 | 7 | 36 | 12 | 6 | 8 | M6 | 10 | 4 | 4 | 4 | 7 |
| W794.0004 | W794.J0501CIN | 18 | 9 | 46 | 16 | 8 | 10 | M8 | 13 | 5 | 5 | 5 | 16 |
| W794.0006 | W794.J0601CIN | 22 | 11 | 55 | 20 | 10 | 11 | M10 | 17 | 6 | 6 | 6 | 32 |
| W794.0008 | W794.J0801CIN | 24 | 13 | 58 | 24 | 12 | 14 | M12 | 19 | 7 | 8 | 8 | 51 |
