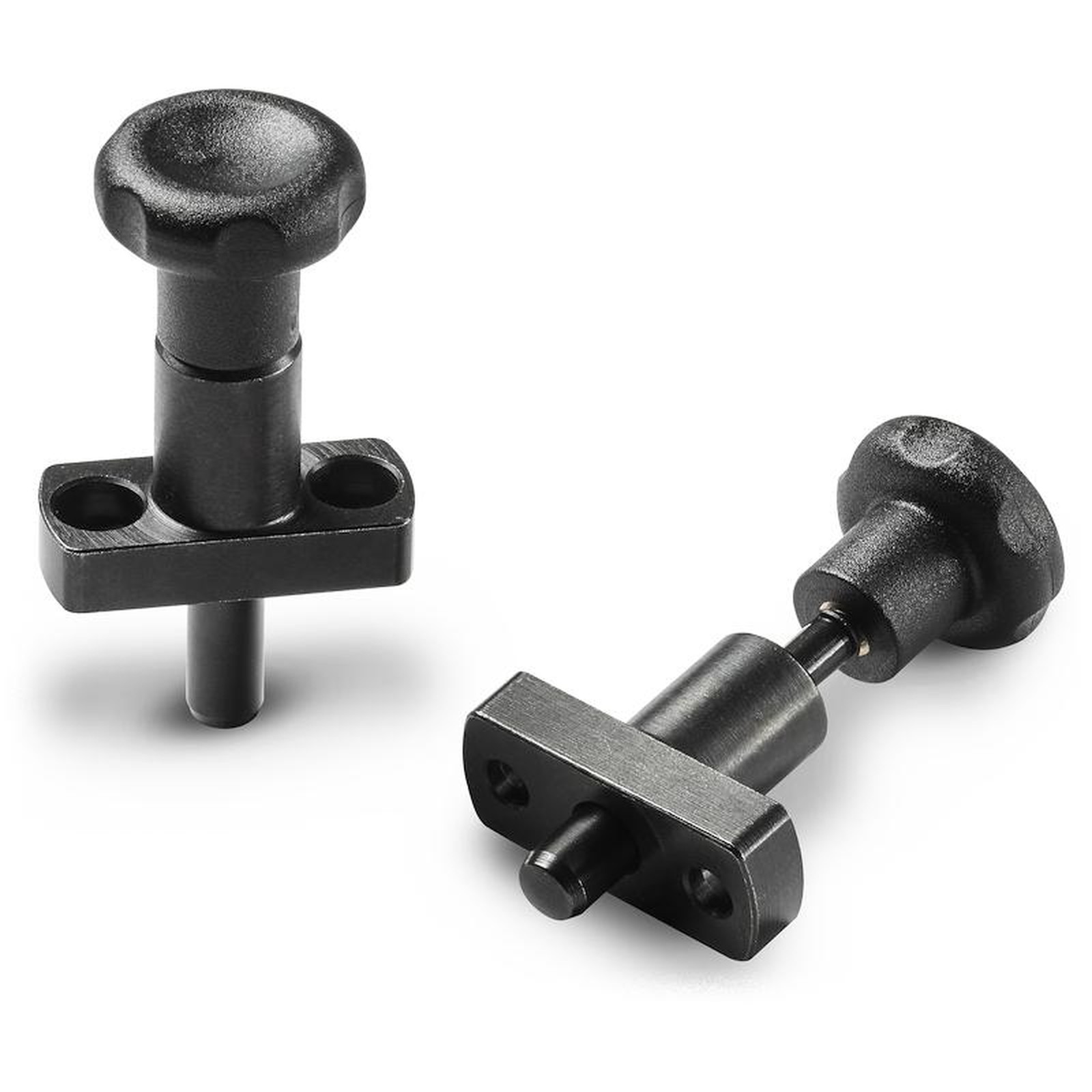

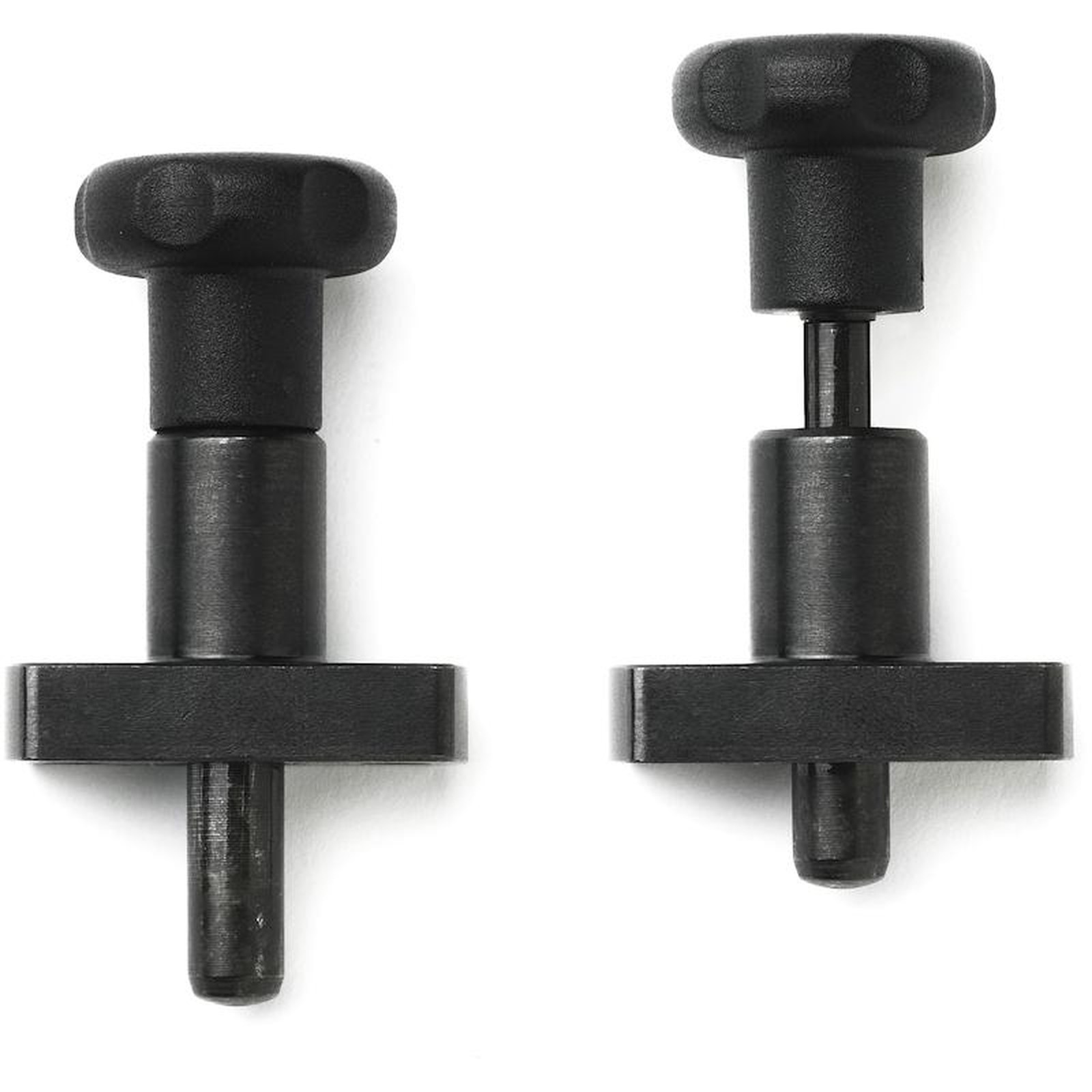

KNOB WITH BLACK OXIDE TREATED STEEL PLUNGER AND FLANGE
22
W790
Spintori con corpo liscio con fissaggi alternativi
Materials:
(3) Reinforced polyamide lobed knob. Cannot be disassembled.
Resistant to oils and greases.
Surface finish:
(3) Satin.
(1-2) Smooth.
Colour:
(3) Black (RAL 9011).
(1-2) Black-oxide treated.
Inserts:
(4) Stainless steel spring.
(1) Smooth steel body, with incorporated turned and bored flange.
(2) Hardened high resistance steel plunger pin.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
Special Requests:
On request and for special quantities the knob can be supplied in the colours indicated in the table.
| Code | Art. | D | H | m | c | A | B | F | h3 | d2 | d3 | d1 -0,02 -0,04 | Q | Q1 | Q2 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W790027.0001 | W790027.Q08X2001 | 27 | 22 | 19 | 8 | 38 | 16 | 26 | 5.5 | 5.5 | 9 | 8 | 20 | 10 | 10 | 74 |
| W790027.0002 | W790027.Q08X2601 | 27 | 22 | 19 | 8 | 38 | 16 | 26 | 5.5 | 5.5 | 9 | 8 | 26 | 10 | 16 | 75 |
| W790027.0004 | W790027.Q10X2401 | 27 | 22 | 19 | 8 | 38 | 16 | 26 | 5.5 | 5.5 | 9 | 10 | 24 | 12 | 12 | 75 |
| W790027.0006 | W790027.Q10X3201 | 27 | 22 | 19 | 8 | 38 | 16 | 26 | 5.5 | 5.5 | 9 | 10 | 32 | 12 | 20 | 76 |
