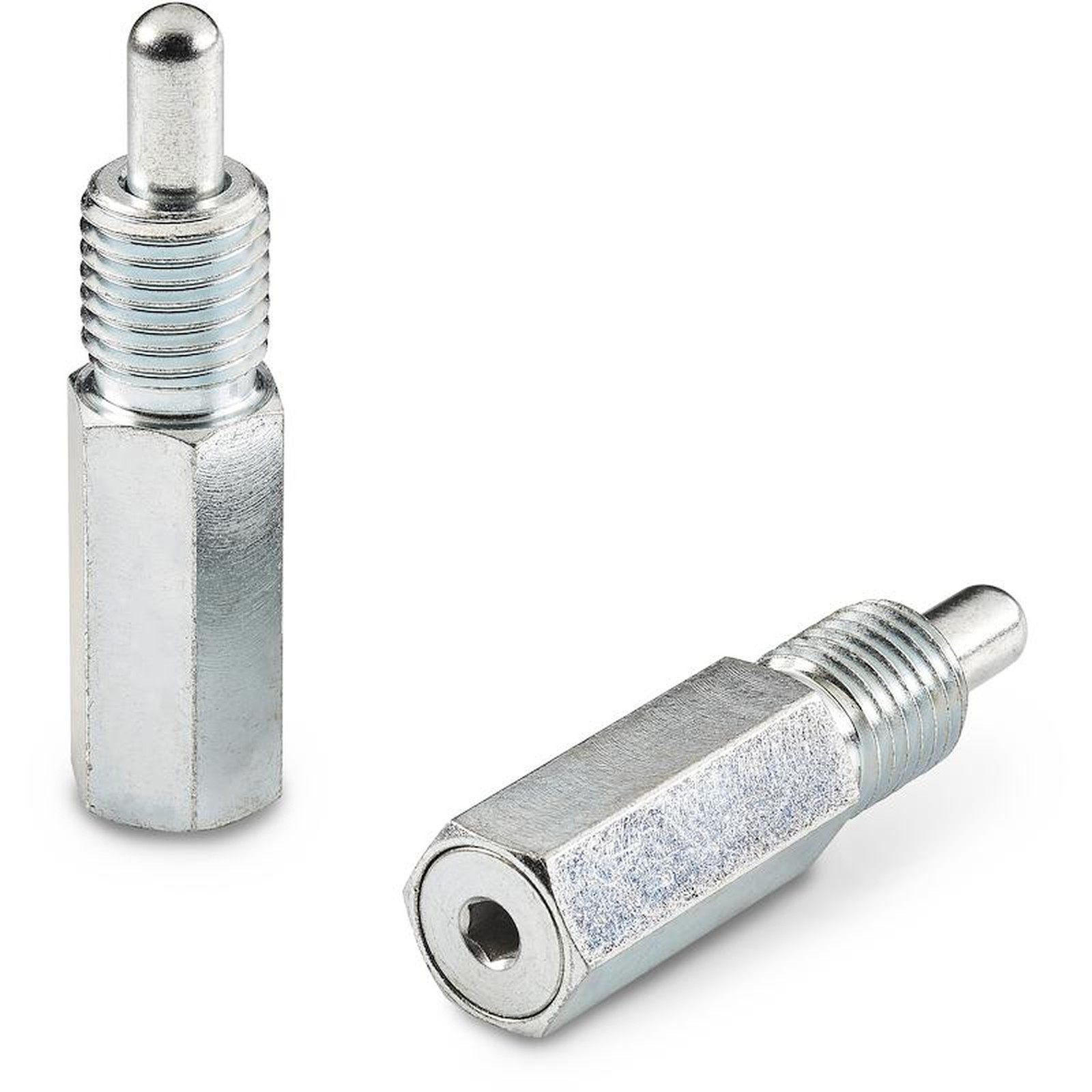

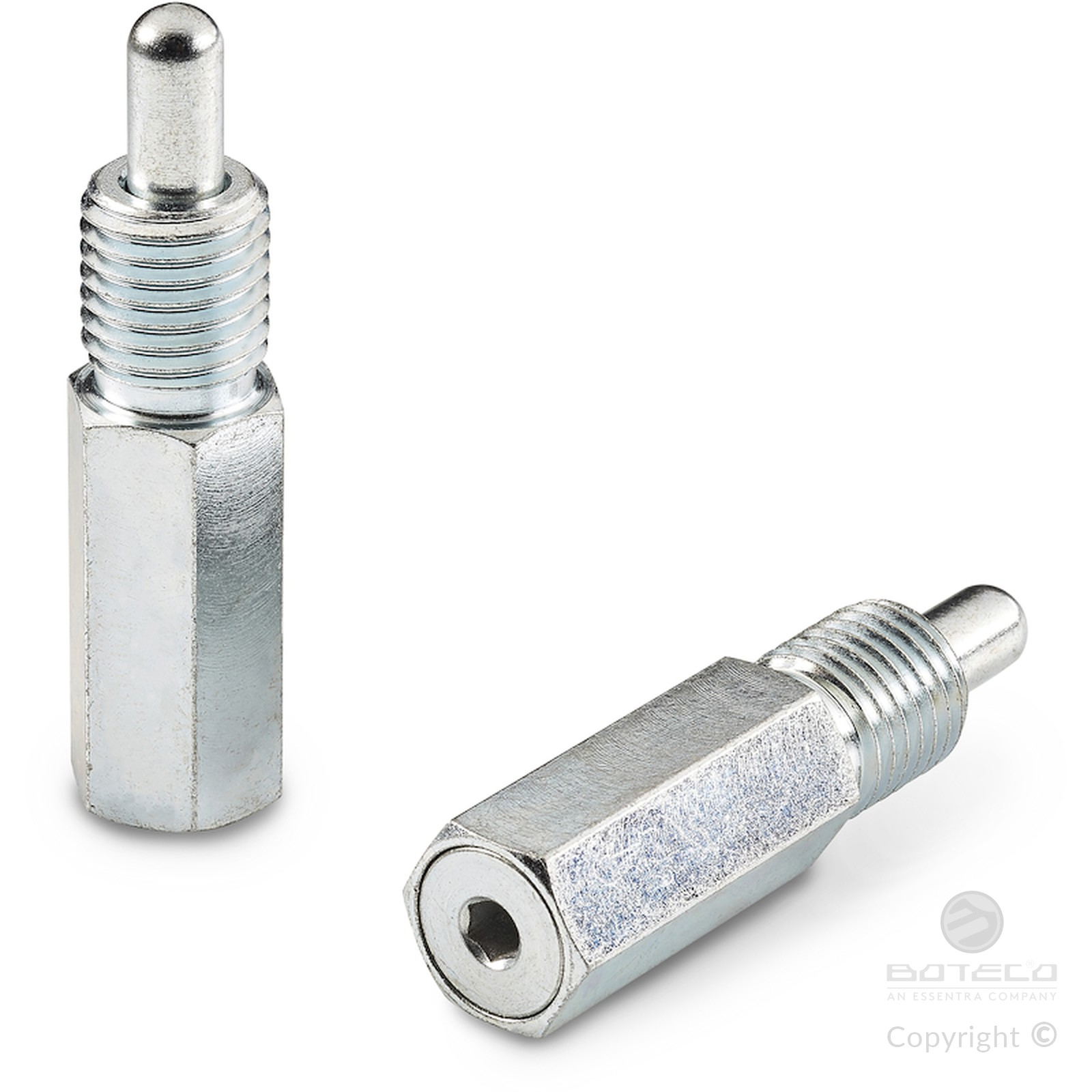

GALVANIZED STEEL HEXAGONAL PLUNGER WITH SMOOTH NOSE PIN
22
W770
Spintori filettati passo grosso - senza pomello

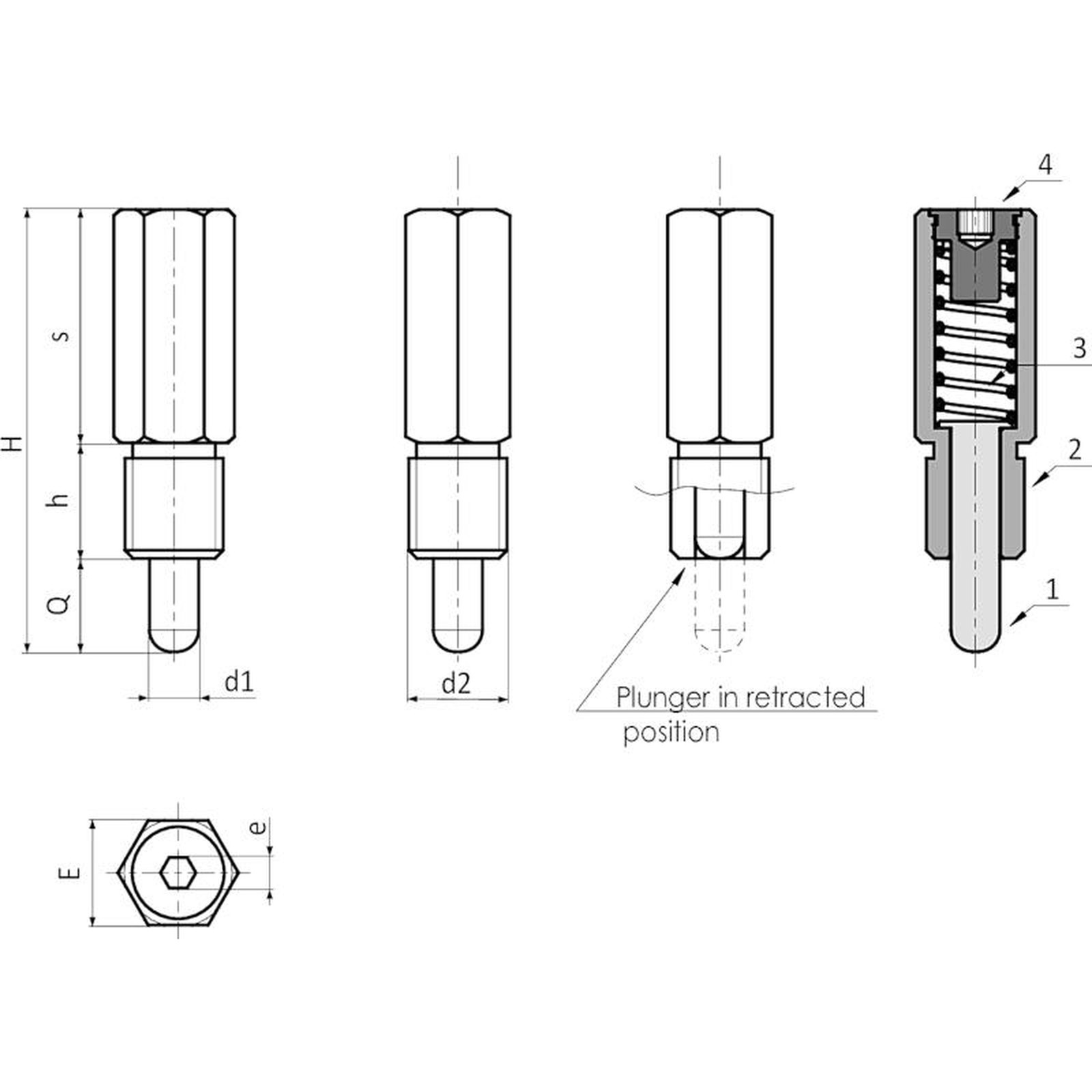

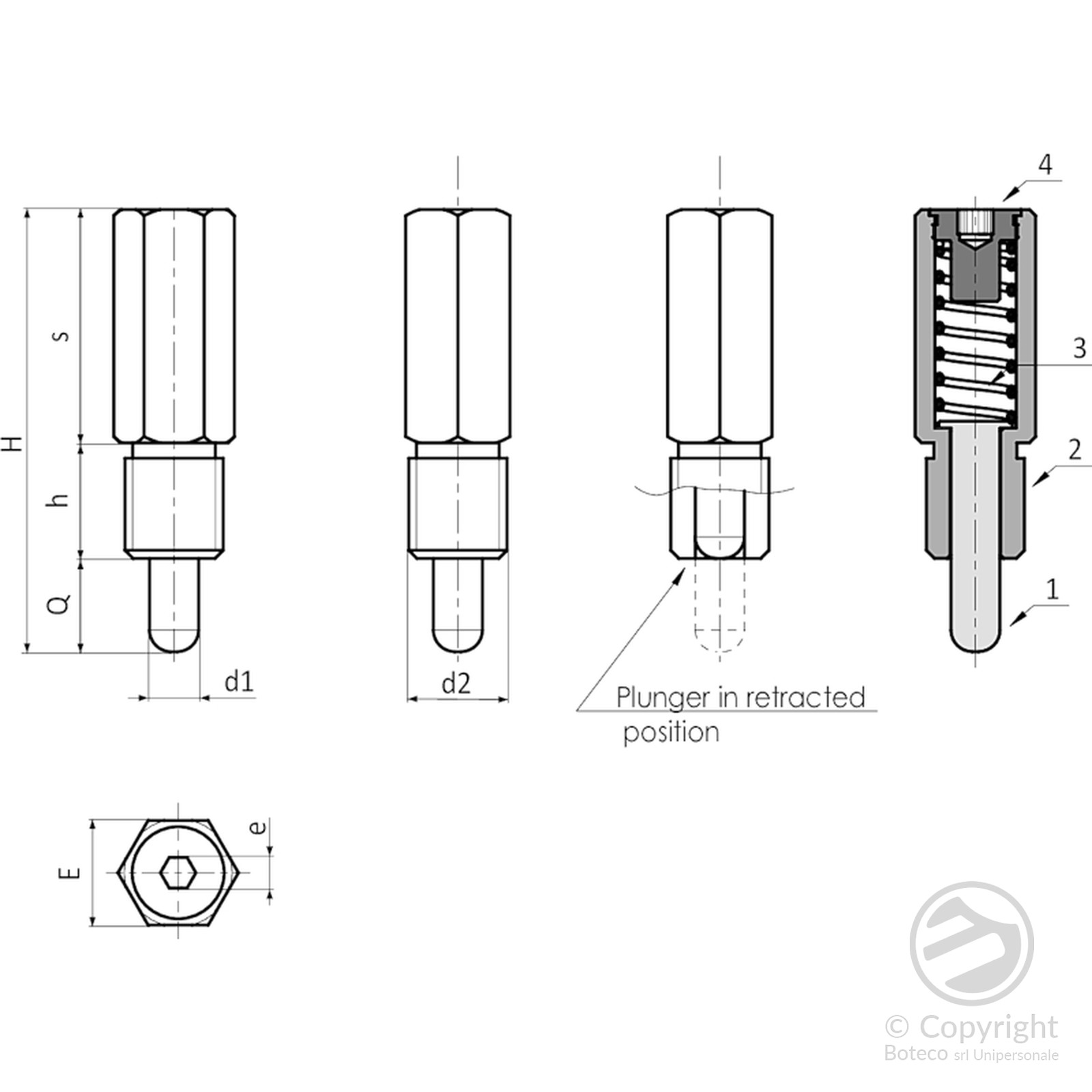

Materials:
(2) Plunger body in free-cutting steel.
(4) Turned steel closing cap, with hexagonal key seat.
(1) Turned free-cutting steel nose pin.
Surface finish:
Smooth.
Colour:
Standard blue galvanising.
Spring:
(3) Stainless steel spring (Aisi 302).
Special Requests:
None.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
| Code | Art. | E | H | h | s | e | d2 | d1 -0,04 -0,08 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| W77017.0001 | W77017.Q08X15 | 17 | 72 | 19 | 38 | 5 | M16 | 08 | 15 | 72 |
