W738CIN

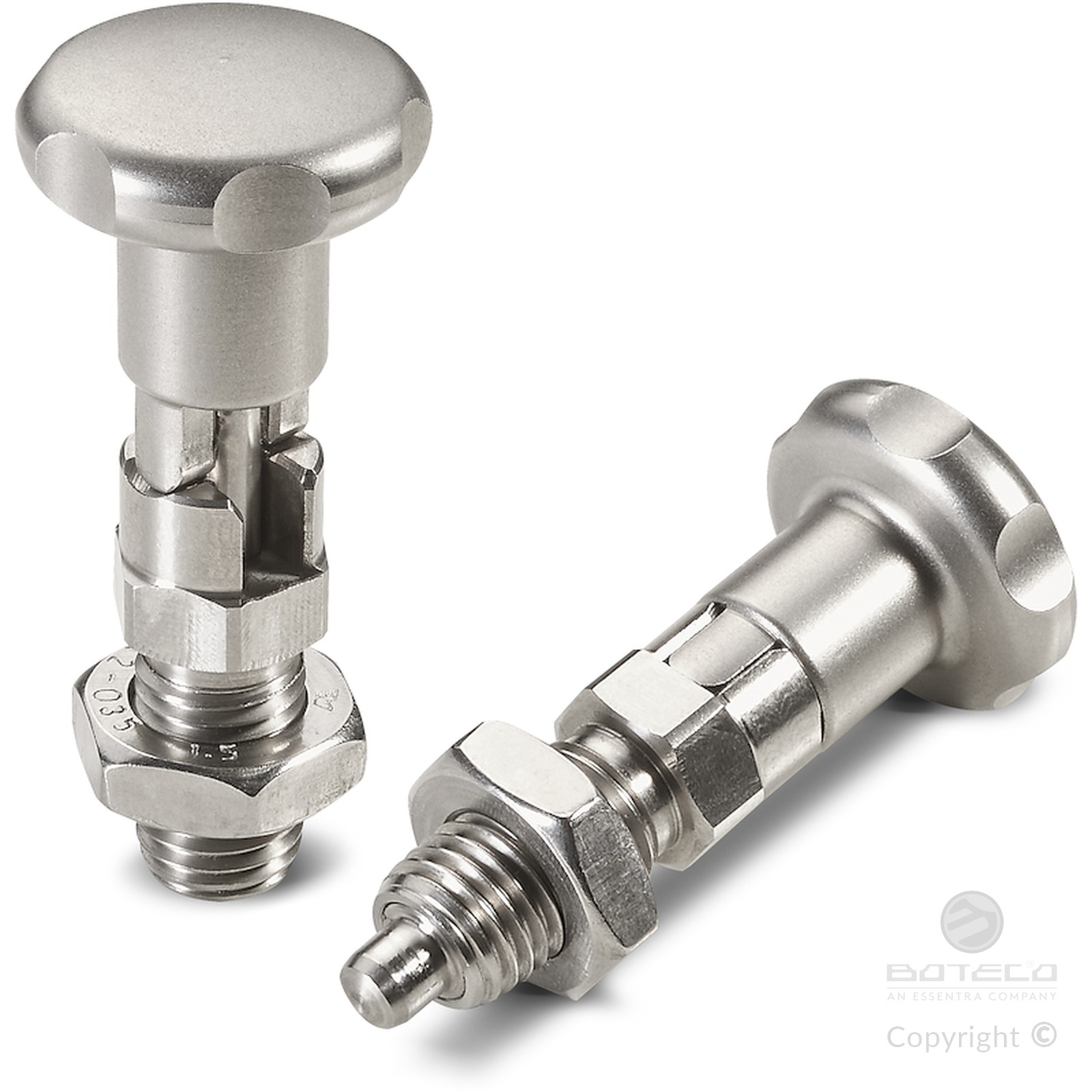

STAINLESS STEEL COMPLETE KNOB-STYLE SPRING PLUNGER WITH LOCKING POSITION AND STANDARD PITCH THREAD + LOCK NUT
Coarse pitch indexing plungers - full stainless steel
Materials:
(1) Stainless steel plunger pin (Aisi 303).
(2) Stainless steel (Aisi 303) locking indexing plunger body.
(3) Stainless steel spring (Aisi 301).
(4) Turned stainless steel lobed knob (Aisi 303).
(5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).
Surface finish:
Satin.
Colour:
Natural.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
> The nut is supplied assembled.
Special Requests:
On request the plunger can be supplied completely disassembled.
On request the nut can be supplied disassembled.

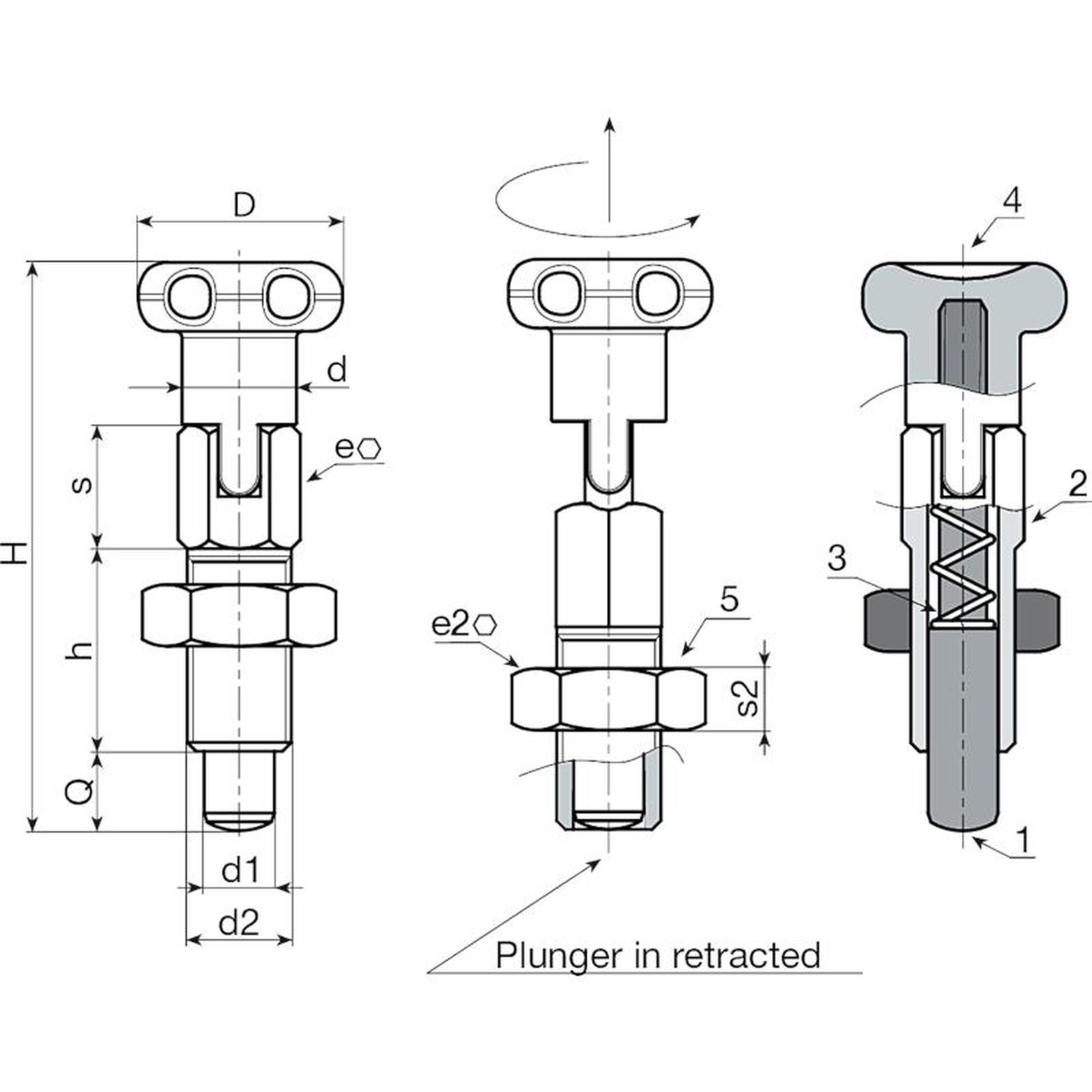

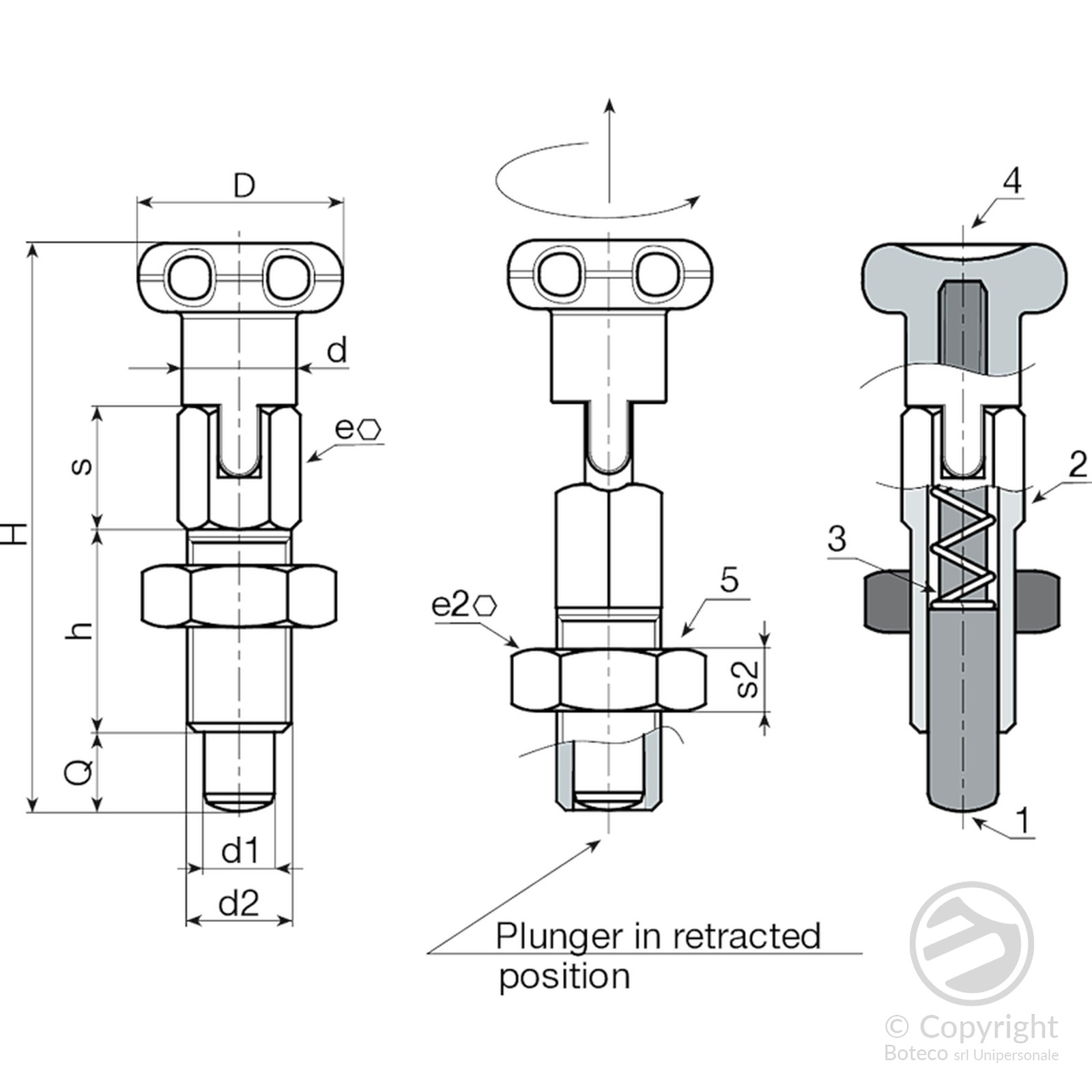

Version W738 CIN - with nut
| Code | Art. | D | d | H | h | e | s | d2 | e2 | s2 | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W738.0001 | W738.I05CIN | 18 | 9 | 46 | 16 | 8 | 10 | M08 | 13 | 5 | 5 | 5 | 26 |
| W738.0002 | W738.I06CIN | 22 | 11 | 55 | 20 | 10 | 11 | M10 | 17 | 6 | 6 | 6 | 71 |
| W738.0003 | W738.I08CIN | 24 | 13 | 66 | 24 | 12 | 14 | M12 | 19 | 7 | 8 | 8 | 110 |
