W737CIN

KNOB WITH LOCKING FULL STAINLESS STEEL INDEXING PLUNGER

Coarse pitch indexing plungers - full stainless steel

Data sheet More information

Product variants

22

W738CIN

STAINLESS STEEL COMPLETE KNOB-STYLE SPRING PLUNGER WITH LOCKING POSITION AND STANDARD PITCH THREAD + LOCK NUT

Coarse pitch indexing plungers - full stainless steel

Alternative products

22

W735CIN

KNOB WITH FULL STAINLESS STEEL INDEXING PLUNGER

Coarse pitch indexing plungers - full stainless steel
22

W736CIN

KNOB WITH FULL STAINLESS STEEL INDEXING PLUNGER - WITH NUT

Coarse pitch indexing plungers - full stainless steel
22

W738CIN

STAINLESS STEEL COMPLETE KNOB-STYLE SPRING PLUNGER WITH LOCKING POSITION AND STANDARD PITCH THREAD + LOCK NUT

Coarse pitch indexing plungers - full stainless steel
22

W793

KNOB WITH LOCKING STEEL INDEXING PLUNGER

Coarse pitch indexing plungers - with knob
22

W794

KNOB WITH LOCKING STEEL INDEXING PLUNGER - WITH NUT

Coarse pitch indexing plungers - with knob
22

W795

KNOB WITH STEEL INDEXING PLUNGER

Coarse pitch indexing plungers - with knob
22

W797

STEEL INDEXING PLUNGER WITH RING

Coarse pitch indexing plungers - without knob
22

W798

STEEL INDEXING PLUNGER WITH RING - WITH NUT

Coarse pitch indexing plungers - without knob

Materials:

(1) Stainless steel plunger pin (Aisi 303).

(2) Stainless steel (Aisi 303) locking indexing plunger body.

(3) Stainless steel spring (Aisi 301).

(4) Turned stainless steel lobed knob (Aisi 303).

Surface finish:

Satin.

Colour:

Natural.

ATTENTION:

> We recommend an H7 tolerance for the plunger stem bore.

Special Requests:

On request the plunger can be supplied completely disassembled.

Version W737 - without nut

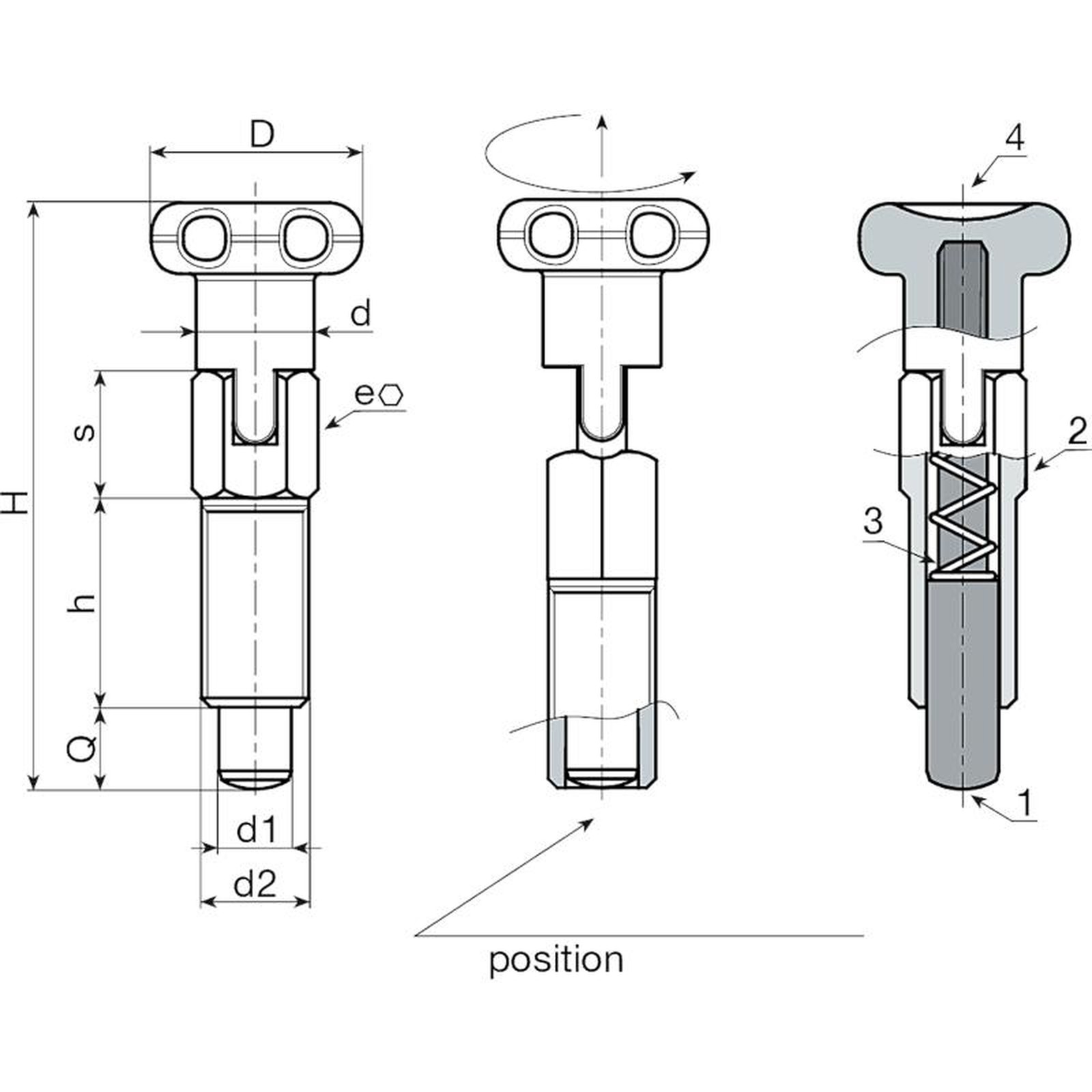

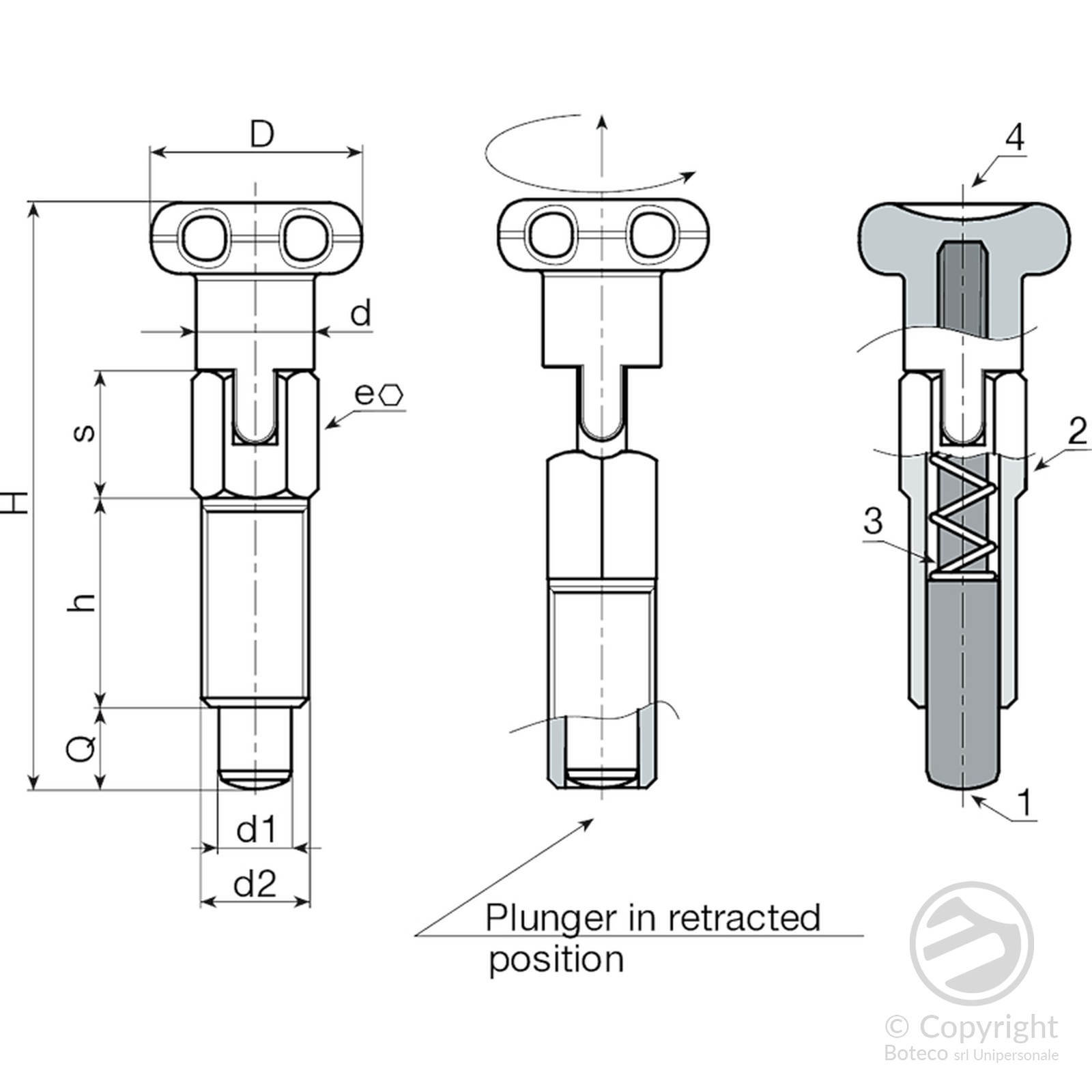

Code	Art.	D	d	H	h	e	s	d2	d1 -0,02 -0,04	Q	Weight (g)
W737.0001	W737.I05CIN	18	9	46	16	8	10	M08	5	5	26
W737.0002	W737.I06CIN	22	11	55	20	10	11	M10	6	6	53
W737.0003	W737.I08CIN	24	13	66	24	12	14	M12	8	8	74
