W736CIN

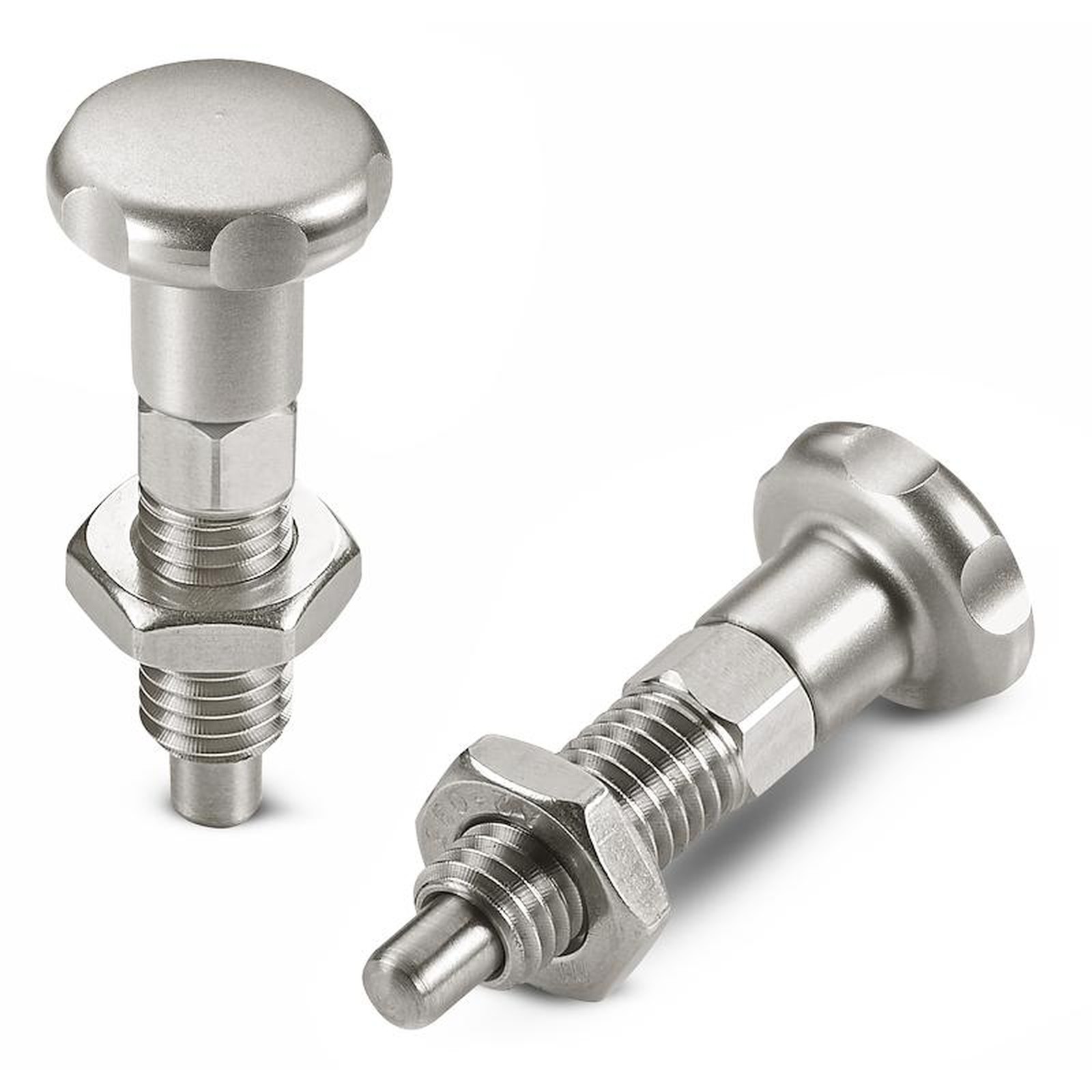

KNOB WITH FULL STAINLESS STEEL INDEXING PLUNGER - WITH NUT
Coarse pitch indexing plungers - full stainless steel

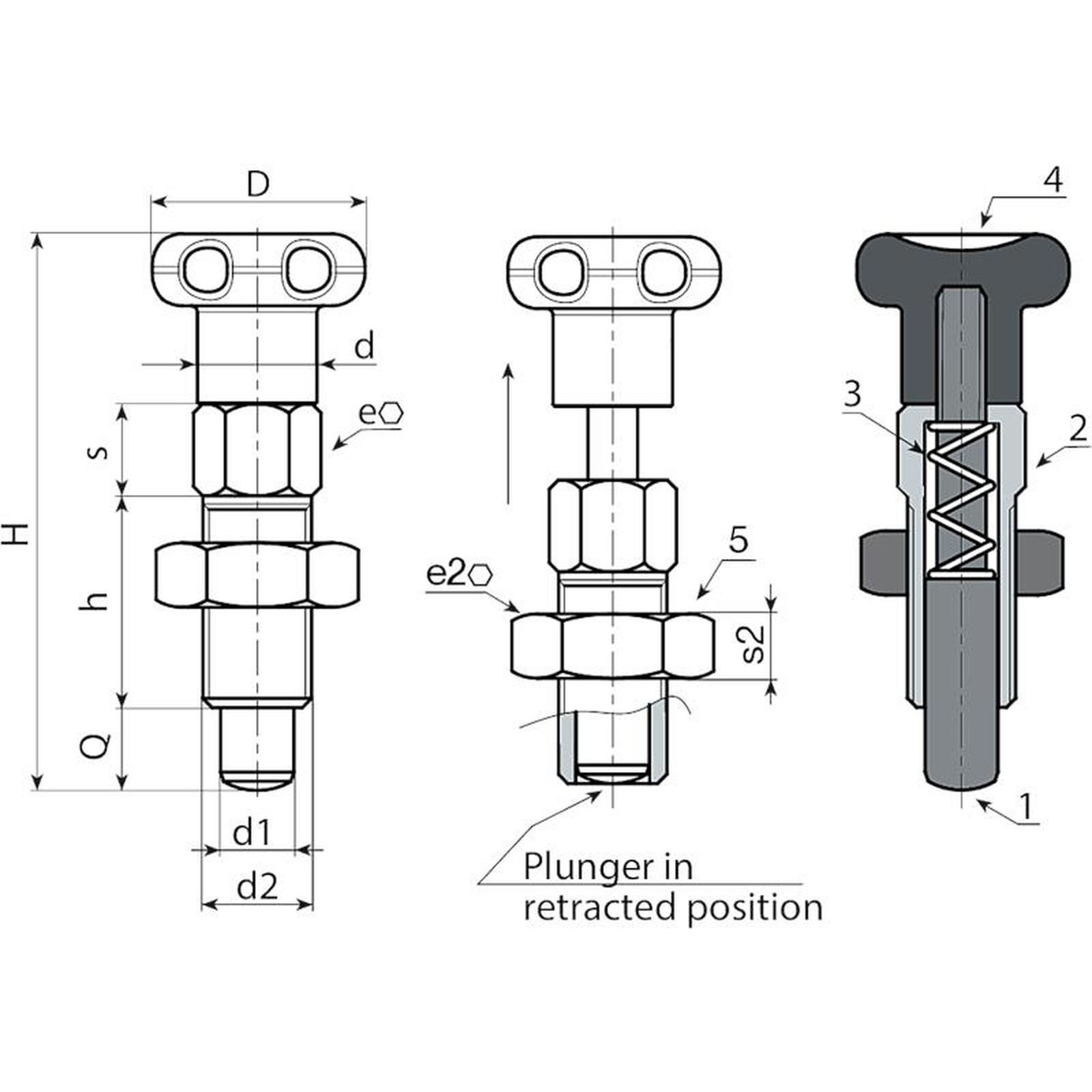

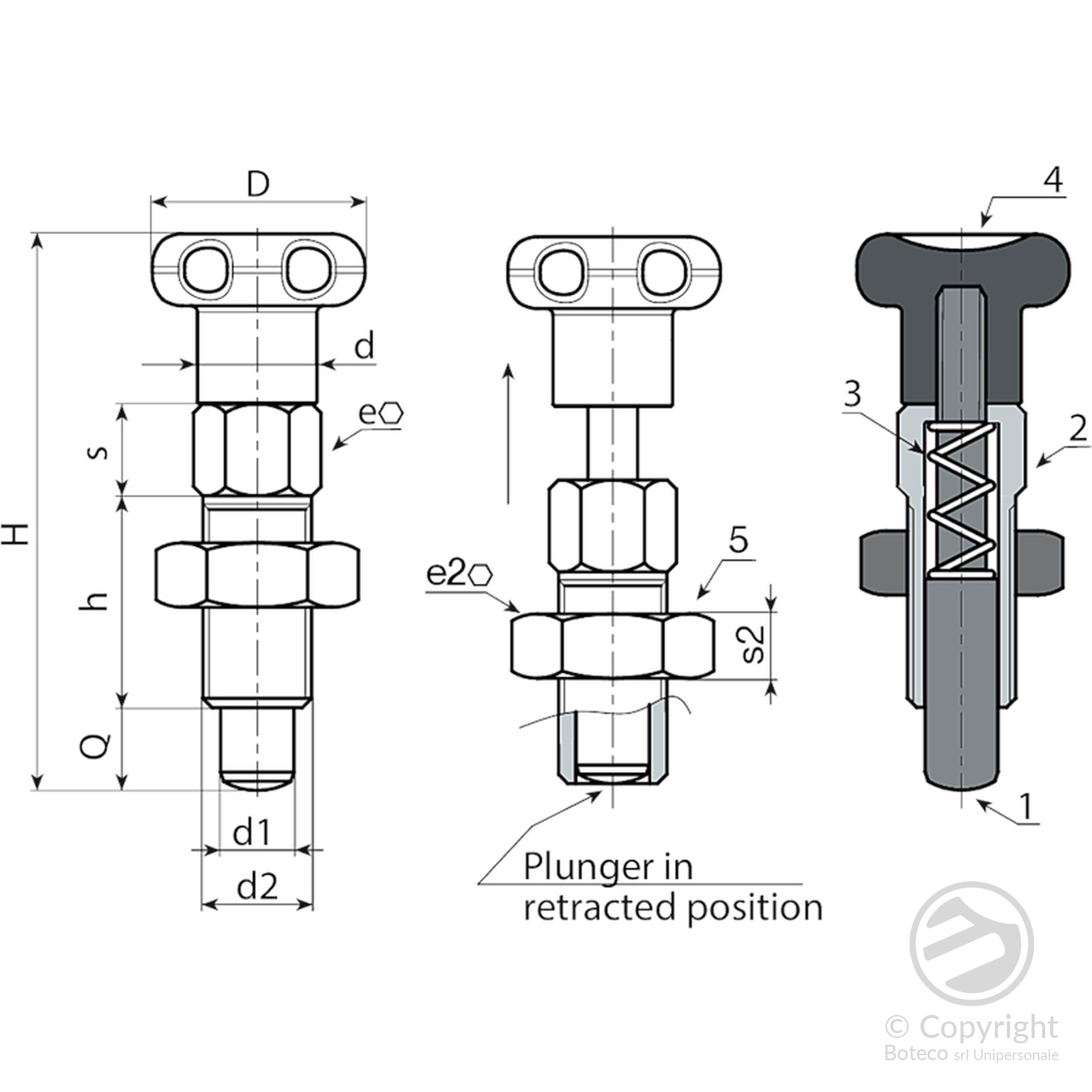

Materials:
(1) Stainless steel plunger pin (Aisi 303).
(2) Stainless steel (Aisi 303) indexing plunger body.
(3) Stainless steel spring (Aisi 301).
(4) Turned stainless steel lobed knob (Aisi 303).
(5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).
Surface finish:
Satin.
Colour:
Natural.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
> The nut is supplied assembled.
Special Requests:
On request the plunger can be supplied completely disassembled.
On request the nut can be supplied disassembled.
Version W736CIN - with nut
| Code | Art. | D | d | H | h | e | s | d2 | e2 | s2 | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W736.0001 | W736.I05CIN | 18 | 9 | 42 | 16 | 8 | 6 | M8 | 13 | 5 | 5 | 5 | 30 |
| W736.0002 | W736.I06CIN | 22 | 11 | 52 | 20 | 10 | 7,5 | M10 | 17 | 6 | 6 | 6 | 55 |
| W736.0003 | W736.I08CIN | 24 | 13 | 61 | 24 | 12 | 9 | M12 | 19 | 7 | 8 | 8 | 71 |
