KNOB WITH FULL STAINLESS STEEL INDEXING PLUNGER

Coarse pitch indexing plungers - full stainless steel

Data sheet More information

Product variants

22

W736CIN

KNOB WITH FULL STAINLESS STEEL INDEXING PLUNGER - WITH NUT

Coarse pitch indexing plungers - full stainless steel

Alternative products

22

W737CIN

KNOB WITH LOCKING FULL STAINLESS STEEL INDEXING PLUNGER

Coarse pitch indexing plungers - full stainless steel
22

W738CIN

STAINLESS STEEL COMPLETE KNOB-STYLE SPRING PLUNGER WITH LOCKING POSITION AND STANDARD PITCH THREAD + LOCK NUT

Coarse pitch indexing plungers - full stainless steel
22

W793

KNOB WITH LOCKING STEEL INDEXING PLUNGER

Coarse pitch indexing plungers - with knob
22

W794

KNOB WITH LOCKING STEEL INDEXING PLUNGER - WITH NUT

Coarse pitch indexing plungers - with knob
22

W796

KNOB WITH STEEL INDEXING PLUNGER - WITH NUT

Coarse pitch indexing plungers - with knob
22

W797

STEEL INDEXING PLUNGER WITH RING

Coarse pitch indexing plungers - without knob
22

W798

STEEL INDEXING PLUNGER WITH RING - WITH NUT

Coarse pitch indexing plungers - without knob

Materials:

(1) Stainless steel plunger pin (Aisi 303).

(2) Stainless steel (Aisi 303) indexing plunger body.

(3) Stainless steel spring (Aisi 301).

(4) Turned stainless steel lobed knob (Aisi 303).

Surface finish:

Satin.

Colour:

Natural.

ATTENTION:

> We recommend an H7 tolerance for the plunger stem bore.

Special Requests:

On request the plunger can be supplied completely disassembled.

Version W735CIN - without nut

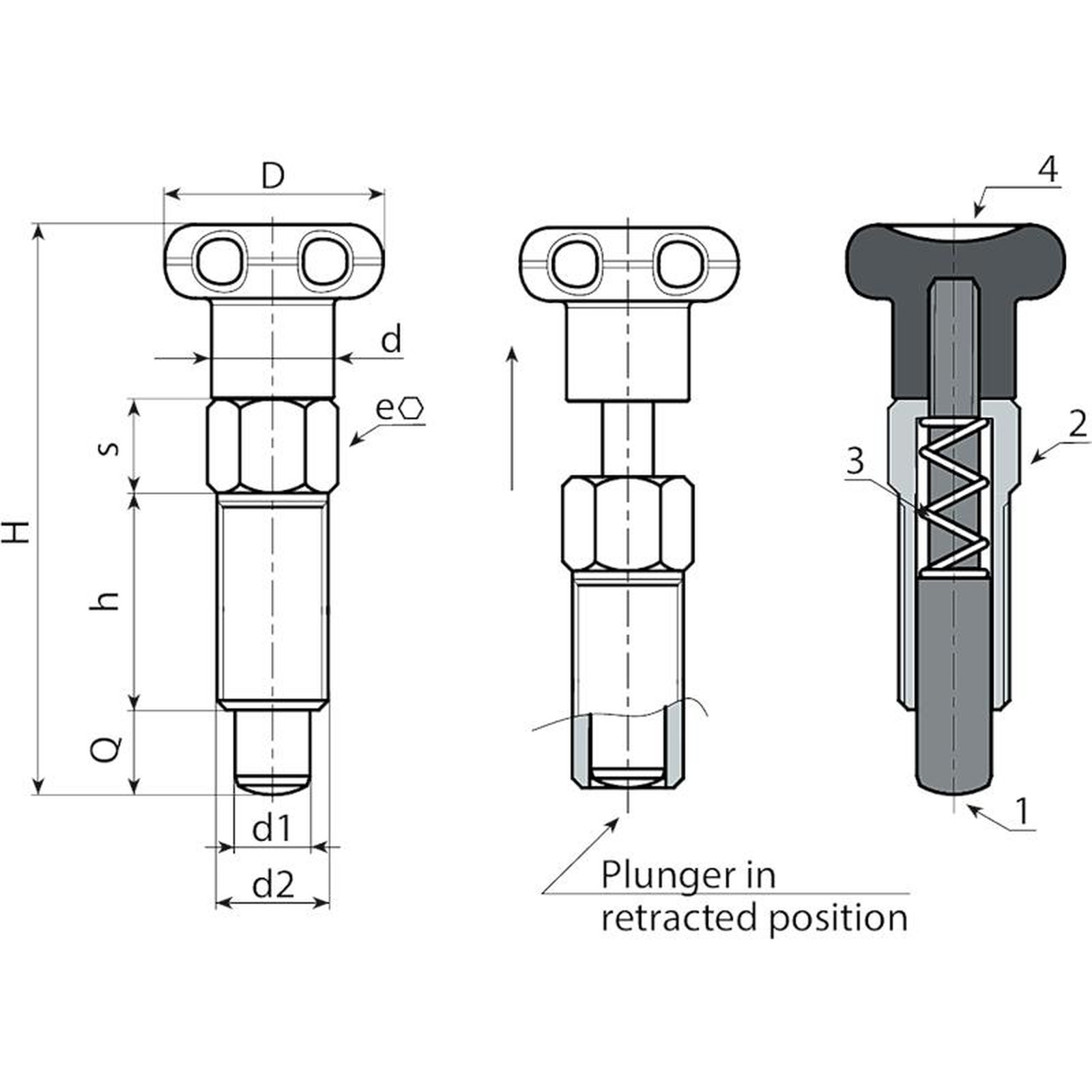

Code	Art.	D	d	H	h	e	s	d2	d1 -0,02 -0,04	Q	Weight (g)
W735.0001	W735.I05CIN	18	9	42	16	8	6	M8	5	5	21
W735.0002	W735.I06CIN	22	11	52	20	10	7,5	M10	6	6	23
W735.0003	W735.I08CIN	24	13	61	24	12	9	M12	8	8	69
