W722CIN

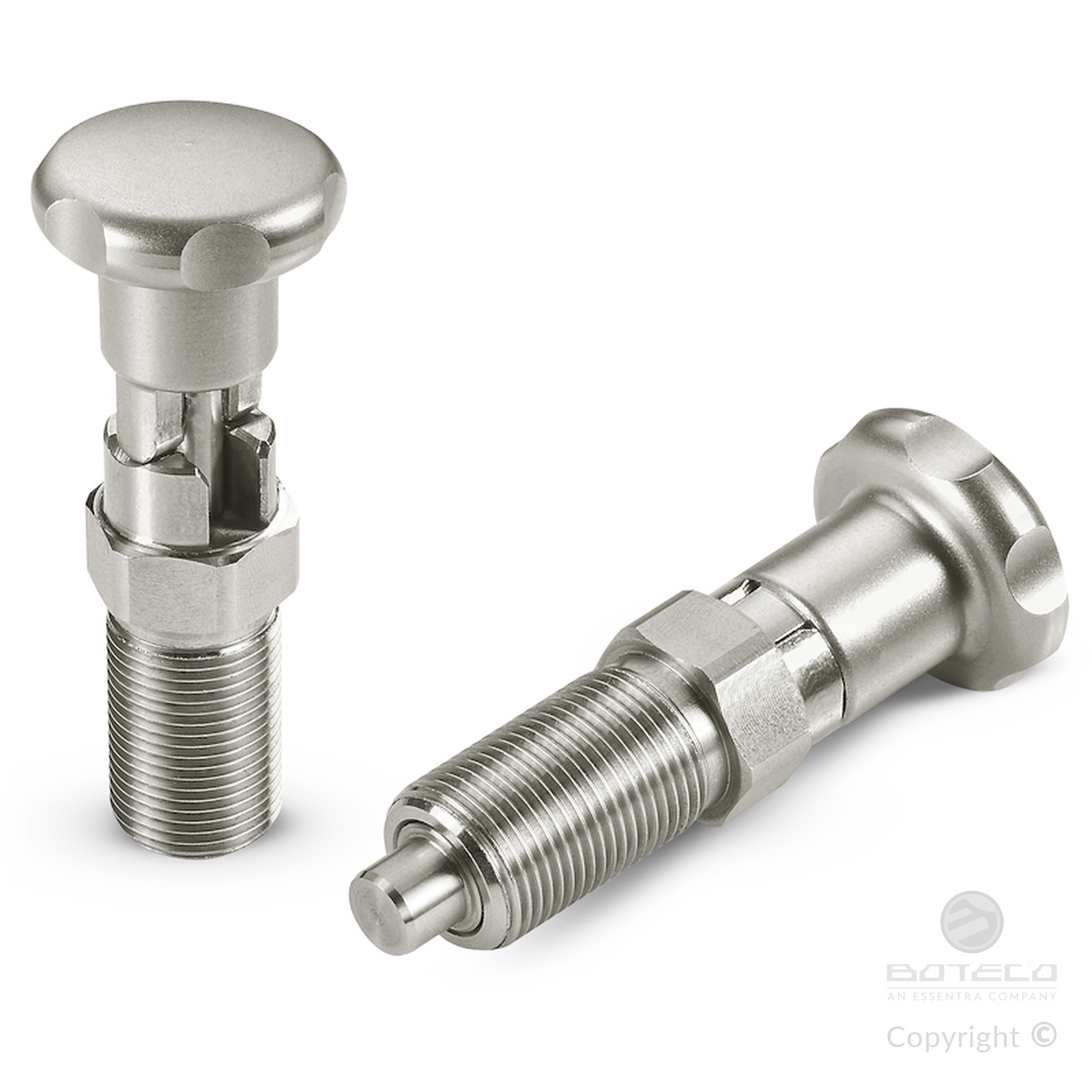

KNOB WITH LOCKING FULL STAINLESS STEEL INDEXING PLUNGER
Fine pitch indexing plungers - full stainless steel
Materials:
(1) Stainless steel plunger pin (Aisi 303).
(2) Threaded stainless steel hexagon ring nut (Aisi 303).
(3) Stainless steel spring (Aisi 301).
(4) Turned stainless steel lobed knob (Aisi 303).
Surface finish:
Satin.
Colour:
Natural.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
Special Requests:
Upon request and for special quantities the plunger can be supplied completely disassembled.
Version W722 CIN - without nut

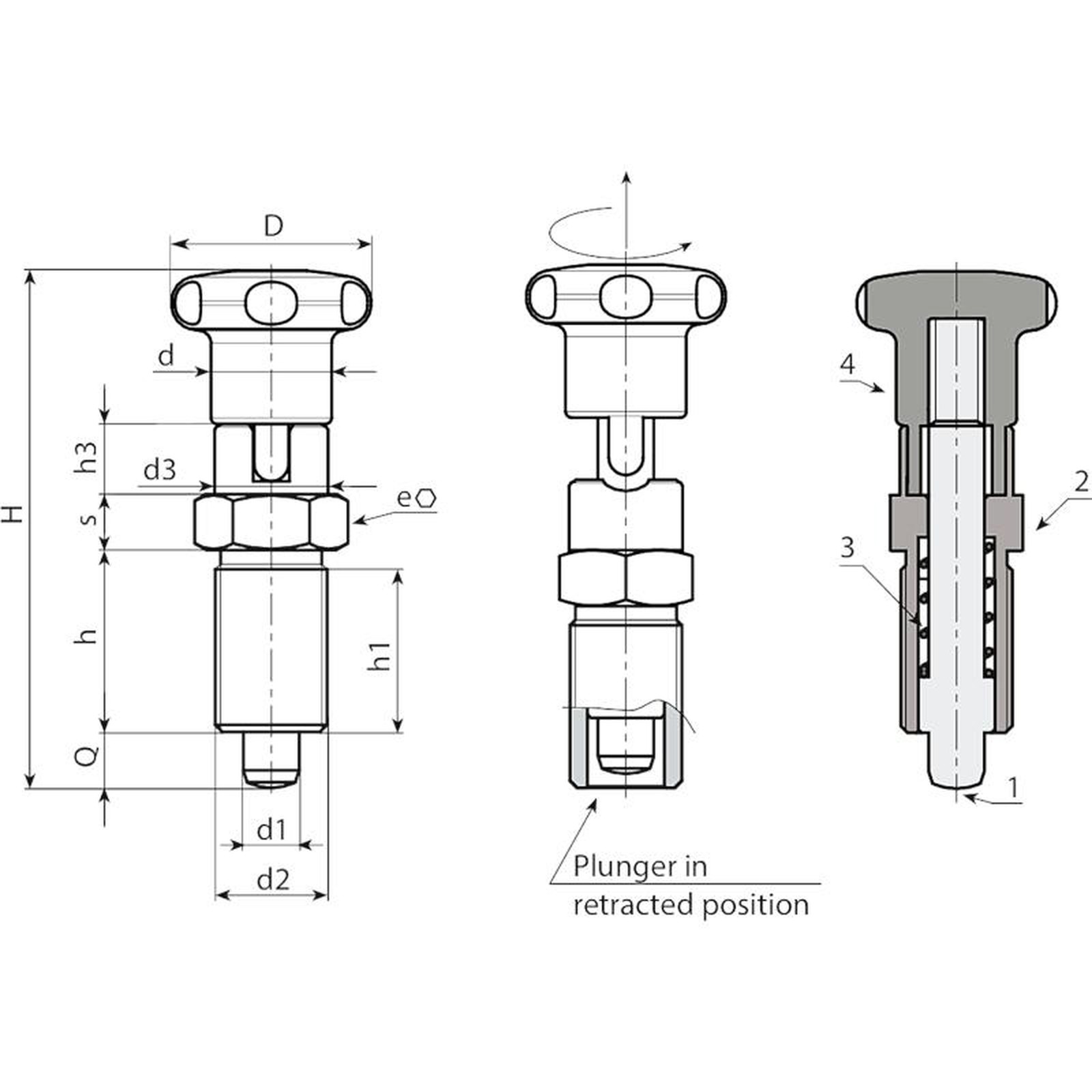

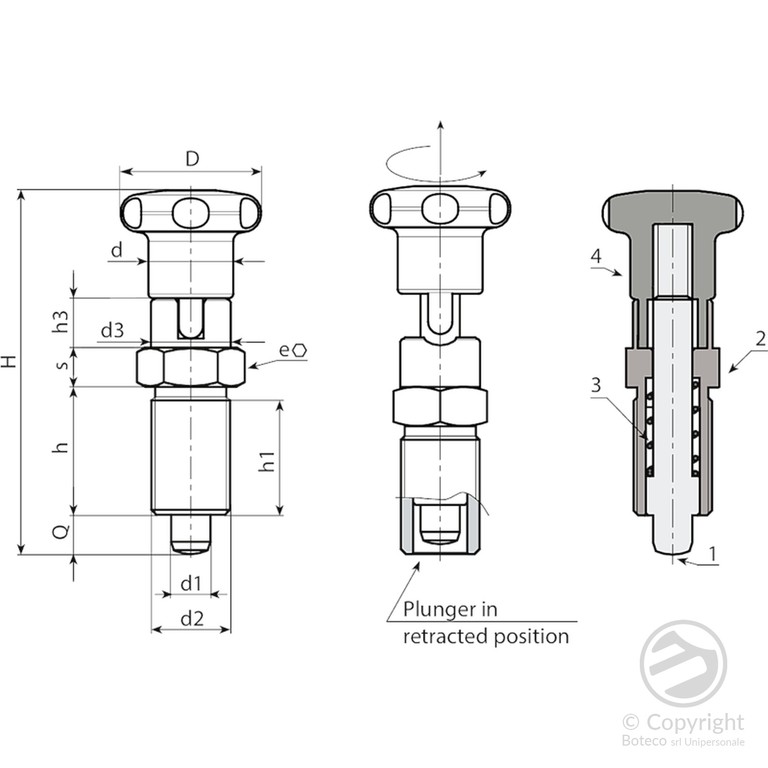

| Code | Art. | D | H | h | h1 | h3 | d2 | d | d3 | e | s | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W722.0001 | W722.I0501CIN | 22 | 52 | 17 | 15 | 6.5 | M10x1 | 12 | 12 | 12 | 5 | 5 | 5 | - |
| W722.0002 | W722.I0601CIN | 27 | 61 | 20 | 18 | 7.5 | M12x1,5 | 14 | 14 | 14 | 6 | 6 | 6 | - |
| W722.0004 | W722.I0801CIN | 32 | 77 | 26 | 23 | 9.5 | M16x1,5 | 19 | 19 | 19 | 8 | 8 | 8 | - |
| W722.0005 | W722.I1001CIN | 33 | 90 | 33 | 30 | 11.5 | M20x1,5 | 19 | 19 | 22 | 10 | 10 | 10 | 210 |
