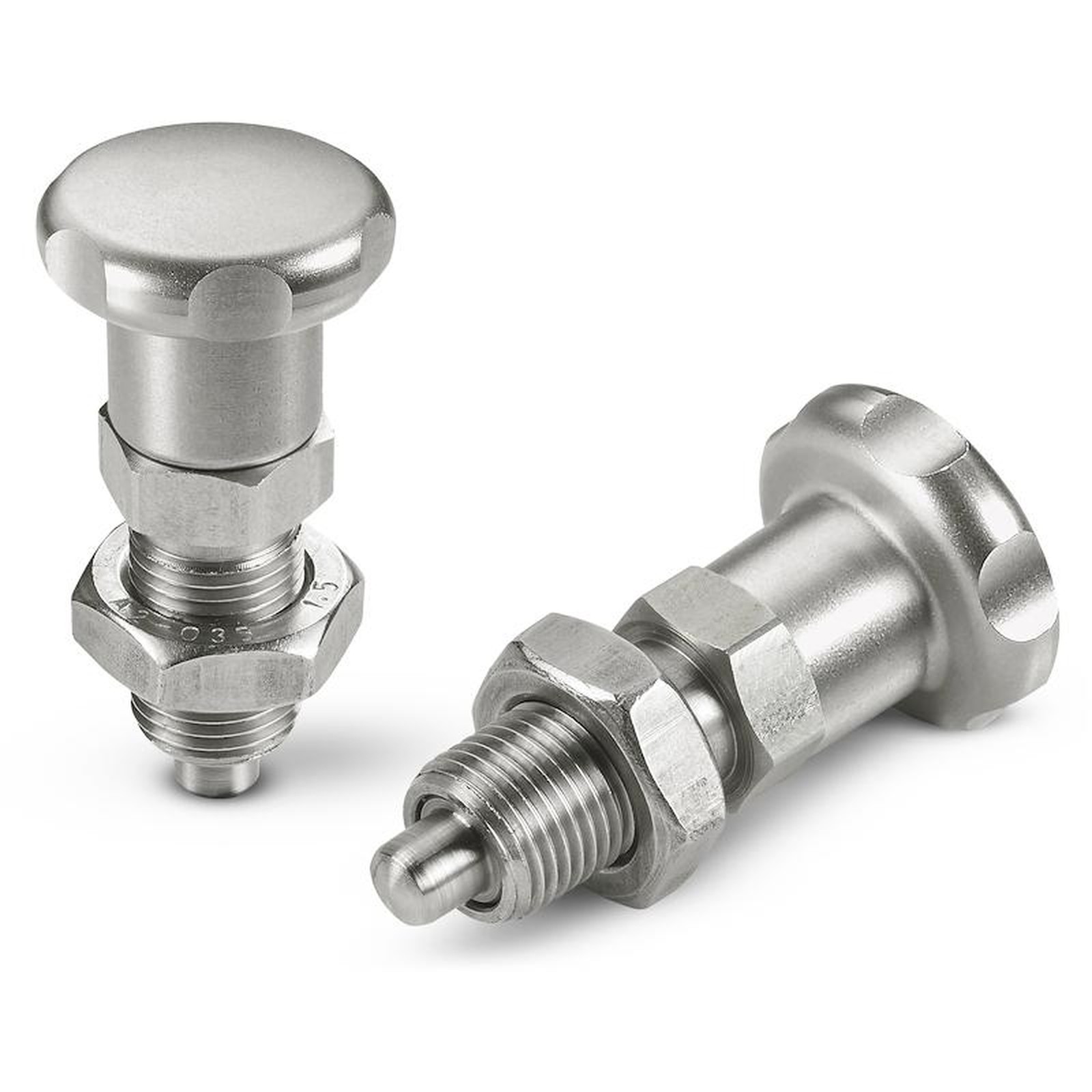

KNOB WITH FULL STAINLESS STEEL INDEXING PLUNGER - WITH NUT
22
W721CIN
Spintori filettati passo fine - Inox integrale
Materials:
(1) Stainless steel plunger pin (Aisi 303).
(2) Threaded stainless steel hexagon ring nut (Aisi 303).
(3) Stainless steel spring (Aisi 301).
(4) Turned stainless steel lobed knob (Aisi 303).
(5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).
Surface finish:
Satin.
Colour:
Natural.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
> The nut is supplied assembled.
Special Requests:
Upon request and for special quantities the plunger can be supplied completely disassembled.
On request the nut can be supplied disassembled.
Version W721CIN - with nut

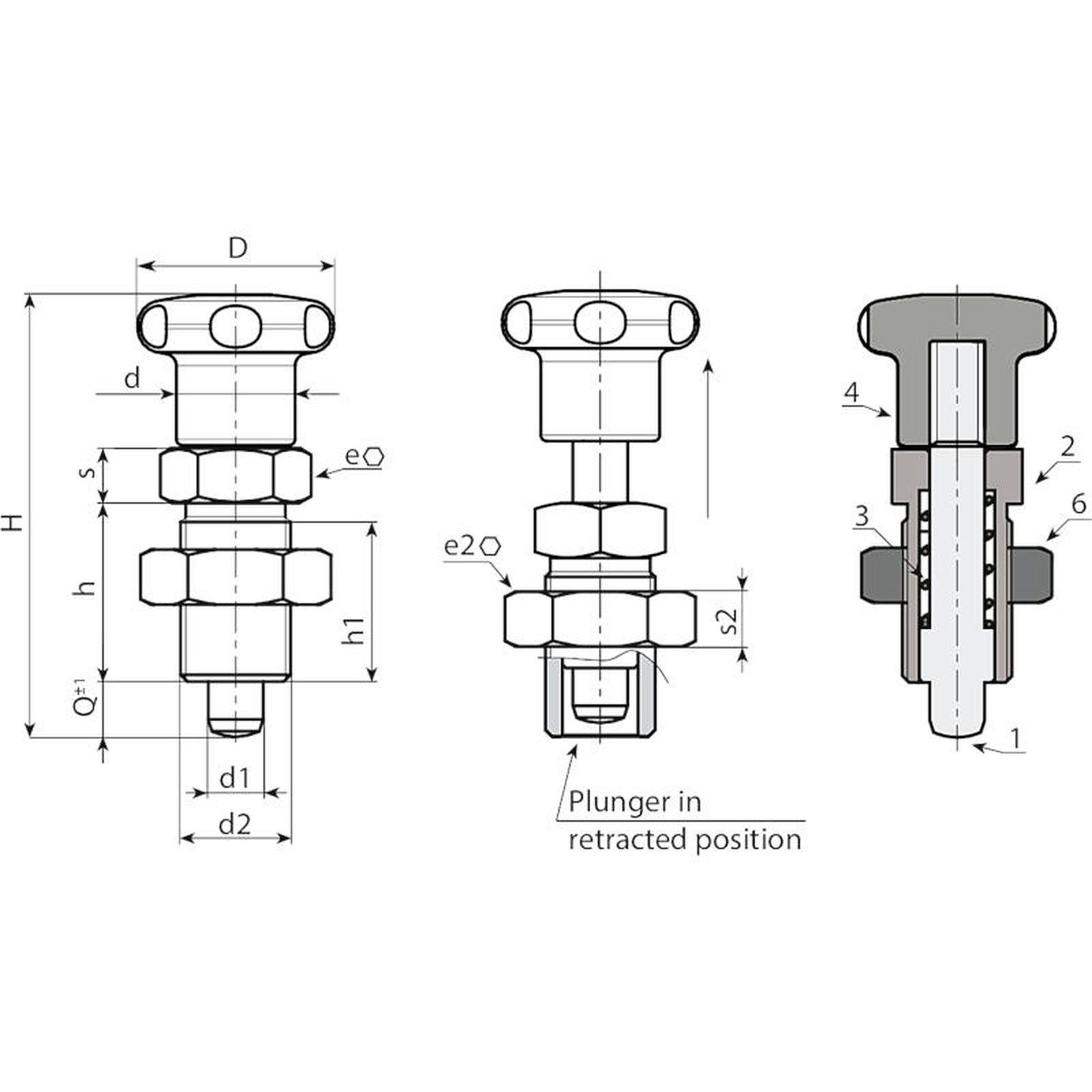

| Code | Art. | D | H | h | h1 | d2 | d | e | s | e2 | s2 | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W721.0001 | W721.I0501CIN | 22 | 45 | 17 | 15 | M10x1 | 12 | 12 | 5 | 17 | 6 | 5 | 5 | - |
| W721.0002 | W721.I0601CIN | 27 | 54 | 20 | 18 | M12x1,5 | 14 | 14 | 6 | 19 | 7 | 6 | 6 | - |
| W721.0003 | W721.I0801CIN | 32 | 67 | 26 | 23 | M16x1,5 | 19 | 19 | 8 | 24 | 8 | 8 | 8 | - |
| W721.0004 | W721.I1001CIN | 32 | 79 | 33 | 30 | M20x1,5 | 20 | 22 | 10 | 30 | 9 | 10 | 10 | 220 |
