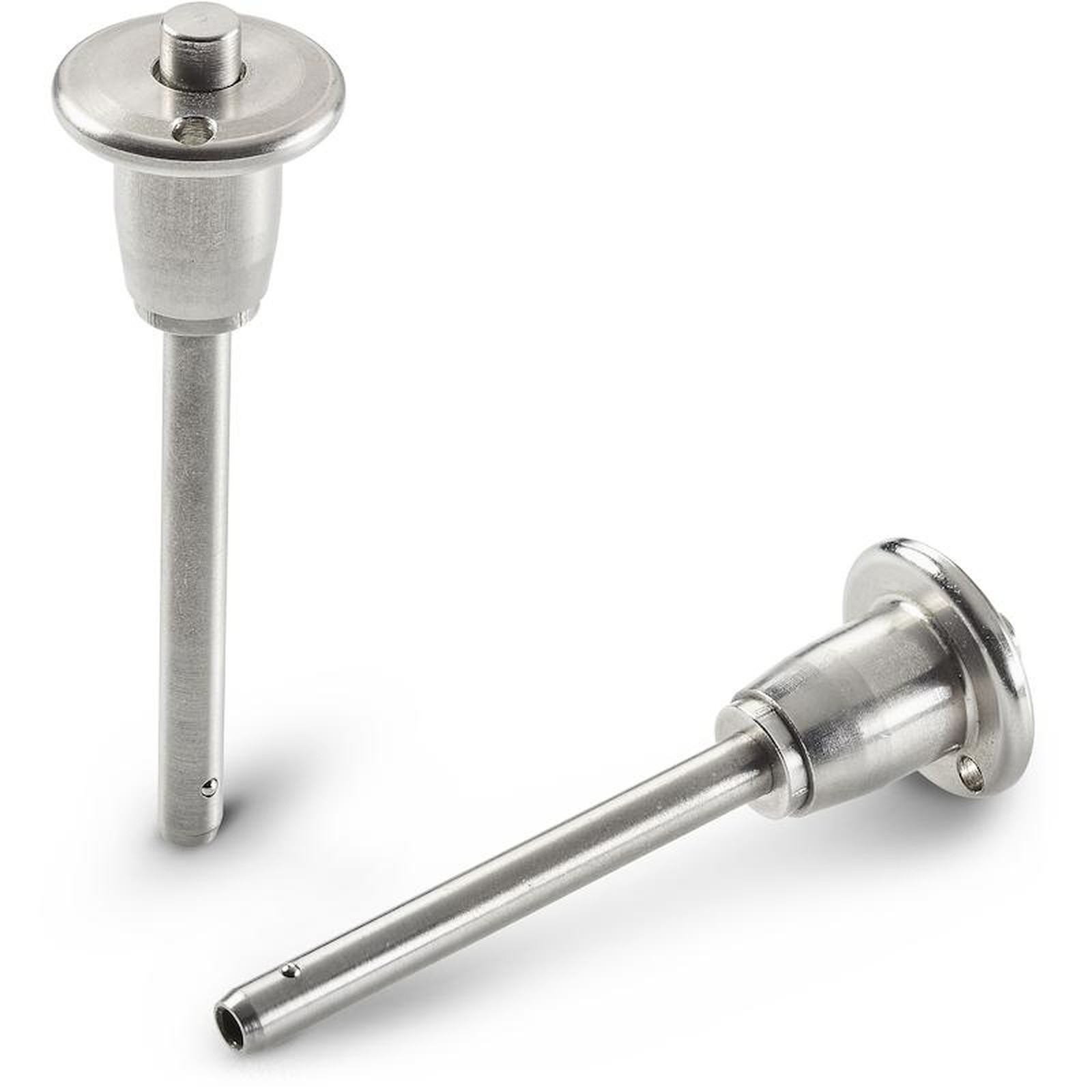

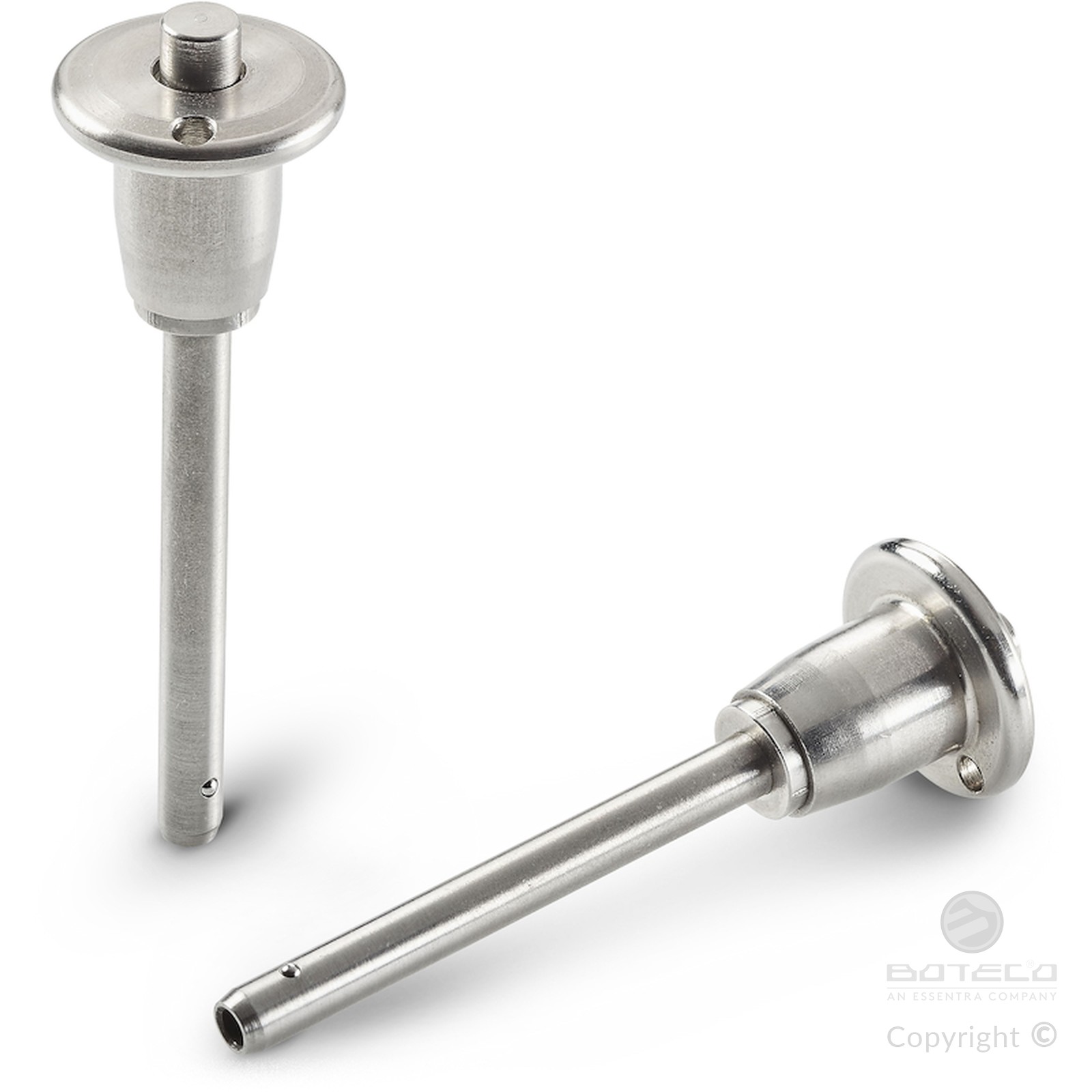

QUICK RELEASE KNOB DETENT PIN IN FULL STAINLESS STEEL

22

W695CIN


Posizionatori con sfera e molla

Materials:

(1) Hardened stainless steel balls (Aisi 440C).

(2) Stainless steel pin (Aisi 630), with high mechanical and chemical resistance, hardened (HRC 40).

(4) Turned stainless steel knob (Aisi 303).

(5) Stainless steel spring (Aisi 301).

(6) Turned stainless steel button (Aisi 303).

Surface finish:

Natural with protective passivation.

Colour:

Natural.

ATTENTION:

> We recommend an H11 tolerance for the plunger stem bore.

Special Requests:

None.

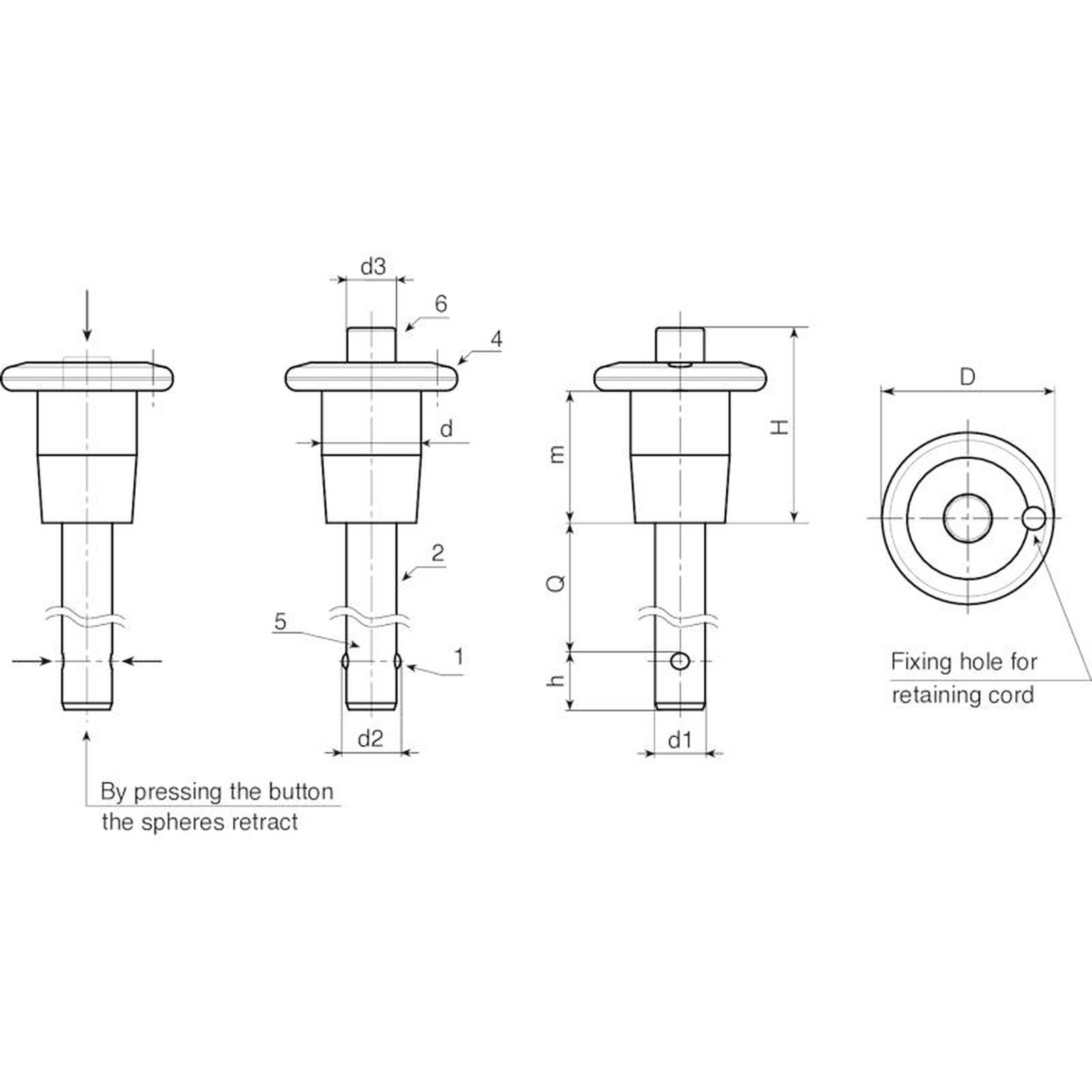

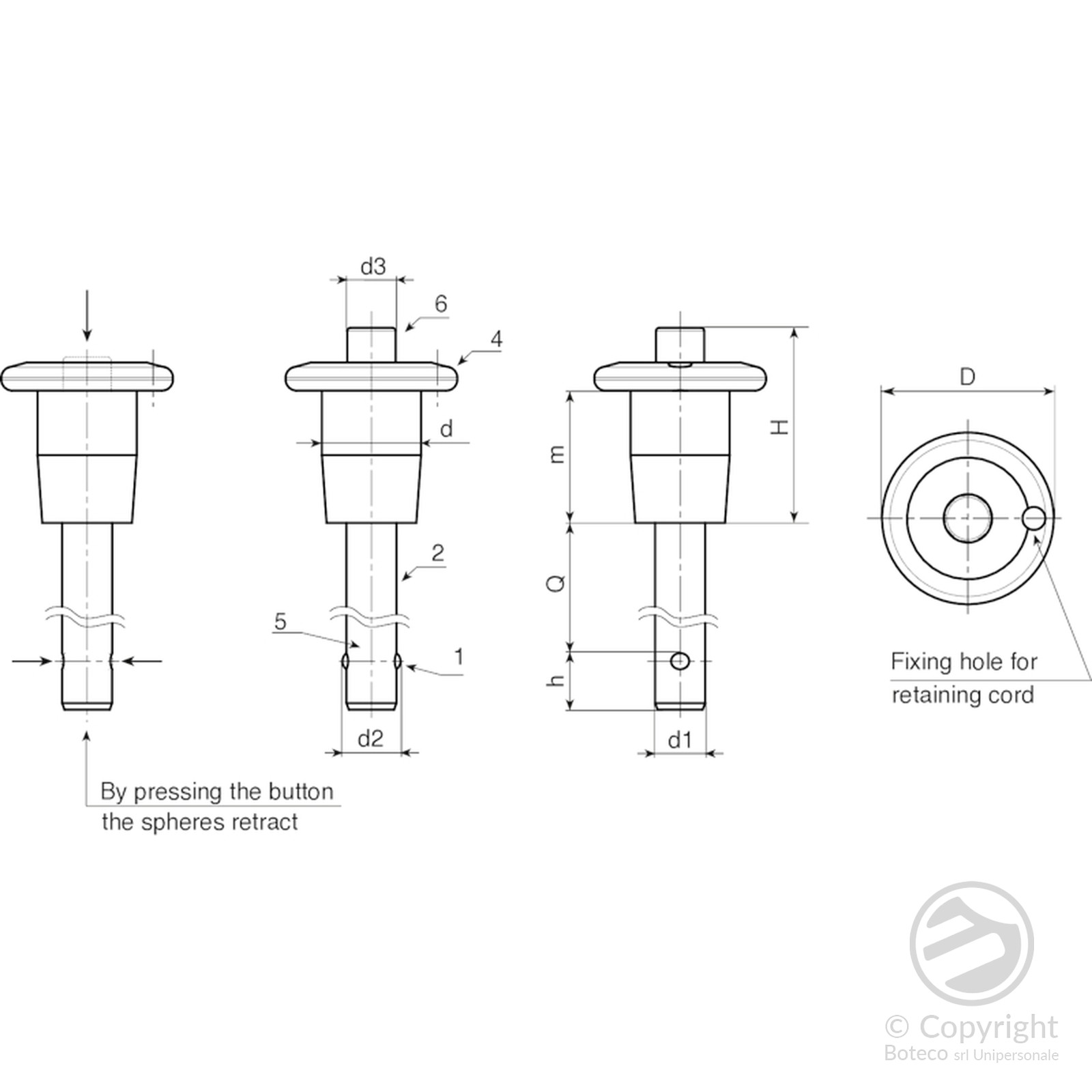

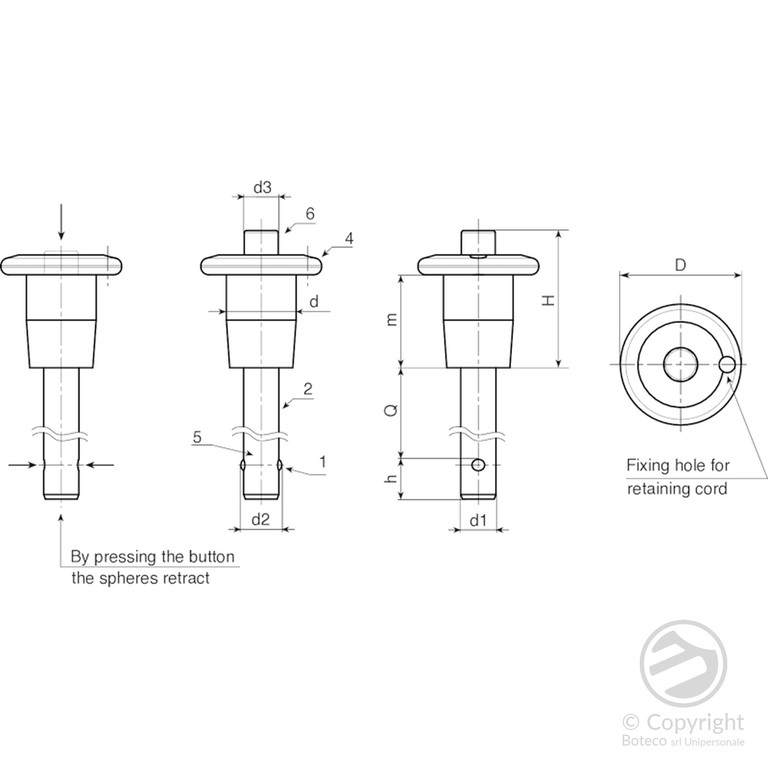

Data sheet
Code Art. D H m d d2 (±0.25) d3 d1 (-0,04 -0,08) Q (+0.5) h (±1) Weight (g)
W69521.0001 W69521.I05X10CIN 21 23,5 16 12 5,54 6 5 10 6 22
W69521.0002 W69521.I05X15CIN 21 23,5 16 12 5,54 6 5 15 6 23
W69521.0003 W69521.I05X20CIN 21 23,5 16 12 5,54 6 5 20 6 23
W69521.0004 W69521.I05X25CIN 21 23,5 16 12 5,54 6 5 25 6 24
W69521.0005 W69521.I05X30CIN 21 23,5 16 12 5,54 6 5 30 6 25
W69521.0006 W69521.I05X35CIN 21 23,5 16 12 5,54 6 5 35 6 25
W69521.0007 W69521.I05X40CIN 21 23,5 16 12 5,54 6 5 40 6 26
W69521.0008 W69521.I05X50CIN 21 23,5 16 12 5,54 6 5 50 6 28
W69521.0009 W69521.I05X60CIN 21 23,5 16 12 5,54 6 5 60 6 29
W69521.0010 W69521.I05X70CIN 21 23,5 16 12 5,54 6 5 70 6 30
W69521.0011 W69521.I06X10CIN 21 23,5 16 12 6,99 6 6 10 7 23
W69521.0012 W69521.I06X15CIN 21 23,5 16 12 6,99 6 6 15 7 24
W69521.0013 W69521.I06X20CIN 21 23,5 16 12 6,99 6 6 20 7 25
W69521.0014 W69521.I06X25CIN 21 23,5 16 12 6,99 6 6 25 7 26
W69521.0015 W69521.I06X30CIN 21 23,5 16 12 6,99 6 6 30 7 27
W69521.0016 W69521.I06X35CIN 21 23,5 16 12 6,99 6 6 35 7 28
W69521.0017 W69521.I06X40CIN 21 23,5 16 12 6,99 6 6 40 7 29,5
W69521.0018 W69521.I06X50CIN 21 23,5 16 12 6,99 6 6 50 7 32
W69521.0019 W69521.I06X60CIN 21 23,5 16 12 6,99 6 6 60 7 34
W69521.0020 W69521.I06X70CIN 21 23,5 16 12 6,99 6 6 70 7 36
W69521.0021 W69521.I06X80CIN 21 23,5 16 12 6,99 6 6 80 7 38,5
W69521.0022 W69521.I08X10CIN 21 23,5 16 12 9,42 6 8 10 8 27
W69521.0023 W69521.I08X15CIN 21 23,5 16 12 9,42 6 8 15 8 29
W69521.0024 W69521.I08X20CIN 21 23,5 16 12 9,42 6 8 20 8 31
W69521.0025 W69521.I08X25CIN 21 23,5 16 12 9,42 6 8 25 8 32
W69521.0026 W69521.I08X30CIN 21 23,5 16 12 9,42 6 8 30 8 35
W69521.0027 W69521.I08X35CIN 21 23,5 16 12 9,42 6 8 35 8 36
W69521.0028 W69521.I08X40CIN 21 23,5 16 12 9,42 6 8 40 8 38
W69521.0029 W69521.I08X50CIN 21 23,5 16 12 9,42 6 8 50 8 42
W69521.0030 W69521.I08X60CIN 21 23,5 16 12 9,42 6 8 60 8 46
W69521.0031 W69521.I08X70CIN 21 23,5 16 12 9,42 6 8 70 8 50
W69521.0032 W69521.I08X80CIN 21 23,5 16 12 9,42 6 8 80 8 54
W69525.0001 W69525.I10X100CIN 25,5 26 18 14 11,86 7,5 10 100 9 96
W69535.0002 W69535.I12X20CIN 35 32,5 22 18 14,45 10,5 12 20 10 98
W69535.0003 W69535.I12X25CIN 35 32,5 22 18 14,45 10,5 12 25 10 102
W69535.0004 W69535.I12X30CIN 35 32,5 22 18 14,45 10,5 12 30 10 107
W69535.0005 W69535.I12X35CIN 35 32,5 22 18 14,45 10,5 12 35 10 110
W69535.0006 W69535.I12X40CIN 35 32,5 22 18 14,45 10,5 12 40 10 115
W69535.0007 W69535.I12X50CIN 35 32,5 22 18 14,45 10,5 12 50 10 123
W69535.0008 W69535.I12X60CIN 35 32,5 22 18 14,45 10,5 12 60 10 132
W69535.0009 W69535.I12X70CIN 35 32,5 22 18 14,45 10,5 12 70 10 140
W69535.0010 W69535.I12X80CIN 35 32,5 22 18 14,45 10,5 12 80 10 150
W69535.0011 W69535.I12X90CIN 35 32,5 22 18 14,45 10,5 12 90 10 157
W69535.0001 W69535.I12X100CIN 35 32,5 22 18 14,45 10,5 12 100 10 168
