W635CIN

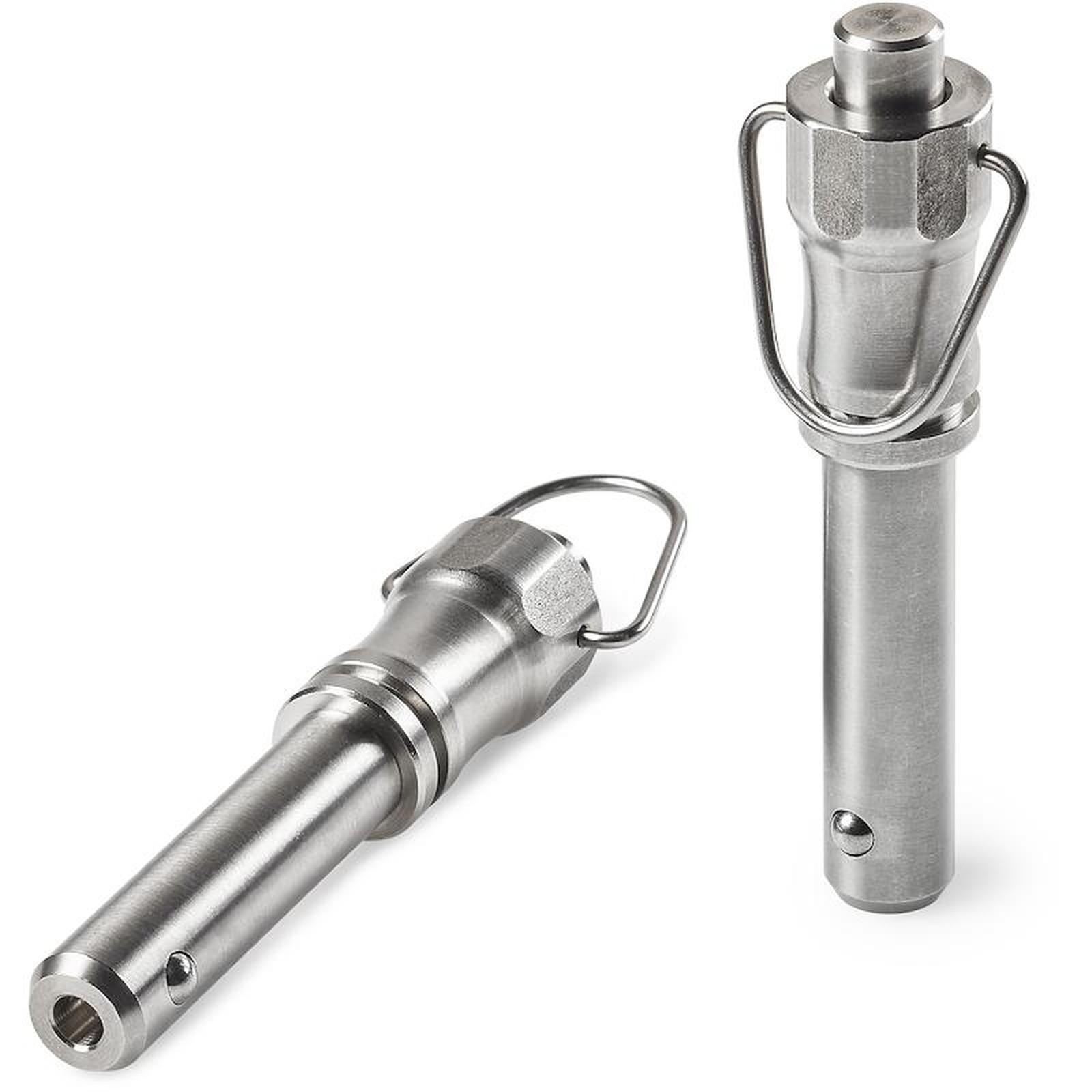

FULL STAINLESS STEEL QUICK RELEASE DETENT PIN - WITH RING
Positioners with ball and spring

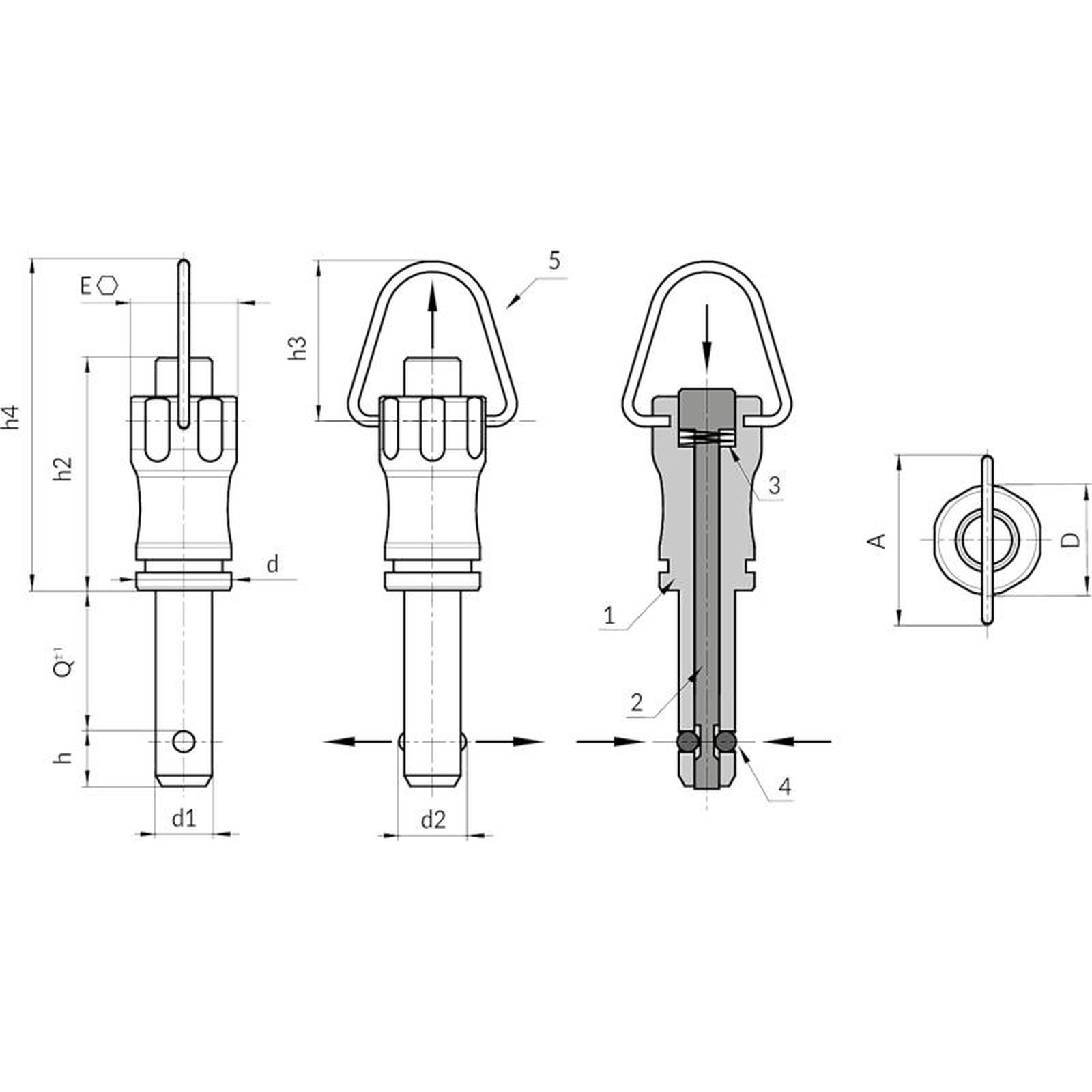

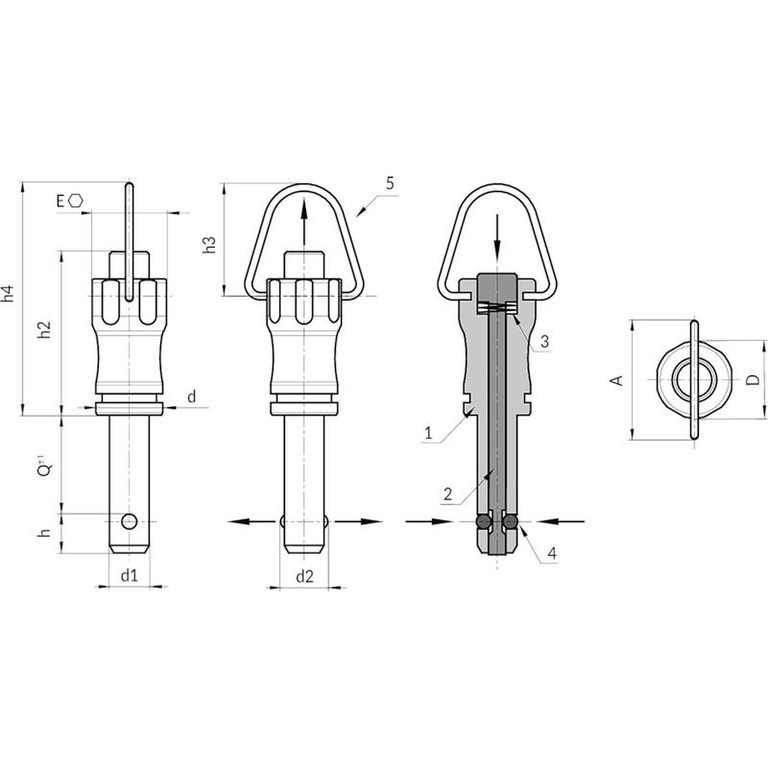

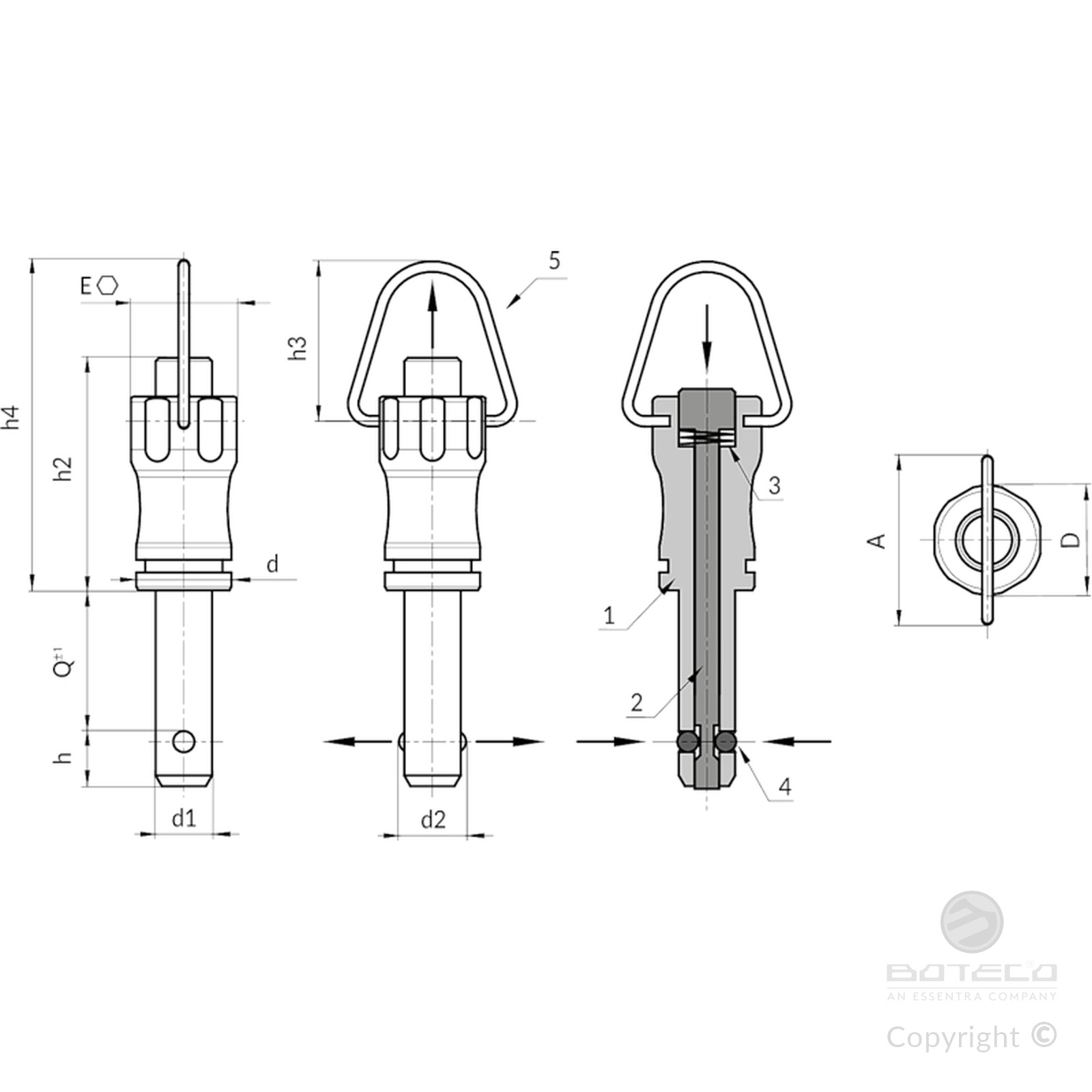

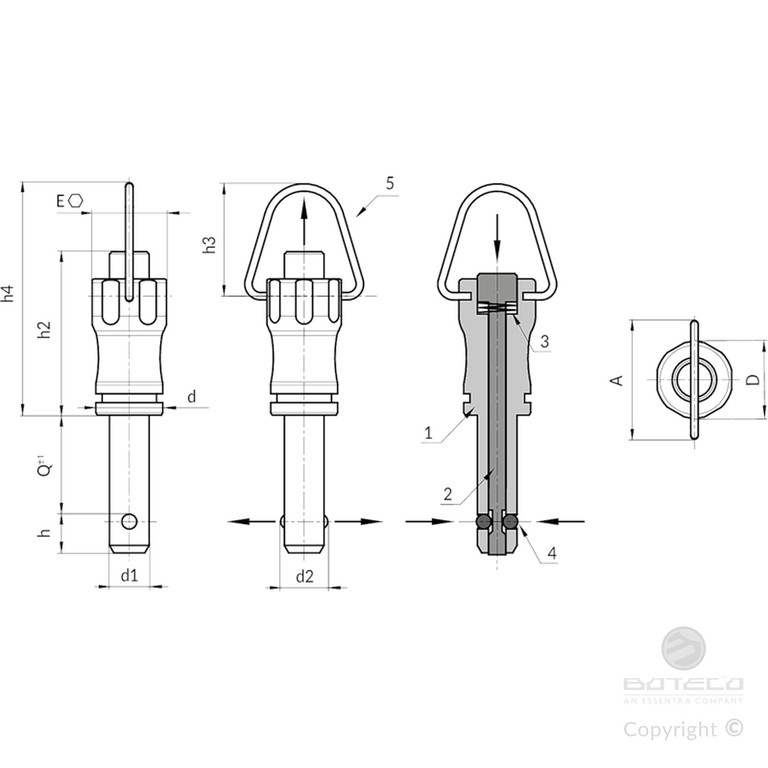

Materials:
(1) Turned stainless steel body (Aisi 303).
(2) Turned stainless steel pin (Aisi 303).
(3) Stainless steel spring (Aisi 301).
(4) Hardened stainless steel balls (Aisi 440C).
(5) Stainless steel spring ring (Aisi 302).
Surface finish:
Natural.
Colour:
Natural.
Notes:
The quick release detent pin is a quick and easy way to connect components or secure pieces to be machined.
ATTENTION:
> We recommend an H11 tolerance for the plunger stem bore.
Special Requests:
None.
Version W635 CIN: with stainless steel ring (Aisi 303)
| Code | Art. | D | d | d2 | A | E | h | h2 | h3 | h4 | d1 H9 | Q (+0.6) | Weight (g) | Shear strength to double shear strength max. kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W635011.0001 | W635011.HD05X10CIN | 11,5 | 10 | 5,5 | 18 | 11 | 5,9 | 25 | 16,5 | 35 | 5 | 10 | 12 | 15 |
| W635011.0002 | W635011.HD05X15CIN | 11,5 | 10 | 5,5 | 18 | 11 | 5,9 | 25 | 16,5 | 35 | 5 | 15 | 12 | 15 |
| W635011.0003 | W635011.HD05X20CIN | 11,5 | 10 | 5,5 | 18 | 11 | 5,9 | 25 | 16,5 | 35 | 5 | 20 | 13 | 15 |
| W635011.0004 | W635011.HD05X25CIN | 11,5 | 10 | 5,5 | 18 | 11 | 5,9 | 25 | 16,5 | 35 | 5 | 25 | 16 | 15 |
| W635011.0005 | W635011.HD05X30CIN | 11,5 | 10 | 5,5 | 18 | 11 | 5,9 | 25 | 16,5 | 35 | 5 | 30 | 19 | 15 |
| W635011.0006 | W635011.HD06X10CIN | 11,5 | 10 | 6,85 | 18 | 11 | 6,8 | 25 | 16,5 | 35 | 6 | 10 | 13 | 22 |
| W635011.0007 | W635011.HD06X15CIN | 11,5 | 10 | 6,85 | 18 | 11 | 6,8 | 25 | 16,5 | 35 | 6 | 15 | 13 | 22 |
| W635011.0008 | W635011.HD06X20CIN | 11,5 | 10 | 6,85 | 18 | 11 | 6,8 | 25 | 16,5 | 35 | 6 | 20 | 13,5 | 22 |
| W635011.0009 | W635011.HD06X25CIN | 11,5 | 10 | 6,85 | 18 | 11 | 6,8 | 25 | 16,5 | 35 | 6 | 25 | 14 | 22 |
| W635011.0010 | W635011.HD06X30CIN | 11,5 | 10 | 6,85 | 18 | 11 | 6,8 | 25 | 16,5 | 35 | 6 | 30 | 14,5 | 22 |
| W635011.0011 | W635011.HD06X35CIN | 11,5 | 10 | 6,85 | 18 | 11 | 6,8 | 25 | 16,5 | 35 | 6 | 35 | 17,5 | 22 |
| W635011.0012 | W635011.HD06X40CIN | 11,5 | 10 | 6,85 | 18 | 11 | 6,8 | 25 | 16,5 | 35 | 6 | 40 | 21 | 22 |
| W635011.0013 | W635011.HD06X45CIN | 11,5 | 10 | 6,85 | 18 | 11 | 6,8 | 25 | 16,5 | 35 | 6 | 45 | 23 | 22 |
| W635011.0014 | W635011.HD06X50CIN | 11,5 | 10 | 6,85 | 18 | 11 | 6,8 | 25 | 16,5 | 35 | 6 | 50 | 26 | 22 |
| W635015.0001 | W635015.HD08X20CIN | 15,5 | 13,5 | 9,5 | 24 | 15 | 7,8 | 33 | 23 | 47 | 8 | 20 | 26 | 38 |
| W635015.0002 | W635015.HD08X25CIN | 15,5 | 13,5 | 9,5 | 24 | 15 | 7,8 | 33 | 23 | 47 | 8 | 25 | 27 | 38 |
| W635015.0003 | W635015.HD08X30CIN | 15,5 | 13,5 | 9,5 | 24 | 15 | 7,8 | 33 | 23 | 47 | 8 | 30 | 27,5 | 38 |
| W635015.0004 | W635015.HD08X35CIN | 15,5 | 13,5 | 9,5 | 24 | 15 | 7,8 | 33 | 23 | 47 | 8 | 35 | 28 | 38 |
| W635015.0005 | W635015.HD08X40CIN | 15,5 | 13,5 | 9,5 | 24 | 15 | 7,8 | 33 | 23 | 47 | 8 | 40 | 28,5 | 38 |
| W635015.0006 | W635015.HD08X45CIN | 15,5 | 13,5 | 9,5 | 24 | 15 | 7,8 | 33 | 23 | 47 | 8 | 45 | 28,5 | 38 |
| W635015.0007 | W635015.HD08X50CIN | 15,5 | 13,5 | 9,5 | 24 | 15 | 7,8 | 33 | 23 | 47 | 8 | 50 | 30 | 38 |
| W635015.0008 | W635015.HD10X20CIN | 15,5 | 13,5 | 12 | 24 | 15 | 8,9 | 33 | 23 | 47 | 10 | 20 | 27,5 | 60 |
| W635015.0009 | W635015.HD10X25CIN | 15,5 | 13,5 | 12 | 24 | 15 | 8,9 | 33 | 23 | 47 | 10 | 25 | 28 | 60 |
| W635015.0010 | W635015.HD10X30CIN | 15,5 | 13,5 | 12 | 24 | 15 | 8,9 | 33 | 23 | 47 | 10 | 30 | 28,5 | 60 |
| W635015.0011 | W635015.HD10X35CIN | 15,5 | 13,5 | 12 | 24 | 15 | 8,9 | 33 | 23 | 47 | 10 | 35 | 29 | 60 |
| W635015.0012 | W635015.HD10X40CIN | 15,5 | 13,5 | 12 | 24 | 15 | 8,9 | 33 | 23 | 47 | 10 | 40 | 29,5 | 60 |
| W635015.0013 | W635015.HD10X45CIN | 15,5 | 13,5 | 12 | 24 | 15 | 8,9 | 33 | 23 | 47 | 10 | 45 | 30 | 60 |
| W635015.0014 | W635015.HD10X50CIN | 15,5 | 13,5 | 12 | 24 | 15 | 8,9 | 33 | 23 | 47 | 10 | 50 | 30,5 | 60 |
| W635015.0015 | W635015.HD10X60CIN | 15,5 | 13,5 | 12 | 24 | 15 | 8,9 | 33 | 23 | 47 | 10 | 60 | 31,5 | 60 |
| W635022.0001 | W635022.HD12X25CIN | 22 | 20 | 14,5 | 33 | 21 | 9,9 | 39,5 | 30 | 59,5 | 12 | 25 | 62,5 | 86 |
| W635022.0002 | W635022.HD12X30CIN | 22 | 20 | 14,5 | 33 | 21 | 9,9 | 39,5 | 30 | 59,5 | 12 | 30 | 63,5 | 86 |
| W635022.0003 | W635022.HD12X35CIN | 22 | 20 | 14,5 | 33 | 21 | 9,9 | 39,5 | 30 | 59,5 | 12 | 35 | 64,5 | 86 |
| W635022.0004 | W635022.HD12X40CIN | 22 | 20 | 14,5 | 33 | 21 | 9,9 | 39,5 | 30 | 59,5 | 12 | 40 | 65,5 | 86 |
| W635022.0005 | W635022.HD12X45CIN | 22 | 20 | 14,5 | 33 | 21 | 9,9 | 39,5 | 30 | 59,5 | 12 | 45 | 66 | 86 |
| W635022.0006 | W635022.HD12X50CIN | 22 | 20 | 14,5 | 33 | 21 | 9,9 | 39,5 | 30 | 59,5 | 12 | 50 | 75,5 | 86 |
| W635022.0007 | W635022.HD12X60CIN | 22 | 20 | 14,5 | 33 | 21 | 9,9 | 39,5 | 30 | 59,5 | 12 | 60 | 77,5 | 86 |
| W635022.0008 | W635022.HD12X70CIN | 22 | 20 | 14,5 | 33 | 21 | 9,9 | 39,5 | 30 | 59,5 | 12 | 70 | 79 | 86 |
| W635022.0009 | W635022.HD12X80CIN | 22 | 20 | 14,5 | 33 | 21 | 9,9 | 39,5 | 30 | 59,5 | 12 | 80 | 81 | 86 |
| W635022.0010 | W635022.HD16X30CIN | 22 | 20 | 19 | 33 | 21 | 13,1 | 39,5 | 30 | 59,5 | 16 | 30 | 74 | 153 |
| W635022.0011 | W635022.HD16X35CIN | 22 | 20 | 19 | 33 | 21 | 13,1 | 39,5 | 30 | 59,5 | 16 | 35 | 75 | 153 |
| W635022.0012 | W635022.HD16X40CIN | 22 | 20 | 19 | 33 | 21 | 13,1 | 39,5 | 30 | 59,5 | 16 | 40 | 76 | 153 |
| W635022.0013 | W635022.HD16X45CIN | 22 | 20 | 19 | 33 | 21 | 13,1 | 39,5 | 30 | 59,5 | 16 | 45 | 77 | 153 |
| W635022.0014 | W635022.HD16X50CIN | 22 | 20 | 19 | 33 | 21 | 13,1 | 39,5 | 30 | 59,5 | 16 | 50 | 78 | 153 |
| W635022.0015 | W635022.HD16X60CIN | 22 | 20 | 19 | 33 | 21 | 13,1 | 39,5 | 30 | 59,5 | 16 | 60 | 80,5 | 153 |
| W635022.0016 | W635022.HD16X70CIN | 22 | 20 | 19 | 33 | 21 | 13,1 | 39,5 | 30 | 59,5 | 16 | 70 | 83 | 153 |
| W635022.0017 | W635022.HD16X80CIN | 22 | 20 | 19 | 33 | 21 | 13,1 | 39,5 | 30 | 59,5 | 16 | 80 | 85 | 153 |
