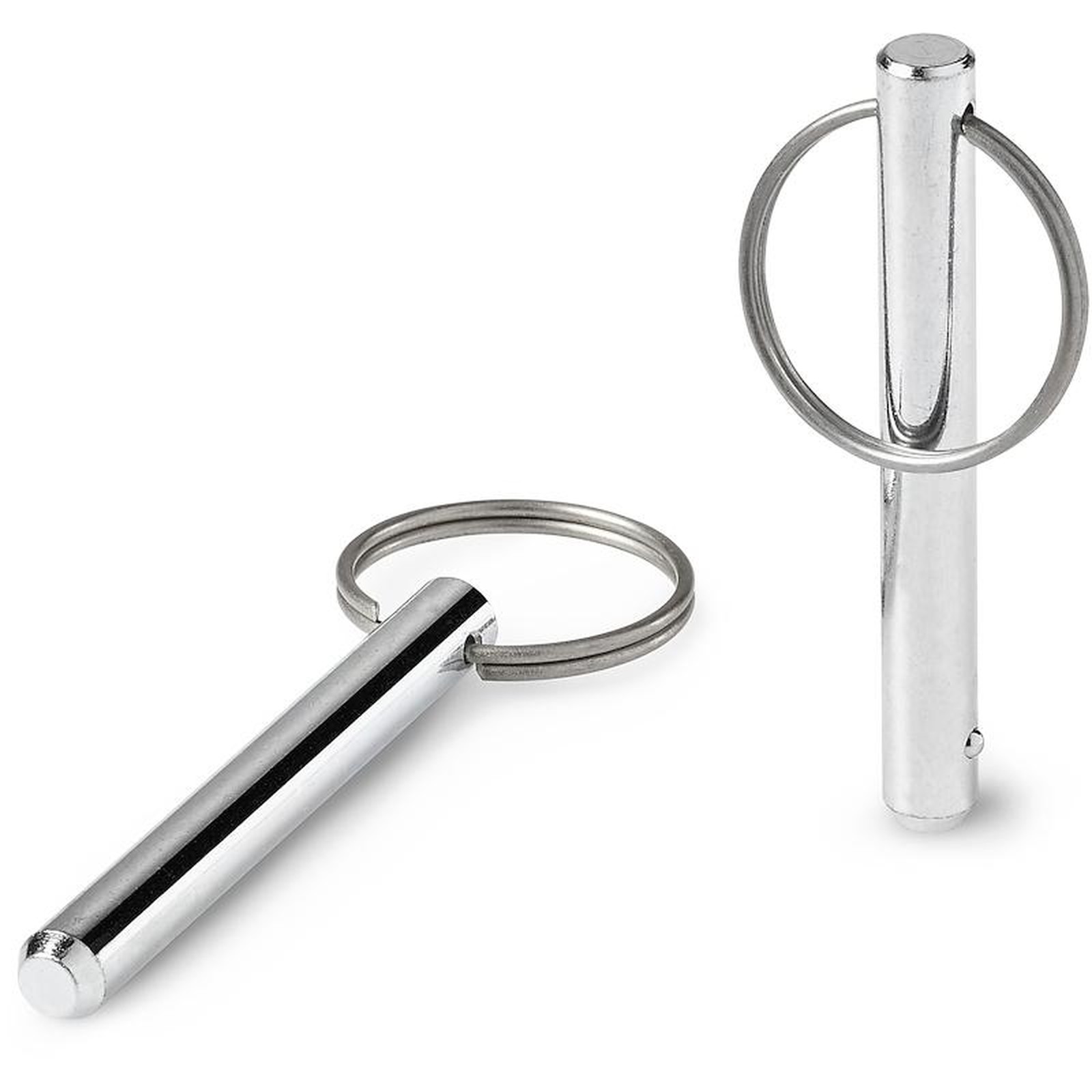

QUICK RELEASE STEEL RING DETENT PIN
22
W630
Posizionatori con sfera e molla

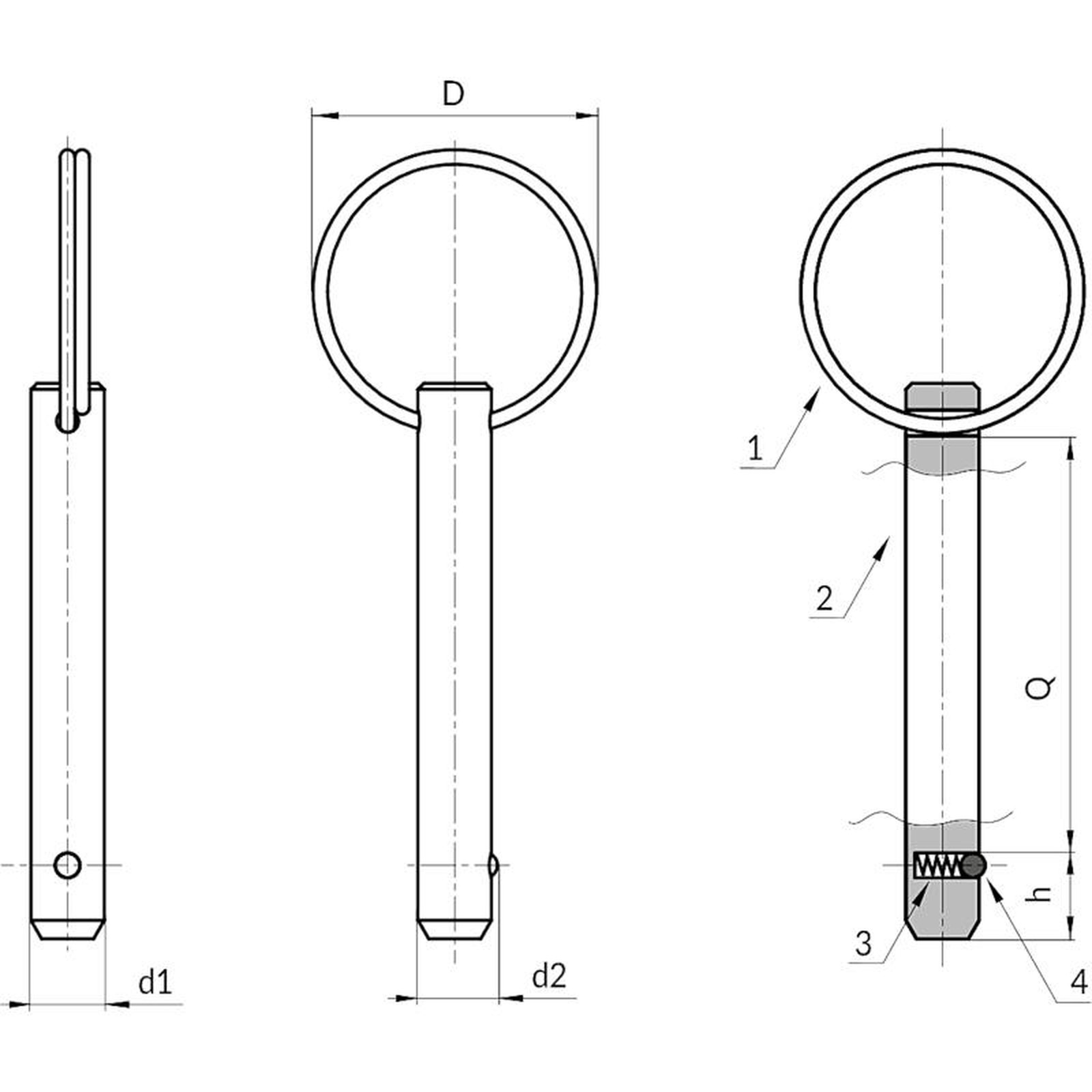

Materials:
(1) Stainless steel spring ring (Aisi 302).
(2) Turned free-cutting steel pin.
(3) Stainless steel spring (Aisi 301).
(4) Hardened stainless steel balls (Aisi 440C).
Surface finish:
(1-4) Natural.
(2) Standard blue galvanising.
Notes:
The quick release detent pin is a quick and easy way to connect components or secure pieces to be machined.
ATTENTION:
> We recommend an H11 tolerance for the plunger stem bore.
Special Requests:
None.
| Code | Art. | D | d2 | h | d1 H9 | Q (+0.6) | Weight (g) | Shear strength to double shear strength max. kN |
|---|---|---|---|---|---|---|---|---|
| W630023.0001 | W630023.VZD06X15 | 23 | 6.5 | 7 | 6 | 15 | 7 | 22 |
| W630023.0002 | W630023.VZD06X20 | 23 | 6.5 | 7 | 6 | 20 | 8 | 22 |
| W630023.0003 | W630023.VZD06X30 | 23 | 6.5 | 7 | 6 | 30 | 10 | 22 |
| W630023.0004 | W630023.VZD06X40 | 23 | 6.5 | 7 | 6 | 40 | 12 | 22 |
| W630028.0001 | W630028.VZD08X30 | 28 | 8.8 | 8 | 8 | 30 | 19 | 38 |
| W630028.0002 | W630028.VZD08X40 | 28 | 8.8 | 8 | 8 | 40 | 23 | 38 |
| W630028.0003 | W630028.VZD08X50 | 28 | 8.8 | 8 | 8 | 50 | 27 | 38 |
